ACIQ Extreme Series 2-Zone Ductless Mini Split AC & Heat Pump 18000 BTU (12K+24K), Floor Console Units, 230V

OVERVIEW

ACIQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ACIQ-18Z-HH-M3C, you can have up to 3 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.

QUICK FACTS

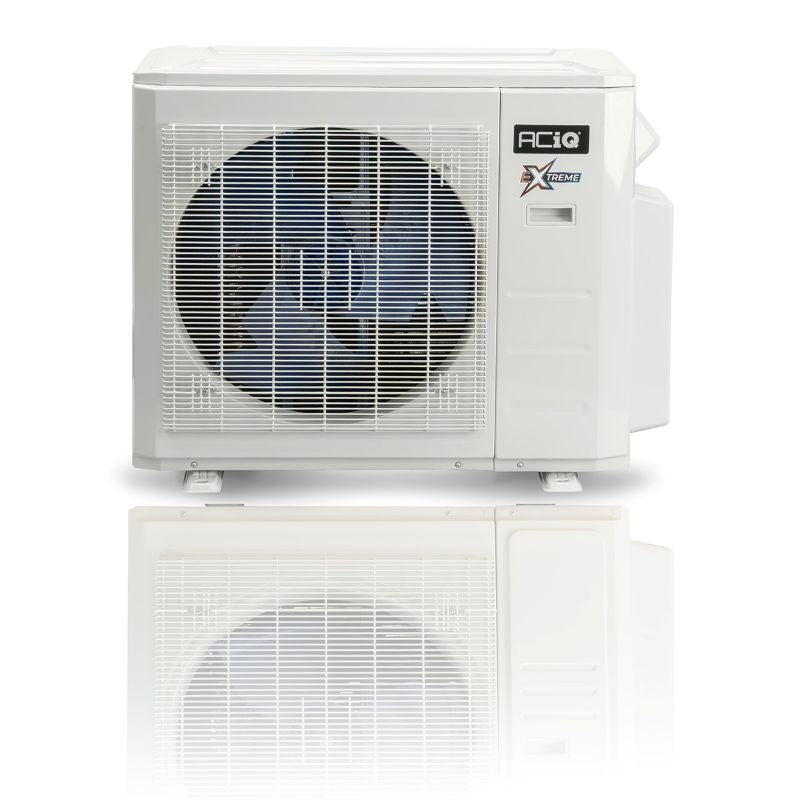

• 18,000 BTU, 25 SEER multi zone heat pump condenser
• Designed to function with up to 3 attached air handlers
• Efficient cooling from -22°F to 122°F outdoor temperatures
• Efficient heating from -22°F to 75°F outdoor temperatures
• Integrated Extreme Heat technology with base pan heater
• Gold Fin full-protection coating on condenser coil
• Quiet operation at even the highest workloads

18,000 BTU, 20 SEER

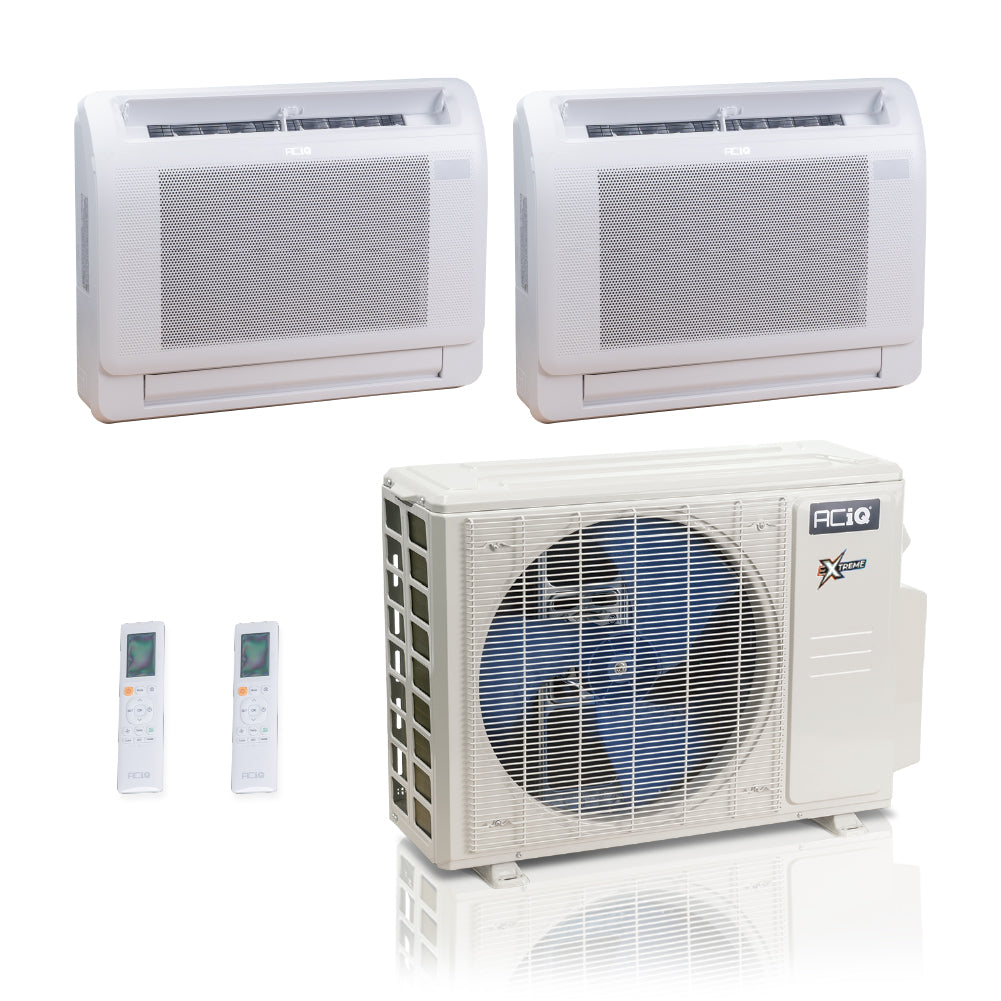

The 18,000 BTU, ACIQ-18Z-HH-M3C is designed to easily support up to 3 air handlers at up to 1.25 times the condenser BTU rating, or 22,500 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 25 SEER, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.

Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACIQ condensers, a minimum of two air handlers is needed for the unit to function.

---

Extreme Heat Base Pan Heater Technology

Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.

---

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

---

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

---

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

---

Installation and Maintenance

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.

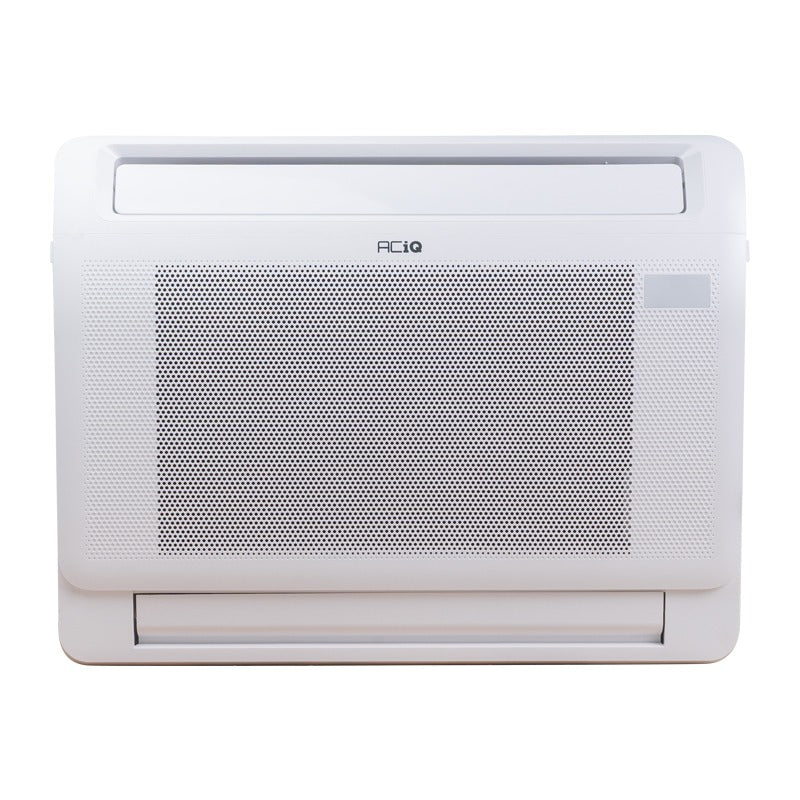

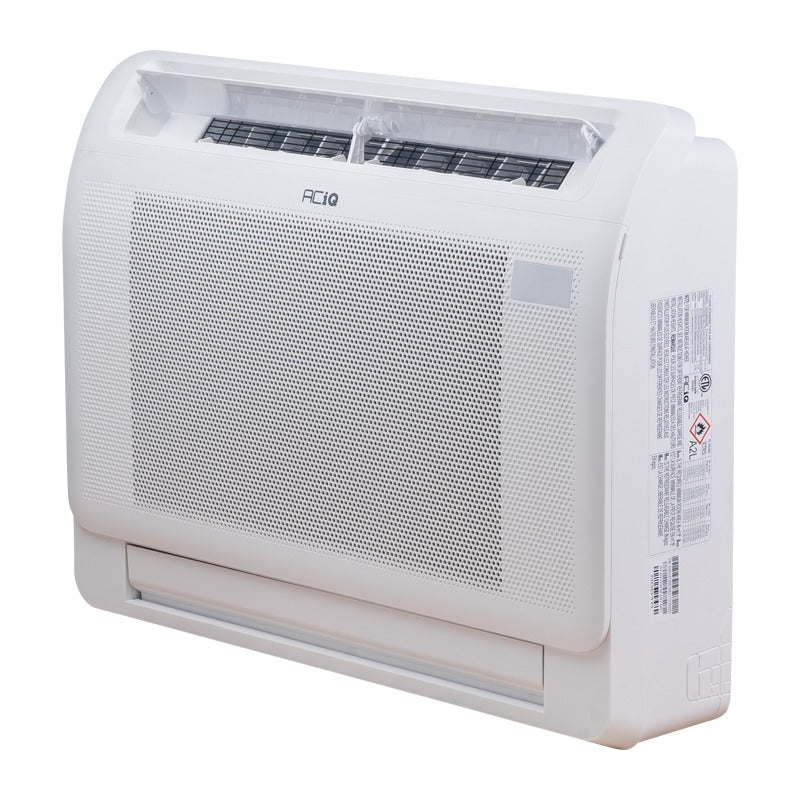

ACIQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.

Optimized for Heat

Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.

FEATURES

• 12,000 BTU of Heating or Cooling
• Dry and Fan modes also available
• Good for a small room in most climates
• Remote control thermostat included

Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.

ACIQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.

The ACIQ-18FM-HH-MB and ACIQ-24FM-HH-MB creatively solve various installation issues.

Unlevel Surfaces: The pitch of the roof is often reflected indoors as well, providing angled surfaces that make mounting traditional air handlers impossible. This system uses threaded rod to allow the air handler to be level, even when the walls are not. The threaded rod can be adjusted to accommodate all geometry angles, allowing the system to touch the ceiling or hang several feet below it

Uninsulated Roofs: The cassette and concealed duct air handler systems want at least a foot of space between the ceiling and the roof, this unit can work with a gap as small as one inch, which is what you often see with metal buildings and 3 season rooms. The air handler will be located near the edge of the room, blowing towards the opposite edge of the room, which is different than a cassette system, that blows air in all directions and is located in the center of a room. Sun Rooms: The air handler is actually mounted directly to the wall, fitting perfectly under the windowsill, elevated about 2 inches from the floor, even thou this is referred to as a floor mounted air handler, there is no need to drill or modify the floor as all connections can go thru the wall. Perfect for rooms that are mostly windows, these units pull air from the bottom and blow the air upwards, allowing heating the room in winter and automatically shutting off when the large windows are opened during the summer with the optional door-open sensor.

Floor Installation: The unit can be mounted to the floor when drilling holes into the wall is highly undesirable, as it common with brick/marble surfaces. The refrigerant/electrical/drain line can be run thru the floor and entirely hidden from view. The system is pre-wired for a 240vac condensate pump with over-flow shutoff connections.

Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
