ACIQ Essentials Series 2-Zone Ductless Mini Split AC & Heat Pump 24000 BTU (18K+18K), Wall Mount Units, 230V - R32
Product Overview
The ACIQ Essentials 24,000 BTU Dual Zone Wall Mounted Mini Split System (18+18) is a smart, reliable solution for cooling and heating individual spaces! Perfect for bedrooms, offices, or any 2 rooms up to 1000 square feet. ACIQ delivers high-end performance without the high-end price tag. With a 23 SEER2 efficiency rating, built-in WiFi control, and quiet operation, this system keeps you comfortable all year long—without driving up your energy bill or disrupting your day. It’s designed for easy installation by a licensed HVAC professional.
Quick Facts
- Intelligent Comfort at an Affordable Cost
- Ideal for 2 Spaces up to 1000 sq ft

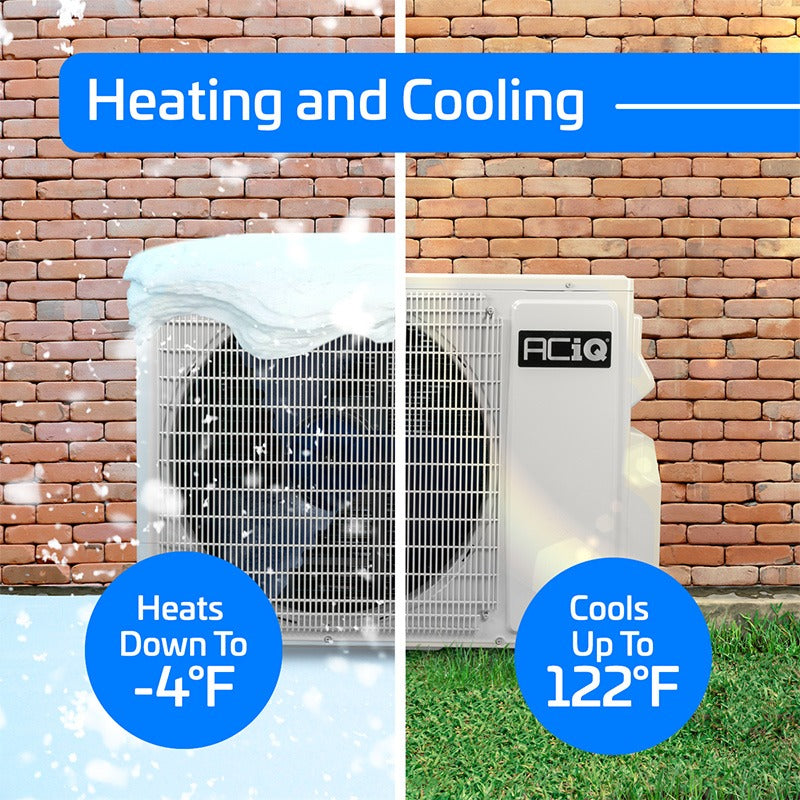

- Heating Temperature Range: -13°F–75°F
- Cooling Temperature Range: -13°F–125°F
- Uses Environmentally Friendly R32 Refrigerant
- High Energy Efficiency: 23 SEER2 Rating & Energy Star Certified
- Wi-Fi Ready & Pairs with your Favorite Smart Devices
Missing description: https://hvacdirect.com/24-000-btu-aciq-essentials-multi-zone-mini-split-heat-pump-condenser-r32-230v-aciq-24z-e-m3.html
Essentials Performance
ACIQ Essentials air handlers can be used with any ACIQ Multizone condenser or the Essentials Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.
Features
- 18,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
Intelligent Heating and Cooling
The ACIQ-18W-E-M air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.
WiFi Options
ACIQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACIQ is also compatible with Amazon Alexa and Google Assistant.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

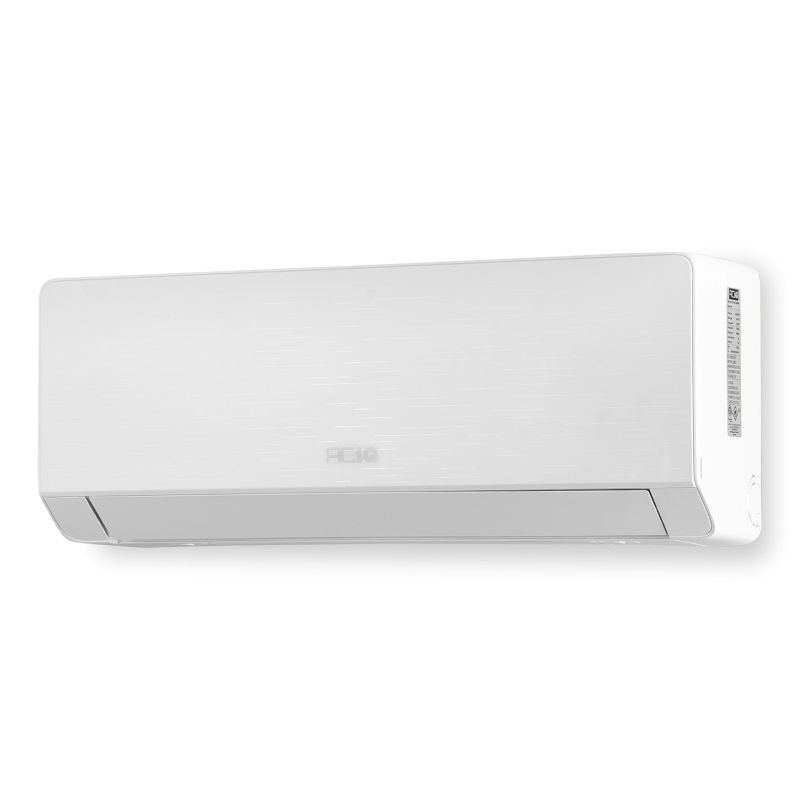

Wall Mounted
Traditional wall-mounted air handlers are the most popular ductless choice due to low cost and ease of installation. Wall mounted units are located high on an outside wall, with refrigerant lines and condensation drain hose exiting the back through a 3" wall penetration. Return air is brought in through vents in the top of the unit, and cooled or heated air exits the lower front through a sweepable louver. Wall mounted air handlers are WiFi compatible and can be controlled by the free NetHome Plus app or by voice assistants such as Alexa or Google Home.
Smartphone App
In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

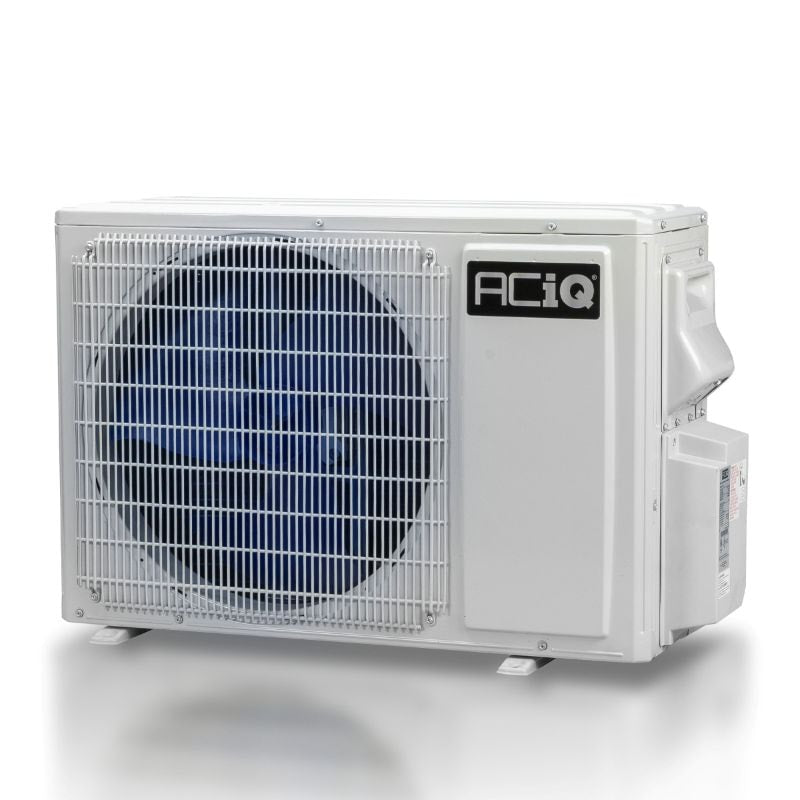

Technical Specifications — ACIQ-24Z-E-M3
| sku | ACIQ-24Z-E-M3 |
|---|---|
| refrigerant charge | 73.8 ft |
| weight (in lbs) | 102.500000 |
| brand/manufacturer | ACiQ |
| product features | Low Ambient Heating |
| hspf2 | 10.0 |
| cooling btu | 24000 BTU |
| heating btu | 24000 BTU |
| maximum cfm | 2235 |
| decibel level (dba) | 67 |
| refrigerant | R32 |
| seer2 (efficiency) | 23 |
| compressor type | Rotary |
| liquid line | 1/4" |
| suction line | 3/8" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| phase | Single Phase |
| max breaker size | 35A |
| min. breaker size | 30A |
| btu/tonnage | 24,000 BTU/2 Ton |
| mini split type | Wall Mounted |
| zone compatibility | Multi Zone |
| ambient temperature range | -13F ~ 125F |
| height | 27.56" |
| width | 38.58" |
| depth | 15.28" |
| warranty | 6 Year Compressor & 4 Year Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-18W-E-M
| sku | ACIQ-18W-E-M |
|---|---|
| weight (in lbs) | 37.480000 |
| brand/manufacturer | ACiQ |
| cooling btu | 18,000 BTU |
| heating btu | 18,000 BTU |
| maximum cfm | Up to 647 CFM |
| decibel level (dba) | As low as 38 Decibels |
| electric heat | Heat Pump |
| refrigerant | R32 |
| liquid line | 1/4" |
| suction line | 1/2" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| phase | Single Phase |
| btu/tonnage | 18,000 BTU/1.5 Ton |
| mini split type | Wall Mounted |
| zone compatibility | Multi Zone, Single Zone |
| height | 13.15" |
| width | 44.88" |
| depth | 9.02" |
| warranty | 6 Year Compressor & 4 Year Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
