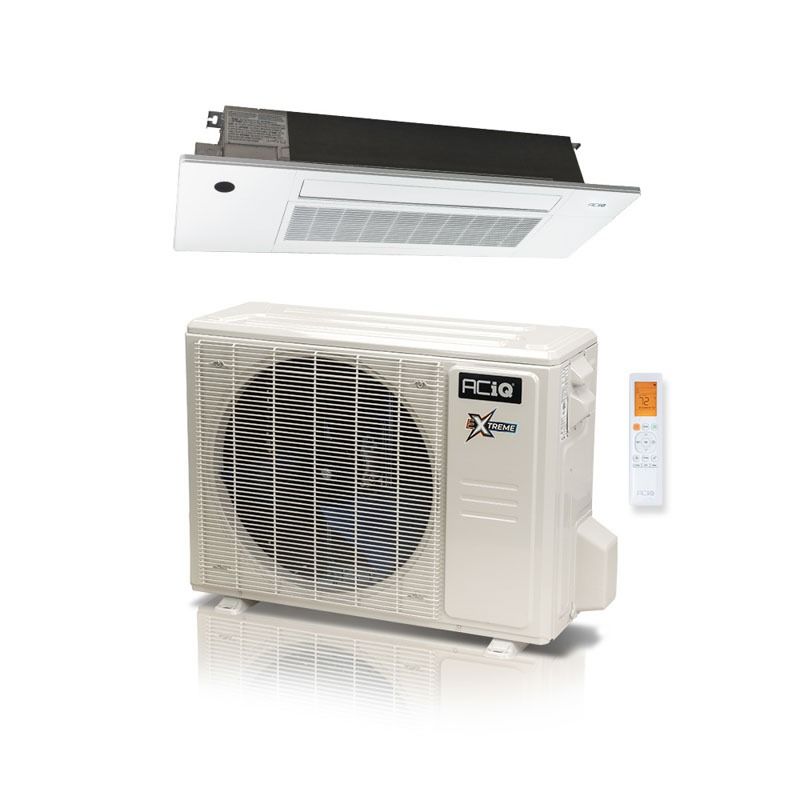

ACIQ 9,000 BTU 24 SEER2 ACiQ Single Zone Slim Ceiling Cassette Mini Split System | Extreme Series - R454B | 230V

SKU: ACIQ-09ZPL-HP230C + SCC-0612-HH-MB

System highlights
AC Type
One-way Cassette
Refrigerant Type
R454B
Brand
ACIQ
Outdoor Unit
9000 BTU VO (0.75 TON)
Indoor Unit
9000 BTU (0.75 TON)
Voltage
208-230V
Looking For
One-way Cassette
Cooling Area (sq.ft.)
250-400
Series
Extreme Series
SEER2 Rating
27.4
Features
Low Ambient Heating

Price

$2,099.99
Shipping calculated at checkout.
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.
View full details
ACIQ
ACIQ 9,000 BTU 24 SEER2 ACiQ Single Zone Slim Ceiling Cassette Mini Split System | Extreme Series - R454B | 230V

Product Overview

The ACiQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.

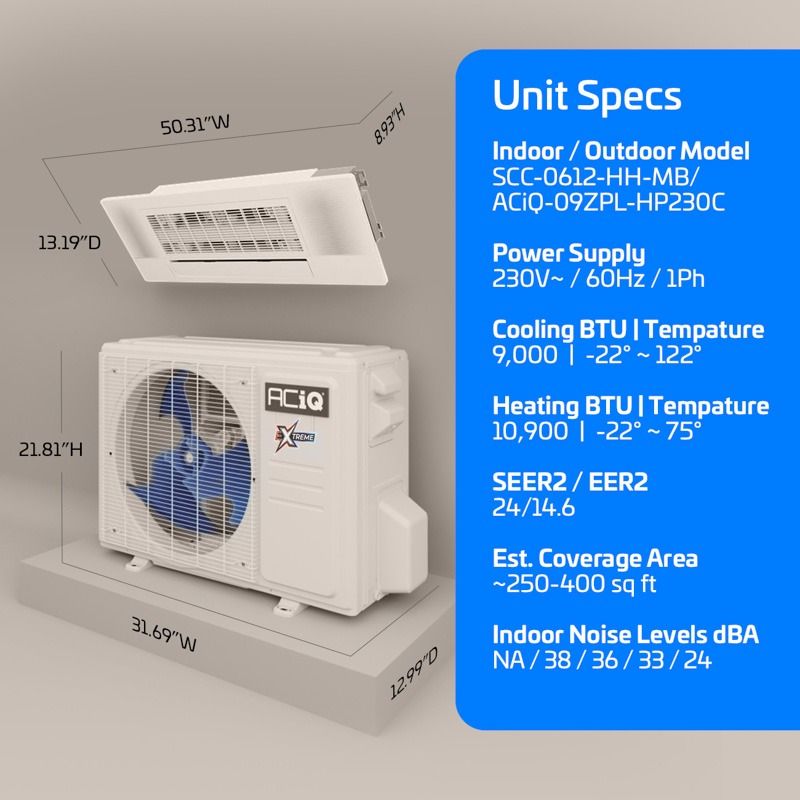

Technical Specifications — ACIQ-09ZPL-HP230C

sku ACIQ-09ZPL-HP230C
refrigerant charge 35.27 oz.
weight 78.700000
manufacturer ACiQ
product features Low Ambient Heating
hspf2 12.5
cooling btu 9,000 BTU
heating btu 12,000 BTU
maximum cfm 1470.6
decibel level (dba) 56
electric heat Heat Pump
energy star Yes
refrigerant R454B
seer2 27.4
compressor type Rotary
liquid line 1/4"
suction line 3/8"
electrical 208/230V, 1 Phase, 60 Hz
electric phase filter Single Phase
max breaker size 15A
min. breaker size 15A
tonnage 0.75 Ton
min/max outdoor temp for heating -22~75 °F / -30~24 °C
min/max outdoor temp for cooling -22~122 °F / -30~50 °C
zone compatibility Single Zone
operating mode Heating/Cooling
certification Energy Star, NEEP, UL AHRI
height 21.81"
width 31.69"
depth 12.99"
warranty 12 year compressor, 7 year parts with online registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.

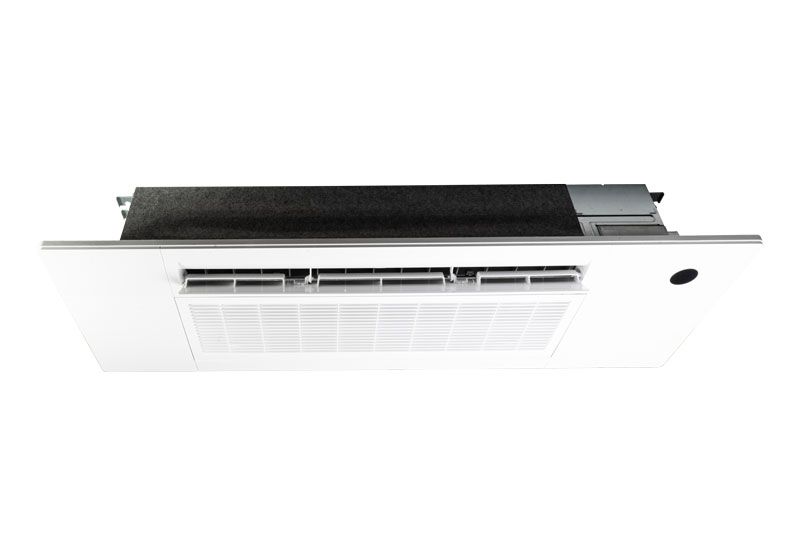

Technical Specifications — SCC-0612-HH-MB

sku SCC-0612-HH-MB
weight 82.450000
manufacturer ACiQ
controller Wireless Included
cooling btu 6,000 / 9,000 / 12,000
heating btu 6,000 / 9,000 / 12,000
maximum cfm Up to 353.20 CFM
decibel level (dba) As low as 24.0 Decibels
refrigerant R454B
liquid line 1/4"
suction line 3/8"
electrical 208/230V, 1 Phase, 60Hz
electric phase filter Single Phase
mini split type Slim Ceiling Cassette
zone compatibility Single Zone, Multi Zone
height 8.98"
width 50.31"
depth 13.19"
warranty 12 year compressor, 7 year parts with online registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.
