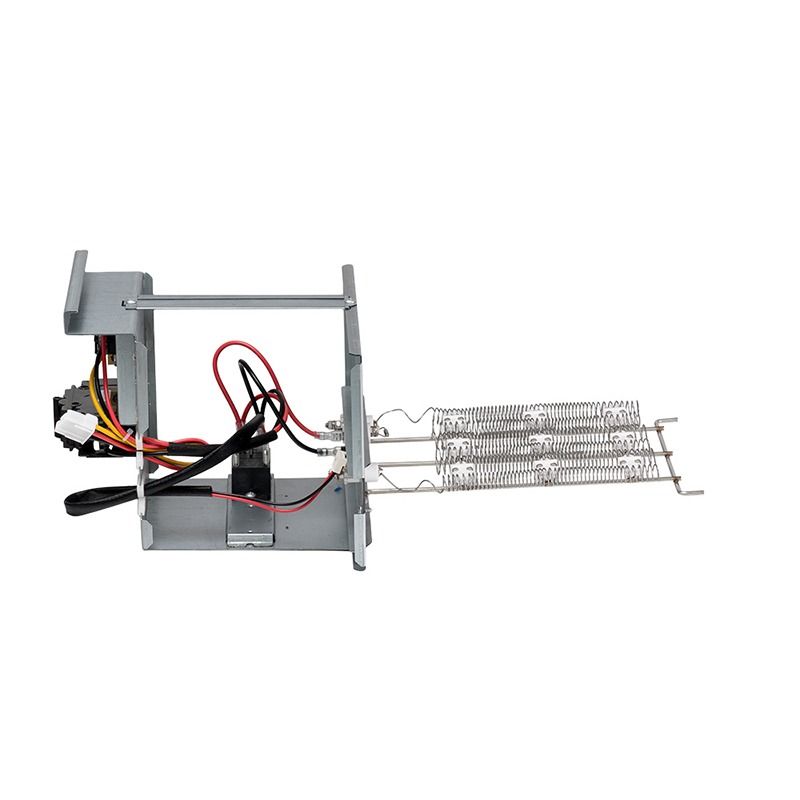

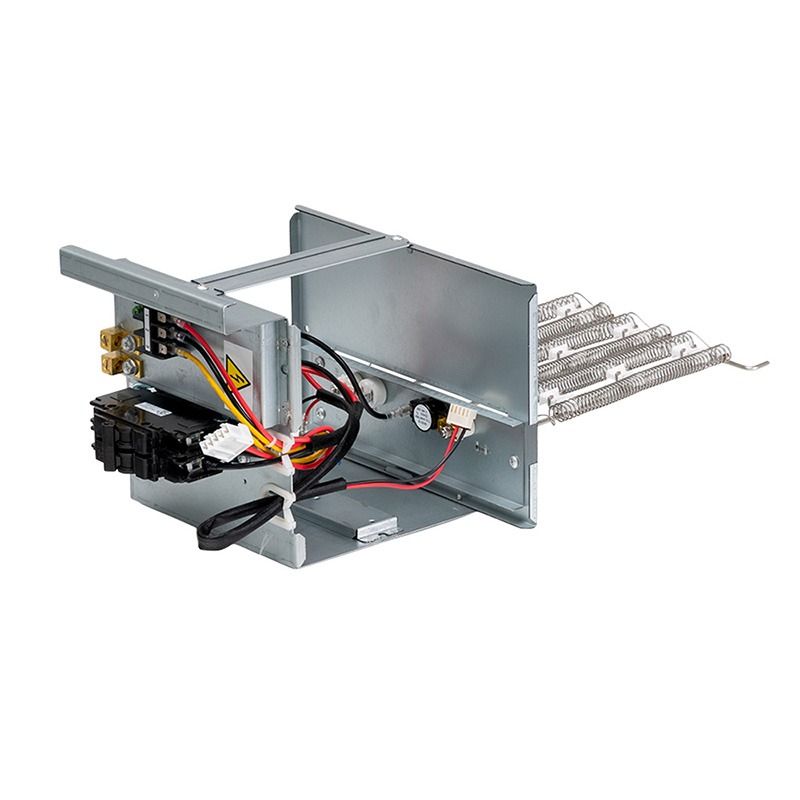

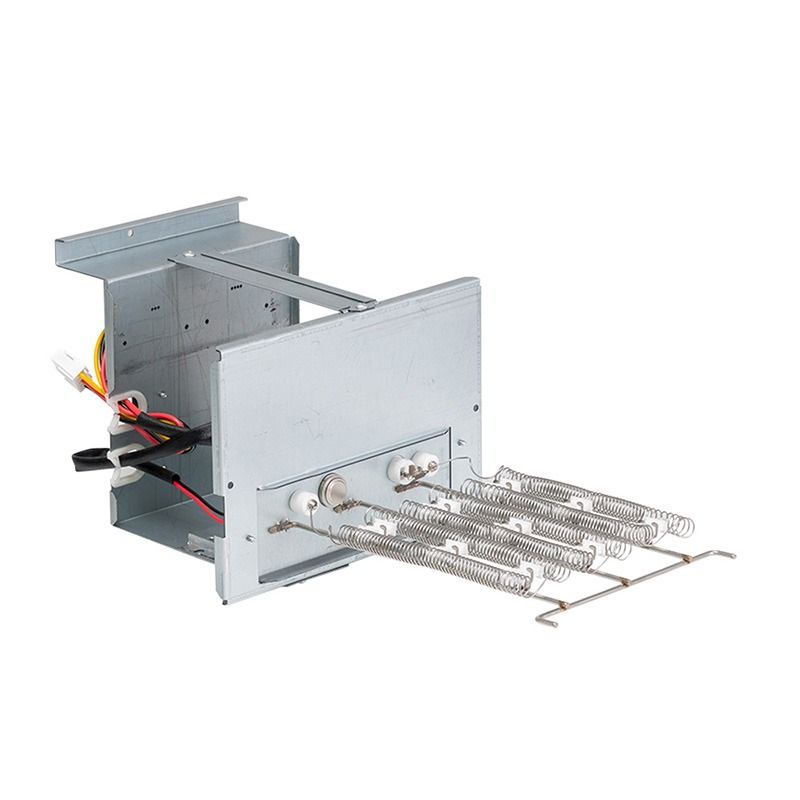

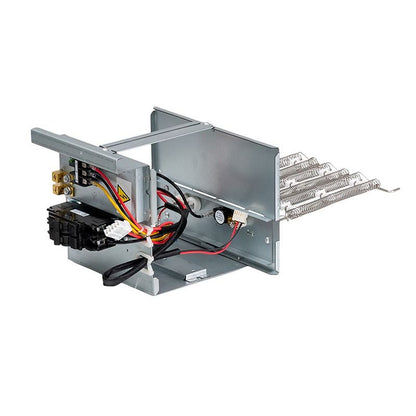

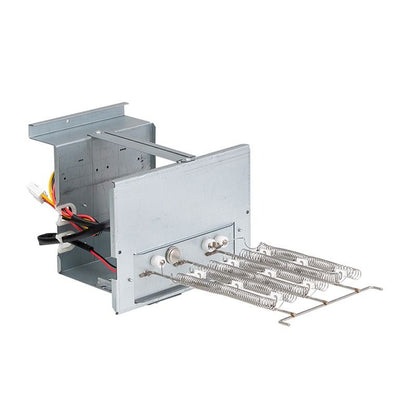

ACiQ 8 kilowatt 26,000 BTU Heater Coil
Product Overview
The EAH-08C(UL) is a 8kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.
Compatible Air Handlers
- ACiQ-18-AHD
- ACiQ-24-AHD
- ACiQ-30-AHD
- ACiQ-36-AHD
Technical Specifications — EAH-08C(UL)
| sku | EAH-08C(UL) |
|---|---|
| weight (in lbs) | 12.790000 |
| brand/manufacturer | ACiQ |
| heating btu | 26,000 |
| electric heat | 8 Kilowatts |
| electrical | 280/230V, 1 Phase, 60Hz |
| phase | Single Phase |
| max breaker size | 40 / 45 |
| min. breaker size | 37 / 42 |
| height | 8.03" |
| width | 21.06" |
| depth | 10.16" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
