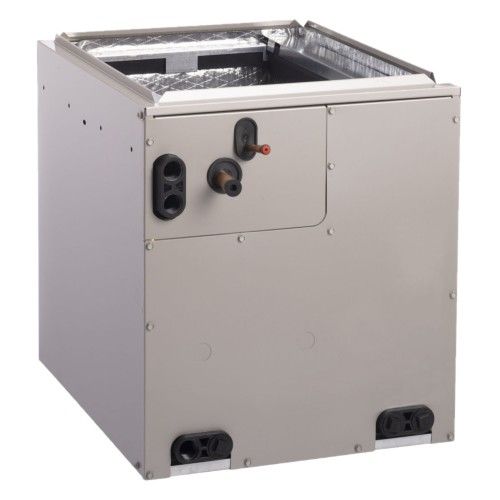

ACiQ 5 Ton 24.5" Width Multi-Positional Cased Evaporator Coil - R454B
Product Overview
ACIQ patent-pending multipoise evaporator coil with Power-V technology features a V-shape coil design provides excellent heat transfer over the coil needed to keep your system operating at peak energy efficiency and delivering consistent comfort.
Features
- Cased V coil design for efficient heat transfer in a compact size.
- Efficiency-optimizing Thermostatic Expansion Valve (TXV) metering device.
- Corrosion-resistant all-aluminum coil.
- Fully insulated cabinet.
- 10-year parts limited warranty upon registration.
- Corrosion-resistant drain pan is designed in a Polybutylene Terephthalate (PBT) material that offers unsurpassed pan strength.
The V-coil design has a lighter, corrosion-resistant aluminum construction that increases system efficiency and durability. The all-aluminum recyclable coils supports our respect for the environment while providing durable and lasting resistance to multiple sources of corrosion.
The multipoise design allows the flexibility for the coil to be installed in multiple orientations, including upflow, downflow and horizontal applications.
ACIQ's V-coils with Power-V Technology features a variety of design improvements that allow for improved installation and serviceability by your HVAC technician.
Technical Specifications — EVM5X61M24A
| sku | EVM5X61M24A |
|---|---|
| weight | 71.300000 |
| manufacturer | ACiQ |
| replaces | EVM4X |
| additional information | Metering Device: TXV; Coil Type: Aluminum V-Coil |
| configuration | Multi-Positional |
| refrigerant | R454B |
| liquid line | "3/8\"" |
| suction line | "7/8\"" |
| tonnage | 5 Ton |
| style | V-Coil |
| connection | Sweat |
| certification | UL and c-UL Listed |
| height | "35\"" |
| width | "24 1/2\"" |
| depth | "20 5/8\"" |
| warranty | 10 Year Parts Limited Warranty with Online Registration |
| safety information | PROPOSITION 65 WARNING |
