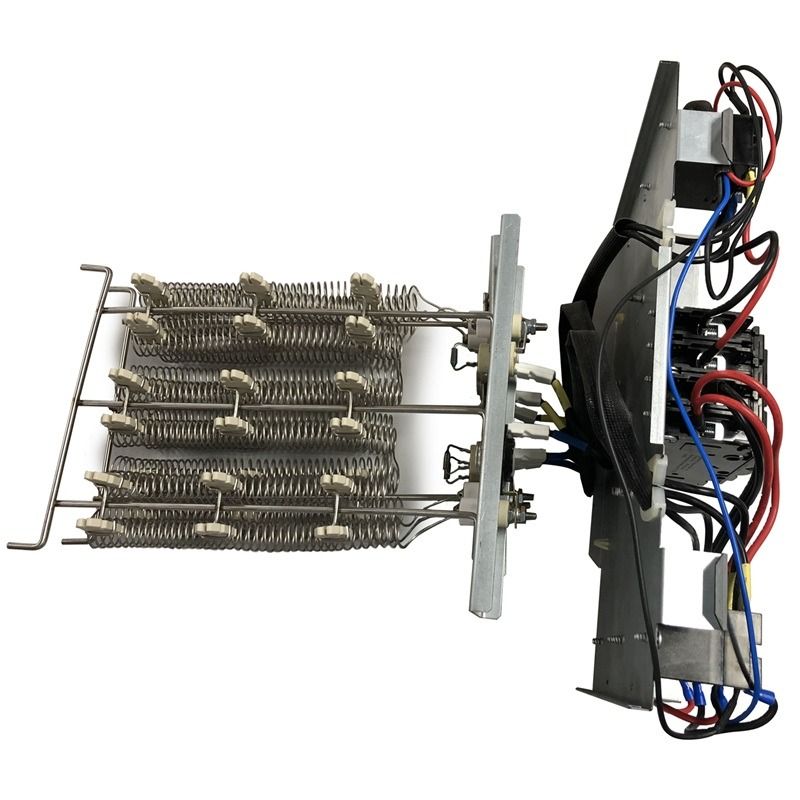

ACiQ 5 Kilowatt 16,200 BTU Heater Coil
Product Overview
The PEAH-05C(UL) is a 5kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.
Please note that this heater coil requires one 30 amp breaker to function.
Compatible Air Handlers
- ACiQ-18-PAH
- ACiQ-24-PAH
- ACiQ-30-PAH
- ACiQ-36-PAH
Technical Specifications — PEAH-05C(UL)
| sku | PEAH-05C(UL) |
|---|---|
| weight (in lbs) | 12.130000 |
| brand/manufacturer | ACiQ |
| heating btu | 16,200 |
| electric heat | 5 Kilowatts |
| electrical | 208/230V, 1 Phase, 60Hz |
| phase | Single Phase |
| max breaker size | 25 / 30 |
| min. breaker size | 23 / 27 |
| height | 8.07" |
| width | 22.00" |
| depth | 10.59" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | SubmittalYou will need Adobe® Acrobat® Reader to view PDF documents. |
