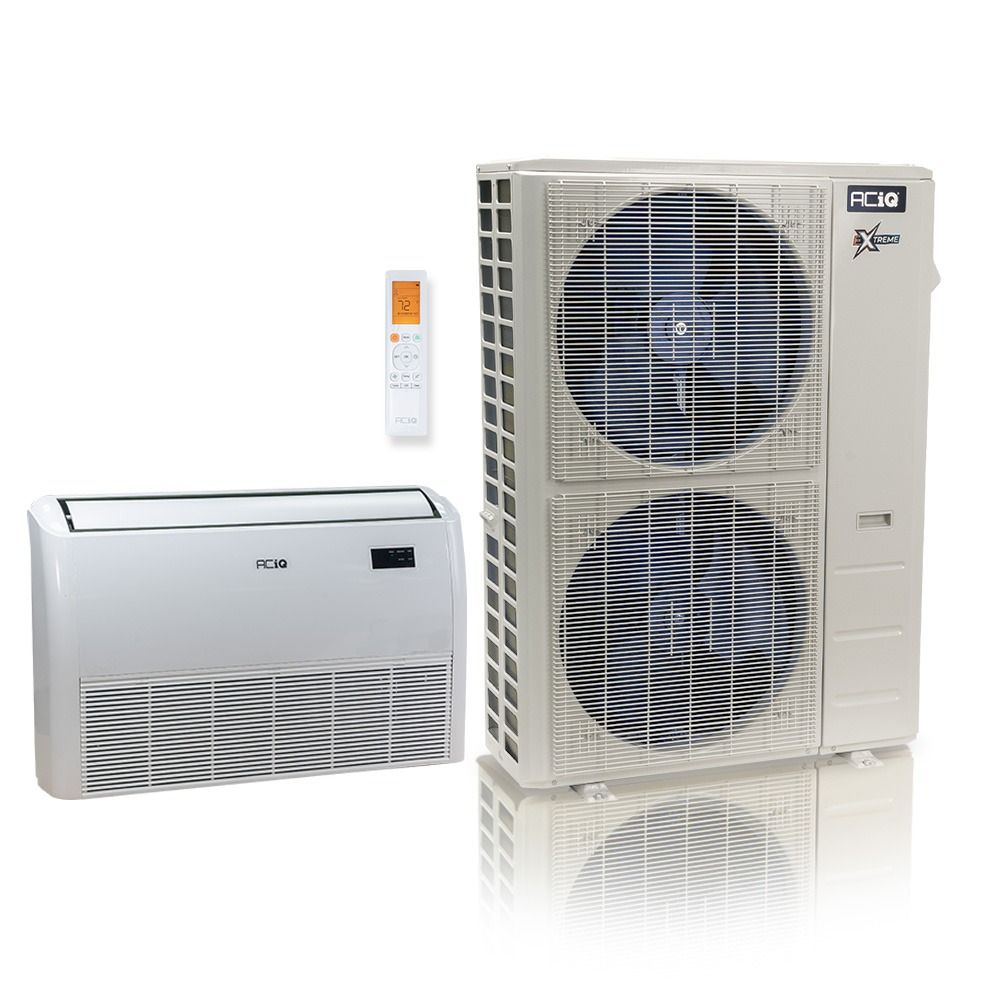

ACiQ 48,000 BTU 23 SEER ACiQ Single Zone Floor Mount Mini Split System | Extreme Series
Product Overview
48,000 BTU ACIQ Extreme Single Zone Mini Split Heat Pump Condenser - R454B | 230V
OVERVIEW
The ACIQ Extreme series features hyper heat technology that enables continuous heating all the way down to -22 degrees outside. With high SEER2 and high HSPF, you get maximum efficiency whether you are cooling or heating your space.
QUICK FACTS
- Maximum performance at an affordable cost
- Ideal for large rooms (depending on climate)
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Gold fin condenser full-protection coating
- Quiet operation at even the highest workloads
High capacity, high efficiency

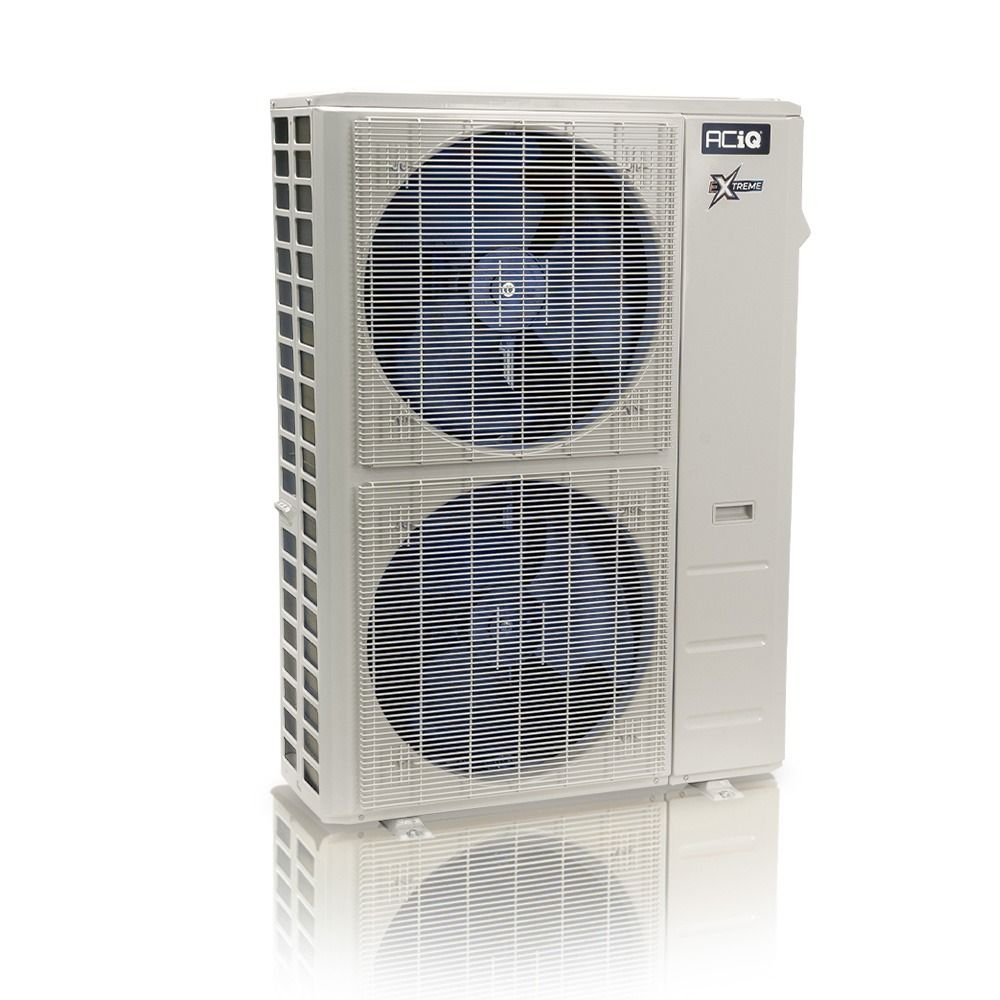

The ACIQ-48ZPL-HP230B Condenser, when matched with the a wall mounted, ceiling cassette, concealed duct or floor mount air handler, has enough capacity for large rooms. The dual rotary compressor and variable inverter technology give this system exceptionally high efficiency ratings.
Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.

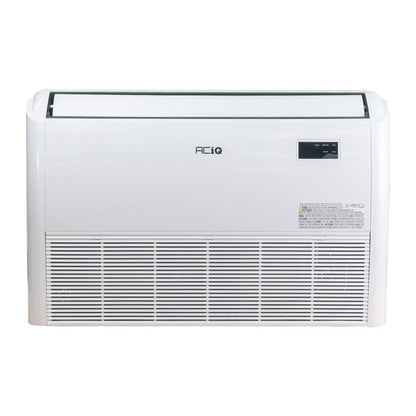

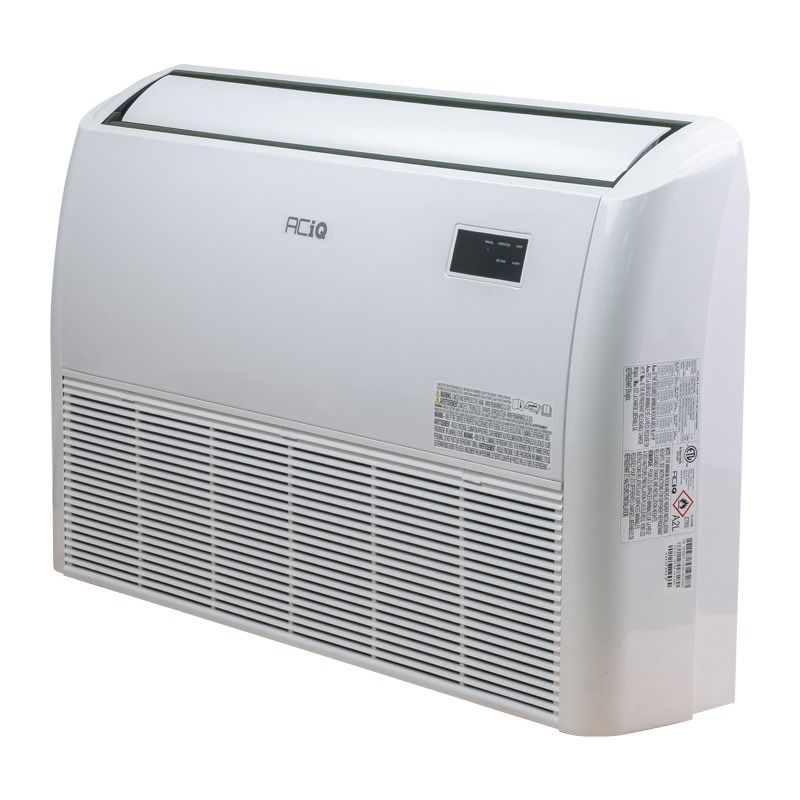

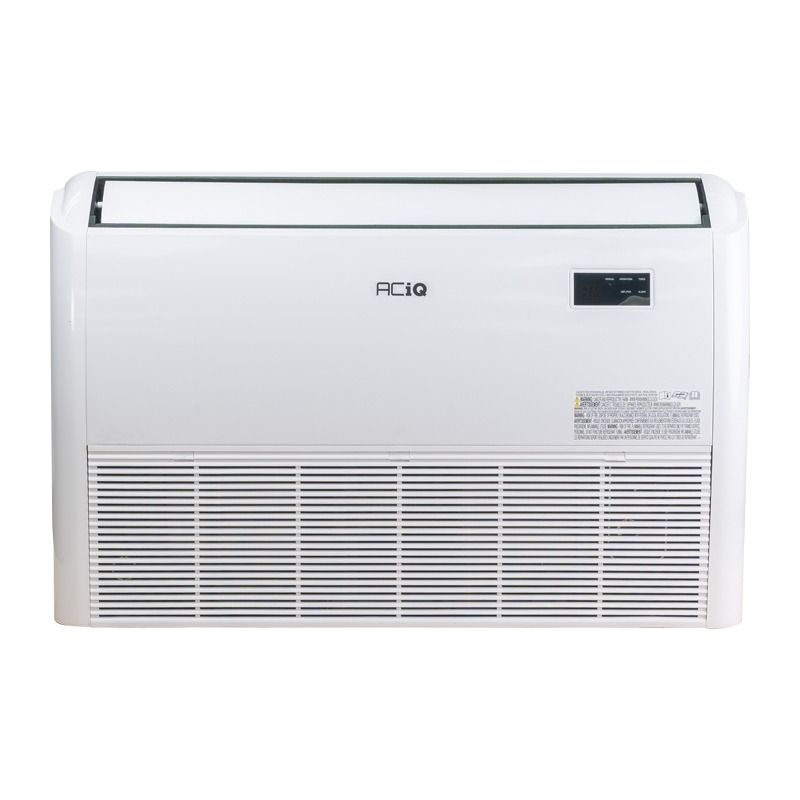

48,000 BTU ACIQ Platinum Single Zone Floor Mount Mini Split Air Handler - R454B | 230V
ACIQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.
Optimized for Heat
Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.
Features
- Can heat and cool up to an average-sized room in ideal conditions
- 24,000 BTU floor console air handler with remote
- Quiet and efficient operation
- Multiple settings to customize your comfort
Specifically designed to direct airflow up instead of down relative to the unit, the Carrier 40MBFQ24-3 Performance series floor console air handler is designed for applications where you need a wall mounted air handler that is mounted close to the floor instead of high up on the wall. With the 40MBFQ24-3, Carrier continues to provide a superior comfort for any space, no matter the limitations of the application.
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
Technical Specifications — ACIQ-48FM-HH-MD
| sku | ACIQ-48FM-HH-MD |
|---|---|
| weight | 102.290000 |
| manufacturer | ACiQ |
| controller | Wireless Included |
| cooling btu | 48,000 BTU |
| heating btu | 51,000 BTU |
| maximum cfm | 1352.94 |
| decibel level (dba) | 55 max |
| electric heat | Heat Pump |
| energy star | Yes |
| refrigerant | R454B |
| liquid line | 3/8" |
| suction line | 3/4" |
| electrical | 208/230V 1 Phase 60Hz |
| electric phase filter | Single Phase |
| btu/tonnage | 48,000 BTU/4 Ton |
| mini split type | Floor Mounted |
| zone compatibility | Single Zone, Multi Zone |
| operating mode | Cooling, Heating |
| height | 26.57" |
| width | 64.96" |
| depth | 9.25" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACiQ-48ZPL-HP230C
| sku | ACIQ-48ZPL-HP230C |
|---|---|
| refrigerant charge | 24.6 ft |
| weight | 239.860000 |
| manufacturer | ACiQ |
| product features | Low Ambient Heating |
| hspf2 | 11.0 |
| cooling btu | 48,000 BTU |
| heating btu | 53,000 BTU |
| maximum cfm | 4237.90 |
| decibel level (dba) | 62.5 |
| electric heat | Heat Pump |
| energy star | Yes |
| refrigerant | R454B |
| seer2 | 18 |
| compressor type | Twin Rotary |
| liquid line | 3/8" |
| suction line | 3/4" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| max breaker size | 45A |
| min. breaker size | 44A |
| tonnage | 4 Ton |
| btu/tonnage | 48,000 BTU/4 Ton |
| zone compatibility | Single Zone |
| height | 52.48" |
| width | 37.48" |
| depth | 16.34" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
