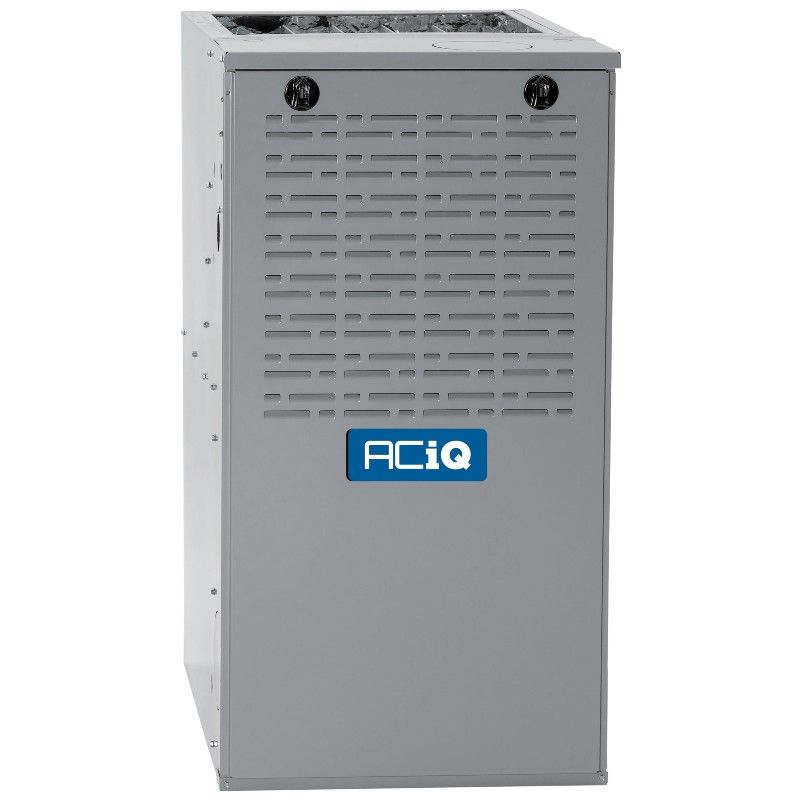

ACiQ 44,000 BTU 80% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
Product Overview
OVERVIEW
The ACiQ N80MSN0451412A is an inexpensive model of furnace to provide reasonable comfort to your home. At a basic efficiency, this furnace will heat your home adequately with the right output, providing comfort to your home even in the coldest parts of the year.
QUICK FACTS
- 44,000 BTU, 80% AFUE natural gas furnace
- Generally suitable for up to a small house in ideal applications
- Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
- Single stage burner with a multi-speed blower
- Field-convertible to propane with an optional LP kit
- On board self-diagnostics
44,000 BTU, 80% AFUE
The ACiQ N80MSN0451412A has an input of 44,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 35,200 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Low NOx or Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.
Warranty
ACiQ offers 10 year parts and 20 year heat exchanger limited warranties. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.
Installation and Durability
With its ability to be installed in any configuration (upflow, downflow, or horizontal) the ACiQ N80MSN0451412A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for mobile home installation on its own.
Technical Specifications — N80MSN0451412A
| sku | N80MSN0451412A |
|---|---|
| weight | 108.000000 |
| ahri certificate number | 213146204 |
| exhaust flue requirement | Metal |
| manufacturer | ACiQ |
| replaces | N80ESN0451412A |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 80% |
| heating btu | 44,000 |
| blower motor | Multi 18-Speed Constant Torque (MCT) ECM Motor |
| drive type | Direct |
| maximum cfm | 715 |
| motor rpm | 1075 |
| horsepower | .33 HP |
| configuration | Upflow/Downflow/Horizontal |
| max breaker size | 15 Amps |
| connection | "1/2"" NPT" |
| maximum inlet pressure | "13.6""wc" |
| burner stages | Single |
| ignition type | Direct Ignition with Silicon Nitride Hot Surface Ignitor |
| fuel type | Propane, Natural Gas |
| certification | AHRI Certified |
| height | "33 1/3"" |
| width | "14 3/16"" |
| depth | "29"" |
| warranty | 20 Year Heat Exchanger and 10 Year Parts with Online Registration |
| safety information | PROPOSITION 65 WARNING |
