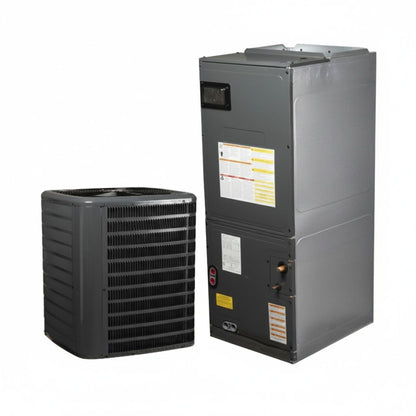

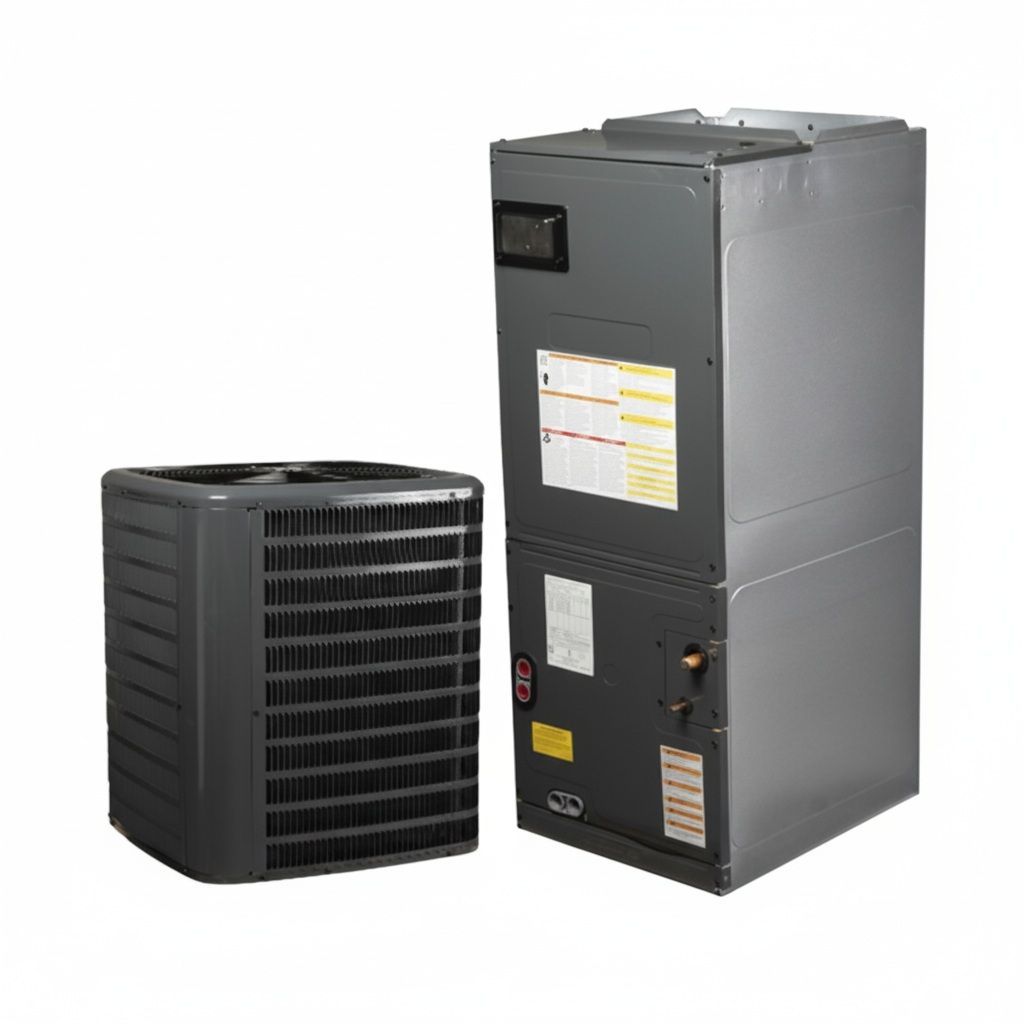

ACiQ 4 Ton 17.2 SEER2 Air Conditioner Split System - R32 Two Stage - Multi-Positional
Product Overview

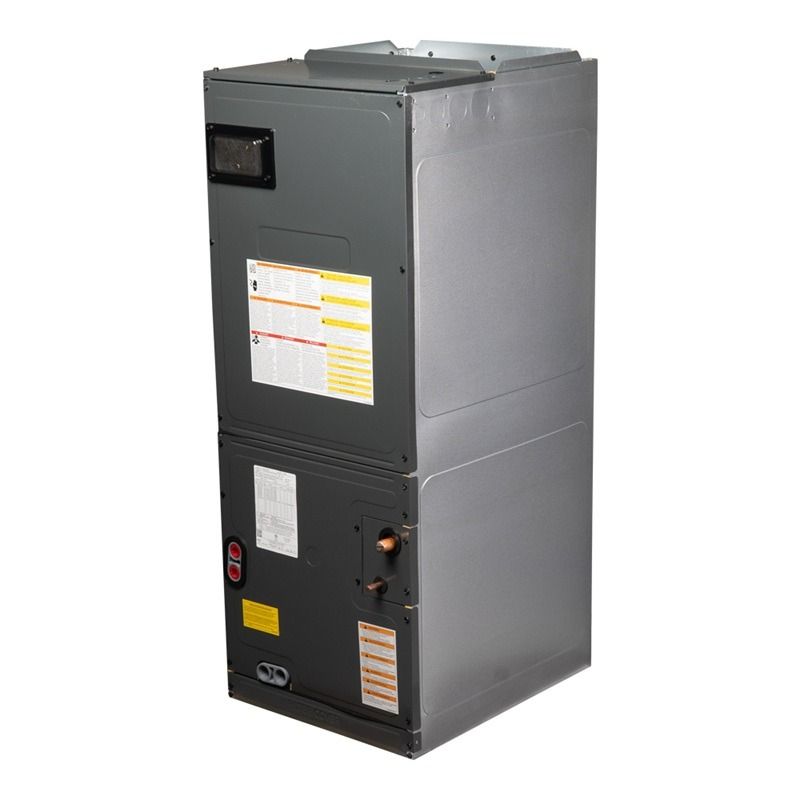

5 Ton Multi-Positional Variable Speed Air Handler - R32
OVERVIEW
The ACiQ AQ-AMVT60DP1300 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, ACiQ upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.
QUICK FACTS
- 5 ton air handler
- Electric heat compatible
- Variable speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
5 Tons
The ACiQ AQ-AMVT60DP1300 air handler is rated for an output of 5 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.
Warranty
The AQ-AMVT60DP1300 comes with ACiQ's standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.
Durability and Reliability
With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the ACiQ AQ-AMVT60DP1300 air handler is durable in design, making it a reliable solution for your home.
Installation and Maintenance
The ACiQ AQ-AMVT60DP1300 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there are two panels on the front to access vital areas on the air handler.
Enhanced Comfort
The AQ-AMVT60DP1300 air handler lives up to ACiQ's comfort expectations with its variable speed ECM motor, which provides a more precise and efficient temperature control.

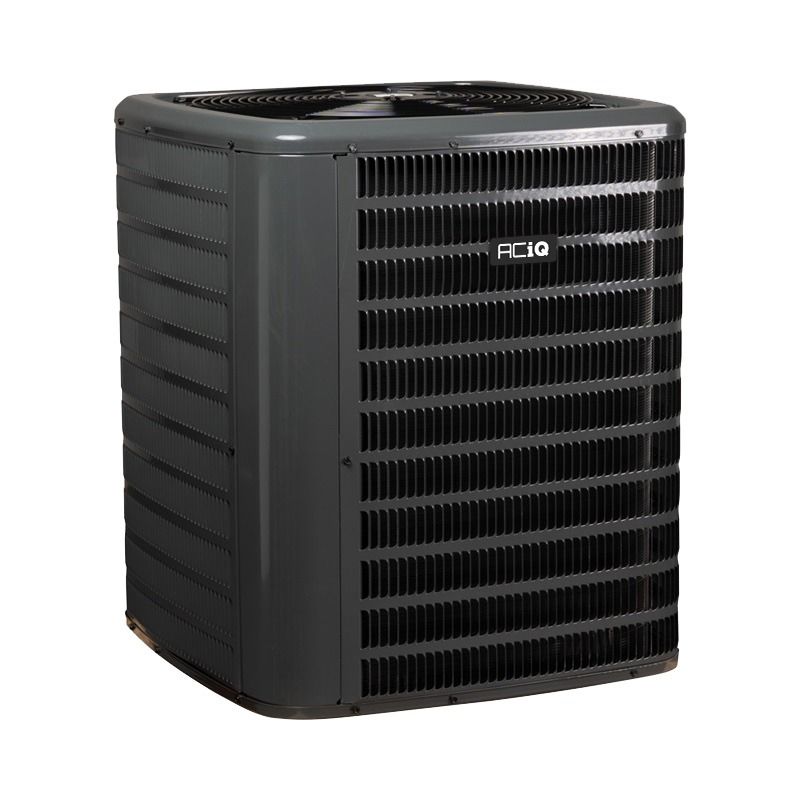

4 Ton 17.2 SEER2 High Efficiency Central Air Conditioner Condenser - R32 Two Stage
OVERVIEW
Built with a superior design, ACiQ manufactured the AQ-GLXT7CA4810 to be whisper-quiet, to be extremely efficient, and to provide the best comfort possible. The AQ-GLXT7CA4810 is considered from the best of the best series of AC condenser that ACiQ has to offer, making it a top-quality unit to suit the all of your cooling needs.
QUICK FACTS
- Ideal size to cover a smaller house in ideal climates
- 4 Ton, 17.2 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Two Stage
- Lowest possible sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
4 Ton
The ACiQ AQ-GLXT7CA4810 air conditioning condenser is rated for 4 tons, which can cover up to a small house in an ideal climate. In order to maintain the unit's efficiency, this condenser may be paired with a higher-tonnage coil.
17.2 SEER2
The ACiQ GLXT7CA condenser series is designed to be the most efficient AC series in ACiQ's lineup. Specifically, the AQ-GLXT7CA4810 is 17.2 SEER2, the highest efficiency rating offered by ACiQ. This unit will save you the most money when it comes to your energy bills, at a whopping approximate of 25% more efficient than the 13.4 SEER2 industry standard minimum.
Superior Comfort with Two Stages
The AQ-GLXT7CA4810 condenser is designed to be one of the quietest and most stable temperature output condensers made by ACiQ today. With its two stage Copeland UltraTech scroll compressor, temperature stability is at its peak, allowing the condenser to only use the highest output when needed, and using the lower output more often to prevent overshooting the desired temperature and lowering the amount of time that the fan is at its loudest. Further enhancing comfort, the two stage compressor also allows for a better dehumidification of your home. Moreover, the cabinet is insulated and the compressor has a built-in foam compressor sound blanket, further decreasing the unit's sound output.
Warranty
With ACiQ's standard 10 year parts warranty, the AQ-GLXT7CA4810 provides a peace of mind in the rare occurrence that something goes wrong on your unit. On top of this, ACiQ also offers an astounding lifetime warranty on the unit's compressor when it is paired with a new coil or air handler that is a ACiQ-certified configuration. All of ACiQ's warranties require a professional installation that follows your state and local codes and an online registration within 60 days of your installation through the manufacturer.
Durability and Reliability
With its durable galvanized-steel cabinet and its painted finish that is approved for 500 hours of salt spray, the AQ-GLXT7CA4810 condenser stands up to ACiQ's high durability standards. The durable design of the cabinet also makes it 2010 Florida building code integrity requirements for hurricane-type winds compliant when it is properly anchored.
Installation and Maintenance
With its compact footprint and rust-resistant coated screws, the AQ-GLXT7CA4810 is designed to be suitable in almost any installation location. For easier installation, ACiQ designed the gauge ports and service valves to be easily accessible and with sweat connections. The cabinet has a maintenance access panel on both the top and the side of the unit. All of this allows you to keep money in your pocket and have a lower resolution time if a rare system issue occurs, providing comfort with a peace of mind.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.
Technical Specifications - AQ-GLXT7CA4810
| sku | AQ-GLXT7CA4810 |
|---|---|
| weight (in lbs) | 281.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| cooling btu | 48,000 |
| decibel level (dba) | 73 |
| horsepower | 0.333 HP |
| energy star | Yes |
| refrigerant | R32 |
| seer2 (efficiency) | 17.2 |
| condenser stages | Two Stage |
| compressor type | Scroll |
| liquid line | 3/8" |
| suction line | 1 1/8" |
| electrical | 208/230v 1 Phase 60Hz |
| max breaker size | 50 Amps |
| min. breaker size | 31.6 Amps |
| tonnage | 4 Ton |
| connection | Sweat |
| height | 41 5/8" |
| width | 35 1/2" |
| depth | 35 1/2" |
| warranty | 10 Years Parts and Lifetime Compressor with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here., |
Technical Specifications - AQ-AMVT60DP1300
| sku | AQ-AMVT60DP1300 |
|---|---|
| weight (in lbs) | 172.000000 |
| brand/manufacturer | Private Brand |
| replaces | AMVT60DP1400 |
| product features | New Refrigerant Compliant |
| blower motor | Multi-Speed Direct Drive ECM Motor |
| maximum cfm | 2,000 |
| horsepower | 1 HP |
| electric backup heat capabilities (optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts |
| configuration | Multi-Positional |
| refrigerant | R32 |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/240v 1 Phase 60Hz |
| max breaker size | 15 Amps |
| min. breaker size | 8.6 Amps |
| tonnage | 5 Ton |
| connection | 3/4" FPT |
| height | 58" |
| width | 24 1/2" |
| depth | 21" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
