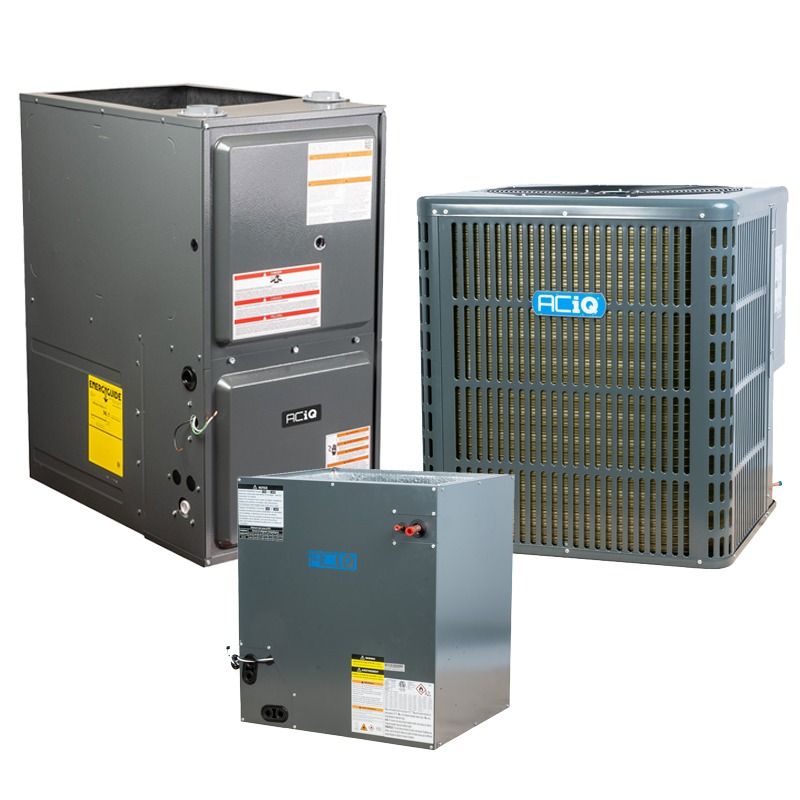

Product Overview

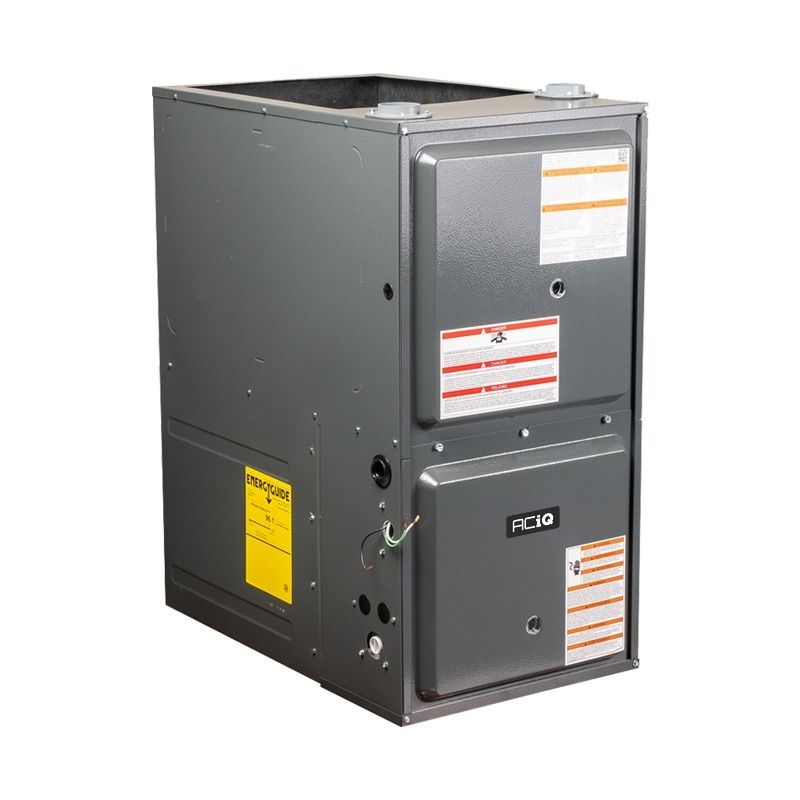

100,000 BTU 96% AFUE Two Stage Gas Furnace - 21" Width - Downflow / Horizontal
OVERVIEW
The ACiQ brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The AQ-GD9T961005CN gas furnace is no exception to ACiQ's ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.
QUICK FACTS
- This furnace is ideal to heat a medium to large house (depending on climate)
- 100,000 BTU 96% AFUE natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with an optional conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
100,000 BTU
Heating up to a medium to large house in average environmental conditions, the AQ-GD9T961005CN ACiQ furnace has an input of 100,000 BTU's and an output of 96,000 BTU's (input X efficiency rating = output).
96% AFUE
The AQ-GD9T961005CN gas furnace is 96% efficient. This efficiency means that 4% of the fuel going into the furnace is lost out of the flue venting, while 96% of the fuel is actually used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you are looking for a furnace that requires metal flue venting, you would need an 80% efficient furnace.
Two Stage 9-Speed Furnace
With a two stage burner, the AQ-GD9T961005CN provides two heating outputs: one at a 60% heating output for warmer days and one at a 100% output for when you need the furnace most. The furnace also has a 9 speed ECM motor instead of an inefficient PSC motor. Both of these upgrades provide a better efficiency with a more stable output to better heat your home through all seasons of use.
Warranty
With installation that follows your state and local codes, the AQ-GD9T961005CN gas furnace comes with a 10-year parts and lifetime heat exchanger warranty when registered online through ACiQ.
Durability and Reliability
The outer casing on the AQ-GD9T961005CN gas furnace is heavy-gauge steel with enhanced insulated for better protection and lower air leakage and sound output, providing more comfort to your home. The new hot surface ignitor replaces the standing pilot light for a more efficient startup.
Installation and Maintenance
The cost-saving benefits of the ACiQ brand doesn't stop at efficiency. The AQ-GD9T961005CN ACiQ furnace can be installed in either the downflow or horizontal orientation, making this furnace an ideal choice for multiple installation applications. Naturally, the AQ-GD9T961005CN comes with natural gas valves built in. However, increasing its installation potential, the AQ-GD9T961005CN can be field converted with the LP conversion kit (found here, for an extra fee) if you need it to be propane. Not only does the ACiQ brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution to almost any problem.

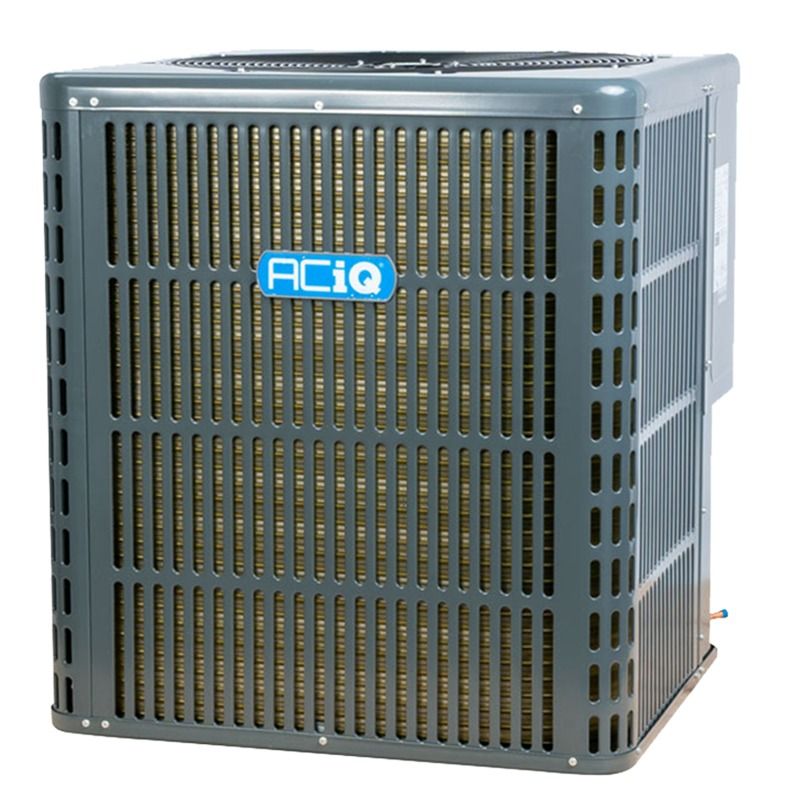

ACiQ 4 Ton 13.8 SEER2 Central Air Conditioner Condenser - R32
Reliable Home Cooling Comfort
The ACiQ AC-I-48AC14 is a 4-ton air conditioner condenser designed to deliver consistent comfort throughout the year. With its advanced technology and SEER2 rating, it provides powerful yet economical cooling, making it an excellent choice for homeowners seeking reliability and performance.
Features
- 4 ton, 48,000 BTU Cooling capacity
- Can cool large homes in various climates
- Pre-charged with R32 refrigerant
- Quiet outdoor sound rating
- Corrosion-resistant design help withstand outdoor exposure
- TXV-controlled A‑coil support better humidity control and smoother airflow, enhancing overall comfort
3 Tons
The ACiQ AC-I-48AC14 is a 4 ton (48,000 BTU) central air conditioner condenser that uses R32 technology to deliver 13.8 SEER2 cooling performance while reducing energy consumption. This top-discharge, cooling-only outdoor unit is designed for quiet, reliable residential comfort. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work.
Warranty
ACiQ offers a 12 year compressor and a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-551-2469 if you have any questions.

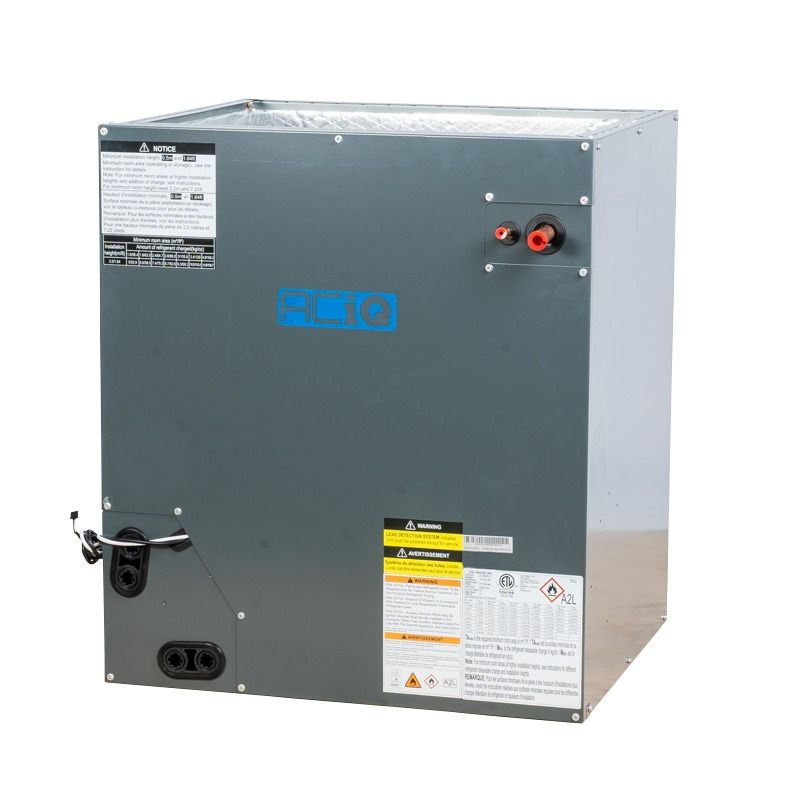

ACiQ 3.5 to 5 Ton 21" Width Multi-Positional Evaporator Coil - Cased - R32
The ACiQ AC-I-4860ACL-21 is a high-performance cased evaporator coil designed for maximum durability and installation flexibility. Optimized for systems ranging from 3.5 to 5 tons, this coil is the perfect indoor companion for both air conditioning and heat pump outdoor units.
Key Features
- Multi-Position Design: Engineered for upflow, downflow, and horizontal applications, ensuring it fits your specific ductwork layout.
- Corrosion Resistance: Features an all-aluminum construction that significantly reduces the risk of formicary corrosion compared to traditional copper.
- Pre-Installed TXV: Includes a factory-installed Thermal Expansion Valve (TXV) for precise refrigerant metering and improved system efficiency.
- 21" Cabinet Width: A standard width that aligns perfectly with common furnace sizes for a clean, professional-looking install.
- AHRI Certified: Tested to meet industry standards for performance and reliability when paired with compatible ACiQ equipment.
- Compatible with R32: Comes with a leak mitigation control kit for handling R32 refrigerant.
Warranty
ACiQ offers a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Technical Specifications — AC-I-48AC14
| sku | AC-I-48AC14 |
|---|---|
| refrigerant charge | 91.71 oz. |
| weight (in lbs) | 187.000000 |
| brand/manufacturer | ACiQ |
| product features | Basic Efficiency |
| cooling btu | 48,000 BTU |
| decibel level (dba) | 60 Decibels |
| refrigerant | R32 |
| seer2 (efficiency) | 13.8 |
| condenser stages | Single Stage |
| compressor type | Rotary |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230V 1 Phase 60 Hz |
| max breaker size | 40 Amps |
| min. breaker size | 27 Amps |
| tonnage | 4 Ton |
| height | 32.87" |
| width | 29.13" |
| depth | 29.13" |
| warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — AC-I-4860ACL-21
| sku | AC-I-4860ACL-21 |
|---|---|
| weight (in lbs) | 87.000000 |
| brand/manufacturer | ACiQ |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 3/4" |
| tonnage | 3.5 Ton |
| style | A-Coil |
| height | 27.80" |
| width | 21" |
| depth | 21.02" |
| warranty | 10 Years with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — AQ-GD9T961005CN
| sku | AQ-GD9T961005CN |
|---|---|
| weight (in lbs) | 140.000000 |
| ahri certificate number | 215225022 |
| airflow direction | Downflow/Horizontal |
| exhaust flue requirement | Plastic / PVC |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 96% |
| heating btu | 100,000 |
| blower motor | 9-Speed - ECM |
| maximum cfm | 2000 |
| configuration | Downflow/Horizontal |
| energy star | Yes |
| electrical | 115 V. 1 Phase 60 Hz |
| max breaker size | 25 Amps |
| min. breaker size | 14.4 Amps |
| burner stages | Two |
| fuel type | Propane, Natural Gas |
| height | 34.5" |
| width | 21" |
| depth | 28.75" |
| warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| safety information | This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
