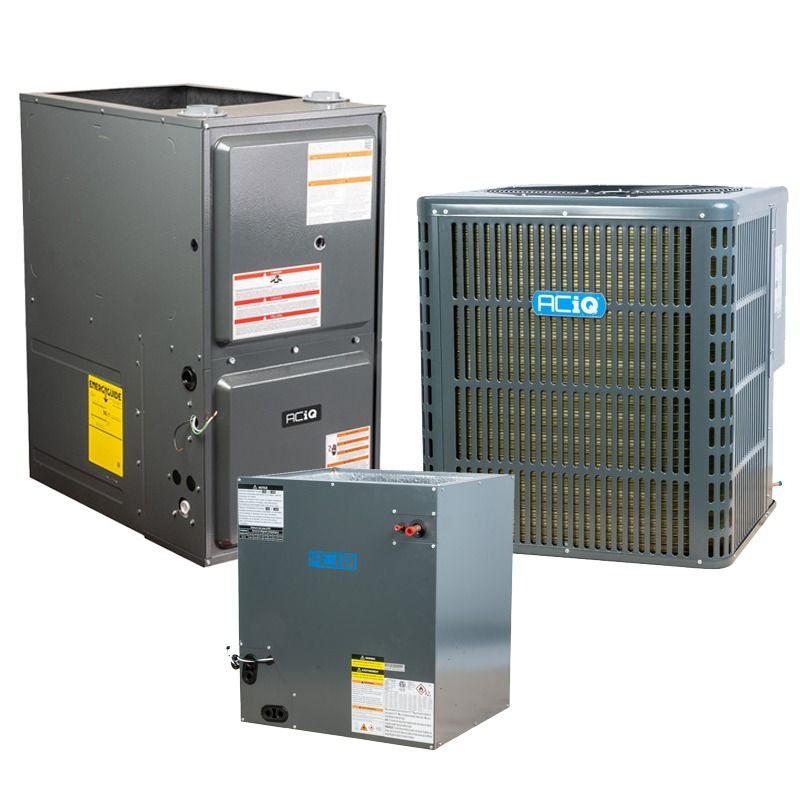

100,000 BTU 96% AFUE Single Stage Gas Furnace - 21" Width - Downflow/Horizontal
OVERVIEW
If you're looking to reduce your energy bill and improve the comfort of your home, look no further than ACiQ's AQ-GD9S961005CN. This gas furnace features efficient operation and high-quality construction to provide your home with reliable, affordable heating. The AQ-GD9S961005CN single-stage, 9-speed furnace is a great value designed for many applications.
QUICK FACTS
- This furnace is ideal to heat a medium to large house (depending on climate)
- 100,000 BTU 96% efficient natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
100,000 BTU
The AQ-GD9S961005CN ACiQ gas furnace is suitable in output for a medium to large house in ideal climate conditions. The 100,000 BTU count is the input per hour of the furnace, and the output is 96,000 BTU's (100,000 x 96% AFUE) per hour.
96% Efficiency Rating
The AQ-GD9S961005CN ACiQ gas furnace has a 96% efficiency rating. This means that only 4% of the fuel going into the furnace is used up in normal furnace operations and not used to heat your home. The remaining 96% of the inputted fuel is used to heat your home. 96% efficient furnaces is one of the highest efficiencies of natural gas furnaces available for purchase with today's technology. Please note that 96% efficient furnaces such as this one require plastic/PVC flue venting, and 80% efficient furnaces require metal flue venting.
Single Stage Furnace
A single stage furnace operates using the same amount of energy every time is turns on. The AQ-GD9S961005CN ACiQ gas furnace operates using only one heat output. This furnace will operate at 100% output whenever it is operating.
Natural Gas or LP Furnace
From the factory, the AQ-GD9S961005CN runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.
9-Speed ECM Blower Motor
The AQ-GD9S961005CN utilizes a 9-speed ECM motor, which is more efficient than older PSC blower motors, saving you money in electric bills.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durable Hot Surface Ignitor
Instead of a standing pilot light, the AQ-GD9S961005CN has a newer, more efficient hot surface ignitor. Hot surface ignitors are much more efficient and safer than standard standing pilot lights.
Self-Diagnostic Control Board
The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely runs into any operation-based problems. However, if the furnace does need maintenance or warranty work, the control board has a set of sensors that will identify any basic problems in the furnace's basic operation.
Heavy Gauge Steel Cabinet
The AQ-GD9S961005CN ACiQ gas furnace has a durable outer cabinet. The heavy-gauge steel used in the furnace's design allows for a more protected interior, and less air leakage from the furnace's operation, resulting in a more quiet operation while still decreasing operation costs.
Ease of Installation
From enhanced operation to efficiency, the ACiQ gas furnaces have a lot to offer. However, ACiQ's features don't stop at quality of unit. The AQ-GD9S961005CN allows for a significantly more streamlined installation process with its universal design, consisting of its ability to be installed in either downflow or horizontal configurations, lowering labor costs.

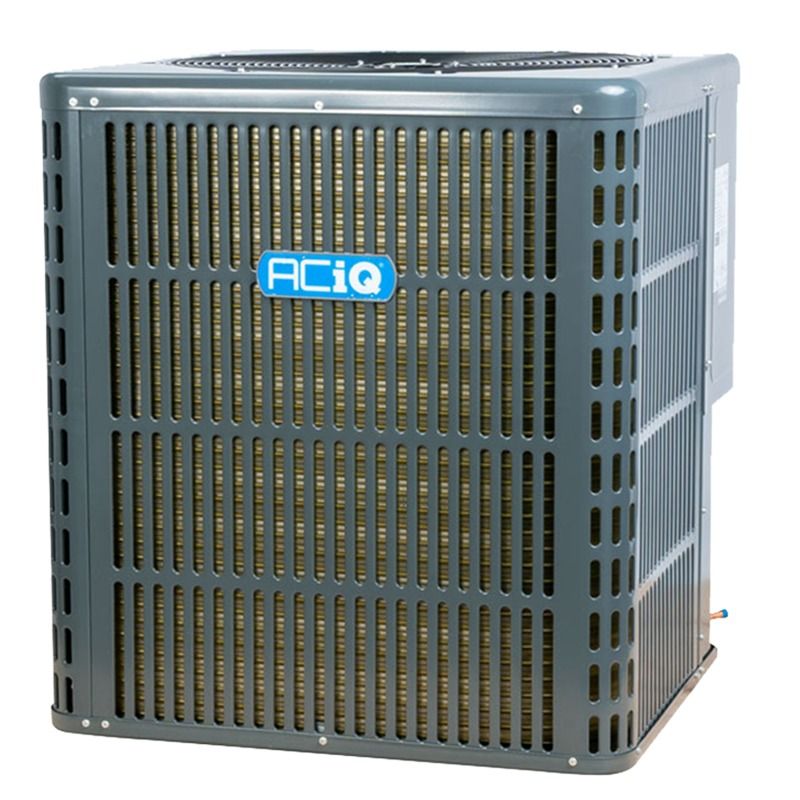

ACiQ 4 Ton 13.8 SEER2 Central Air Conditioner Condenser - R32
Reliable Home Cooling Comfort
The ACiQ AC-I-48AC14 is a 4-ton air conditioner condenser designed to deliver consistent comfort throughout the year. With its advanced technology and SEER2 rating, it provides powerful yet economical cooling, making it an excellent choice for homeowners seeking reliability and performance.
Features
- 4 ton, 48,000 BTU Cooling capacity
- Can cool large homes in various climates
- Pre-charged with R32 refrigerant
- Quiet outdoor sound rating
- Corrosion-resistant design help withstand outdoor exposure
- TXV-controlled A‑coil support better humidity control and smoother airflow, enhancing overall comfort
3 Tons
The ACiQ AC-I-48AC14 is a 4 ton (48,000 BTU) central air conditioner condenser that uses R32 technology to deliver 13.8 SEER2 cooling performance while reducing energy consumption. This top-discharge, cooling-only outdoor unit is designed for quiet, reliable residential comfort. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work.
Warranty
ACiQ offers a 12 year compressor and a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-551-2469 if you have any questions.

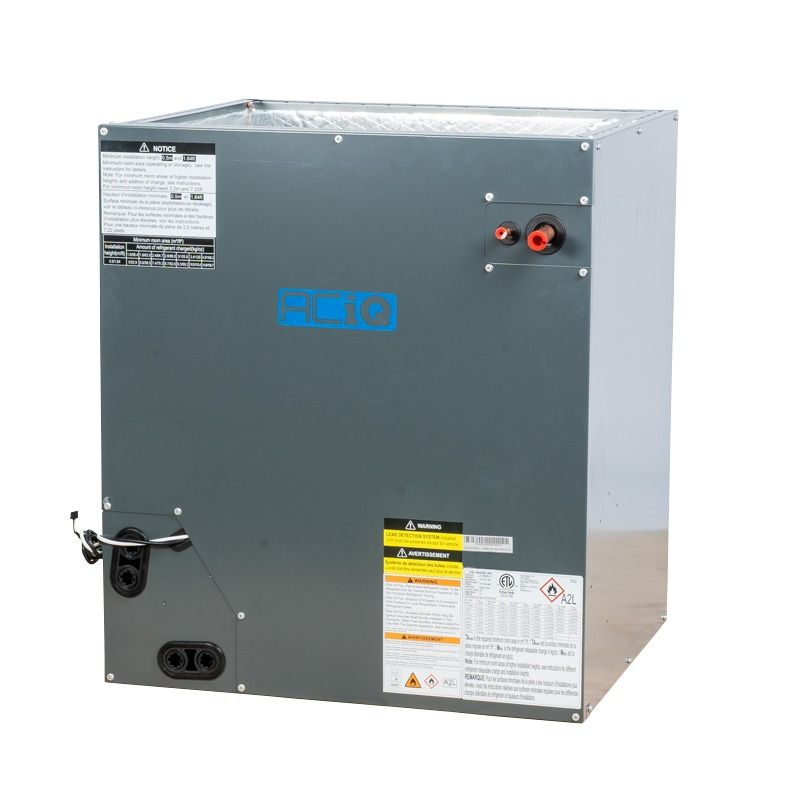

ACiQ 3.5 to 5 Ton 21" Width Multi-Positional Evaporator Coil - Cased - R32
The ACiQ AC-I-4860ACL-21 is a high-performance cased evaporator coil designed for maximum durability and installation flexibility. Optimized for systems ranging from 3.5 to 5 tons, this coil is the perfect indoor companion for both air conditioning and heat pump outdoor units.
Key Features
- Multi-Position Design: Engineered for upflow, downflow, and horizontal applications, ensuring it fits your specific ductwork layout.
- Corrosion Resistance: Features an all-aluminum construction that significantly reduces the risk of formicary corrosion compared to traditional copper.
- Pre-Installed TXV: Includes a factory-installed Thermal Expansion Valve (TXV) for precise refrigerant metering and improved system efficiency.
- 21" Cabinet Width: A standard width that aligns perfectly with common furnace sizes for a clean, professional-looking install.
- AHRI Certified: Tested to meet industry standards for performance and reliability when paired with compatible ACiQ equipment.
- Compatible with R32: Comes with a leak mitigation control kit for handling R32 refrigerant.
Warranty
ACiQ offers a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Technical Specifications — AC-I-48AC14
| sku | AC-I-48AC14 |
|---|---|
| refrigerant charge | 91.71 oz. |
| weight (in lbs) | 187.000000 |
| brand/manufacturer | ACiQ |
| product features | Basic Efficiency |
| cooling btu | 48,000 BTU |
| decibel level (dba) | 60 Decibels |
| refrigerant | R32 |
| seer2 (efficiency) | 13.8 |
| condenser stages | Single Stage |
| compressor type | Rotary |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230V 1 Phase 60 Hz |
| max breaker size | 40 Amps |
| min. breaker size | 27 Amps |
| tonnage | 4 Ton |
| height | 32.87" |
| width | 29.13" |
| depth | 29.13" |
| warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — AC-I-4860ACL-21
| sku | AC-I-4860ACL-21 |
|---|---|
| weight (in lbs) | 87.000000 |
| brand/manufacturer | ACiQ |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 3/4" |
| tonnage | 3.5 Ton |
| style | A-Coil |
| height | 27.80" |
| width | 21" |
| depth | 21.02" |
| warranty | 10 Years with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — AQ-GD9S961005CN
| brand name | Private Brand |
|---|---|
| sku | AQ-GD9S961005CN |
| model | GD9S961005CN |
| unit type | Furnace |
| equipment type | Gas Furnace |
| short description | 100,000 BTU 96% AFUE 9-Speed Single Stage Gas Furnace - Downflow/Horizontal |
| airflow direction | Downflow/Horizontal |
| exhaust flue requirement | Plastic / PVC |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 96% |
| heating btu | 100,000 |
| blower motor | 9-Speed - ECM |
| maximum cfm | 2000 |
| configuration | Downflow/Horizontal |
| energy star | Yes |
| electrical | 115v 1 Phase 60 Hz |
| max breaker size | 25 Amps |
| min. breaker size | 16.7 Amps |
| burner stages | Single |
| fuel type | Propane, Natural Gas |
| height | 34 1/2" |
| width | 21" |
| depth | 28 3/4" |
| gross weight (lbs) | 144 |
| warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| ahri certificate number | 215224961 |
| registered warranty | Online Registration Required |
| has batteries | No |
| contains electronics | Yes |
| contains chemicals | Yes |
| contains aerosol | No |
| contains compressed gas | No |
| proposition 65 warning | Yes |
| restricted states | GU;PR;VI |
| freight class | 300 |
| safety information | This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment. |
