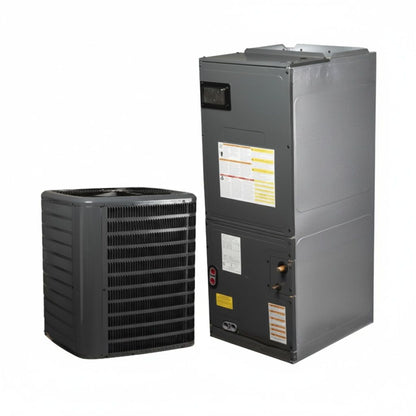

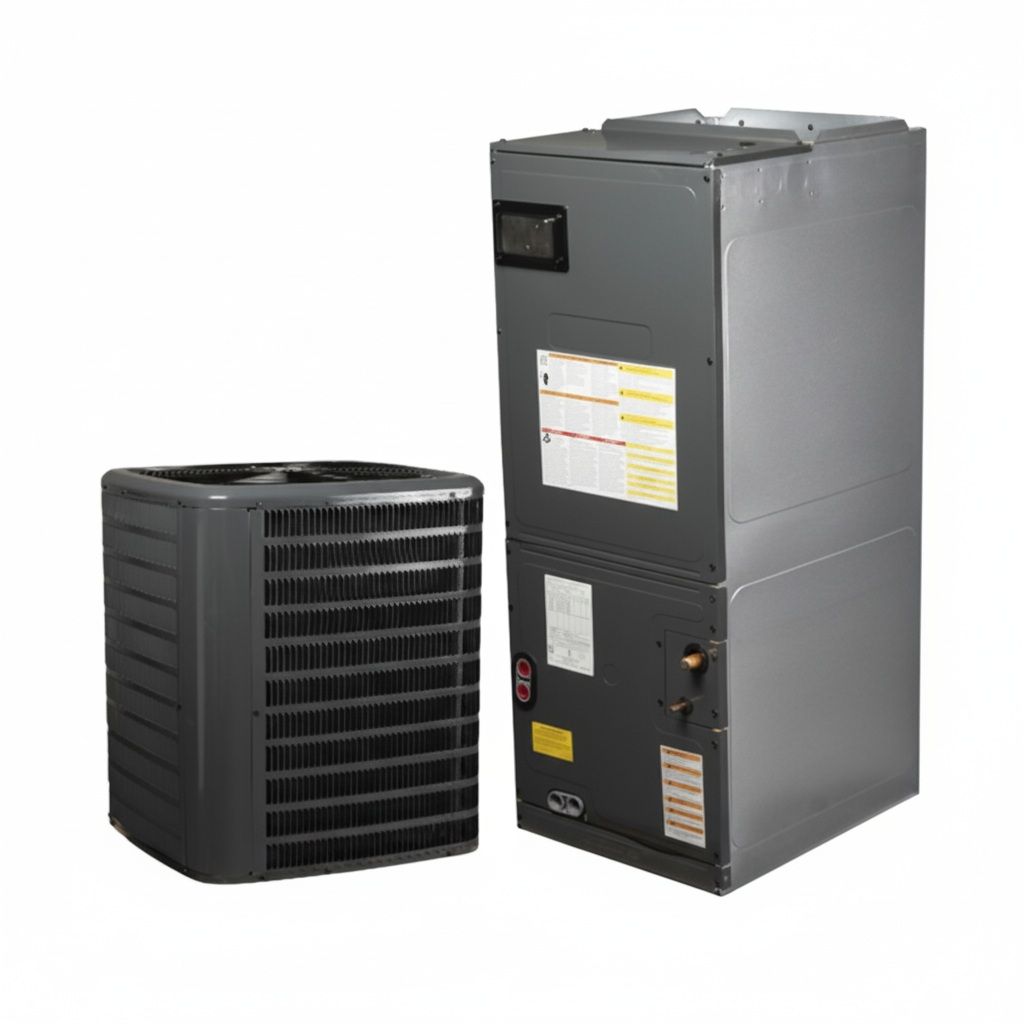

ACiQ 4 Ton 14.5 SEER2 Air Conditioner Split System - R32 Single Stage - Multi-Positional
Product Overview

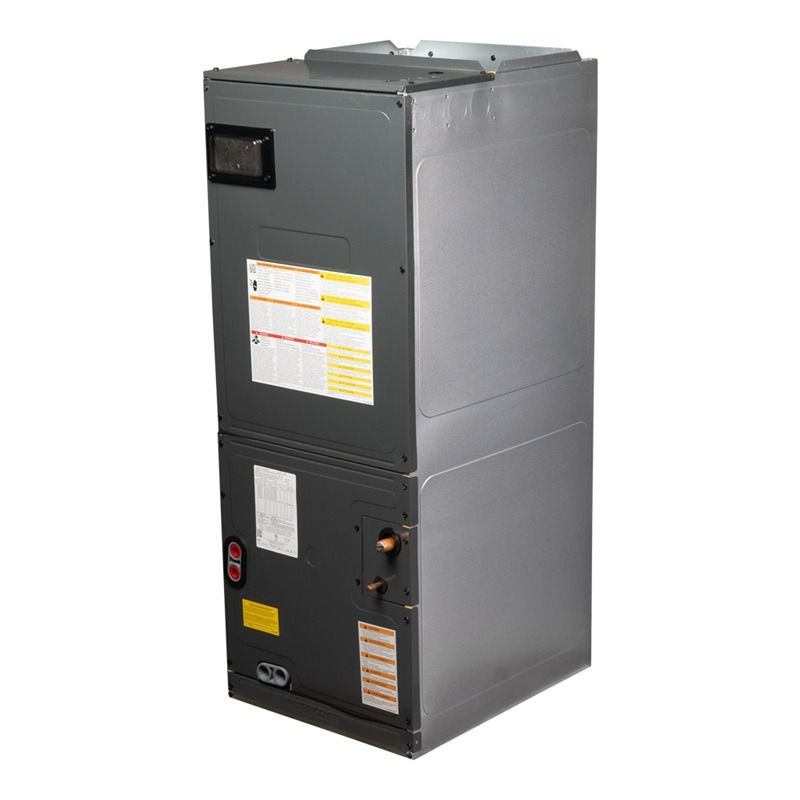

5 Ton Multi-Positional Air Handler - R32
OVERVIEW
The ACiQ AQ-AMST60DU1300 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, ACiQ upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.
QUICK FACTS
- 5 ton air handler
- Electric heat compatible
- Optimized for use with R32 refrigerant
- Multi-speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
5 Tons
The ACiQ AQ-AMST60DU1300 air handler is rated for an output of 5 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.
Warranty
The AQ-AMST60DU1300 comes with ACiQ standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.
Durability and Reliability
With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the ACiQ AQ-AMST60DU1300 air handler is durable in design, making it a reliable solution for your home.
Installation and Maintenance
The ACiQ AQ-AMST60DU1300 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there are two panels on the front to access vital areas on the air handler.
Enhanced Comfort
The AQ-AMST60DU1300 air handler lives up to ACiQ comfort expectations with its multi-speed ECM motor, which provides a more precise and efficient temperature control.
4 Ton 14.3 SEER2 Single Stage Air Conditioner Condenser - R32
OVERVIEW
The ACiQ brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the ACiQ AQ-GLXS4BA4810 air conditioner condenser is a popular choice for homeowners around the United States.
QUICK FACTS
- Ideal size to cover a medium to large house in ideal climates
- 4 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
4 Ton
The AQ-GLXS4BA4810 ACiQ condenser is a 4 ton unit, meaning that it can cover up to a medium to large house in an ideal climate. In some unit bundles, the required AC coil may be larger than this condenser in tonnage. This is intentional, as it maintains the unit's efficiency.
14.3 SEER2
The AQ-GLXS4BA4810 AC-only conditioner can be up to 14.3 SEER2 in efficiency when paired with the proper equipment. As the standard efficiency on the market for all states, this unit is average in efficiency. Every SEER2 point is 5-7% more efficient than the one lower than it, saving you money the higher the SEER2 rating of the unit. Please note that this product is regulated by DOE Efficiency Standards.
Warranty
The AQ-GLXS4BA4810 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The AQ-GLXS4BA4810 ACiQ AC condenser cabinet has a baked-on painted finish and is made of a galvanized-steel, making it approved for up to 500 hours of salt-spray and compliant with the 2010 Florida building code integrity requirements for hurricane-type winds when properly anchored. Moreover, the unit is equipped from the factory with a filter dryer that lowers general wear-and-tear on the unit. The AQ-GLXS4BA4810 provides peace of mind thanks to its durability and reliability enhancements.
Installation and Maintenance
The ACiQ AQ-GLXS4BA4810 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.
Comfort in Mind
The ACiQ brand always has its customer's comfort in mind. The AQ-GLXS4BA4810 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.
Technical Specifications - AQ-GLXS4BA4810
| sku | AQ-GLXS4BA4810 |
|---|---|
| weight (in lbs) | 226.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSXN404810 |
| product features | New Refrigerant Compliant |
| cooling btu | 48,000 |
| decibel level (dba) | 73 |
| horsepower | 1/6 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 14.3 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid line | 3/8" |
| suction line | 1 1/8" |
| liquid valve size | 3/8" |
| suction valve size | 7/8" |
| electrical | 208/230v 1 Phase 60Hz |
| max breaker size | 40 Amps |
| min. breaker size | 25.2 Amps |
| tonnage | 4 Ton |
| connection | Sweat |
| height | 35 3/4" |
| width | 35 1/2" |
| depth | 35 1/2" |
| warranty | 10 Years Parts Limited Warranty with Online Registration |
| resources | GLXS4B Installation ManualGLXS4B Specifications SheetGLXS4B Service ManualGoodman Condenser WarrantyYou will need Adobe� Acrobat� Reader to view PDF documents. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-AMST60DU1300
| sku | AQ-AMST60DU1300 |
|---|---|
| weight (in lbs) | 167.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| blower motor | Multi-Speed Direct Drive ECM Motor |
| maximum cfm | 2070 |
| horsepower | 0.75 HP |
| electric backup heat capabilities (optional) | 3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts |
| refrigerant | R32 |
| liquid valve size | 3/8" |
| suction valve size | 7/8" |
| electrical | 208/240v 1 Phase 60Hz |
| max breaker size | 15 Amps |
| min. breaker size | 8.6 Amps |
| tonnage | 5 Ton |
| connection | 3/4" FPT |
| height | 58" |
| width | 24 5/8" |
| depth | 21" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here., |
