ACIQ 3 Ton Multi-Positional Variable Speed Air Handler - R32
Product Overview
OVERVIEW

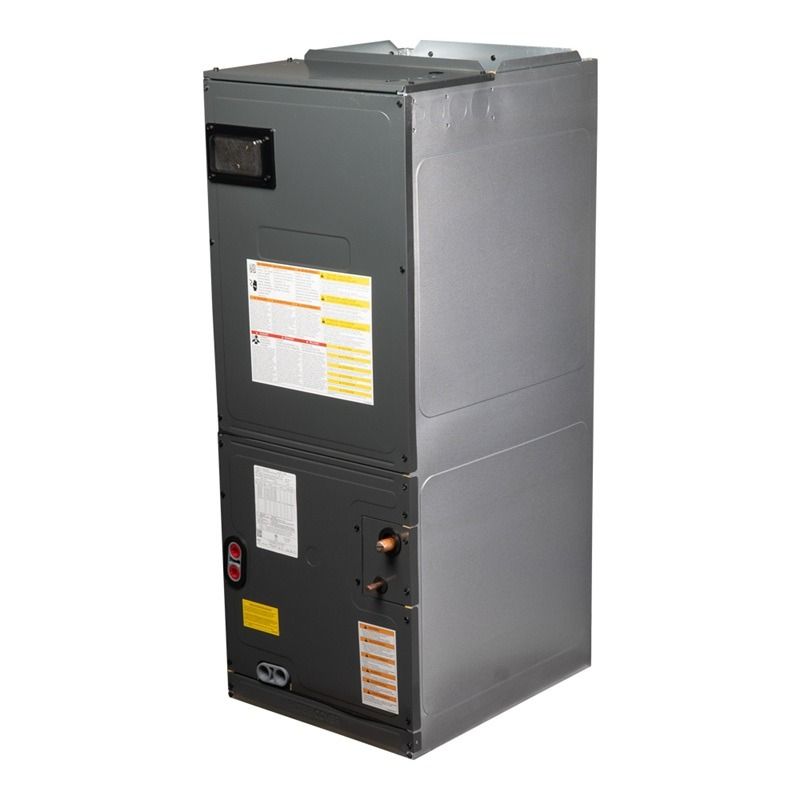

The ACiQ AQ-AMVT36BP1300 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, ACiQ upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.
QUICK FACTS
- 3 ton air handler
- Electric heat compatible
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Variable speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
3 Tons
The ACiQ AQ-AMVT36BP1300 air handler is rated for an output of 3 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.
Warranty
The AQ-AMVT36BP1300 comes with ACiQ's standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.
Durability and Reliability
With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the ACiQ AQ-AMVT36BP1300 air handler is durable in design, making it a reliable solution for your home.
Installation and Maintenance
The ACiQ AQ-AMVT36BP1300 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there are two panels on the front to access vital areas on the air handler.
Enhanced Comfort
The AQ-AMVT36BP1300 air handler lives up to ACiQ's comfort expectations with its variable speed ECM motor, which provides a more precise and efficient temperature control.
Technical Specifications — AQ-AMVT36BP1300
| sku | AQ-AMVT36BP1300 |
|---|---|
| weight (in lbs) | 134.000000 |
| brand/manufacturer | Private Brand |
| replaces | AMVT36BP1400 |
| product features | New Refrigerant Compliant |
| blower motor | Variable Speed |
| maximum cfm | 1185 |
| horsepower | .75 HP |
| electric backup heat capabilities (optional) | 15 Kilowatts |
| configuration | Multi-Positional |
| refrigerant | R32 |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/240v 1 Phase 60Hz |
| max breaker size | 15 Amps |
| min. breaker size | 6.5 Amps |
| tonnage | 3 Ton |
| connection | 3/4" FPT |
| height | 53 7/16" |
| width | 17 9/16" |
| depth | 23 11/16" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
