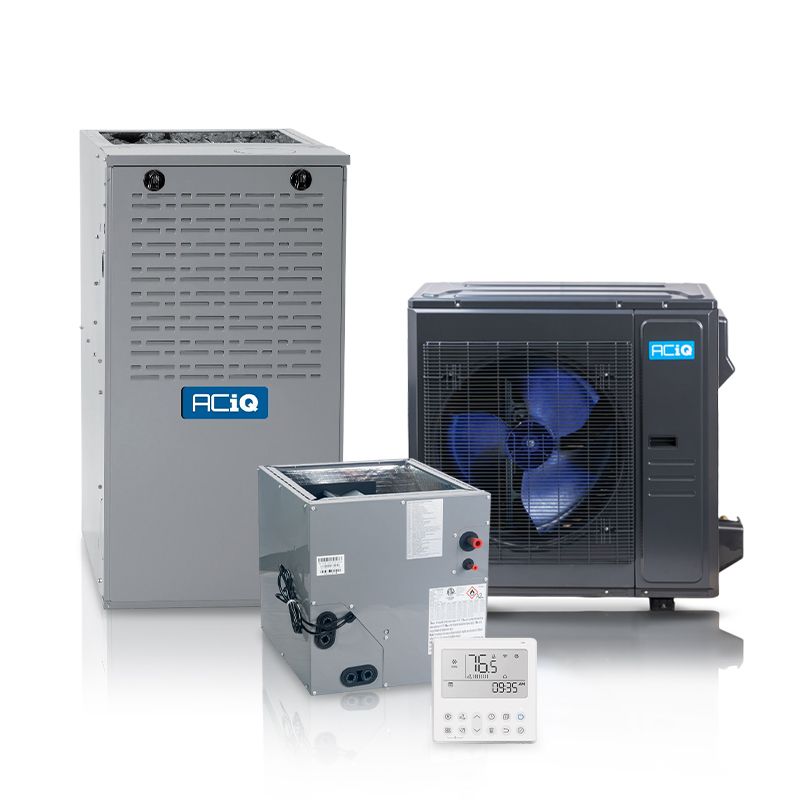

ACIQ 3 Ton 80% AFUE 80,000 BTU Furnace & AC System - R454B - Multi-Positional

OVERVIEW

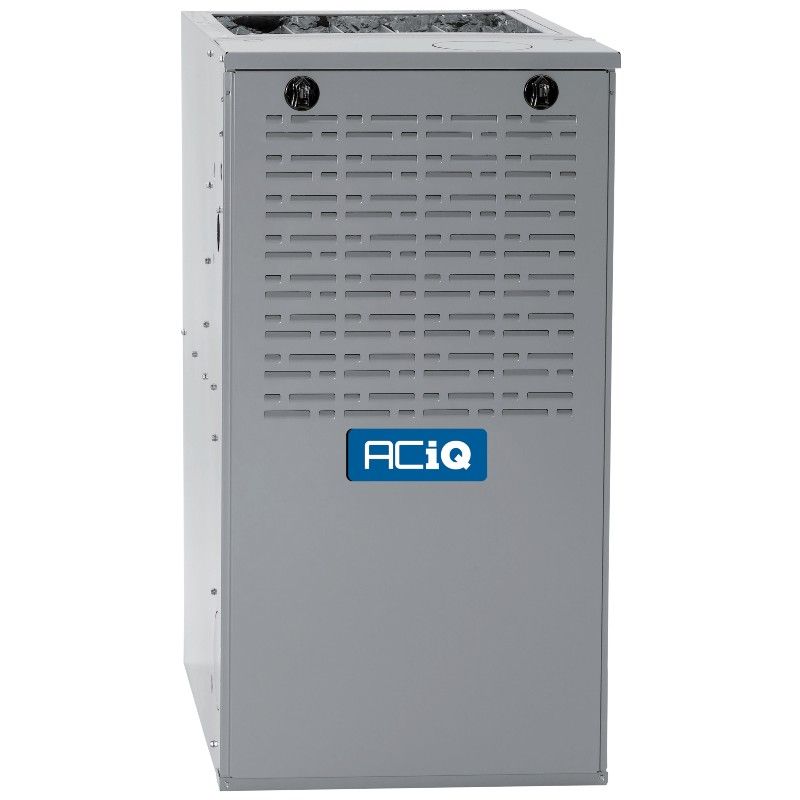

The ACiQ N80MSN0902120A is an inexpensive model of furnace to provide reasonable comfort to your home. At a basic efficiency, this furnace will heat your home adequately with the right output, providing comfort to your home even in the coldest parts of the year.

QUICK FACTS

• 88,000 BTU, 80% AFUE natural gas furnace
• Generally suitable for up to a medium house in ideal applications
• Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
• Single stage burner with a multi-speed blower
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics

88,000 BTU, 80% AFUE

The ACiQ N80MSN0902120A has an input of 88,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 70,400 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Low NOx or Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Warranty

ACiQ offers 10 year parts and 20 year heat exchanger limited warranties. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.

Installation and Durability

With its ability to be installed in any configuration (upflow, downflow, or horizontal) the ACiQ N80MSN0902120A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for mobile home installation on its own.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

OVERVIER

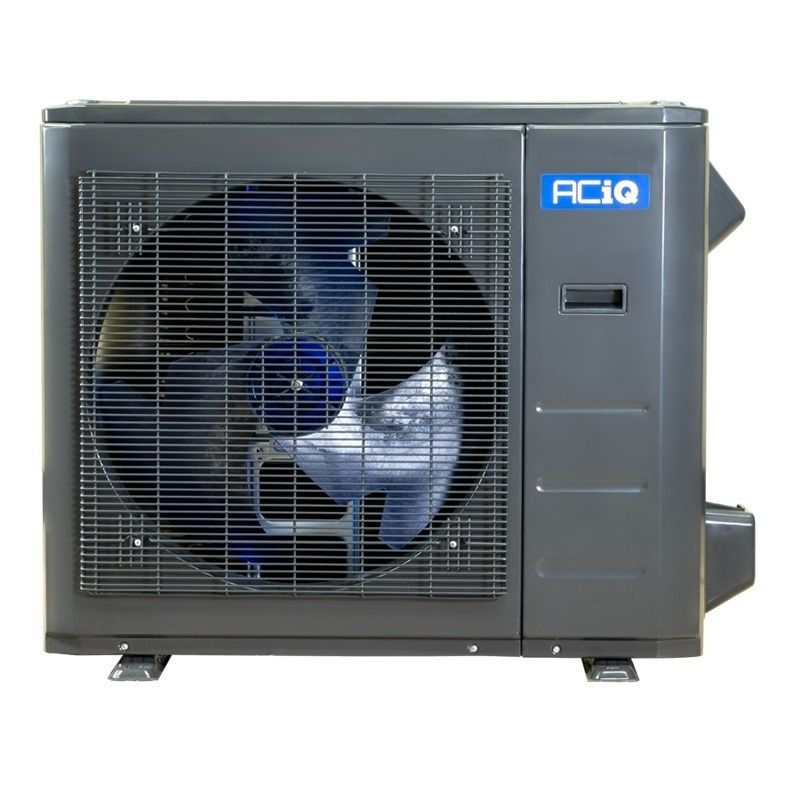

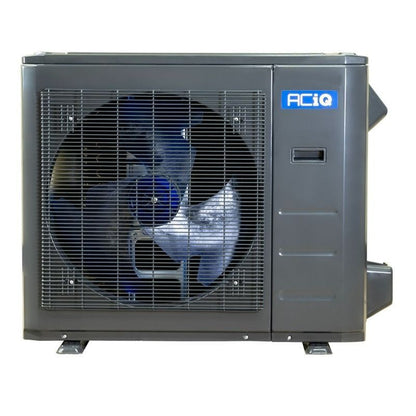

Inverter Technology - Inverter technology converts AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This enables the system to automatically self-adjust BTU output based on demand, ensuring optimal cooling performance as the weather changes.

Learning Condenser - Equipped with advanced sensors, this condenser monitors air temperature inside and outside, overall system performance, duct pressure, and refrigerant temperature. During the initial startup, it enters a learning mode to optimize efficiency for future operation by continuously gathering and storing critical data so future startups and run cycles will be at max efficiency.

Optimized Cooling - The self-adjusting inverter design allows the condenser to operate all the way down to a 1 ton unit when needed, keeping you cool and comfortable, making it an ideal seasonal device for hot climates where additional air conditioning is needed for homes already heated by boilers, fireplaces, or other sources of heat. For optimal performance, pair the ACIQ-36-AC-B unit with the ACiQ-36-ACL-B coil or ACiQ-36-ACL-17-B coil.

QUICK FACTS

• 12,000 BTU to 36,000 BTU variable output based on demand
• Efficient cooling from 5°F to 122°F outdoor temperatures
• Durable Gold Fin condenser coil coating
• Quiet operation at even the highest workloads

36,000 BTU, 15.6 SEER2

With an efficiency rating of 15.6 SEER2, the variable output ACIQ-36-AC-B will keep you comfortable across a wide range of conditions. Use our handy size calculator to determine the demand for your home. This condenser can operate anywhere from 12,000 BTU to 36,000 BTU without short cycling.

---

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

---

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

---

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
