ACiQ

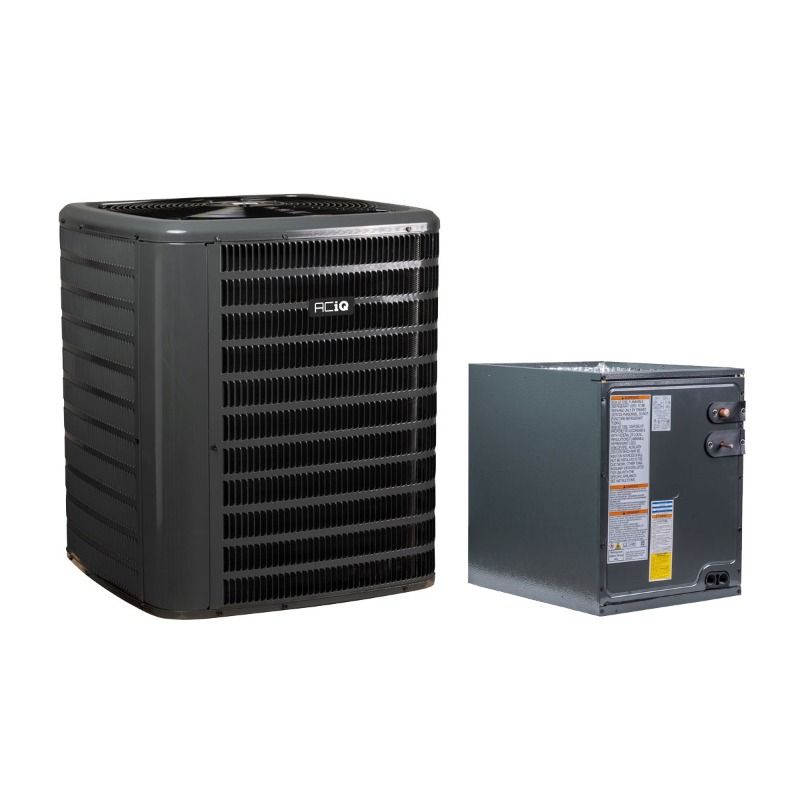

AQ-GLXS3BN3610 + AQ-CAPFA6030D3
Product Overview
3 Ton 13.4 SEER2 Single Stage Air Conditioner Condenser - R32
OVERVIEW
The ACiQ AQ-GLXS3BN3610 is a cooling-only condenser unit. Providing a 13.4 SEER2 efficiency with a single stage, reciprocating compressor, the AQ-GLXS3BN3610 is an inexpensive condenser to cool your home when paired with an AC coil.
QUICK FACTS
- Ideal size to cover a medium-sized house
- 3 ton, 13.4 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
3 ton
The AQ-GLXS3BN3610 condenser is a 3 ton AC only unit. In an ideal climate situation, the AQ-GLXS3BN3610 can usually cover a medium-sized house. For this unit to function, an indoor air handler or coil is required, and this unit is cooling only with no heating capacity on its own.
13.4 SEER2
The ACiQ AQ-GLXS3BN3610 AC condenser is designed to be 13.4 SEER2. This is the lowest efficiency on the market today, making it an inexpensive option for northern states. Please note that this product is regulated by DOE Efficiency Standards.
Due to efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.
Warranty
The AQ-GLXS3BN3610 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
With an enhanced copper tube and aluminum fin coil, the AQ-GLXS3BN3610 is designed to prevent coil degradation. With the baked-on powder-paint finish, the condenser's heavy-gauge galvanized-steel cabinet is approved for up to 500 hours of salt-spray. The factory-installed filter dryer lowers general wear-and-tear on the unit. All of these features provide you with a durable, reliable condenser to be used whenever you need to cool your home.
Installation and Maintenance
The ACiQ AQ-GLXS3BN3610 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.
Comfort in Mind
The ACiQ brand always has its customer's comfort in mind. The AQ-GLXS3BN3610 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

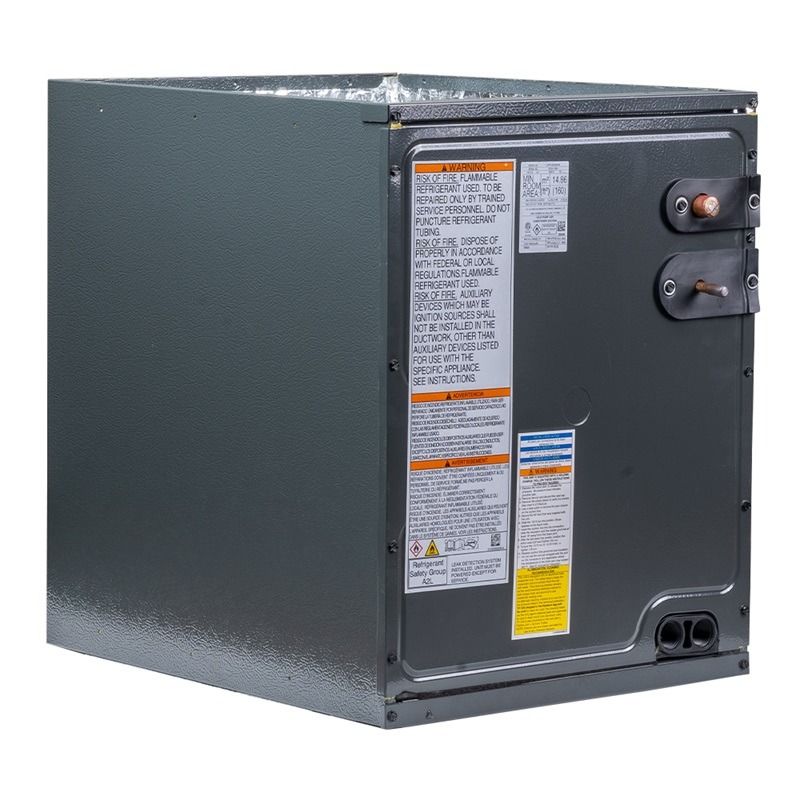

4 to 5 Ton 24.5" Width Vertical Evaporator Cased Coil - R32
OVERVIEW
The ACiQ AQ-CAPFA6030D3 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioning and Evaporator systems. The ACiQ Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Rust-resistant, thermoplastic drain pans feature a low water-retention design
- Check flowrater expansion device for heat pump or cooling-only applications
- Rifled aluminum tubing and louvered aluminum fin coils on the CAPF, CAUF, and CHPF coils
- AHRI Certified; ETL Listed
- Foil-face insulation
- Galvanized-steel, leather-grain finish
- Architectural Gray paint finish on CAPF and CHPF cased coils
- Split-seam front for easy access
Technical Specifications - AQ-GLXS3BN3610
| sku | AQ-GLXS3BN3610 |
|---|---|
| weight (in lbs) | 151.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSX130361, GSXN3N3610 |
| product features | New Refrigerant Compliant |
| cooling btu | 36,000 |
| decibel level (dba) | 69 |
| horsepower | 1/8 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 13.4 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid line | 3/8" |
| suction line | 7/8" |
| liquid valve size | 3/8" |
| suction valve size | 7/8" |
| electrical | 208 / 230 V. 1 Phase 60 Hz |
| max breaker size | 30 Amps |
| min. breaker size | 17.5 Amps |
| tonnage | 3 Ton |
| connection | Sweat |
| height | 32 1/2" |
| width | 26" |
| depth | 26" |
| warranty | 10 Years Parts Limited Warranty with Online Registration |
| resources | GLXS3B Installation ManualGLXS3B Specifications SheetGLXS3B Service ManualGoodman Condenser WarrantyYou will need Adobe� Acrobat� Reader to view PDF documents. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-CAPFA6030D3
| sku | AQ-CAPFA6030D3 |
|---|---|
| weight (in lbs) | 50.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| configuration | Upflow / Downflow |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 7/8" |
| tonnage | 5 Ton |
| style | A-Coil |
| height | 30" |
| width | 24.5" |
| depth | 21" |
| warranty | 10 Years with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
