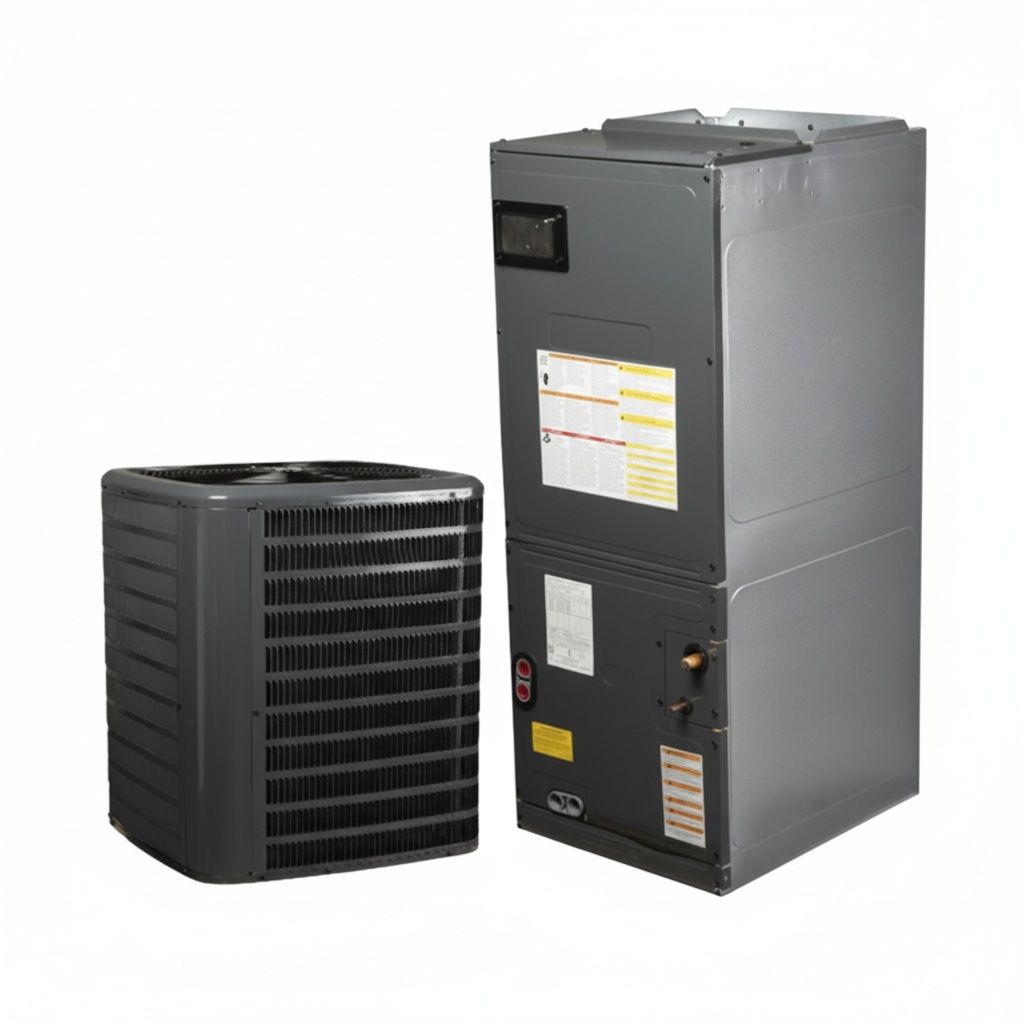

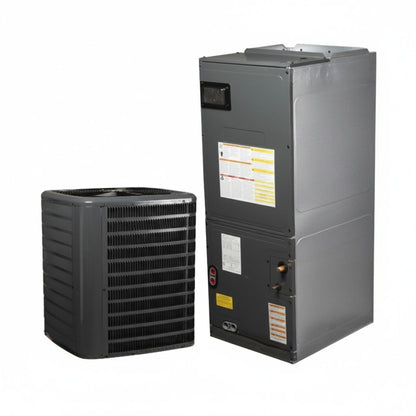

ACiQ 3.5 Ton 15.2 SEER2 Air Conditioner Split System - R32 Single Stage - Multi-Positional
Product Overview
3.5 Ton 15.2 SEER2 High Efficiency Central Air Conditioner Condenser - R32 Single Stage
OVERVIEW
ACiQ has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The AQ-GLXS5BA4210 is no exception, with its durability, reliability, and one of the highest efficiencies available.
QUICK FACTS
- Ideal size to cover a medium house in ideal climates
- 3.5 ton, 15.2 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
3.5 Ton
The AQ-GLXS5BA4210 AC-only condenser is 3.5 tons, normally enough to cover up to a medium house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.
15.2 SEER2
The AQ-GLXS5BA4210 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.
Warranty
The AQ-GLXS5BA4210 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The cabinet of ACiQ's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the AQ-GLXS5BA4210 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.
Installation and Maintenance
For easier maintenance, ACiQ designed the AQ-GLXS5BA4210's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the AQ-GLXS5BA4210 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.
Comfort in Mind
Superior comfort has always been the primary goal for ACiQ. The AQ-GLXS5BA4210 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

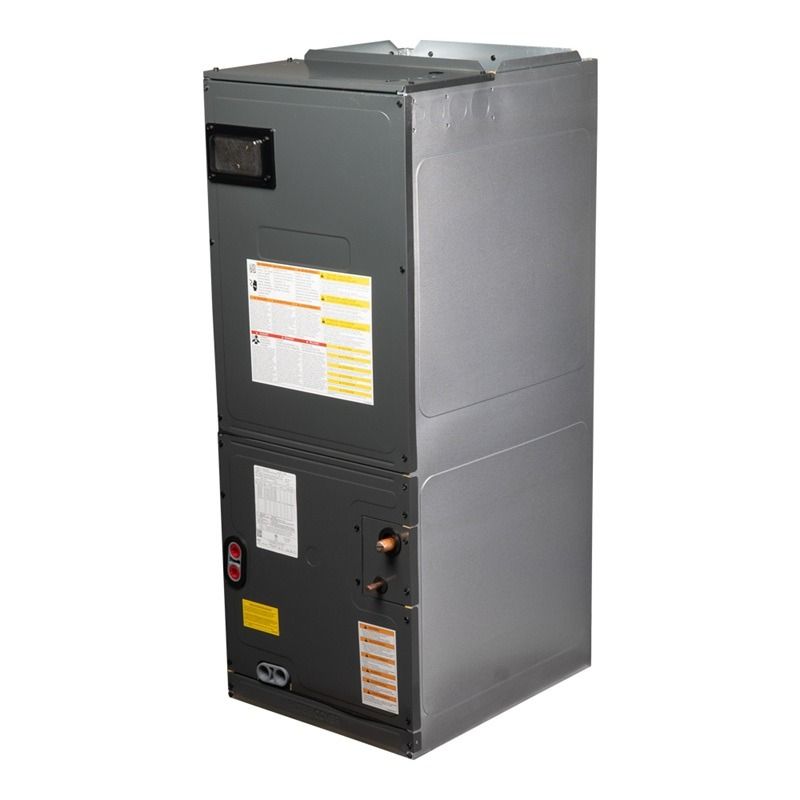

4 Ton Multi-Positional Air Handler - R32
OVERVIEW
The ACiQ AQ-AMST48CU1300 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, ACiQ upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.
QUICK FACTS
- 4 ton air handler
- Electric heat compatible
- Optimized for use with R32 refrigerant
- Multi-speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
4 Tons
The ACiQ AQ-AMST48CU1300 air handler is rated for an output of 4 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.
Warranty
The AQ-AMST48CU1300 comes with ACiQ standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.
Durability and Reliability
With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the ACiQ AQ-AMST48CU1300 air handler is durable in design, making it a reliable solution for your home.
Installation and Maintenance
The ACiQ AQ-AMST48CU1300 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there are two panels on the front to access vital areas on the air handler.
Enhanced Comfort
The AQ-AMST48CU1300 air handler lives up to ACiQ comfort expectations with its multi-speed ECM motor, which provides a more precise and efficient temperature control.
Technical Specifications - AQ-GLXS5BA4210
| sku | AQ-GLXS5BA4210 |
|---|---|
| weight (in lbs) | 282.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| cooling btu | 42,000 |
| decibel level (dba) | 72 |
| horsepower | 0.25 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 15.2 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid line | 3/8" |
| suction line | 7/8" |
| electrical | 208/230v 1 Phase 60Hz |
| max breaker size | 40 Amps |
| min. breaker size | 23.4 Amps |
| tonnage | 3.5 Ton |
| connection | Sweat |
| height | 36 1/2" |
| width | 35 1/2" |
| depth | 35 1/2" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-AMST48CU1300
| sku | AQ-AMST48CU1300 |
|---|---|
| weight (in lbs) | 153.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| blower motor | Multi-Speed Direct Drive ECM Motor |
| maximum cfm | 1495 |
| horsepower | 0.75 HP |
| electric backup heat capabilities (optional) | 3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 19 Kilowatts |
| refrigerant | R32 |
| liquid valve size | 3/8" |
| suction valve size | 7/8" |
| electrical | 208/240v 1 Phase 60Hz |
| max breaker size | 15 Amps |
| min. breaker size | 7.1 Amps |
| tonnage | 4 Ton |
| connection | 3/4" FPT |
| height | 58" |
| width | 21 1/8" |
| depth | 21" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here., |
