ACiQ

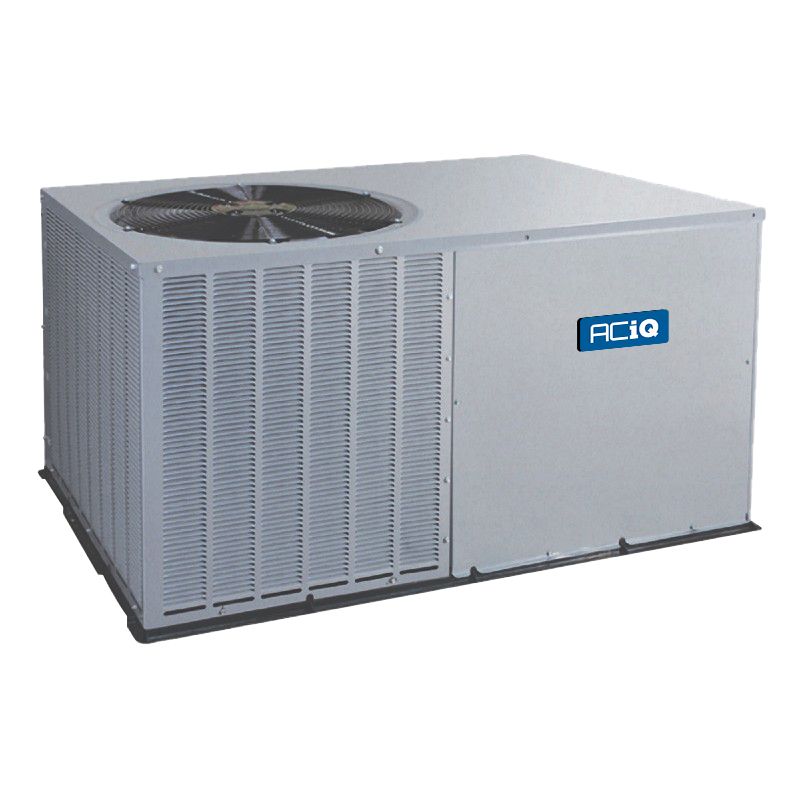

ACIQ 3.5 Ton 13.4 SEER2 Mobile Home Package Air Conditioner Unit - R454B Downflow /Horizontal
Product Overview
OVERVIEW
ACIQ-AirQuest offers durable units with outstanding warranties and quality of comfort. The PAM442000K000B-MH AC-only mobile home packaged unit is no exception to ACIQ-AirQuest superiority, and with its quiet operation and installation application potential, this unit can provide reliable comfort for many years to come.
QUICK FACTS
- 3.5 ton, 13.4 SEER2 AC-only Mobile Home Packaged Unit
- Factory-installed filter drier
- Built-in TXV kit and an ECM blower motor for enhanced efficiency
- Quiet operation
- Enhanced dehumidification mode
- Horizontal installation
3.5 Ton, 13.4 SEER2
The ACIQ-AirQuest PAM442000K000B-MH has an output of 3.5 tons. With an efficiency rating of 13.4 SEER2, this unit will perform well while keeping money in your pocket over lower SEER2 models. Please note that this unit is air conditioning only and will provide cooling only unless a heat kit is field-installed, available at an additional cost.
Warranty
ACIQ-AirQuest covers these gas packaged units with their standard 10-year parts warranty, as well as an exceptional 5-year no hassle replacement warranty, giving you the peace of mind that if you have a problem, they have a plan. Please note that for all warranties through ACIQ-AirQuest, installation following your state and local codes is required, and the unit must be registered through the manufacturer.
Durability and Reliability
With its tin-coated copper evaporator coil, the ACIQ-AirQuest PAM442000K000B-MH is durable enough to withstand general wear-and-tear. Moreover, the unit also has safety switches to prevent damage from malfunctions, as well as the base has integrated full perimeter steel base rails to further secure the unit in place. Along with other system features, these give you the peace of mind that this system can be relied upon when you need it most.
Installation and Maintenance
The ACIQ-AirQuest PAM442000K000B-MH can be installed on your roof or next to your home, as it has two outlet options that can be used. For easy service access, there are multiple control panels and maintenance access panels to make sure you can fix your unit should the need arise.
Packaged Unit Buyers Guide
- How packaged units work for residential and commercial use
- The different types of packaged units
- Figuring out the right size unit for your needs
- The importance of a custom curb adapter
- And much more!
Technical Specifications — PAM442000K000B-MH
| sku | PAM442000K000B-MH |
|---|---|
| weight (in lbs) | 275.000000 |
| ahri certificate number | 212946475 |
| brand/manufacturer | ACiQ |
| replaces | PAJ442000K000K |
| equivalent | Carrier Equivalent: 50VL-C36---3Tempstar Equivalent: PAJ436000KTP0BBryant Equivalent: 707ENXA036000 |
| cooling btu | 42,000 |
| decibel level (dba) | 72 |
| configuration | Horizontal |
| refrigerant | R454B |
| seer2 (efficiency) | 13.4 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| electrical | 208 / 230 V. 1 Phase 60 Hz |
| max breaker size | 40 amps |
| min. breaker size | 31.1 amps |
| tonnage | 3.5 Ton |
| height | 34-1/8" |
| width | 32" |
| depth | 51" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
