Product Overview
OVERVIEW

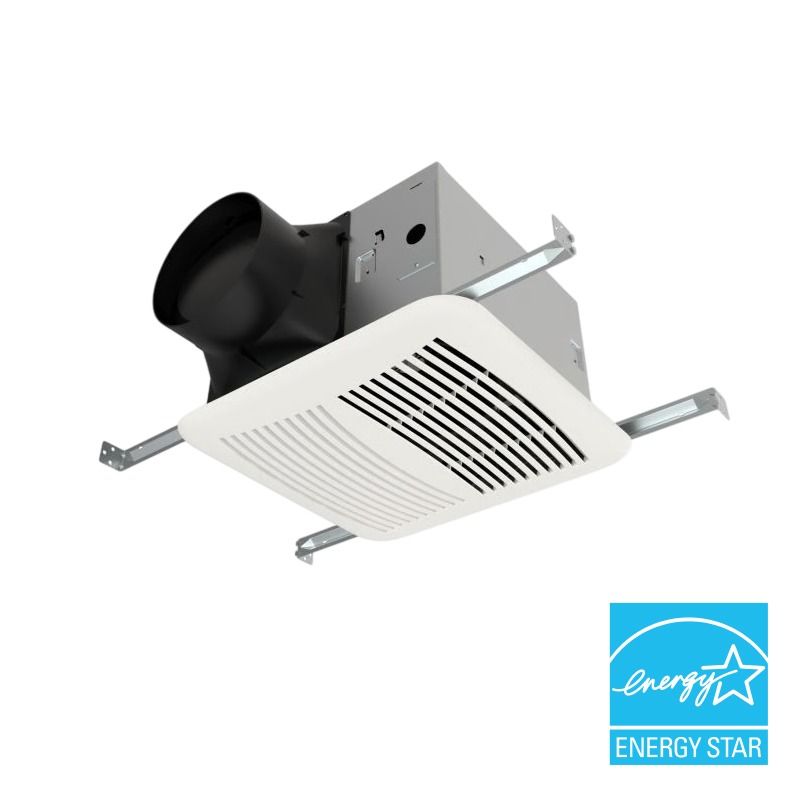

Designed for superior airflow, the ACiQ Select Series ventilation fan combines ultra-quiet operation, low energy usage, and long-lasting dependability. Suitable for both wall and ceiling installations, it meets leading safety and efficiency standards, making it an ideal choice for modern, efficient ventilation.
Key Features
- Heavy-duty 26-gauge galvanized steel housing for superior corrosion resistance and long service life
- Adjustable double hanger brackets extend up to 24" for flexible positioning and secure installation
- ENERGY STAR® certified for excellent efficiency and reduced energy consumption
- Low-RPM motor delivers strong ventilation with minimal noise
- 4-point mounting system provides stability and easy ceiling integration
- Compatible with 6-inch round ducts for straightforward connection to roof vents or wall caps
- HVI certified to meet or exceed airflow and sound standards under real-world conditions
Technical Specifications
- Max CFM: Up to 200 CFM for effective ventilation
- Noise Level: Operates at 2.0 sones
- Wattage: Uses only 24 watts
- Duct Diameter: 6" duct connection
Warranty Information
ACiQ stands behind the quality of Bathroom Exhaust Fans with an industry-leading warranty program.
- Standard Warranty: One (1) year coverage from the date of purchase against defects in materials or workmanship.
- Extended Warranty: Enjoy an extended five (5) year warranty when you register your product online with no additional cost.
Online registration is required to unlock the extended warranty coverage. ACiQ’s extended warranty reflects its commitment to product reliability, giving you added protection and peace of mind.
Refer to the manufacturer's manual for full warranty details.Premium Materials & Construction
Each ACiQ Select Series Exhaust Fan is crafted from durable galvanized steel housing, which offers excellent resistance to rust and corrosion, even in high-humidity environments. The fan blades are made of high-strength ABS plastic, precision-balanced to ensure smooth, quiet operation with minimal vibration. The grille features a clean, low-profile design, allowing the fan to integrate effortlessly into bathrooms of any style. With their solid construction and long-lasting components, these fans deliver consistent ventilation performance while keeping maintenance needs low.
Built with quality materials and engineered for efficiency, the ACiQ Select Series Exhaust Fan provides powerful moisture and odor control while maintaining a sleek, functional design that fits seamlessly into modern interiors.
Why Choose ACiQ Select Series Bathroom Exhaust Fans?
Advanced Motor & Blower System- Permanently lubricated plug-in motor designed for continuous-duty operation.
- Low-speed RPM design delivers ultra-quiet airflow without reducing performance.
- Motor comes with a built-in overload disconnect for safety and longer motor life.
- Made from rugged polymeric resin, built to withstand moisture and wear.
- Simple, clean aesthetic complements a wide range of ceiling designs.
- Constructed from heavy-duty 26-gauge galvanized steel
- Adjustable double hanger brackets fit spans up to 24 inches for flexible placement
- Removable 6-inch resin collar with integrated backdraft damper
Technical Specifications — AEPD200SC
| sku | AEPD200SC |
|---|---|
| weight (in lbs) | 10.000000 |
| brand/manufacturer | ACiQ |
| drive type | DC Motor |
| maximum cfm | 200 |
| noise (sones) | 2.0 |
| energy star | Yes |
| wattage | 24 |
| duct diameter | 6" |
| height | 7.63" |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
