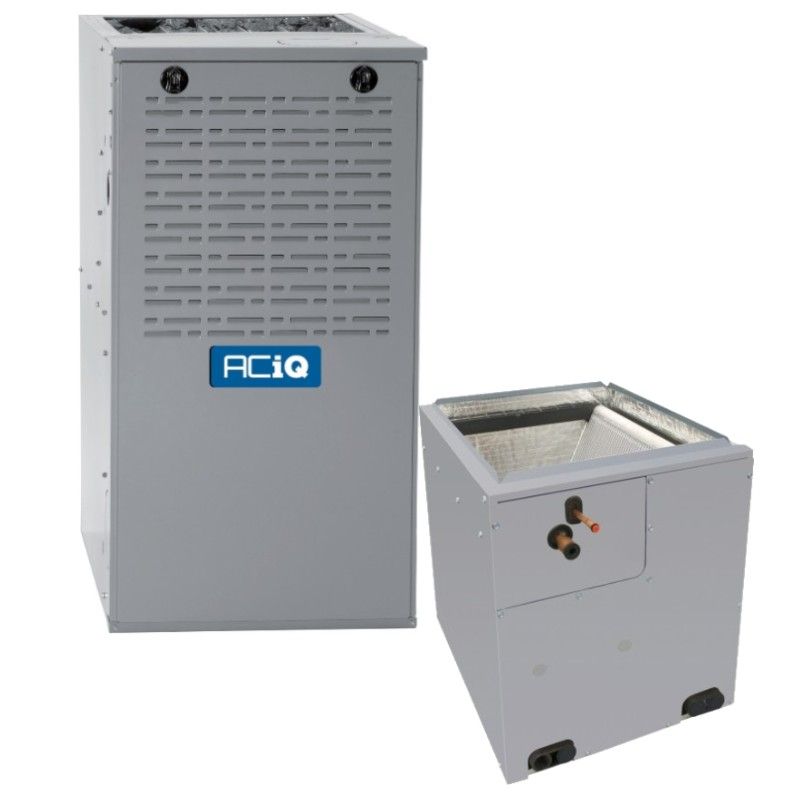

ACIQ 2 Ton 80% AFUE 44,000 BTU Furnace and Coil System - Upflow/Downflow - R454B

OVERVIEW

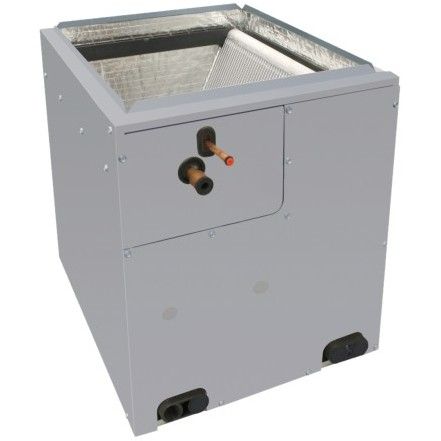

ACIQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EVD5X24M17A vertical coil is a superior option for any air conditioning application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization.

QUICK FACTS

• 2 ton vertical coil
• Works in both upflow and downflow applications
• Fully insulated, cased V-coil design for efficient heat transfer in a compact size
• Factory-installed TXV kit for enhanced energy optimization
• Corrosion-resistant drain pan designed with a Polybutylene Terephthalate (PBT) material for unsurpassed strength

2 Tons

The ACIQ EVD5X24M17A is rated for up to 2 tons of cooling. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Warranty

ACIQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.

OVERVIEW

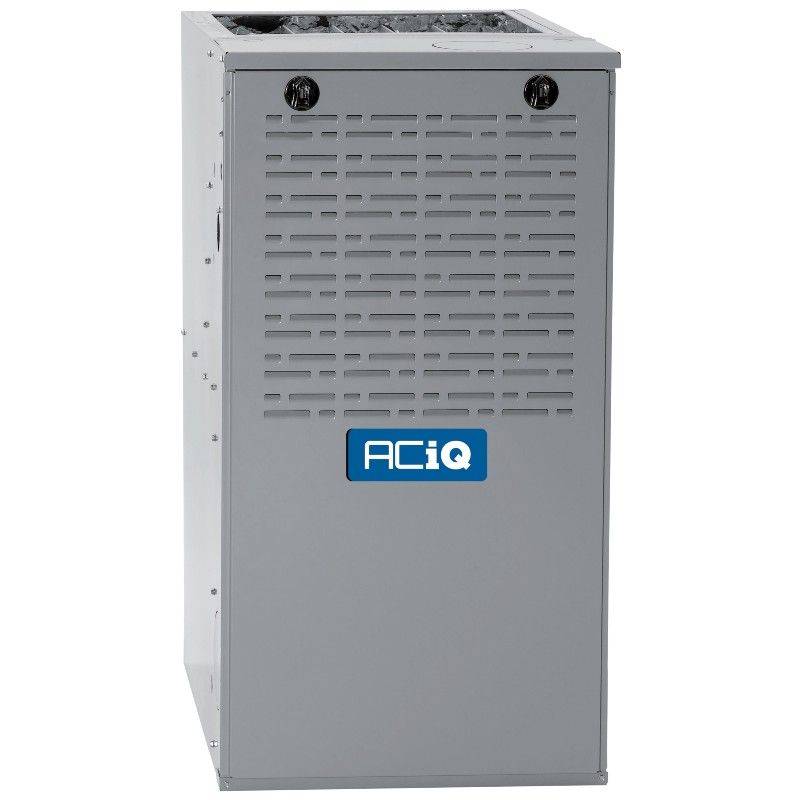

The ACiQ N80MSN0451714A is an inexpensive model of furnace to provide reasonable comfort to your home. At a basic efficiency, this furnace will heat your home adequately with the right output, providing comfort to your home even in the coldest parts of the year.

QUICK FACTS

• 44,000 BTU, 80% AFUE natural gas furnace
• Generally suitable for up to a small house in ideal applications
• Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
• Single stage burner with a multi-speed blower
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics

44,000 BTU, 80% AFUE

The ACiQ N80MSN0451714A has an input of 44,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 35,200 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Low NOx or Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Warranty

ACiQ offers 10 year parts and 20 year heat exchanger limited warranties. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.

Installation and Durability

With its ability to be installed in any configuration (upflow, downflow, or horizontal) the ACiQ N80MSN0451714A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for mobile home installation on its own.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
