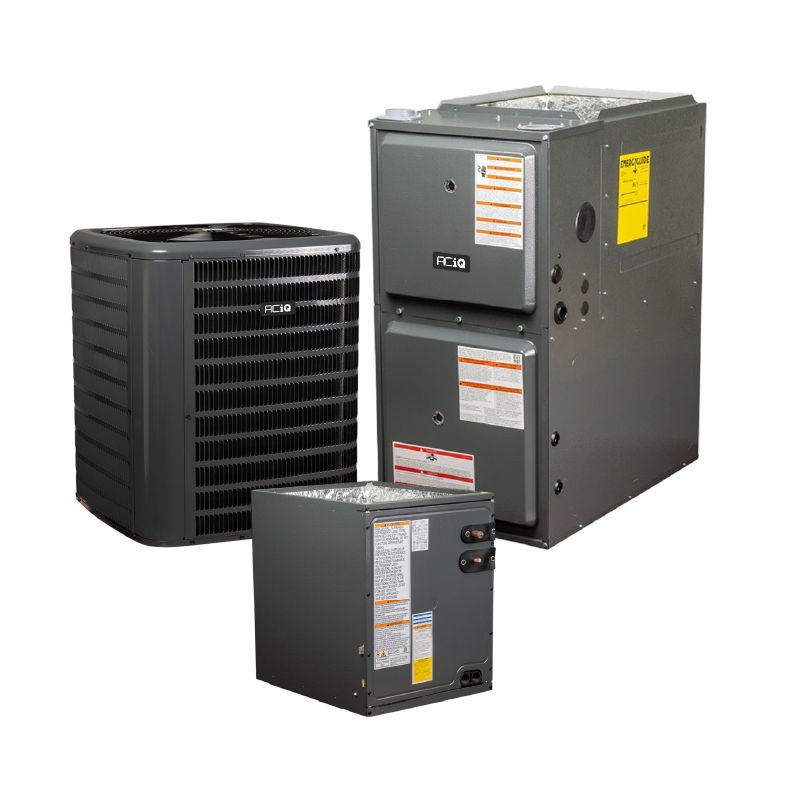

ACIQ 2 Ton 15.2 SEER2 96% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow
Product Overview
2 Ton 15.2 SEER2 High Efficiency Central Air Conditioner Condenser - R32 Single Stage
OVERVIEW
ACiQ has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The AQ-GLXS5BA2410 is no exception, with its durability, reliability, and one of the highest efficiencies available.
QUICK FACTS
- Ideal size to cover a smaller house in ideal climates
- 2 ton, 15.2 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
2 Ton
The AQ-GLXS5BA2410 AC-only condenser is 2 tons, normally enough to cover up to a smaller house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.
15.2 SEER2
The AQ-GLXS5BA2410 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.
Warranty
The AQ-GLXS5BA2410 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The cabinet of ACiQ's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the AQ-GLXS5BA2410 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.
Installation and Maintenance
For easier maintenance, ACiQ designed the AQ-GLXS5BA2410's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the AQ-GLXS5BA2410 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.
Comfort in Mind
Superior comfort has always been the primary goal for ACiQ. The AQ-GLXS5BA2410 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.
2.5 Ton 21" Width Upflow/Downflow Cased Evaporator Coil - TXV - R32
OVERVIEW
An AC or heat pump system is only as good as its evaporator coil. The ACiQ AQ-CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The AQ-CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. ACiQ pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose ACiQ's AQ-CAPTA units with confidence.
Features
- All-Aluminum Coil: ACiQ's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
- Internal Thermostatic Expansion Valve: ACiQ's AQ-CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
- Cabinet Durability: Providing superior longevity and efficiency, AQ-CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
- Condensate Management: Keeping your system sage and operational, the AQ-CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
- R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
- 10-Year Limited Warranty
Why ACiQ? ACiQ is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to ACiQ being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. ACiQ creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.
80,000 BTU 96% AFUE Two Stage Gas Furnace - Upflow/Horizontal
OVERVIEW
As a high-efficiency system, the AQ-GR9T960804CN ACiQ gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the AQ-GR9T960804CN is a good way to go if you want to lower your gas bill.
QUICK FACTS
- This furnace is ideal to heat a medium-sized house (depending on climate)
- 80,000 BTU 96% AFUE natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with an optional conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
80,000 BTU
Heating up to a medium-sized house in normal conditions, the AQ-GR9T960804CN ACiQ gas furnace has an input of 80,000 BTU's and an output of 76,800 BTU's. The output in this case is determined by taking the input times the efficiency rating.
96% AFUE
The AQ-GR9T960804CN ACiQ gas furnace is a 96% efficient furnace, making it a condensing setup. This efficiency means that only 4% of the fuel going into the furnace is used up in furnace operations, while 96% of the fuel is used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you need to use metal flue venting, you would need an 80% efficient furnace.
Two Stage 9-Speed Furnace
With a two stage burner, the AQ-GR9T960804CN provides two heating outputs: one at a 60% heating output and one at a 100% output. The furnace also has a 9 speed ECM motor instead of the last-generation inefficient PSC motor. Both of these built-in upgrades allow for your furnace to adjust the heating output and airflow more precisely to better suit your home's comfort needs and provide a slightly higher efficiency.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durability and Reliability
The exterior casing on the AQ-GR9T960804CN is heavy-gauge steel that is insulated for enhanced protection and to lower air leakage and sound output from normal furnace operation. The hot surface ignitor is more efficient than earlier models and standing pilot lights thanks to its revolutionary new technology. Both of these end up saving you money on installation, maintenance, and bills.
Installation and Maintenance
The cost-saving benefits of the ACiQ brand doesn't stop at efficiency. The AQ-GR9T960804CN ACiQ furnace can be upflow or horizontal, increasing the number of ways that your installer can install the system. The low-voltage terminals that are color-coded, the installation is faster and easier over standard non-colored systems. Straight from the factory, the AQ-GR9T960804CN comes with natural gas valves. However, increasing its versatility in installation, ACiQ offers an LP conversion kit (found here at an additional cost) if you need it to be propane instead of natural gas. Not only does the ACiQ brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the on board self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution.
Please note that this furnace requires a if installed horizontally. Upflow configurations do not require the kit.
Technical Specifications - AQ-GLXS5BA2410
| sku | AQ-GLXS5BA2410 |
|---|---|
| weight (in lbs) | 169.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSX160241 |
| product features | New Refrigerant Compliant |
| cooling btu | 24,000 |
| decibel level (dba) | 73 |
| horsepower | 0.167 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 15.2 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid line | 3/8" |
| suction line | 3/4" |
| electrical | 208/230v 1 Phase 60Hz |
| max breaker size | 25 Amps |
| min. breaker size | 15.3 Amps |
| tonnage | 2 Ton |
| connection | Sweat |
| height | 32" |
| width | 29" |
| depth | 29" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-CAPTA3022C3
| sku | AQ-CAPTA3022C3 |
|---|---|
| weight (in lbs) | 43.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| configuration | Upflow / Downflow |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 3/4" |
| tonnage | 2.5 Ton |
| style | A-Coil |
| certification | ETL Listed, AHRI Certified |
| height | 22" |
| width | 21" |
| depth | 21" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-GR9T960804CN
| sku | AQ-GR9T960804CN |
|---|---|
| weight (in lbs) | 123.000000 |
| ahri certificate number | 215225028 |
| airflow direction | Upflow/Horizontal |
| exhaust flue requirement | Plastic / PVC |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 96% |
| heating btu | 80,000 |
| blower motor | 9 Speed - ECM |
| maximum cfm | 1600 |
| configuration | Upflow/Horizontal |
| energy star | Yes |
| electrical | 115 V. 1 Phase 60 Hz |
| max breaker size | 20 Amps |
| min. breaker size | 11.4 Amps |
| burner stages | Two |
| fuel type | Propane, Natural Gas |
| height | 34.5" |
| width | 21" |
| depth | 28.75" |
| warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| safety information | This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
