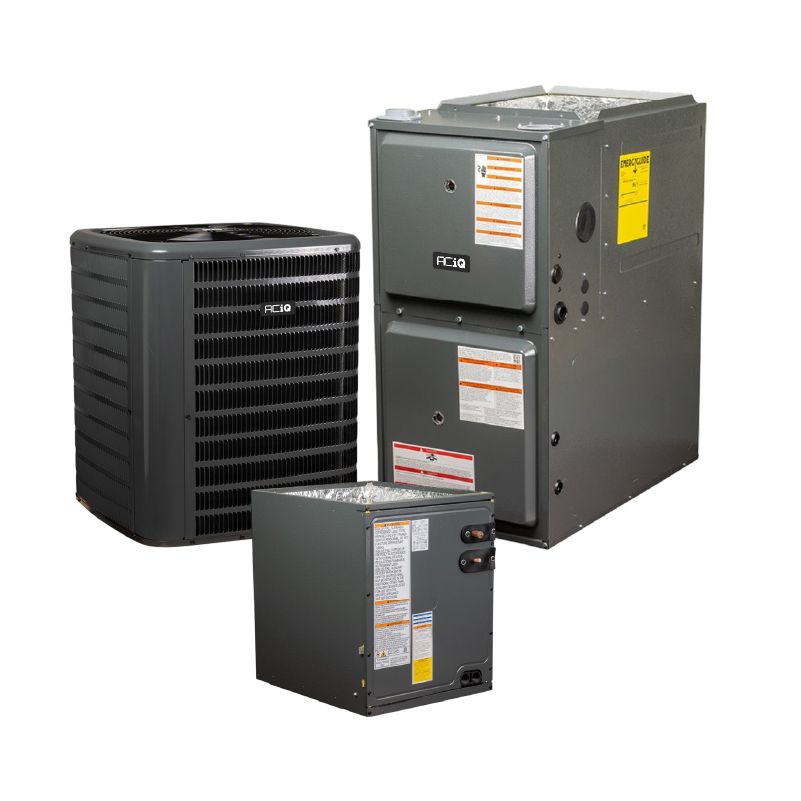

ACIQ 2 Ton 15.2 SEER2 96% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow
Product Overview
2 Ton 14.3 SEER2 Single Stage Air Conditioner Condenser - R32
OVERVIEW
The ACiQ brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the ACiQ AQ-GLXS4BA2410 air conditioner condenser is a popular choice for homeowners around the United States.
QUICK FACTS
- Ideal size to cover a small house in ideal climates
- 2 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
2 Ton
The AQ-GLXS4BA2410 ACiQ condenser is a 2 ton unit, meaning that it can cover up to a small home in an ideal climate. In some unit bundles, the required AC coil may be larger than this condenser in tonnage. This is intentional, as it maintains the unit's efficiency.
14.3 SEER2
The AQ-GLXS4BA2410 AC-only conditioner can be up to 14.3 SEER2 in efficiency when paired with the proper equipment. As the standard efficiency on the market for all states, this unit is average in efficiency. Every SEER2 point is 5-7% more efficient than the one lower than it, saving you money the higher the SEER2 rating of the unit. Please note that this product is regulated by DOE Efficiency Standards.
Warranty
The AQ-GLXS4BA2410 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The AQ-GLXS4BA2410 ACiQ AC condenser cabinet has a baked-on painted finish and is made of a galvanized-steel, making it approved for up to 500 hours of salt-spray and compliant with the 2010 Florida building code integrity requirements for hurricane-type winds when properly anchored. Moreover, the unit is equipped from the factory with a filter dryer that lowers general wear-and-tear on the unit. The AQ-GLXS4BA2410 provides peace of mind thanks to its durability and reliability enhancements.
Installation and Maintenance
The ACiQ AQ-GLXS4BA2410 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.
Comfort in Mind
The ACiQ brand always has its customer's comfort in mind. The AQ-GLXS4BA2410 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.
2 Ton 21" Width Upflow/Downflow Cased Evaporator Coil - TXV - R32
OVERVIEW
An AC or heat pump system is only as good as its evaporator coil. The ACiQ AQ-CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The AQ-CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. ACiQ pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose ACiQ's AQ-CAPTA units with confidence.
Features
- All-Aluminum Coil: ACiQ's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
- Internal Thermostatic Expansion Valve: ACiQ's AQ-CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
- Cabinet Durability: Providing superior longevity and efficiency, AQ-CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
- Condensate Management: Keeping your system sage and operational, the AQ-CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
- R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
- 10-Year Limited Warranty
Why ACiQ? ACiQ is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to ACiQ being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. ACiQ creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.
80,000 BTU 96% AFUE 9-Speed Single Stage Gas Furnace - Upflow/Horizontal
OVERVIEW
The AQ-GR9S960804CN ACiQ gas furnace features high-quality construction and efficient operation at a great value. The AQ-GR9S960804CN single-stage, 9-speed furnace utilizes ACiQ's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GR9S960804CN.
QUICK FACTS
- This furnace is ideal to heat a medium-sized house (depending on climate)
- 80,000 BTU 96% efficient natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
80,000 BTU
The AQ-GR9S960804CN ACiQ gas furnace is 80,000 BTU's. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 76,800 BTU's (80,000 X 96% AFUE) per hour. In ideal climate conditions, this 80,000 BTU furnace is usually used to heat a medium-size house.
96% Efficiency Rating
The AQ-GR9S960804CN ACiQ gas furnace is 96% efficient, which is one of the highest efficiencies for gas furnaces on the market today. This means that 96% of the gas going into the furnace is used to heat your home, while the remaining 4% is lost out of the flue venting. Please note that all furnaces that are 90% efficient and higher require plastic/PVC flue venting while furnaces that are 80% efficient require metal flue venting.
Single Stage Furnace
The AQ-GR9S960804CN ACiQ gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.
Natural Gas or LP Furnace
From the factory, the AQ-GR9S960804CN runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.
9-Speed ECM Blower Motor
Instead of the last generation PSC blower motor, the AQ-GR9S960804CN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durable Hot Surface Ignitor
The hot surface ignitor on modern ACiQ furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.
Self-Diagnostic Control Board
The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.
Heavy Gauge Steel Cabinet
The heavy-gauge steel cabinet on new ACiQ furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.
Ease of Installation
The value of modern ACiQ furnaces doesn't end at efficiency. Today's ACiQ furnaces feature many different connection options to reduce installation. The AQ-GR9S960804CN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.
Please note that this furnace requires a if installed horizontally. Upflow configurations do not require the kit.
Technical Specifications - AQ-GLXS4BA2410
| sku | AQ-GLXS4BA2410 |
|---|---|
| weight (in lbs) | 132.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSXN402410 |
| product features | New Refrigerant Compliant |
| cooling btu | 24,000 |
| decibel level (dba) | 74 |
| horsepower | 1/8 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 14.3 |
| condenser stages | Single Stage |
| compressor type | Rotary |
| liquid line | 3/8" |
| suction line | 3/4" |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230v 1 Phase 60Hz |
| max breaker size | 15 Amps |
| min. breaker size | 10.9 Amps |
| tonnage | 2 Ton |
| connection | Sweat |
| height | 27" |
| width | 26" |
| depth | 26" |
| warranty | 10 Years Parts with Online Registration |
| resources | GLXS4B Installation ManualGLXS4B Specifications SheetGLXS4B Service ManualGoodman Condenser WarrantyYou will need Adobe� Acrobat� Reader to view PDF documents. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-CAPTA2422C3
| sku | AQ-CAPTA2422C3 |
|---|---|
| weight (in lbs) | 43.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| configuration | Upflow / Downflow |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 3/4" |
| tonnage | 2 Ton |
| style | A-Coil |
| certification | ETL Listed, AHRI Certified |
| height | 22" |
| width | 21" |
| depth | 21" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-GR9S960804CN
| brand name | Private Brand |
|---|---|
| sku | AQ-GR9S960804CN |
| model | GR9S960804CN |
| unit type | Furnace |
| equipment type | Gas Furnace |
| short description | 80,000 BTU 96% AFUE 9-Speed Single Stage Gas Furnace - Upflow/Horizontal |
| airflow direction | Upflow/Horizontal |
| exhaust flue requirement | Plastic / PVC |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 96% |
| heating btu | 80,000 |
| blower motor | 9-Speed - ECM |
| maximum cfm | 1600 |
| configuration | Upflow/Horizontal |
| energy star | Yes |
| electrical | 115v 1 Phase 60 Hz |
| max breaker size | 20 Amps |
| min. breaker size | 13.7 Amps |
| burner stages | Single |
| fuel type | Propane, Natural Gas |
| height | 34 1/2" |
| width | 21" |
| depth | 28 3/4" |
| gross weight (lbs) | 141 |
| warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| ahri certificate number | 215224974 |
| registered warranty | Online Registration Required |
| has batteries | No |
| contains electronics | Yes |
| contains chemicals | Yes |
| contains aerosol | No |
| contains compressed gas | No |
| proposition 65 warning | Yes |
| restricted states | GU;PR;VI |
| freight class | 300 |
| safety information | This gas appliance requires a trained technician to install. Improper installation of gas lines or venting may result in death. Purchase implies agreement to use a trained technician. We assume no responsibility for injury or damage due to improper service. |
