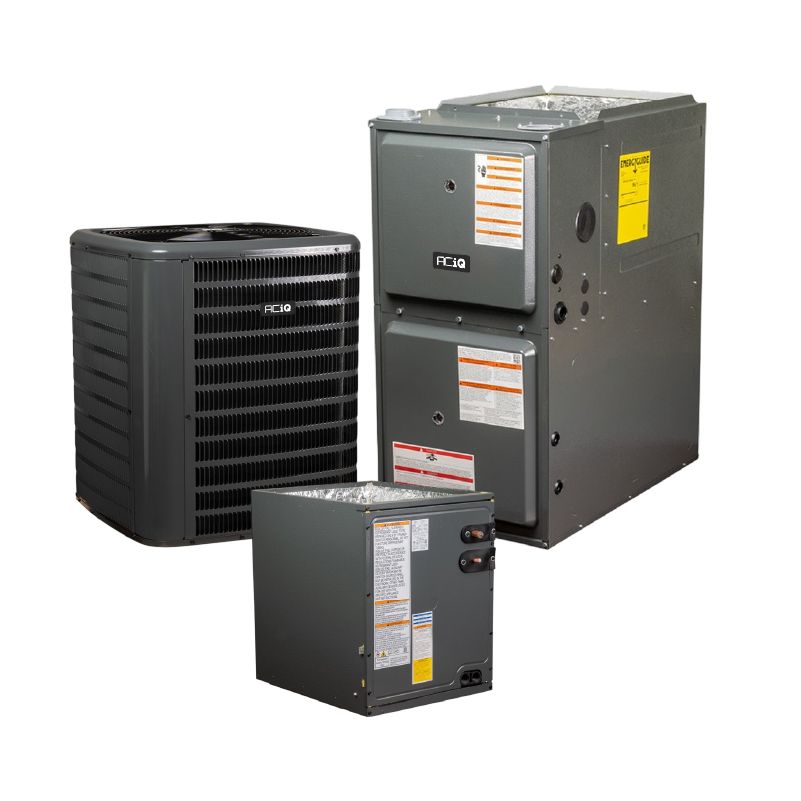

ACIQ 2 Ton 15.2 SEER2 92% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow
Product Overview
2 Ton 15.2 SEER2 High Efficiency Central Air Conditioner Condenser - R32 Single Stage
OVERVIEW
ACiQ has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The AQ-GLXS5BA2410 is no exception, with its durability, reliability, and one of the highest efficiencies available.
QUICK FACTS
- Ideal size to cover a smaller house in ideal climates
- 2 ton, 15.2 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
2 Ton
The AQ-GLXS5BA2410 AC-only condenser is 2 tons, normally enough to cover up to a smaller house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.
15.2 SEER2
The AQ-GLXS5BA2410 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.
Warranty
The AQ-GLXS5BA2410 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The cabinet of ACiQ's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the AQ-GLXS5BA2410 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.
Installation and Maintenance
For easier maintenance, ACiQ designed the AQ-GLXS5BA2410's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the AQ-GLXS5BA2410 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.
Comfort in Mind
Superior comfort has always been the primary goal for ACiQ. The AQ-GLXS5BA2410 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.
2 Ton 17.5" Width Upflow/Downflow Cased Evaporator Coil - TXV - R32
OVERVIEW
An AC or heat pump system is only as good as its evaporator coil. The ACiQ AQ-CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The AQ-CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. ACiQ pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose ACiQ's AQ-CAPTA units with confidence.
Features
- All-Aluminum Coil: ACiQ's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
- Internal Thermostatic Expansion Valve: ACiQ's AQ-CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
- Cabinet Durability: Providing superior longevity and efficiency, AQ-CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
- Condensate Management: Keeping your system sage and operational, the AQ-CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
- R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
- 10-Year Limited Warranty
Why ACiQ? ACiQ is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to ACiQ being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. ACiQ creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.
60,000 BTU 92% AFUE 9-Speed Single Stage Gas Furnace - Upflow/Horizontal
OVERVIEW
The AQ-GR9S920603BN ACiQ gas furnace features high-quality construction and efficient operation at a great value. The AQ-GR9S920603BN single-stage, 9-speed furnace utilizes ACiQ's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GR9S920603BN.
QUICK FACTS
- This furnace is ideal to heat a small to medium house (depending on climate)
- 60,000 BTU 92% efficient natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
60,000 BTU
The AQ-GR9S920603BN ACiQ gas furnace is 60,000 BTU's. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 55,200 BTU's (60,000 X 92% AFUE) per hour. In ideal climate conditions, this 60,000 BTU furnace is usually used to heat a small to medium house.
92% Efficiency Rating
The AQ-GR9S920603BN ACiQ gas furnace is 92% efficient, and the standard furnace efficiency on the market today. This means that 92% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 92% furnaces must be vented using plastic/PVC flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.
Single Stage Furnace
The AQ-GR9S920603BN ACiQ gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.
Natural Gas or LP Furnace
9-Speed ECM Blower Motor
Instead of the last generation PSC blower motor, the AQ-GR9S920603BN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durable Hot Surface Igniter
The hot surface igniter on modern ACiQ furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.
Self-Diagnostic Control Board
The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.
Heavy Gauge Steel Cabinet
The heavy-gauge steel cabinet on new ACiQ furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.
Ease of Installation
The value of modern ACiQ furnaces doesn't end at efficiency. Today's ACiQ furnaces feature many different connection options to reduce installation. The AQ-GR9S920603BN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.
Technical Specifications - AQ-GLXS5BA2410
| sku | AQ-GLXS5BA2410 |
|---|---|
| weight (in lbs) | 169.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSX160241 |
| product features | New Refrigerant Compliant |
| cooling btu | 24,000 |
| decibel level (dba) | 73 |
| horsepower | 0.167 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 15.2 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid line | 3/8" |
| suction line | 3/4" |
| electrical | 208/230v 1 Phase 60Hz |
| max breaker size | 25 Amps |
| min. breaker size | 15.3 Amps |
| tonnage | 2 Ton |
| connection | Sweat |
| height | 32" |
| width | 29" |
| depth | 29" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-CAPTA2422B3
| sku | AQ-CAPTA2422B3 |
|---|---|
| weight (in lbs) | 40.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| configuration | Upflow / Downflow |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 3/4" |
| tonnage | 2 Ton |
| style | A-Coil |
| certification | ETL Listed, AHRI Certified |
| height | 22" |
| width | 17.5" |
| depth | 21" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-GR9S920603BN
| brand name | Private Brand |
|---|---|
| sku | AQ-GR9S920603BN |
| model | GR9S920603BN |
| unit type | Furnace |
| equipment type | Gas Furnace |
| short description | 60,000 BTU 92% AFUE 9-Speed Single Stage Gas Furnace - Upflow/Horizontal |
| airflow direction | Upflow/Horizontal |
| exhaust flue requirement | Plastic / PVC |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 92% |
| heating btu | 60,000 |
| blower motor | 9 Speed - ECM |
| maximum cfm | 1200 |
| configuration | Upflow/Horizontal |
| electrical | 115 V. 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 10.1 Amps |
| burner stages | Single |
| fuel type | Propane, Natural Gas |
| height | 34.5" |
| width | 17.5" |
| depth | 28.75" |
| gross weight (lbs) | 114 |
| warranty | Lifetime Heat Exchanger and 10 Years Parts with Online Registration |
| ahri certificate number | 215224964 |
| registered warranty | Online Registration Required |
| has batteries | No |
| contains electronics | Yes |
| contains chemicals | Yes |
| contains aerosol | No |
| contains compressed gas | No |
| proposition 65 warning | Yes |
| restricted states | GU;PR;VI |
| freight class | 300 |
| safety information | This gas appliance requires a trained technician to install. Improper installation of gas lines or venting may result in death. Purchase implies agreement to use a trained technician. We assume no responsibility for injury or damage due to improper service. |
