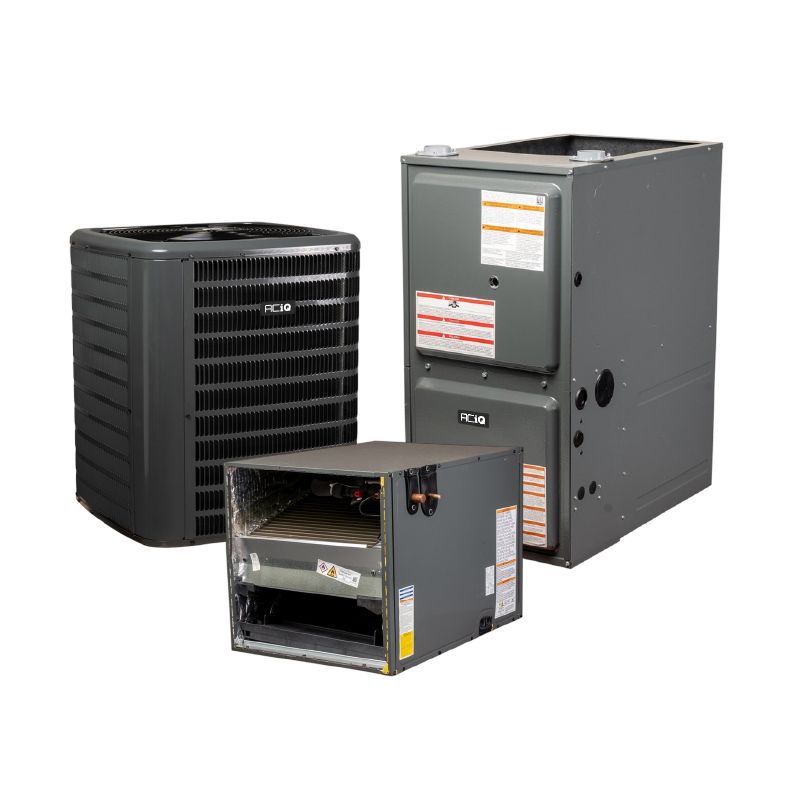

ACIQ 2 Ton 14.5 SEER2 96% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Horizontal
Product Overview
2 Ton 14.3 SEER2 Single Stage Air Conditioner Condenser - R32
OVERVIEW
The ACiQ brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the ACiQ AQ-GLXS4BA2410 air conditioner condenser is a popular choice for homeowners around the United States.
QUICK FACTS
- Ideal size to cover a small house in ideal climates
- 2 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
2 Ton
The AQ-GLXS4BA2410 ACiQ condenser is a 2 ton unit, meaning that it can cover up to a small home in an ideal climate. In some unit bundles, the required AC coil may be larger than this condenser in tonnage. This is intentional, as it maintains the unit's efficiency.
14.3 SEER2
The AQ-GLXS4BA2410 AC-only conditioner can be up to 14.3 SEER2 in efficiency when paired with the proper equipment. As the standard efficiency on the market for all states, this unit is average in efficiency. Every SEER2 point is 5-7% more efficient than the one lower than it, saving you money the higher the SEER2 rating of the unit. Please note that this product is regulated by DOE Efficiency Standards.
Warranty
The AQ-GLXS4BA2410 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The AQ-GLXS4BA2410 ACiQ AC condenser cabinet has a baked-on painted finish and is made of a galvanized-steel, making it approved for up to 500 hours of salt-spray and compliant with the 2010 Florida building code integrity requirements for hurricane-type winds when properly anchored. Moreover, the unit is equipped from the factory with a filter dryer that lowers general wear-and-tear on the unit. The AQ-GLXS4BA2410 provides peace of mind thanks to its durability and reliability enhancements.
Installation and Maintenance
The ACiQ AQ-GLXS4BA2410 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.
Comfort in Mind
The ACiQ brand always has its customer's comfort in mind. The AQ-GLXS4BA2410 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.
2.5 Ton 17.5" Height Horizontal Cased Evaporator Coil - TXV - R32
OVERVIEW
The ACiQ AQ-CHPTA3026B3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the AQ-CHPTA3026B3 lives up to ACiQ's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.
Quick Facts
- 2.5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
2.5 Tons
At an output of 2.5 tons, the ACiQ AQ-CHPTA3026B3 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser's tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit's efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.
Warranty
The AQ-CHPTA3026B3 coil is covered under ACiQ's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R32 condenser, and the entire system is registered online through the manufacturer.
Installation and Durability
The ACiQ AQ-CHPTA3026B3 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil's durable cabinet has a split-seam.
Enhanced Comfort and Efficiency
The ACiQ AQ-CHPTA3026B3 horizontal evaporator coil's built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the AQ-CHPTA3026B3 to live up to the ACiQ quality name.

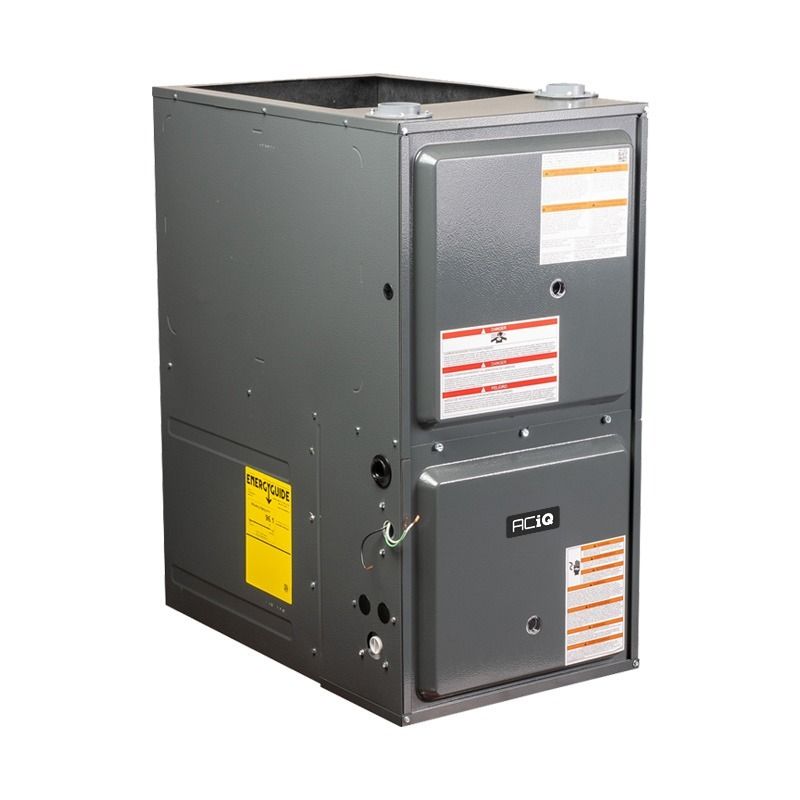

80,000 BTU 96% AFUE Two Stage Gas Furnace - Downflow / Horizontal
OVERVIEW
The ACiQ brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The AQ-GD9T960803BN gas furnace is no exception to ACiQ's ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.
QUICK FACTS
- This furnace is ideal to heat a medium-sized house (depending on climate)
- 80,000 BTU 96% AFUE natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with an optional conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
80,000 BTU
Heating up to a medium-sized house in average environmental conditions, the AQ-GD9T960803BN ACiQ furnace has an input of 80,000 BTU's and an output of 76,800 BTU's (input X efficiency rating = output).
96% AFUE
The AQ-GD9T960803BN gas furnace is 96% efficient. This efficiency means that 4% of the fuel going into the furnace is lost out of the flue venting, while 96% of the fuel is actually used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you are looking for a furnace that requires metal flue venting, you would need an 80% efficient furnace.
Two Stage 9-Speed Furnace
With a two stage burner, the AQ-GD9T960803BN provides two heating outputs: one at a 60% heating output for warmer days and one at a 100% output for when you need the furnace most. The furnace also has a 9 speed ECM motor instead of an inefficient PSC motor. Both of these upgrades provide a better efficiency with a more stable output to better heat your home through all seasons of use.
Warranty
With installation that follows your state and local codes, the AQ-GD9T960803BN gas furnace comes with a 10-year parts and lifetime heat exchanger warranty when registered online through ACiQ.
Durability and Reliability
The outer casing on the AQ-GD9T960803BN gas furnace is heavy-gauge steel with enhanced insulated for better protection and lower air leakage and sound output, providing more comfort to your home. The new hot surface ignitor replaces the standing pilot light for a more efficient startup.
Installation and Maintenance
The cost-saving benefits of the ACiQ brand doesn't stop at efficiency. The AQ-GD9T960803BN ACiQ furnace can be installed in either the downflow or horizontal orientation, making this furnace an ideal choice for multiple installation applications. Naturally, the GCEC960803BN comes with natural gas valves built in. However, increasing its installation potential, the AQ-GD9T960803BN can be field converted with the LP conversion kit (found here, for an extra fee) if you need it to be propane. Not only does the ACiQ brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution to almost any problem.
Technical Specifications - AQ-GLXS4BA2410
| sku | AQ-GLXS4BA2410 |
|---|---|
| weight (in lbs) | 132.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSXN402410 |
| product features | New Refrigerant Compliant |
| cooling btu | 24,000 |
| decibel level (dba) | 74 |
| horsepower | 1/8 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 14.3 |
| condenser stages | Single Stage |
| compressor type | Rotary |
| liquid line | 3/8" |
| suction line | 3/4" |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230v 1 Phase 60Hz |
| max breaker size | 15 Amps |
| min. breaker size | 10.9 Amps |
| tonnage | 2 Ton |
| connection | Sweat |
| height | 27" |
| width | 26" |
| depth | 26" |
| warranty | 10 Years Parts with Online Registration |
| resources | GLXS4B Installation ManualGLXS4B Specifications SheetGLXS4B Service ManualGoodman Condenser WarrantyYou will need Adobe� Acrobat� Reader to view PDF documents. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-CHPTA3026B3
| sku | AQ-CHPTA3026B3 |
|---|---|
| weight (in lbs) | 59.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| configuration | Horizontal |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 7/8" |
| tonnage | 2.5 Ton |
| style | A-Coil |
| certification | ETL Listed | AHRI Certified |
| height | 17.5" |
| width | 26" |
| depth | 21" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-GD9T960803BN
| sku | AQ-GD9T960803BN |
|---|---|
| weight (in lbs) | 118.000000 |
| ahri certificate number | 215225021 |
| airflow direction | Downflow/Horizontal |
| exhaust flue requirement | Plastic / PVC |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 96% |
| heating btu | 80,000 |
| blower motor | 9-Speed - ECM |
| maximum cfm | 1200 |
| configuration | Downflow/Horizontal |
| energy star | Yes |
| electrical | 115 V. 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 7.8 Amps |
| burner stages | Two |
| fuel type | Propane, Natural Gas |
| height | 34.5" |
| width | 17.5" |
| depth | 28.75" |
| warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| safety information | This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
