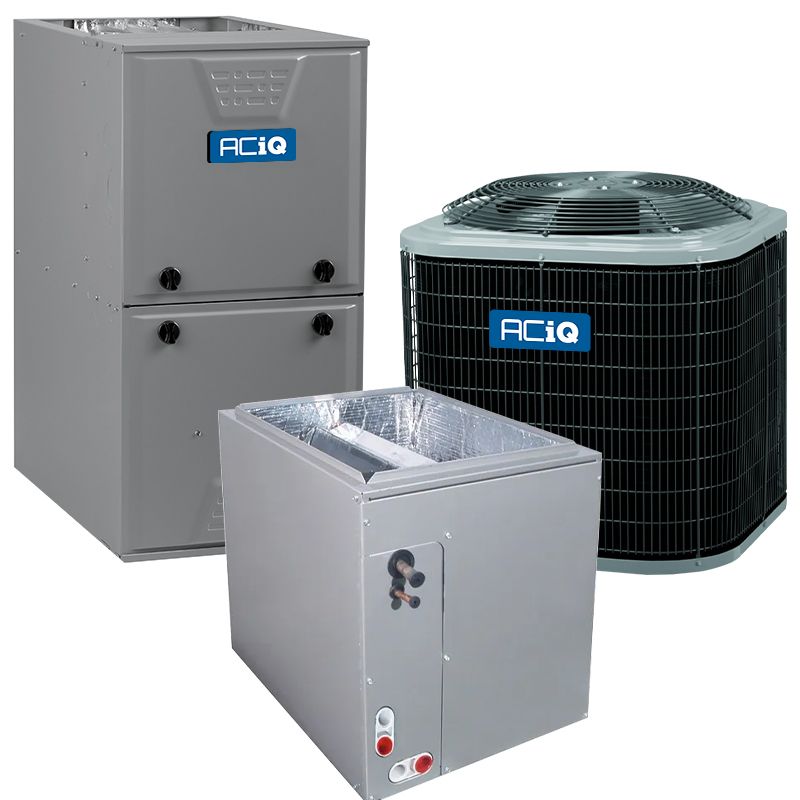

ACIQ 2 Ton 13.4 SEER2 97% AFUE 80,000 BTU ACIQ Gas Furnace and Air Conditioner System - Multi-Positional - R454B

Product Overview

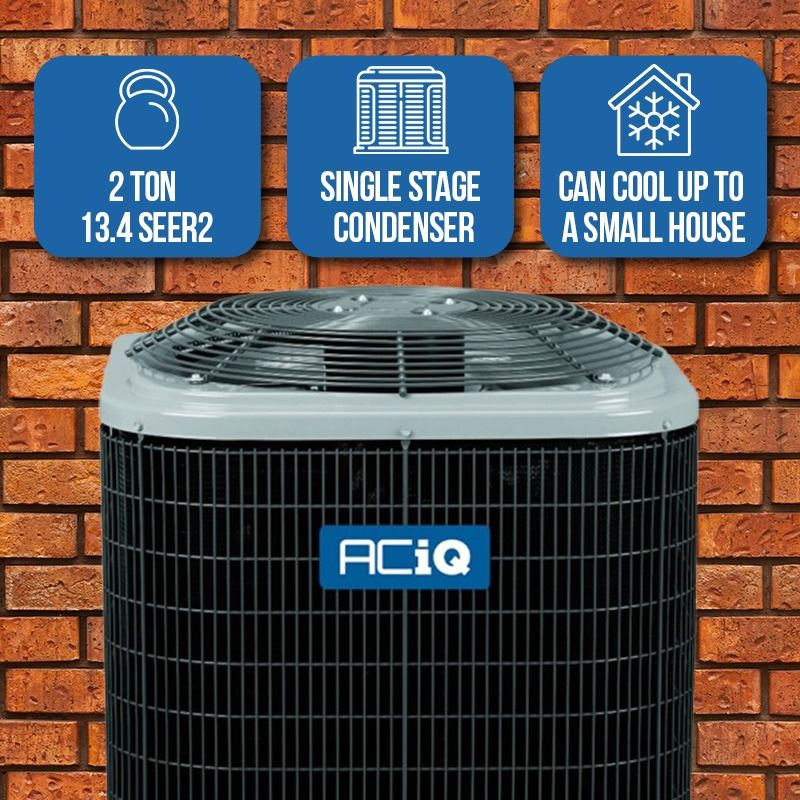

ACIQ 2 Ton 13.4 SEER2 Central Air Conditioner Condenser - R454B Single Stage

OVERVIEW

The ACIQ R5A4S24AKANA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
• 2 ton, 13.4 SEER2 AC-only condenser
• Can cool a small house in average conditions
• Single stage compressor
• Filter drier included to be field-installed

2 Tons

The ACIQ R5A4S24AKANA air conditioner condenser has an output of 2 tons, generally enough to cool a small house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.

13.4 SEER2

The ACIQ R5A4S24AKANA air conditioner condenser is rated at 13.4 SEER2, making it between 5-7% more efficient than standard 13 SEER1 units, saving you money in electric bills over the entire lifetime of your unit.

This unit (and all 13.4 SEER2 units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia For more information about state efficiency requirements, please click here.

Warranty

ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.

Durability

The cabinet of ACIQ units are extremely durable. On the R5A4S24AKANA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.

All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.

---

Quiet Comfort

ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.

---

High Efficiency

ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.

---

Longer life, longer warranty

ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

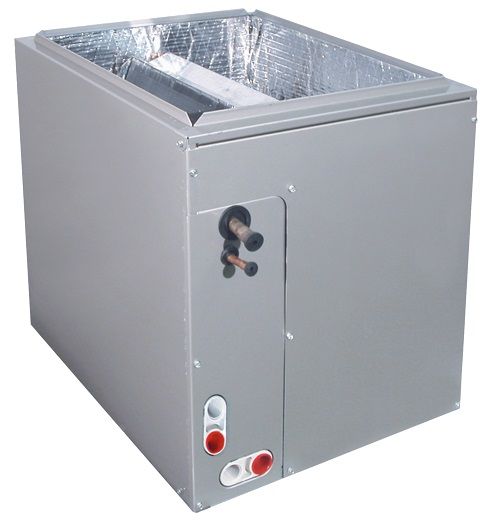

ACIQ 2 Ton 17.5" Width Multi-Positional Evaporator Cased Coil - R454B

ACiQ 97% 80,000 BTU Variable Speed Modulating Gas Furnace - 17.5" Width - Multi-Positional

OVERVIEW

With its variable speed blower motor and modulating gas valve, the ACiQ G97CMN0801714A can provide a consistently superior comfort to almost any application. Considered one of the best furnaces offered by ACiQ, the G97CMN0801714A is a great choice to keep you comfortable while saving you money in energy bills year-round.

QUICK FACTS

• 80,000 BTU, 98% AFUE natural gas furnace
• Generally suitable for up to an average-sized house in ideal applications
• Variable speed blower with a modulating gas valve
• Multi-positional design-can be installed in the upflow, downflow, or horizontal orientations
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics

80,000 BTU, 98% AFUE

The ACiQ G97CMN0801714A has an input of 80,000 BTU. With an efficiency of 98%, this means that the furnace has an output of 78,400 BTU, meaning that it is generally suitable for average-sized houses in ideal climates. The 98% AFUE also means that for the gas going into the furnace, 98% of it is used to heat your home while the remaining 2% is lost out the flue piping and lost to normal furnace operations. All 90% and above furnaces require plastic/PVC flue venting, and if you need it to be metal flue venting to match your current setup, you would need to get an 80% efficient furnace. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.

Warranty

ACiQ offers standard 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

With its ability to be installed in any configuration-upflow, downflow, or horizontal-the ACiQ G97CMN0801714A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not designed to be suitable for a mobile home on its own.

All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ G97CMN0801714A lives up to the name thanks in part to its variable speed blower motor and its modulating gas valve. Moreover, the furnace is communicating, meaning that with the proper equipment, the furnace will constantly adjust to the needs of your home so that you never go uncomfortable in your home, regardless if it is in Autumn or in the worst part of winter. Considered one of ACiQ's best furnaces, both prominent features provide the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.

Technical Specifications — R5A4S24AKANA

Technical Specifications — EAM5X25M17A

Technical Specifications — G97CMN0801714
