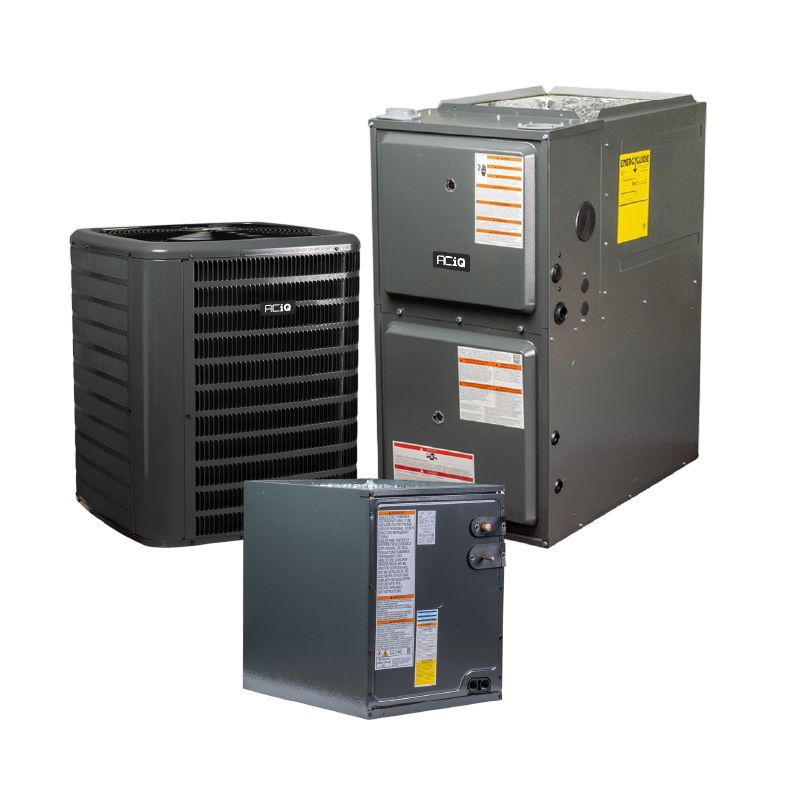

ACIQ 2 Ton 13.4 SEER2 96% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow
Product Overview
2 Ton 13.4 SEER2 Single Stage Air Conditioner Condenser - R32
OVERVIEW
The ACiQ AQ-GLXS3BN2410 is a cooling-only condenser unit. Providing a 13.4 SEER2 efficiency with a single stage, reciprocating compressor, the AQ-GLXS3BN2410 is an inexpensive condenser to cool your home when paired with an AC coil.
QUICK FACTS
- Ideal size to cover a small house
- 2 ton, 13.4 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
2 ton
The AQ-GLXS3BN2410 condenser is a 2 ton AC only unit. In an ideal climate situation, the AQ-GLXS3BN2410 can usually cover a small house. For this unit to function, an indoor air handler or coil is required, and this unit is cooling only with no heating capacity on its own.
13.4 SEER2
The ACiQ AQ-GLXS3BN2410 AC condenser is designed to be 13.4 SEER2. This is the lowest efficiency on the market today, making it an inexpensive option for northern states. Please note that this product is regulated by DOE Efficiency Standards.
Due to efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.
Warranty
The AQ-GLXS3BN2410 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
With an enhanced copper tube and aluminum fin coil, the AQ-GLXS3BN2410 is designed to prevent coil degradation. With the baked-on powder-paint finish, the condenser's heavy-gauge galvanized-steel cabinet is approved for up to 500 hours of salt-spray. The factory-installed filter dryer lowers general wear-and-tear on the unit. All of these features provide you with a durable, reliable condenser to be used whenever you need to cool your home.
Installation and Maintenance
The ACiQ AQ-GLXS3BN2410 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.
Comfort in Mind
The ACiQ brand always has its customer's comfort in mind. The AQ-GLXS3BN2410 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

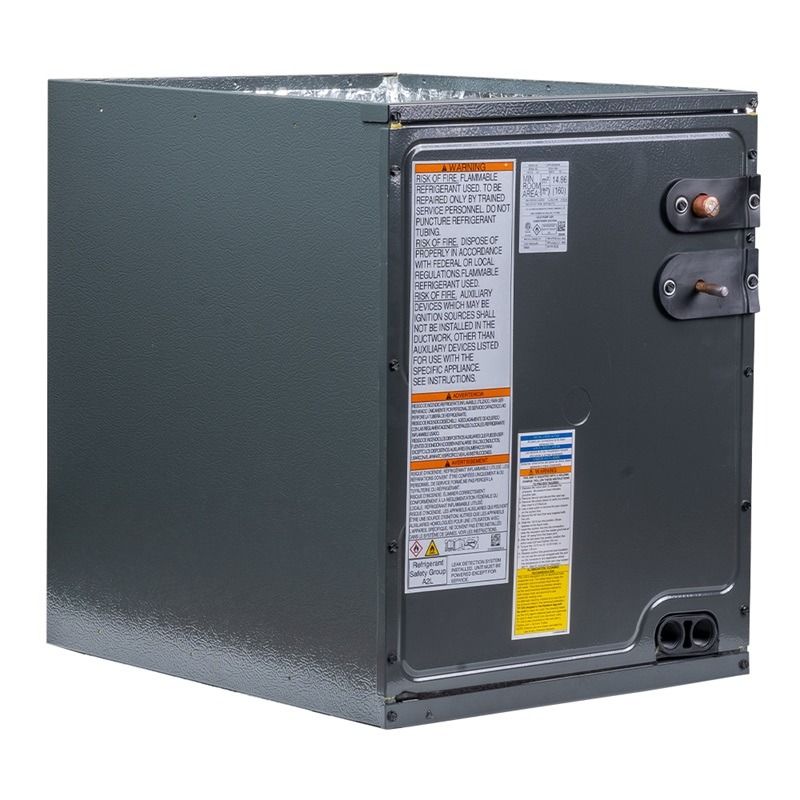

2 Ton 17.5" Width Vertical Evaporator Coil - Cased - R32
OVERVIEW
With the AQ-CAPFA2422B3 evaporator coil, ACiQ provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the AQ-CAPFA2422B3 is designed to be versatile in design and to provide an efficient comfort at a low cost.
QUICK FACTS
- 2 ton evaporator coil
- Installable in the upflow or downflow configurations
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Usable with either a heat pump or an AC-only condenser
- Low air leakage
- Check flowrater expansion device for use in any application
2 Tons
The ACiQ AQ-CAPFA2422B3 evaporator coil is rated for a 2 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system. Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.
Warranty
The AQ-CAPFA2422B3 coil is covered under ACiQ's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.
Installation and Durability
The ACiQ AQ-CAPFA2422B3 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access. Please note that this coil will not work as a replacement for any single-piece air handler coils.
Enhanced Comfort
The AQ-CAPFA2422B3 evaporator coil's foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit's run time. With compatible equipment, the AQ-CAPFA2422B3 evaporator coil lives up to ACiQ's enhanced comfort and efficiency standards at a reasonable price.
60,000 BTU 96% AFUE Two Stage Gas Furnace - Upflow/Horizontal
OVERVIEW
As a high-efficiency system, the AQ-GR9T960603BN ACiQ gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the AQ-GR9T960603BN is a good way to go if you want to lower your gas bill.
QUICK FACTS
- This furnace is ideal to heat a medium-sized house (depending on climate)
- 60,000 BTU 96% AFUE natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with an optional conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
60,000 BTU
Heating up to a medium-sized house in normal conditions, the AQ-GR9T960603BN ACiQ gas furnace has an input of 60,000 BTU's and an output of 57,600 BTU's. The output in this case is determined by taking the input times the efficiency rating.
96% AFUE
The AQ-GR9T960603BN ACiQ gas furnace is a 96% efficient furnace, making it a condensing setup. This efficiency means that only 4% of the fuel going into the furnace is used up in furnace operations, while 96% of the fuel is used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you need to use metal flue venting, you would need an 80% efficient furnace.
Two Stage 9-Speed Furnace
With a two stage burner, the AQ-GR9T960603BN provides two heating outputs: one at a 60% heating output and one at a 100% output. The furnace also has a 9 speed ECM motor instead of the last-generation inefficient PSC motor. Both of these built-in upgrades allow for your furnace to adjust the heating output and airflow more precisely to better suit your home's comfort needs and provide a slightly higher efficiency.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durability and Reliability
The exterior casing on the AQ-GR9T960603BN is heavy-gauge steel that is insulated for enhanced protection and to lower air leakage and sound output from normal furnace operation. The hot surface ignitor is more efficient than earlier models and standing pilot lights thanks to its revolutionary new technology. Both of these end up saving you money on installation, maintenance, and bills.
Installation and Maintenance
The cost-saving benefits of the ACiQ brand doesn't stop at efficiency. The AQ-GR9T960603BN ACiQ furnace can be upflow or horizontal, increasing the number of ways that your installer can install the system. The low-voltage terminals that are color-coded, the installation is faster and easier over standard non-colored systems. Straight from the factory, the AQ-GR9T960603BN comes with natural gas valves. However, increasing its versatility in installation, ACiQ offers an LP conversion kit (found here at an additional cost) if you need it to be propane instead of natural gas. Not only does the ACiQ brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the on board self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution.
Please note that this furnace requires a if installed horizontally. Upflow configurations do not require the kit.
Technical Specifications - AQ-GLXS3BN2410
| sku | AQ-GLXS3BN2410 |
|---|---|
| weight (in lbs) | 130.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSX130241 and GSXN3N2410 |
| product features | New Refrigerant Compliant |
| cooling btu | 24,000 |
| decibel level (dba) | 74 |
| horsepower | 1/8 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 13.4 |
| condenser stages | Single Stage |
| compressor type | Rotary |
| liquid line | 3/8" |
| suction line | 3/4" |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208 / 230 V. 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 10.9 Amps |
| tonnage | 2 Ton |
| connection | Sweat |
| height | 27.5" |
| width | 26" |
| depth | 26" |
| warranty | 10 Years Parts Limited Warranty with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-CAPFA2422B3
| sku | AQ-CAPFA2422B3 |
|---|---|
| weight (in lbs) | 45.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| configuration | Upflow / Downflow |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 3/4" |
| tonnage | 2 Ton |
| style | A-Coil |
| height | 22" |
| width | 17 1/2" |
| depth | 21" |
| warranty | 10 Years with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-GR9T960603BN
| sku | AQ-GR9T960603BN |
|---|---|
| weight (in lbs) | 115.000000 |
| ahri certificate number | 215225026 |
| airflow direction | Upflow/Horizontal |
| exhaust flue requirement | Plastic / PVC |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 96% |
| heating btu | 60,000 |
| blower motor | 9 Speed - ECM |
| maximum cfm | 1200 |
| configuration | Upflow/Horizontal |
| energy star | Yes |
| electrical | 115 V. 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 7.8 Amps |
| burner stages | Two |
| fuel type | Propane, Natural Gas |
| height | 34.5" |
| width | 17.5" |
| depth | 28.75" |
| warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| safety information | This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
