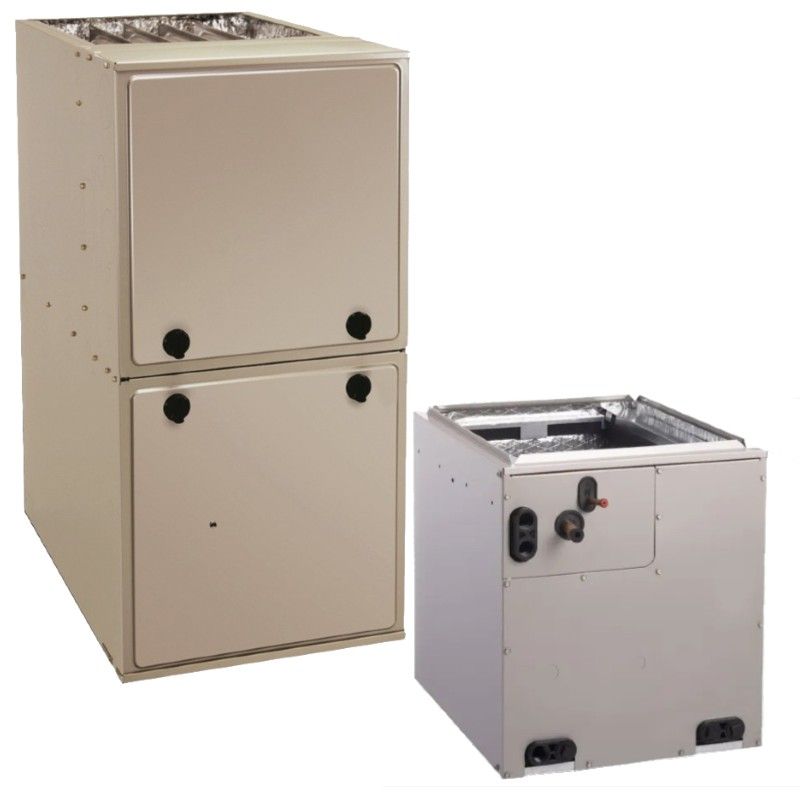

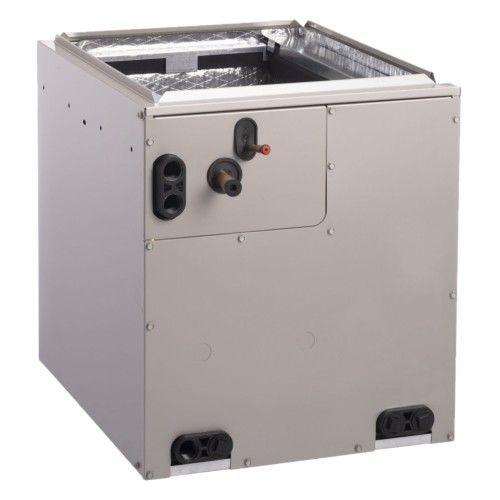

ACIQ 2.5 Ton 92% AFUE 60,000 BTU Furnace and Coil System - Multi-Positional - R454B

OVERVIEW

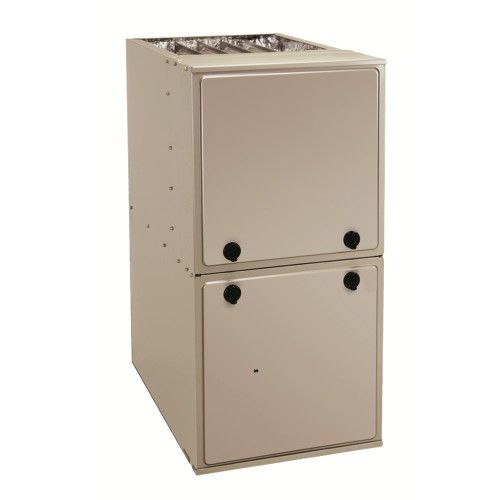

At 92% AFUE, the ACiQ R92MSN0601714A is designed to be high-efficiency while providing superior comfort. With its many useful features, this unit is a good all-around choice for almost any application.

QUICK FACTS

• 60,000 BTU, 92% AFUE natural gas furnace
• Generally suitable for up to a small to medium house in ideal applications
• Multi-speed blower with a single stage burner
• Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics

60,000 BTU, 92% AFUE

The ACiQ R92MSN0601714A has an input of 60,000 BTU. With an efficiency of 92%, this means that the furnace has an output of 55,200 BTU, meaning that it is generally suitable for small to medium house in ideal climates. The 92% AFUE also means that for the gas going into the furnace, 92% of it is used to heat your home while the remaining 8% is lost out the flue piping and lost to normal furnace operations. All 92% furnaces require plastic/PVC flue venting, and if you need it to be metal flue venting to match your current setup, you would need to get an 80% efficient furnace. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Warranty

ACiQ offers 10 year parts and 20 year heat exchanger limited warranties. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.

Installation and Durability

With its ability to be installed in any configuration (upflow, downflow, or horizontal) the ACiQ R92MSN0601714A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for mobile home installation on its own.

Superior Comfort

All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ R92MSN0601714A lives up to the name thanks in part to its multi-speed ECM blower motor. This feature provides the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
