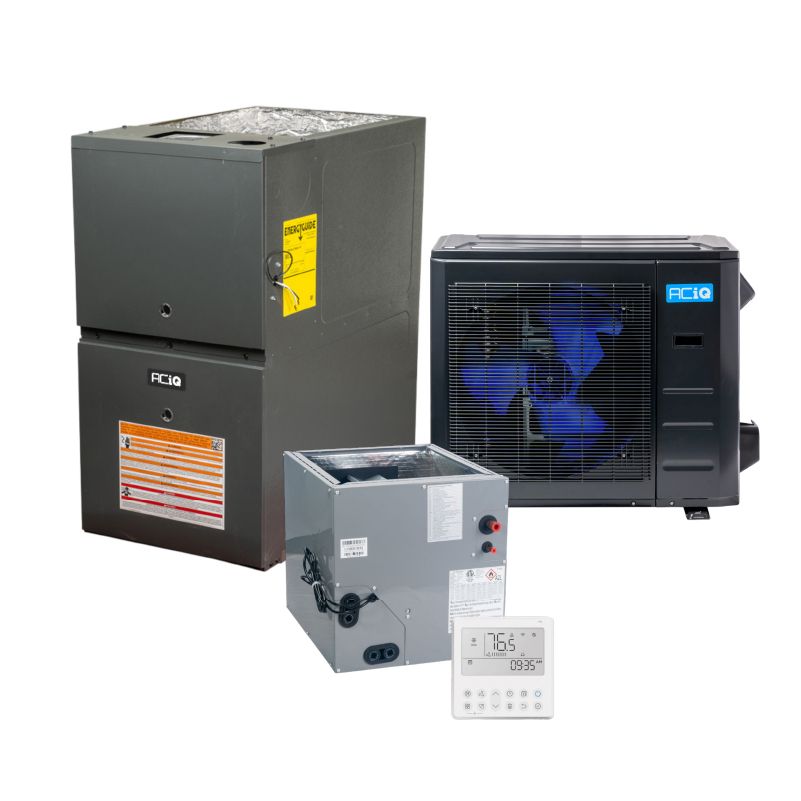

ACIQ 2.5 Ton 80% AFUE 80,000 BTU Ultra-Low NOx Furnace & AC System - R454B - Upflow/Horizontal

OVERVIEW

The AQ-GR9S800805CU ACiQ gas furnace features high-quality construction and efficient operation at a great value. The AQ-GR9S800805CU single-stage, multi-speed furnace utilizes ACiQ's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GR9S800805CU.

QUICK FACTS

• This furnace is ideal to heat a medium-sized house (depending on climate)
• 80,000 BTU 80% efficient natural gas furnace
• Requires metal flue venting
• Can be used in the upflow or horizontal orientation
• Ultra-Low NOx Compliant for California
• Innovative design for electrical efficiency, safety, and lower sound output

80,000 BTU

The AQ-GR9S800805CU ACiQ gas furnace is 80,000 BTU's. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 64,000 BTU's (80,000 X 80% AFUE) per hour. In ideal climate conditions, this 80,000 BTU furnace is usually used to heat a small house.

80% Efficiency Rating

The AQ-GR9S800805CU ACiQ gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.

Single Stage Furnace

The AQ-GR9S800805CU ACiQ gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Multi-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the AQ-GR9S800805CU utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern ACiQ furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new ACiQ furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern ACiQ furnaces doesn't end at efficiency. Today's ACiQ furnaces feature many different connection options to reduce installation. The AQ-GR9S800805CU model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

OVERVIEW

ACIQ takes pride in its ability to provide a high-quality system, including all system components.The ACIQ-36-ACL-B multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.

QUICK FACTS

• 3 ton multi-positional evaporator coil
• Works in almost any upflow, downflow, or horizontal system setup
• Compatible with both AC-only and heat pump condensers
• Factory-installed TXV kit for enhanced energy optimization
• Sturdy and compact design

3 Tons

The ACIQ-36-ACL-B is rated for up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
