Product Overview

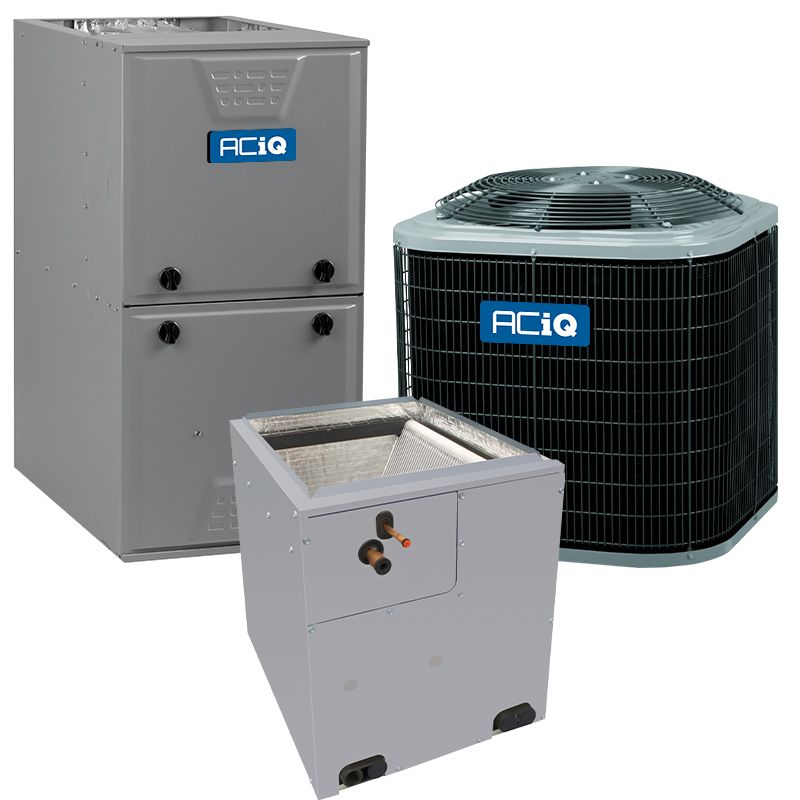

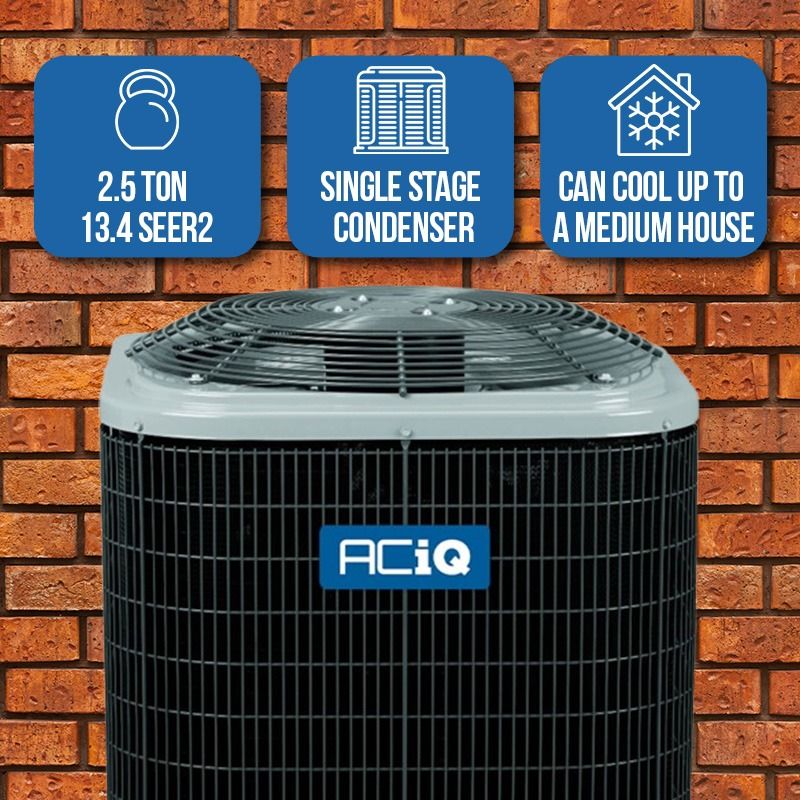

ACIQ 2.5 Ton 13.4 SEER2 Central Air Conditioner Condenser - R454B Single Stage
OVERVIEW
The ACIQ R5A4S30AKANA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
QUICK FACTS
- 2 ton, 13.4 SEER2 AC-only condenser
- Can cool a small to medium-sized house in average conditions
- Single stage compressor
- Filter drier included to be field-installed
2.5 Tons
The ACIQ R5A4S30AKANA air conditioner condenser has an output of 2.5 tons, generally enough to cool a small to medium-sized house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
13.4 SEER2
The ACIQ R5A4S30AKANA air conditioner condenser is rated at 13.4 SEER2, making it between 5-7% more efficient than standard 13 SEER1 units, saving you money in electric bills over the entire lifetime of your unit.
This unit (and all 13.4 SEER2 units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia For more information about state efficiency requirements, please click here.
Warranty
ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACIQ units are extremely durable. On the R5A4S30AKANA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

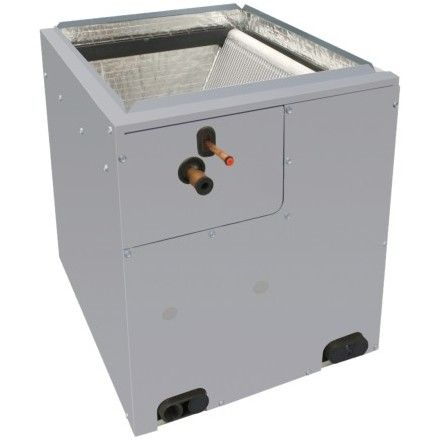

ACIQ 2.5 Ton 17.5" Width Vertical Evaporator Cased Coil - R454B
OVERVIEW
ACIQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EVD5X31M17A vertical coil is a superior option for any air conditioning application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization.
QUICK FACTS
- 2.5 ton vertical coil
- Works in both upflow and downflow applications
- Fully insulated, cased V-coil design for efficient heat transfer in a compact size
- Factory-installed TXV kit for enhanced energy optimization
- Corrosion-resistant drain pan designed with a Polybutylene Terephthalate (PBT) material for unsurpassed strength
2.5 Tons
The ACIQ EVD5X31M17A is rated for up to 2.5 tons of cooling. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
Warranty
ACIQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.
ACiQ 96% 60,000 BTU Two Stage Gas Furnace - 17.5" Width - Multi-Positional
The ACiQ G96CTN0601714A two-stage gas furnace is a great choice to keep your home warm all season long. With tons of extra features and a great price, the ACiQ G96VTN series is a perfect choice. All ACiQ models come with a 10 year parts warranty and 20 year heat exchanger limited warranty. Not intended for use in mobile homes.
Features
- 96% AFUE
- Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit
- Direct vent (2-pipe), single-pipe venting or ventilated combustion air
- 24 VAC and 115 VAC humidifier terminal
- Electronic air cleaner terminal
- ESC blower motor
- Adjustable heating blower OFF delay
- Factory set blower ON delay
- RPJ aluminized steel heat exchanger
- Two-stage heating operation
- Variable speed, constant torque ECM blower motor
- Fully insulated steel cabinet for quieter operation
- Multi-positional installation
- Through the casing flue pipe for counterflow applications
- Common venting with other Category I appliances
- Self diagnostics
- Slide out blower assembly
- 20 year heat exchanger limited warranty
- 5 year parts limited warranty - With timely registration, an additional 5 year parts limited warranty
Quiet Comfort
Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
High Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
Technical Specifications — R5A4S30AKANA
| sku | R5A4S30AKANA |
|---|---|
| weight | 166.000000 |
| manufacturer | ACiQ |
| replaces | R4A4S30AKANA |
| equivalent | Carrier Equivalent: 24ABB330ABN3Tempstar Equivalent: R4A330GKHBryant Equivalent: 113ANA030000 |
| product features | New Refrigerant Compliant |
| cooling btu | 30000 |
| maximum cfm | 2700 |
| decibel level (dba) | 72 Decibels |
| motor rpm | 825 |
| horsepower | 1/10 HP |
| refrigerant | R454B |
| seer2 | 13.4 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230v 1 Phase 60 Hz |
| max breaker size | 25 Amps |
| min. breaker size | 16.2 Amps |
| tonnage | 2.5 Ton |
| connection | Sweat |
| certification | UL Listed |
| height | 31 11/16" |
| width | 31 3/16" |
| depth | 31 3/16" |
| warranty | 10 Years Parts Warranty with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — EVD5X31M17A
| sku | EVD5X31M17A |
|---|---|
| weight (in lbs) | 46.000000 |
| brand/manufacturer | ACiQ |
| replaces | EVD4X |
| equivalent | Carrier Equivalent: CVPVA1814XMCTempstar Equivalent: END4X18L14ABryant Equivalent: CNPVP1814ALA |
| configuration | Upflow / Downflow |
| refrigerant | R454B |
| liquid line | 3/8" |
| suction line | 3/4" |
| tonnage | 2.5 Ton |
| style | V-Coil |
| connection | Sweat |
| certification | UL Listed |
| height | 25 13/16" |
| width | 17 1/2" |
| depth | 20 5/8" |
| warranty | 10 Year Parts Limited Warranty with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — G96CTN0601714
| sku | G96CTN0601714 |
|---|---|
| weight | 151.000000 |
| ahri certificate number | 213148724 |
| exhaust flue requirement | Plastic / PVC |
| manufacturer | ACiQ |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 96% |
| heating btu | 60,000 |
| blower motor | Variable Speed |
| maximum cfm | 1280 |
| configuration | Upflow/Downflow/Horizontal |
| energy star | Yes |
| electrical | 120 V. 1 Phase 60 Hz |
| burner stages | Two |
| fuel type | Propane, Natural Gas |
| height | "35\"" |
| width | "17-1/2\"" |
| depth | "29-1/2\"" |
| warranty | 10 Year No Hassle / 20 Year Heat Exchanger / 10 Year Parts with Online Registration |
| safety information | PROPOSITION 65 WARNING |
