Product Overview
OVERVIEW

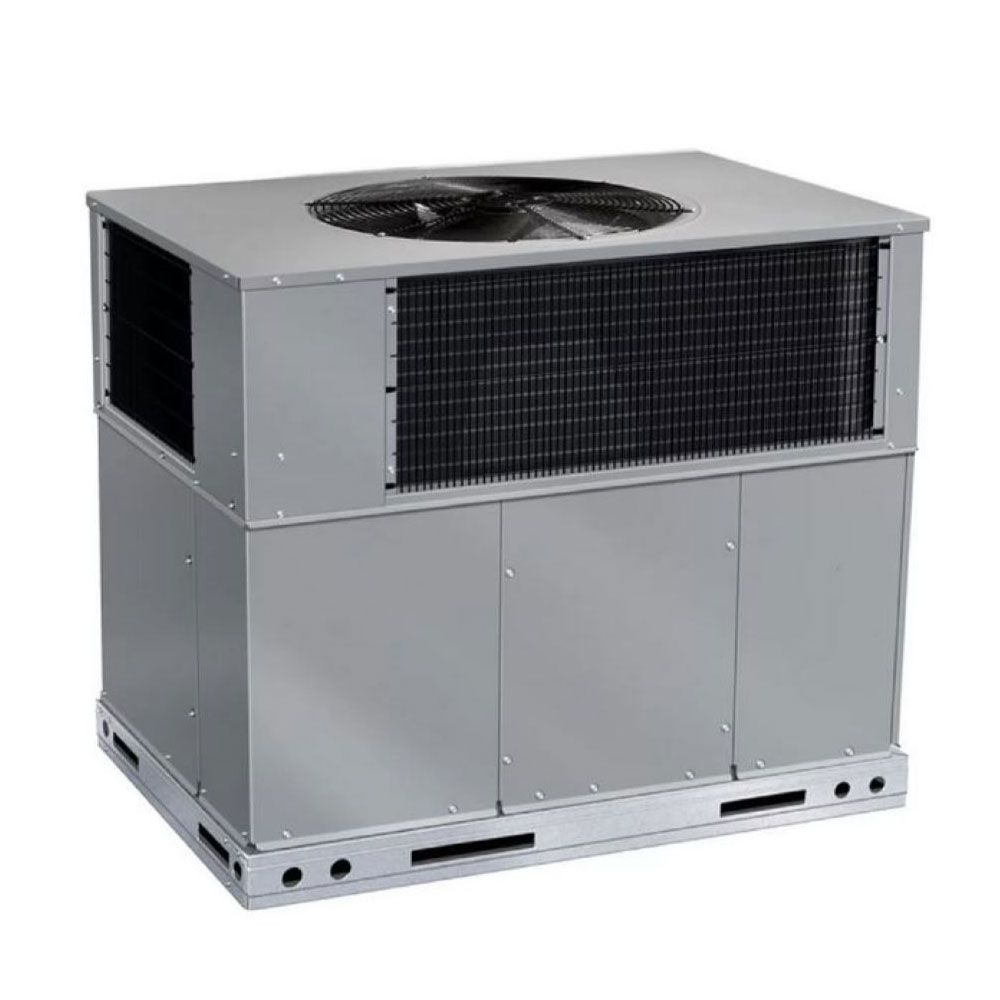

ACIQ-AirQuest offers durable units with outstanding warranties and quality of comfort. The PGB430060K000B is no exception to ACIQ-AirQuest superiority, and with its quiet operation and installation application potential, this unit can provide reliable comfort for many years to come.
QUICK FACTS
- 2.5 Ton, 60,000 BTU Gas Packaged Unit
- 13.4 SEER2, 81% AFUE
- Quiet operation
- Enhanced dehumidification mode
2.5 Tons 13.4 SEER2, 60,000 BTU 81% AFUE
The ACIQ-AirQuest PGB430060K000B has a cooling output of 2.5 tons, and a heating input of 60,000 BTU. When running the air conditioner on this unit, the unit's electrical efficiency is rated at 13.4 SEER2, the standard efficiency on the market today. On the heating side of the unit, the gas efficiency is rated at 81% AFUE, which means that 81% of the fuel going into the furnace is used to heat your home, and the remaining 19% is used up and lost out of the flue venting during normal operations. This gas efficiency rating also turns the 60,000 BTU input into a 49,000 BTU output.
Warranty
ACIQ-AirQuest covers these gas packaged units with their standard 10-year parts warranty, as well as an exceptional 3-year no hassle replacement warranty, giving you the peace of mind that if you have a problem, they have a plan. On top of these warranties, ACIQ-AirQuest also includes a lifetime heat exchanger warranty that is covered even if the unit's property changes ownership thanks to its fully-transferrable and customer-friendly support. Please note that for all warranties, installation following your state and local codes is required, and the unit must be registered through the manufacturer.
Durability and Reliability
With its tin-coated copper evaporator coil, the ACIQ-AirQuest PGB430060K000B is durable enough to withstand general wear-and-tear. Moreover, the unit also has safety switches to prevent damage from malfunctions, as well as the base has integrated full perimeter steel base rails to further secure the unit in place. Along with other system features, these give you the peace of mind that this system can be relied upon when you need it most.
Installation and Maintenance
The ACIQ-AirQuest PGB430060K000Bcan be installed on your roof or next to your home, as it has two outlet options that can be used. For easy service access, there are multiple control panels and maintenance access panels to make sure you can fix your unit should the need arise.
Packaged Unit Buyers Guide
- How packaged units work for residential and commercial use
- The different types of packaged units
- Figuring out the right size unit for your needs
- The importance of a custom curb adapter
- And much more!
Technical Specifications — PGB430060K000B
| sku | PGB430060K000B |
|---|---|
| weight (in lbs) | 348.000000 |
| ahri certificate number | 213019158 |
| brand/manufacturer | ACiQ |
| replaces | PGD430060K000K |
| equivalent | Carrier Equivalent: 48VL-K300603 |
| furnace efficiency / afue | 80% |
| cooling btu | 28,000 BTU |
| heating btu | 60,000 BTU |
| blower motor | High Efficiency ECM |
| maximum cfm | 950 |
| motor rpm | 1050 |
| horsepower | 1/2 |
| refrigerant | R454B |
| seer2 (efficiency) | 13.4 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| electrical | 208 / 230 V. 1 Phase 60 Hz |
| tonnage | 2.5 Ton |
| ignition type | Direct Spark Ignition |
| height | 45-3/4" |
| width | 48-3/16" |
| depth | 32-5/8" |
| warranty | Lifetime Heat Exchanger, 10 Years Parts, and 3 Years No Hassle Replacement with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
