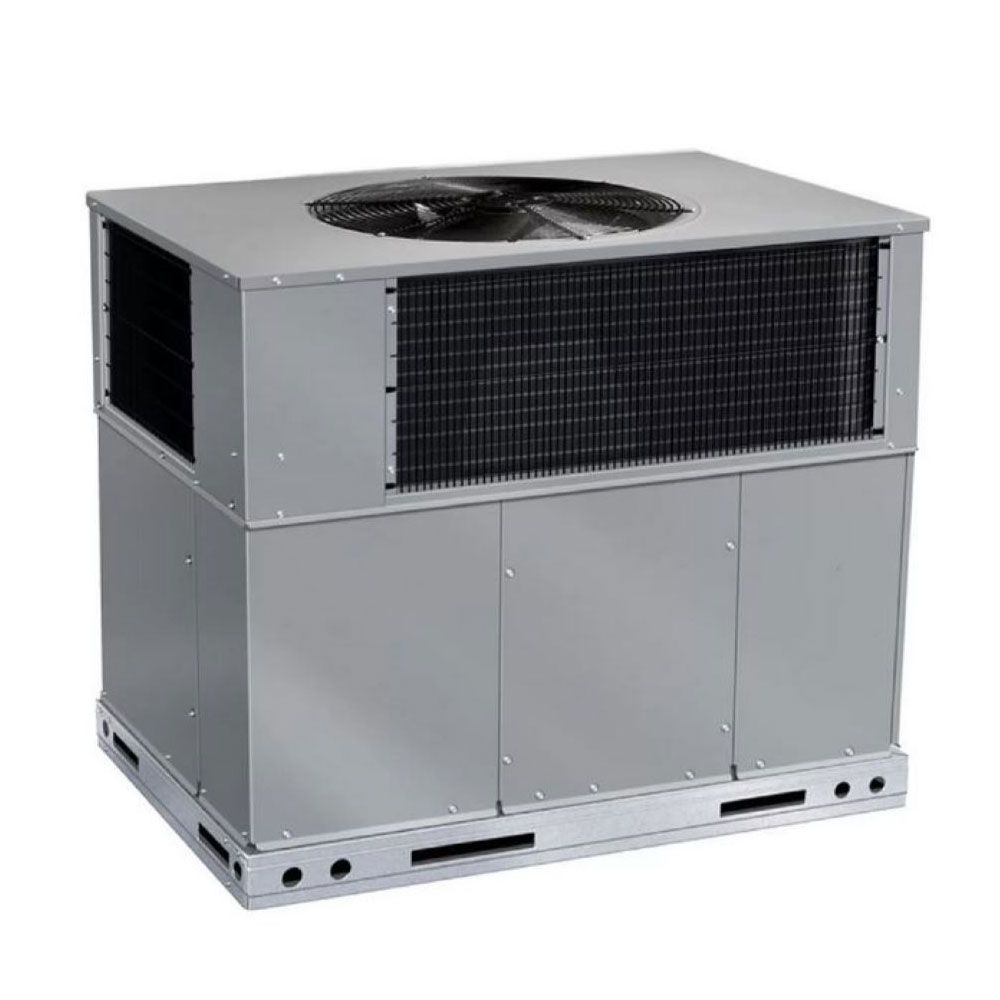

ACIQ 2.5 Ton 13.4 SEER Package Heat Pump Unit - R454B Downflow/Horizontal
Product Overview
OVERVIEW
ACIQ-AirQuest offers durable units with outstanding warranties and quality of comfort. The ACIQ-AirQuest is no exception to ACIQ superiority, and with its quiet operation and installation application potential, this unit can provide reliable comfort for many years to come.
QUICK FACTS
- 2.5 Ton, 13.4 SEER2 Heat Pump Packaged Unit
- Operates down to 17°F without any heat kits
- Built-in TXV kit and an ECM blower motor for enhanced efficiency
- Quiet operation
- Enhanced dehumidification mode
- Multi-positional installation
2.5 Ton, 13.4 SEER2
The ACIQ-AirQuest PHB430000K000B has an output of 2.5 tons. With an efficiency rating of 13.4 SEER2, this unit will perform well while keeping money in your pocket over lower SEER models. The ACIQ-AirQuest PHB430000K000B will heat down to 17°F, much lower than other models, providing you a higher efficiency more of the time over straight electric heating. Please note that to head any lower than this, you will need to install a backup heat kit, available at an additional cost.
Warranty
ACIQ-AirQuest covers these packaged heat pump units with their standard 10-year parts warranty, giving you the peace of mind that if you have a problem, they have a plan. Please note that for all warranties, installation following your state and local codes is required, and the unit must be registered through the manufacturer.
Durability and Reliability
With its tin-coated copper evaporator coil, the ACIQ-AirQuest PHB430000K000B is durable enough to withstand general wear-and-tear. Moreover, the unit also has safety switches to prevent damage from malfunctions, as well as the base has integrated full perimeter steel base rails to further secure the unit in place. Along with other system features, these give you the peace of mind that this system can be relied upon when you need it most.
Installation and Maintenance
The ACIQ-AirQuest PHB430000K000B can be installed on your roof or next to your home, as it has two outlet options that can be used. For easy service access, there are multiple control panels and maintenance access panels to make sure you can fix your unit should the need arise.
Packaged Unit Buyers Guide
- How packaged units work for residential and commercial use
- The different types of packaged units
- Figuring out the right size unit for your needs
- The importance of a custom curb adapter
- And much more!
Technical Specifications — PHB430000K000B
| sku | PHB430000K000B |
|---|---|
| weight (in lbs) | 340.000000 |
| ahri certificate number | 215578908 |
| brand/manufacturer | ACiQ |
| replaces | PHD430000K000K |
| equivalent | Carrier Equivalent: 50VT-K30---3Tempstar Equivalent: PHD430000K000FBryant Equivalent: 607ENXA30000 |
| hspf2 | 6.7 |
| cooling btu | 30,000 |
| heating btu | 30,000 |
| refrigerant | R454B |
| seer2 (efficiency) | 13.4 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| electrical | 208 / 230 V. 1 Phase 60 Hz |
| tonnage | 2.5 Ton |
| height | 46" |
| width | 48" |
| depth | 33" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
