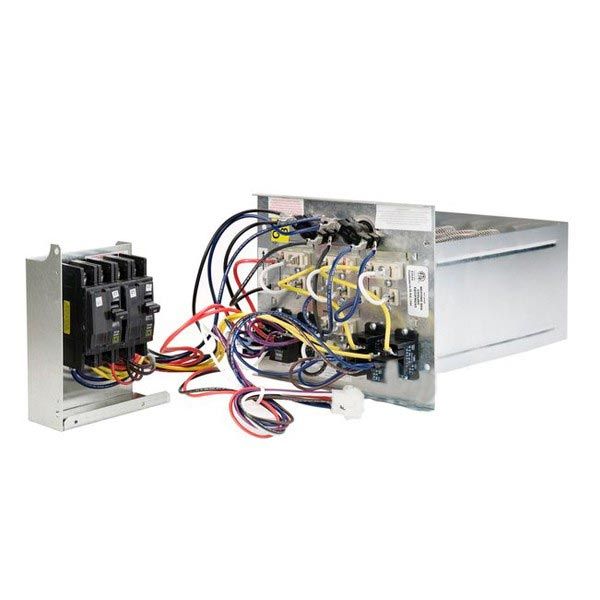

ACIQ 19 Kilowatt 64,800 BTU Goodman Heater Coil

This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.

Produces 64,800 BTUs of heat.

Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.

If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed.

Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.

Compatible With

• Goodman ARPT36C14 Air Handlers
• Goodman ARUF30C14 Air Handlers
• Goodman ARUF36C14 Air Handlers
• Goodman ARUF42C14 Air Handlers
• Goodman ASPT36C14 Air Handlers
• Goodman ASPT42C14 Air Handlers
• Goodman ASPT48C14 Air Handlers
• Goodman ASUF39C14 Air Handlers
• Goodman ASUF49C14 Air Handlers
• Goodman AVPTC36C14 Air Handlers
• Goodman AVPTC48C14 Air Handlers
