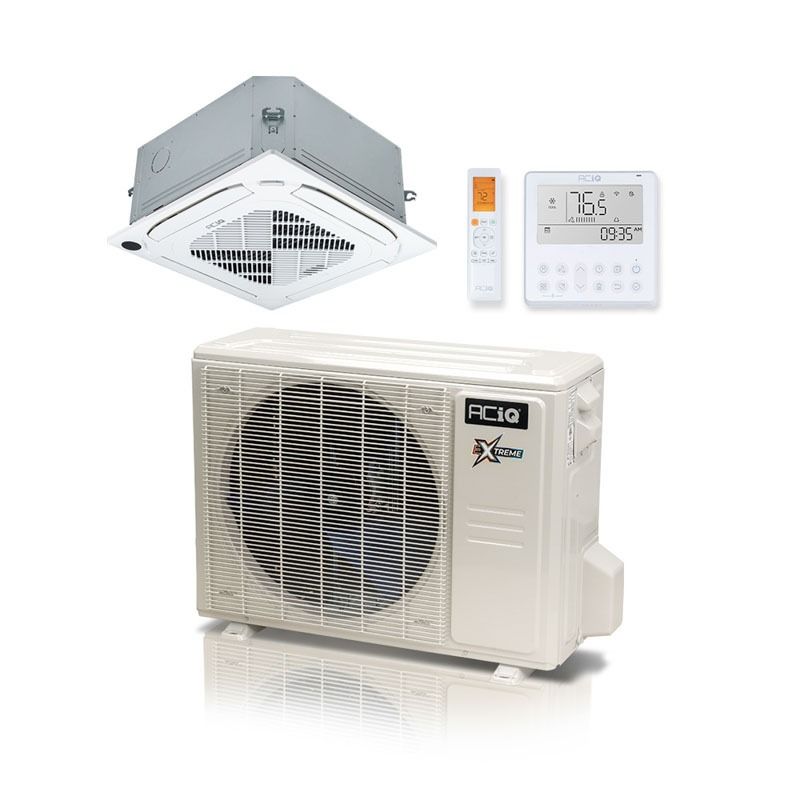

ACIQ 18,000 BTU 20 SEER2 ACiQ Single Zone Ceiling Cassette Mini Split System | Extreme Series - R454B | 230V
Product Overview
The ACiQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.
Technical Specifications — ACIQ-18ZPL-HP230C
| sku | ACIQ-18ZPL-HP230C |
|---|---|
| refrigerant charge | 55.38 oz. |
| weight | 107.800000 |
| manufacturer | ACiQ |
| product features | Low Ambient Heating |
| hspf2 | 11.0 |
| cooling btu | 18,000 BTU |
| heating btu | 18,000 BTU |
| maximum cfm | 1764.70 |
| decibel level (dba) | 59.0 |
| electric heat | Heat Pump |
| energy star | Yes |
| refrigerant | R454B |
| seer2 | 21.4 |
| compressor type | Rotary |
| liquid line | 1/4" |
| suction line | 1/2" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| max breaker size | 20A |
| min. breaker size | 19A |
| tonnage | 1.5 Ton |
| btu/tonnage | 18,000 BTU/1.5 Ton |
| min/max outdoor temp for heating | -22~75 °F / -30~24 °C |
| min/max outdoor temp for cooling | -22~122 °F / -30~50 °C |
| zone compatibility | Single Zone |
| operating mode | Heating/Cooling |
| certification | Energy Star, NEEP, UL AHRI |
| height | 26.50" |
| width | 35.04" |
| depth | 13.46" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-18CC-HH-MC
| sku | ACIQ-18CC-HH-MC |
|---|---|
| weight | 41.890000 |
| manufacturer | ACiQ |
| controller | Wireless Included |
| product features | WiFi |
| cooling btu | 18,000 BTU |
| heating btu | 18,000 BTU |
| maximum cfm | Up to 447.3 CFM |
| decibel level (dba) | As low as 23.5 Decibels |
| electric heat | Heat Pump |
| refrigerant | R454B |
| liquid line | 1/4" |
| suction line | 1/2" |
| electrical | 208/230V, 1 Phase, 60Hz |
| electric phase filter | Single Phase |
| btu/tonnage | 18,000 BTU/1.5 Ton |
| mini split type | Ceiling Cassette |
| zone compatibility | Single Zone, Multi Zone |
| height | 9.65" |
| width | 22.44" |
| depth | 22.44" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
