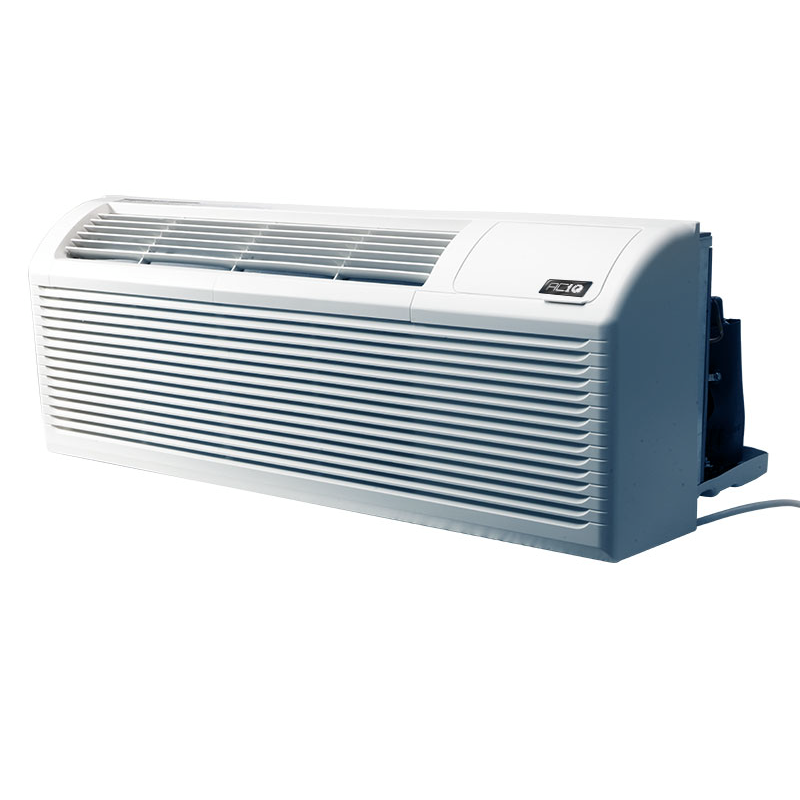

ACIQ 15,000 BTU PTAC Heat Pump Air Conditioner Unit with 5KW Electric Heater | R32
Product Overview
OVERVIEW

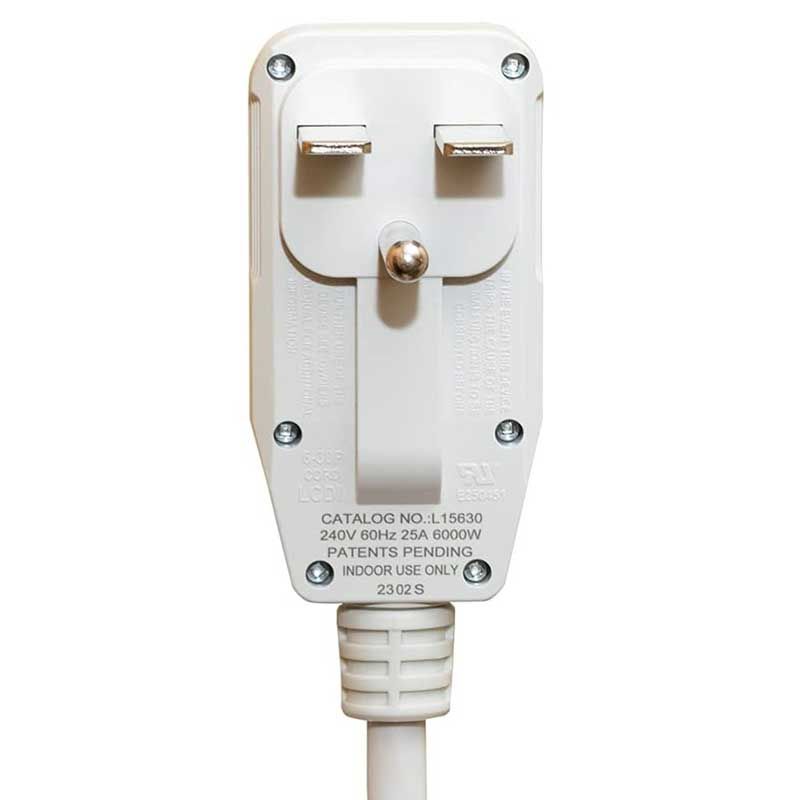

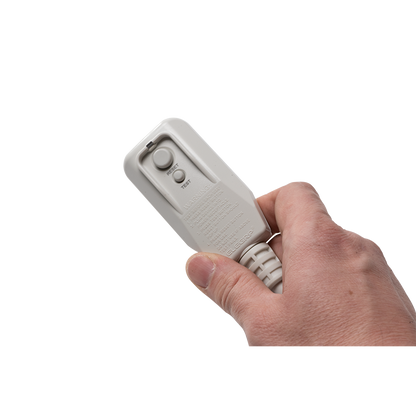

ACIQ PTAC Heat Pump Air Conditioners will keep you or your guests comfortable in any weather, all while saving you money. ACIQ uses high efficiency heat pumps to provide heat in most conditions with backup electric resistance heat for the coldest days. 15,000 BTUs of heating or cooling is the right size for up to 700 sq ft. This ACIQ 15,000 BTU model requires 208-230V of power at 22 amps, and requires a NEMA 6-30P receptacle to power the unit and the included 5kw heat strip. ACIQ PTACs use R32 refrigerant, but are not rated for California. The 10.6 EER ACIQ unit is an excellent choice for anyone in need of a PTAC unit for new construction or to replace an existing unit.
QUICK FACTS
-
Heat Pump Efficiency
Enjoy up to 60% energy savings on heating vs. electric strip heat-only models.
-
Electric Backup Heating
Keep warm inside no matter the temperature outside.
-

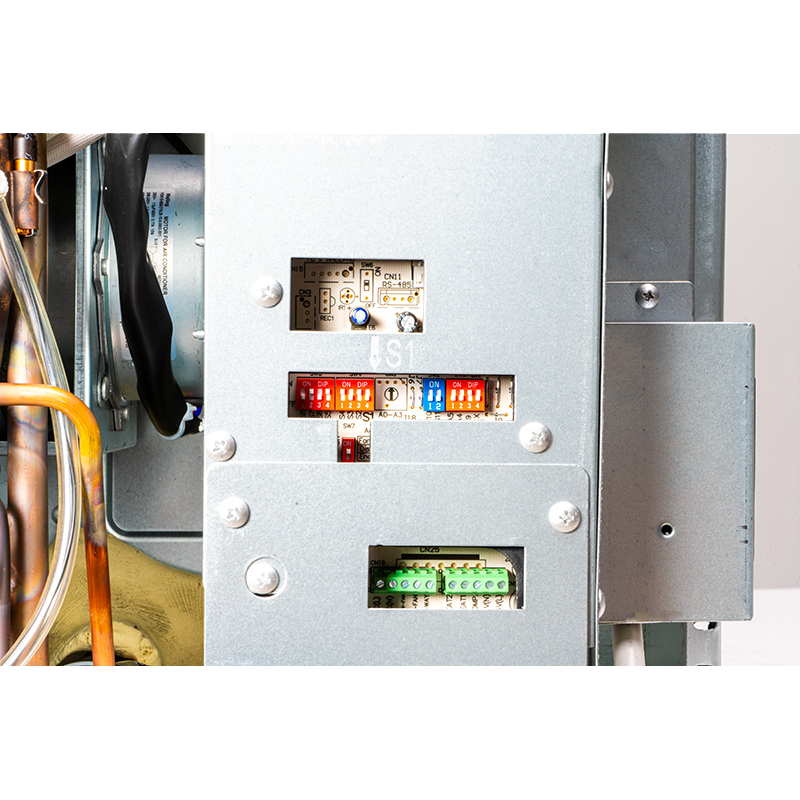

Infrared Sensor
The units have an IR sensor for use with 3rd party controllers.
-

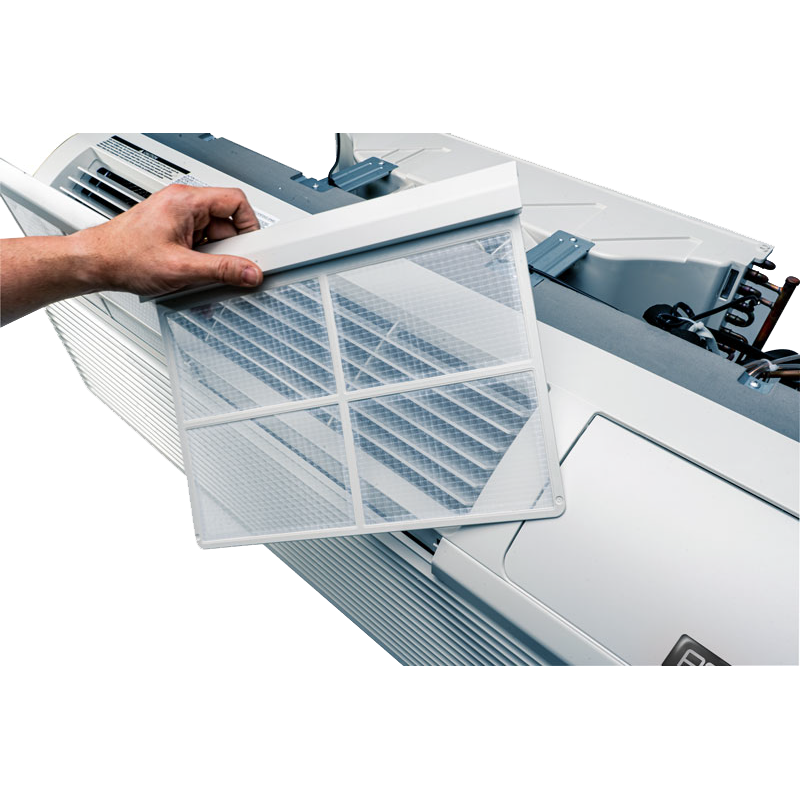

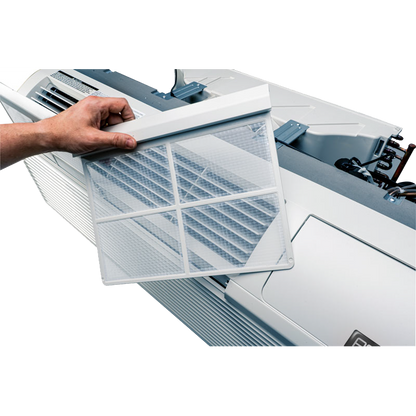

Pre-Installed Air Filters
ACIQ PTAC units come with two washable, pre-installed air filters to help keep the air pure and clean.
-

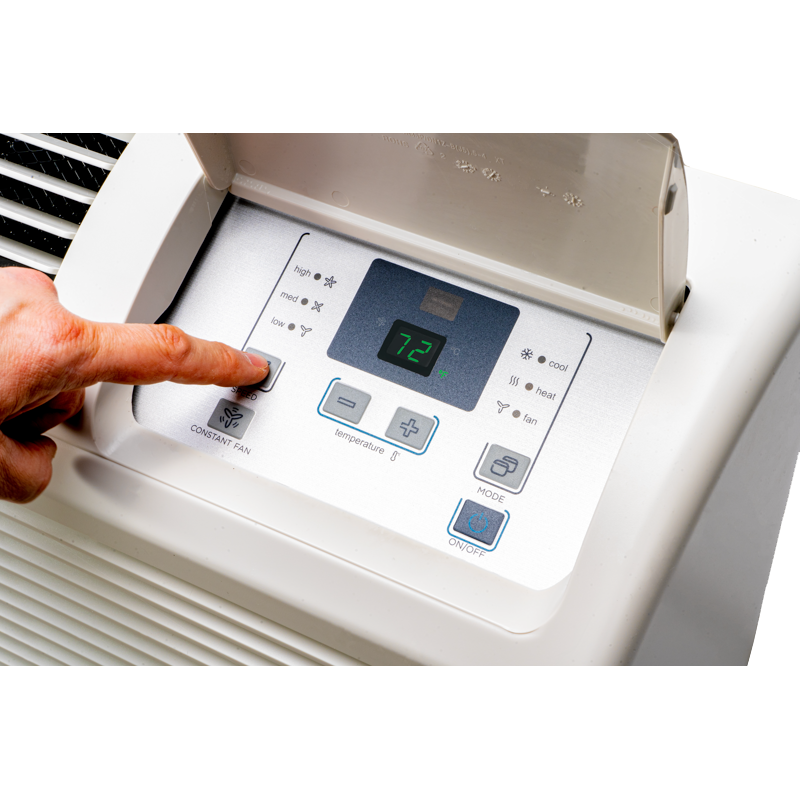

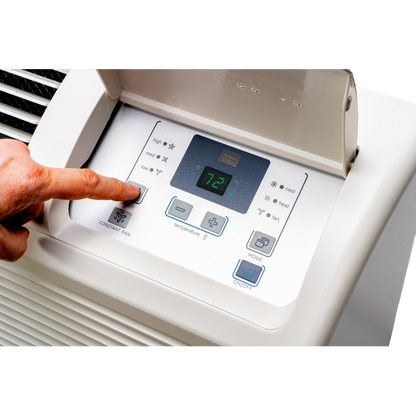

LED Temperature Display
The sleek LED temperature display allows for easy-to-read climate control year-round.
-
Automatic Programming Restart
In the event of power loss, this unit automatically restarts with your most recent settings so you can have peace of mind.
Warranty
- 7 Year Compressor, 1 Year Parts with Online Registration
Technical Specifications — ACIQ-15PTC5-B
| sku | ACIQ-15PTC5-B |
|---|---|
| weight (in lbs) | 116.840000 |
| ahri certificate number | 212365474 |
| brand/manufacturer | ACiQ |
| cooling btu | 14,700 |
| maximum cfm | 374 |
| decibel level (dba) | 53 |
| electric heat | 5 Kilowatts |
| energy star | No |
| refrigerant | R32 |
| eer | 10.6 |
| compressor type | Rotary |
| electrical | 208/230V | 1Ph | 60Hz |
| max breaker size | 30 Amps |
| btu/tonnage | 15,000 BTU/1.25 Ton |
| height | 15.98" |
| width | 42.01" |
| depth | 20.94" |
| warranty | 7 Year Compressor, 1 Year Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
