Product Overview
OVERVIEW

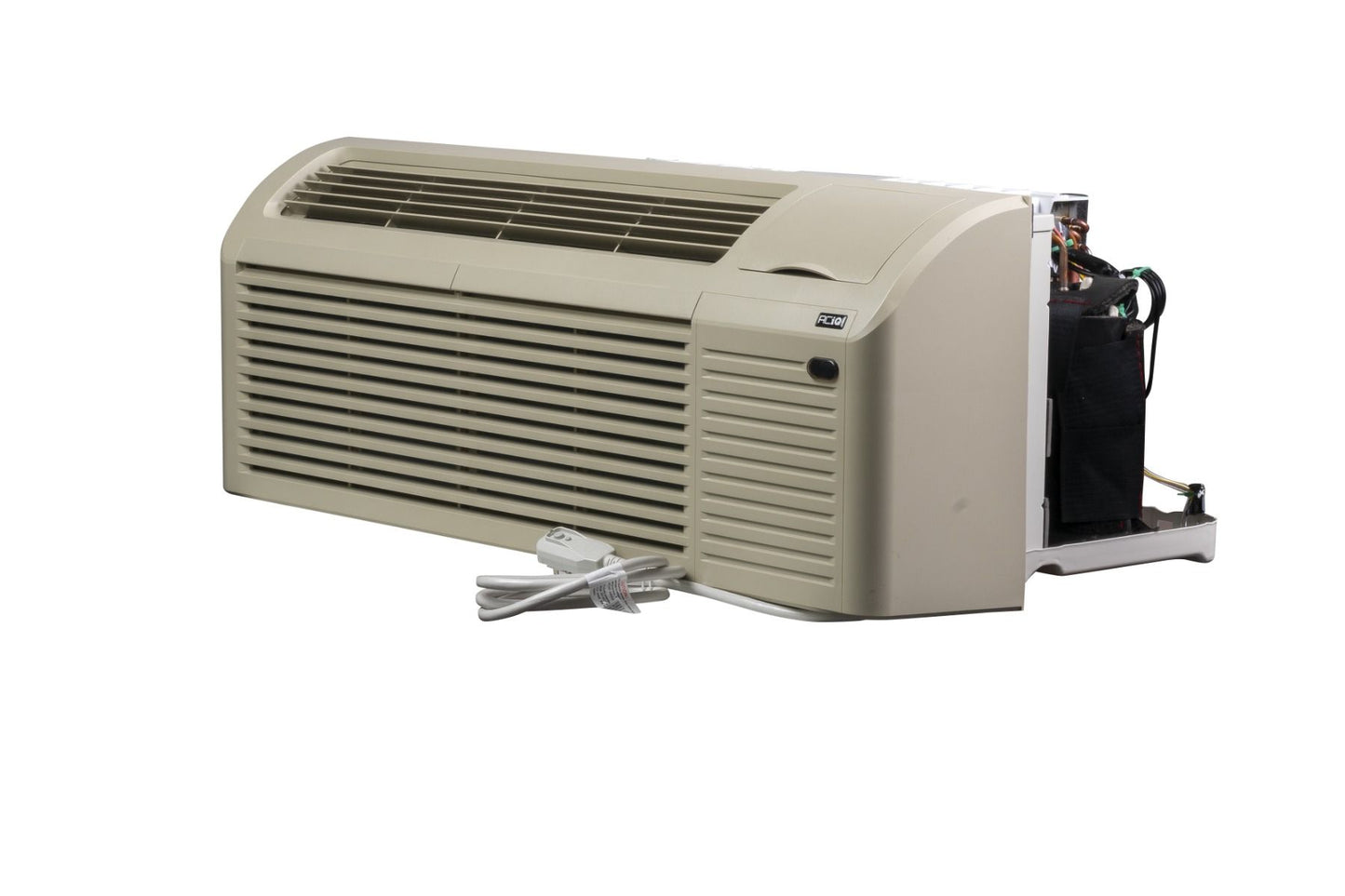

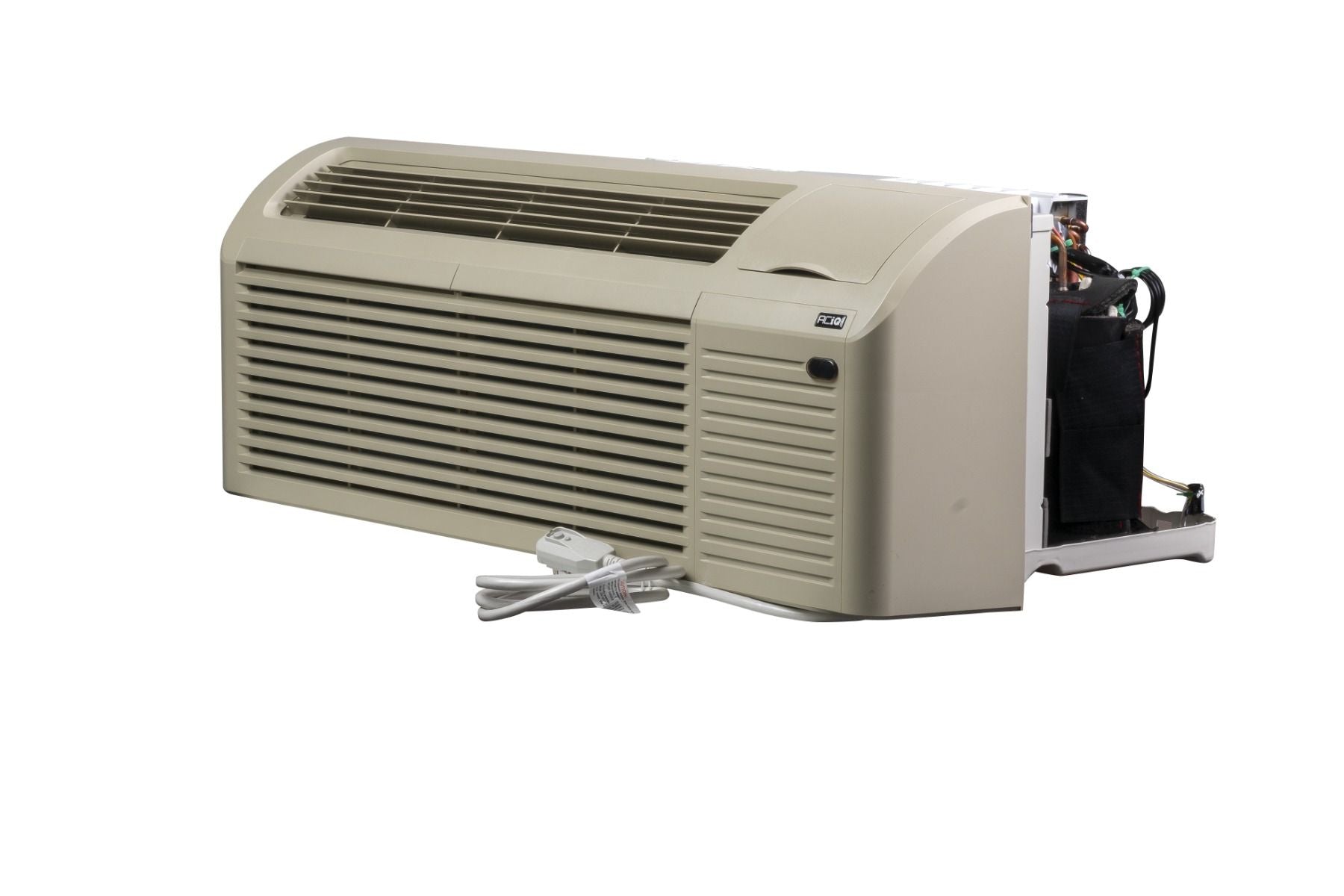

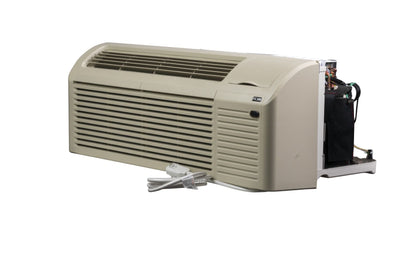

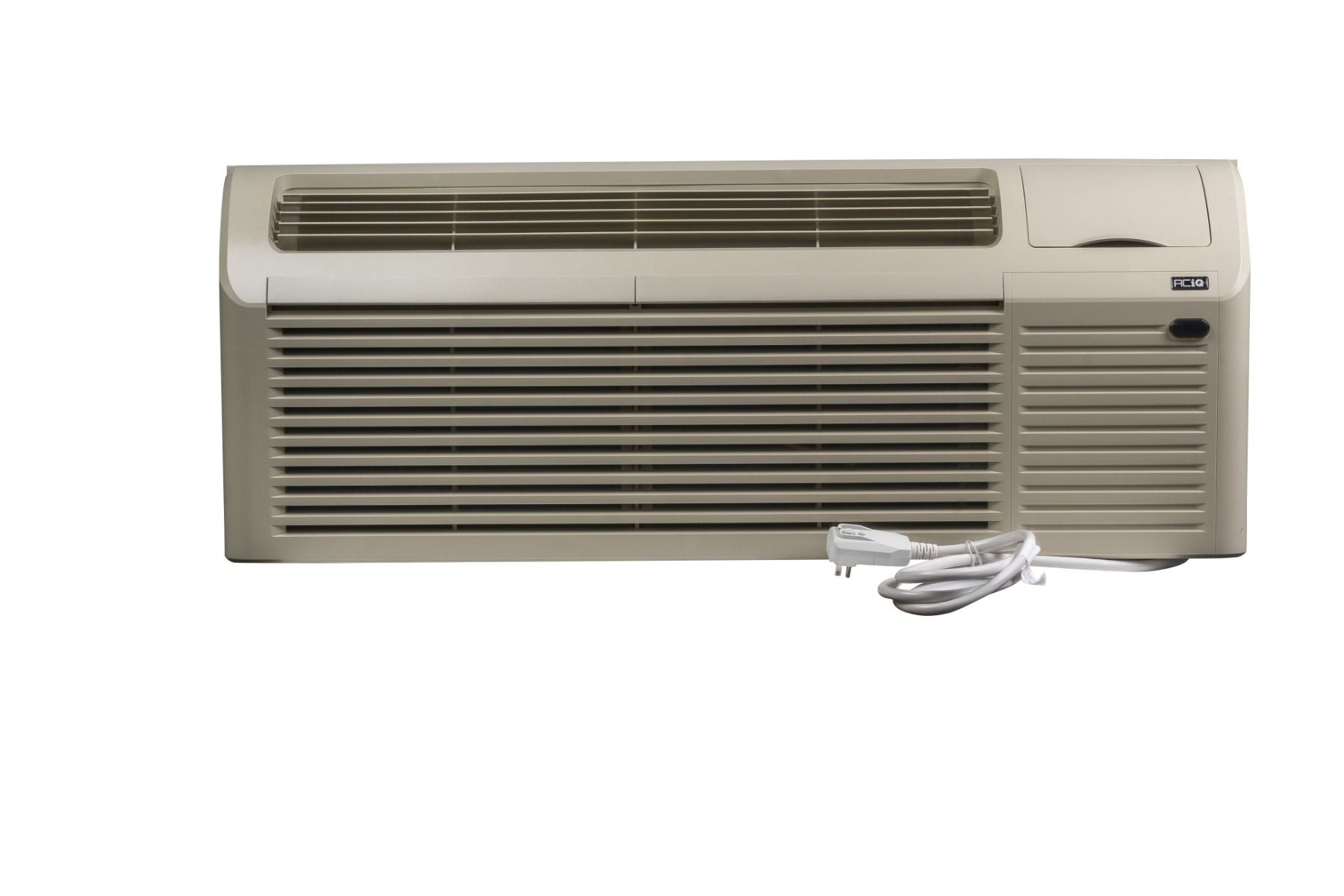

The ACIQ 12,000 BTU Inverter PTAC Heat Pump Air Conditioner Unit offers premium heating and cooling performance with advanced inverter technology and environmentally friendly R32 refrigerant. Ideal for spaces between 130-194 sq ft, this unit provides up to 9,800 BTUs of cooling and 9,400 BTUs of heating. Equipped with a 3.5KW electric heater for colder days, it ensures year-round comfort with energy-efficient operation and a high EER of 13.2. Designed for reliable performance, it operates within a wide range of temperatures, making it perfect for diverse environments.
QUICK FACTS
-
Inverter Technology
Maintains precise temperature control while reducing energy consumption.
-
Electric Backup Heating
Includes a 3.5KW electric heater for reliable warmth during colder conditions.
-
Environmentally Friendly Refrigerant
Uses R32 refrigerant, which has a lower global warming potential compared to traditional refrigerants.
-
Quiet Operation
Designed for minimal noise disruption, with indoor sound levels as low as 63 dB(A).
-
Compact and Durable Design

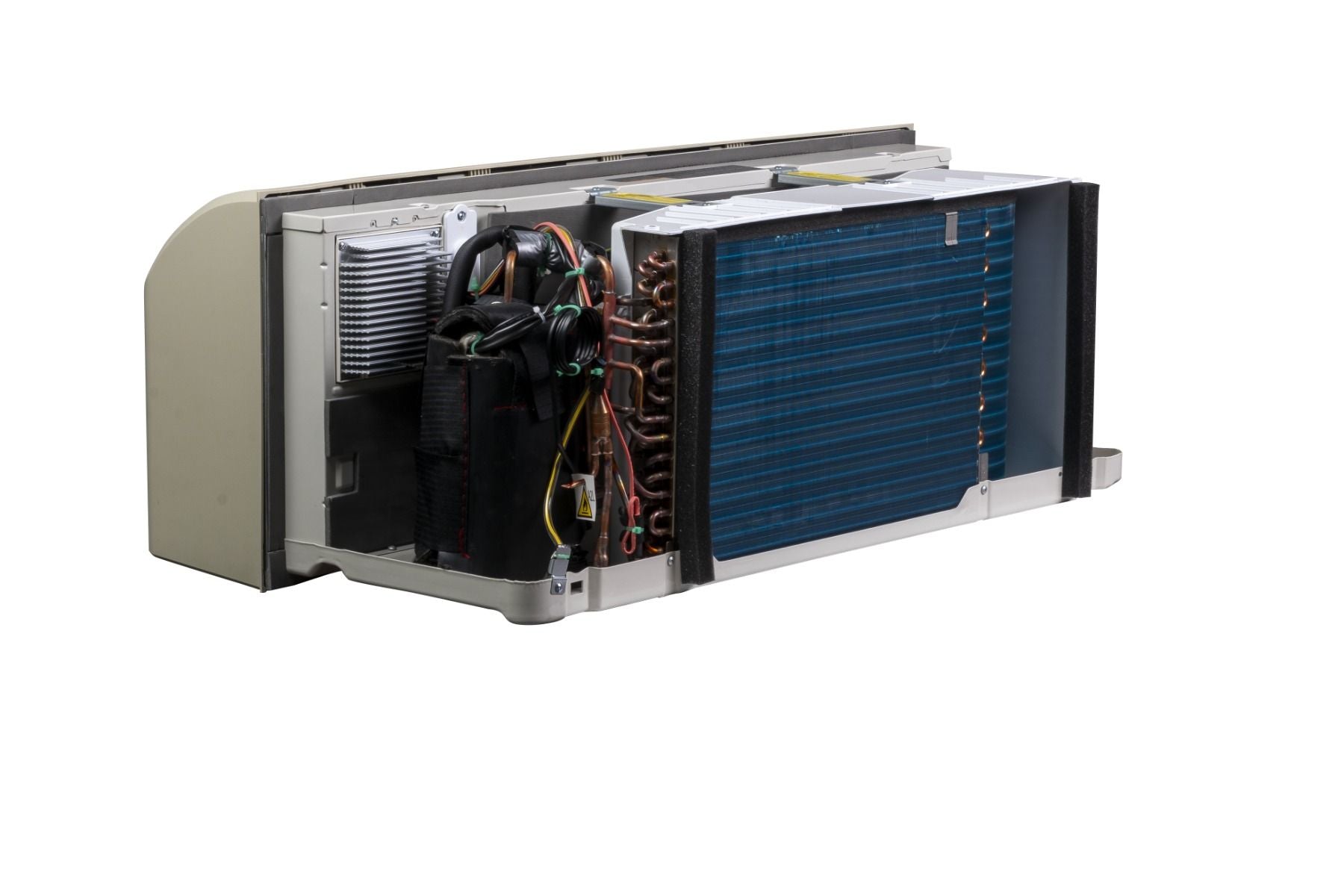

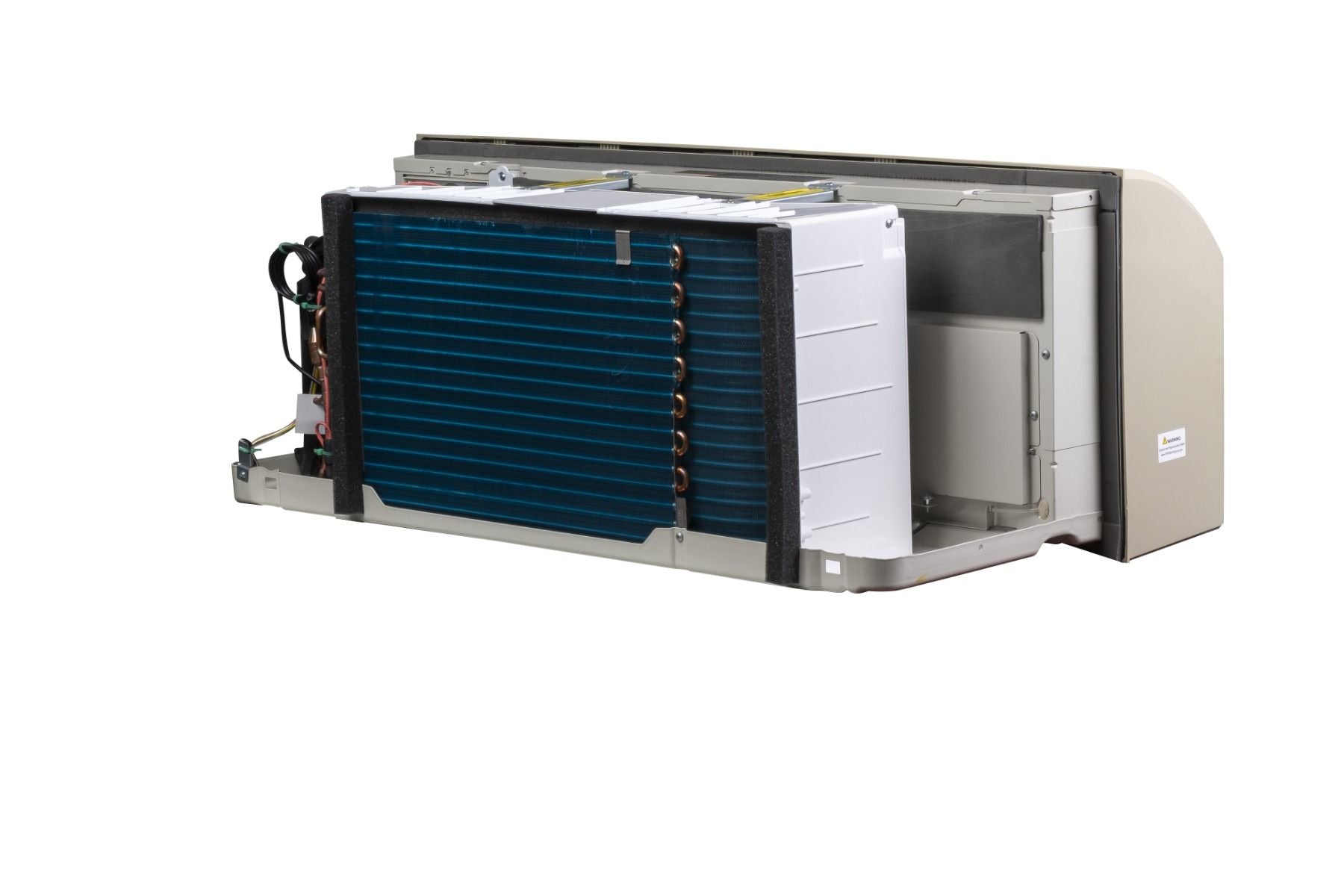

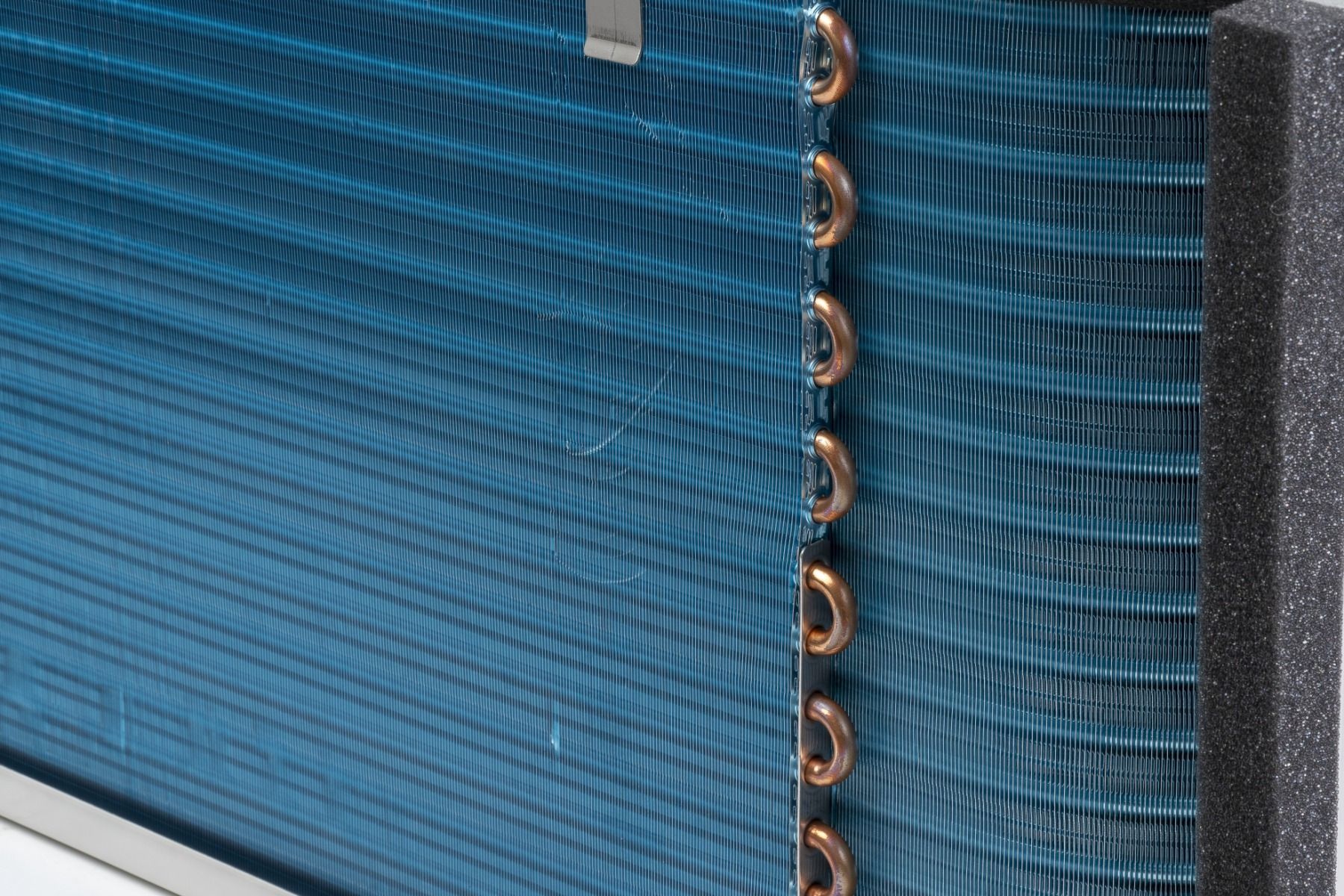

Engineered with aluminum fin-copper tube construction for long-lasting performance.
-
Automatic Restart Function
Recovers previous settings in the event of power loss, ensuring uninterrupted comfort.
Warranty
- 7-Year Compressor, 1-Year Parts with Online Registration
Technical Specifications — ACIQ-12PTC-INV
| sku | ACIQ-12PTC-INV |
|---|---|
| refrigerant charge | 28.57 oz. |
| weight (in lbs) | 122.380000 |
| ahri certificate number | 215740466 |
| brand/manufacturer | ACiQ |
| cooling btu | 12,000 |
| heating btu | 11,800 |
| maximum cfm | 323 |
| decibel level (dba) | 63 |
| electric heat | 3.5 Kilowatts |
| energy star | No |
| refrigerant | R32 |
| eer | 12.4 |
| compressor type | Rotary |
| max breaker size | 20 Amps |
| btu/tonnage | 12,000 BTU/1 Ton |
| height | 15.98" |
| width | 42.09" |
| depth | 21.50" |
| warranty | 7 Year Compressor, 1 Year Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
