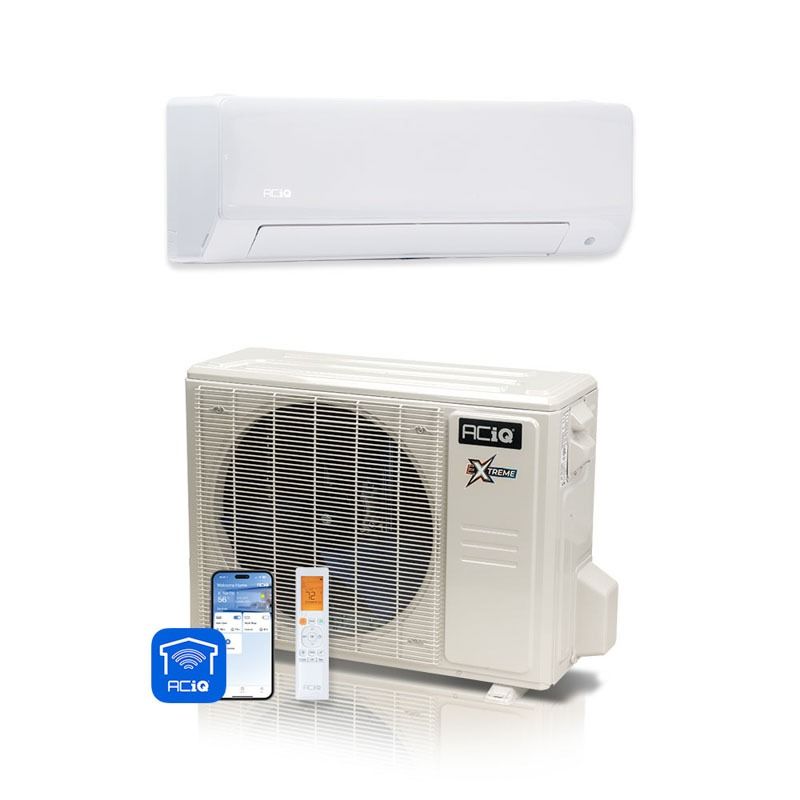

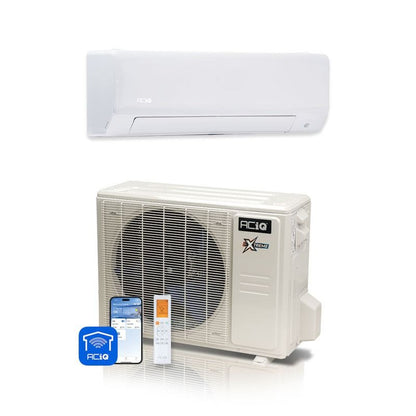

ACIQ 12,000 BTU ACiQ Extreme 25.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Product Overview
The ACiQ Platinum series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.
Technical Specifications — ACIQ-12ZPL-HP230C
| sku | ACIQ-12ZPL-HP230C |
|---|---|
| refrigerant charge | 35.27 oz. |
| weight | 78.700000 |
| manufacturer | ACiQ |
| product features | Low Ambient Heating |
| hspf2 | 10.5 |
| cooling btu | 12,000 BTU |
| heating btu | 12,000 BTU |
| maximum cfm | 1470.6 |
| decibel level (dba) | 56 |
| electric heat | Heat Pump |
| energy star | Yes |
| refrigerant | R454B |
| seer2 | 25.5 |
| compressor type | Rotary |
| liquid line | 1/4" |
| suction line | 3/8" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| max breaker size | 15A |
| min. breaker size | 15A |
| btu/tonnage | 12,000 BTU/1 Ton |
| min/max outdoor temp for heating | -22~75 °F / -30~24 °C |
| min/max outdoor temp for cooling | -22~122 °F / -30~50 °C |
| zone compatibility | Single Zone |
| certification | Energy Star, NEEP, UL AHRI |

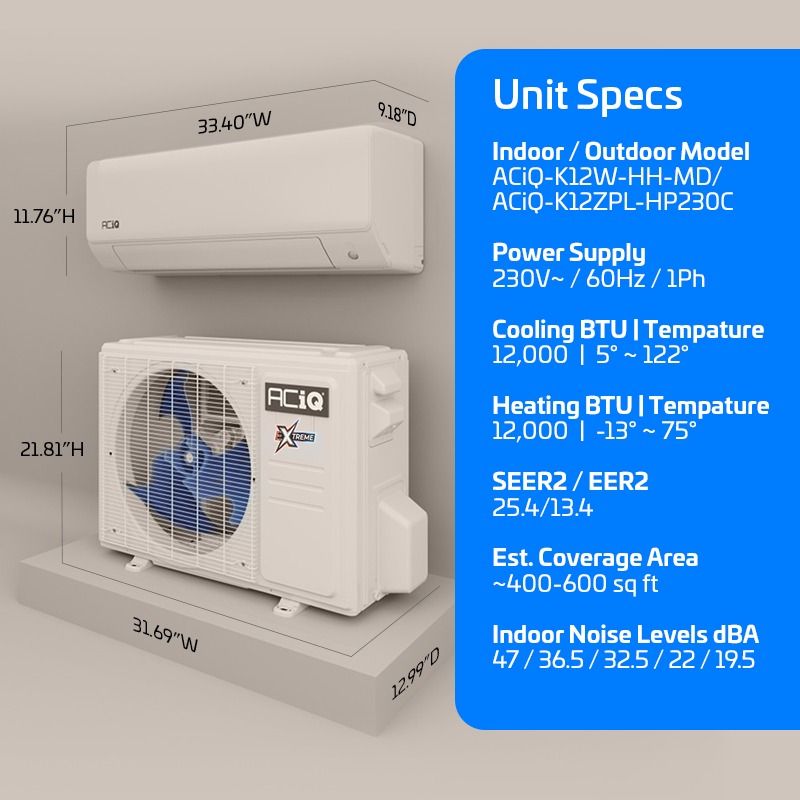

| height | 21.81" |
| width | 31.69" |
| depth | 12.99" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-12W-HH-MD
| sku | ACIQ-12W-HH-MD |
|---|---|
| weight (in lbs) | 29.320000 |
| brand/manufacturer | ACiQ |
| product features | WiFi |
| cooling btu | 12,000 BTU |
| heating btu | 12,000 BTU |
| maximum cfm | Up to 441.4 CFM |
| decibel level (dba) | As low as 19.5 Decibels |
| electric heat | Heat Pump |
| refrigerant | R454B |
| liquid line | 1/4" |
| suction line | 3/8" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| phase | Single Phase |
| btu/tonnage | 12,000 BTU/1 Ton |
| mini split type | Wall Mounted |
| zone compatibility | Single Zone, Multi Zone |
| height | 11.76" |
| width | 33.40" |
| depth | 9.18" |
| warranty | 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
