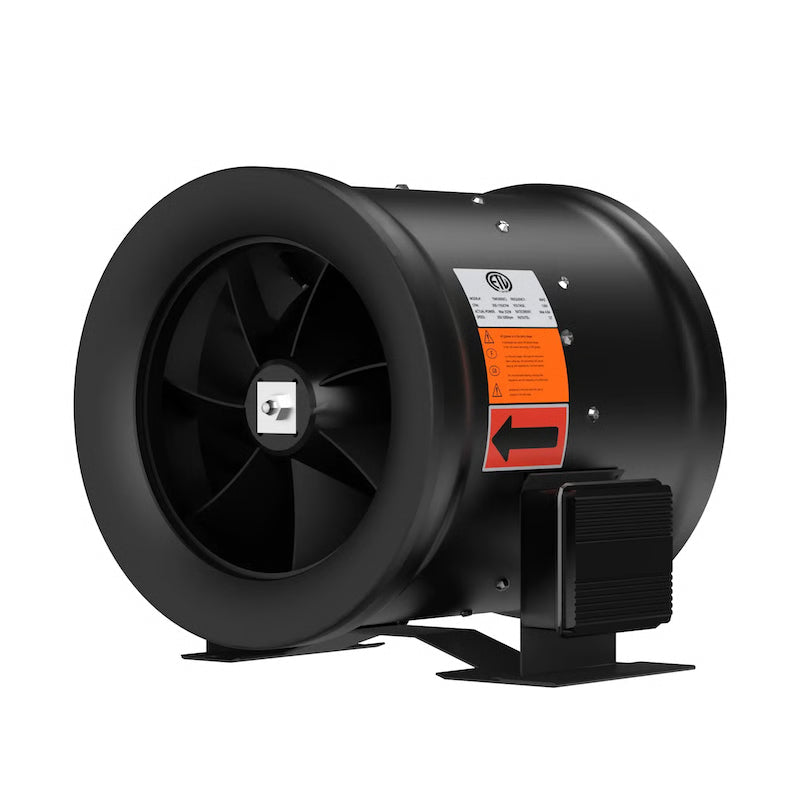

ACiQ 10 Inch Mixed Flow Inline Duct Fan 1,219 CFM - Black
Product Overview
The ACiQ AIMF250EC is a 10-inch mixed-flow inline duct fan designed to support air circulation, exhaust, and airflow balancing in residential and light commercial ducted ventilation systems. Its electronically commutated (EC) motor provides up to 1,219 CFM of airflow. The fan is designed for continuous indoor operation and installation in standard round ductwork.
Key Features
- 10-inch mixed-flow inline duct fan with black housing
- Up to 1,219 CFM of airflow
- Electronically commutated (EC) motor
- Manual speed controller included
- Designed for continuous indoor ventilation
- Can be installed in multiple orientations with round duct systems
Technical Specifications — AIMF250EC
| SKU | AIMF250EC |
|---|---|
| Maximum Airflow | 1,219 CFM |
| Sound Level | 69 / 59 dBA at 1 m |
| Motor | Electronically Commutated (EC) |
| Motor Speed | 3,000 RPM |
| Electrical | 110–120V / 60Hz |
| Power Consumption | 195 W |
| Duct Diameter | 10 in |
| Color | Black |
| Height | 10.24 in |
| Width | 9.72 in |
| Product Weight | 8 lb |
| Speed Controller | Manual speed controller included |
| Maximum Working Temperature | 140°F |
Warranty Information
ACiQ warrants its AIMF mixed-flow inline fans against defects in materials and workmanship under the manufacturer's applicable terms. Refer to the manufacturer warranty documentation for complete coverage, exclusions, registration, and installation requirements.
Installation and Applications
Designed for inline connection with 10-inch round ductwork to assist fresh-air intake, exhaust, general airflow boosting, and ventilation balancing. Install and operate according to the manufacturer's installation instructions and local codes.
