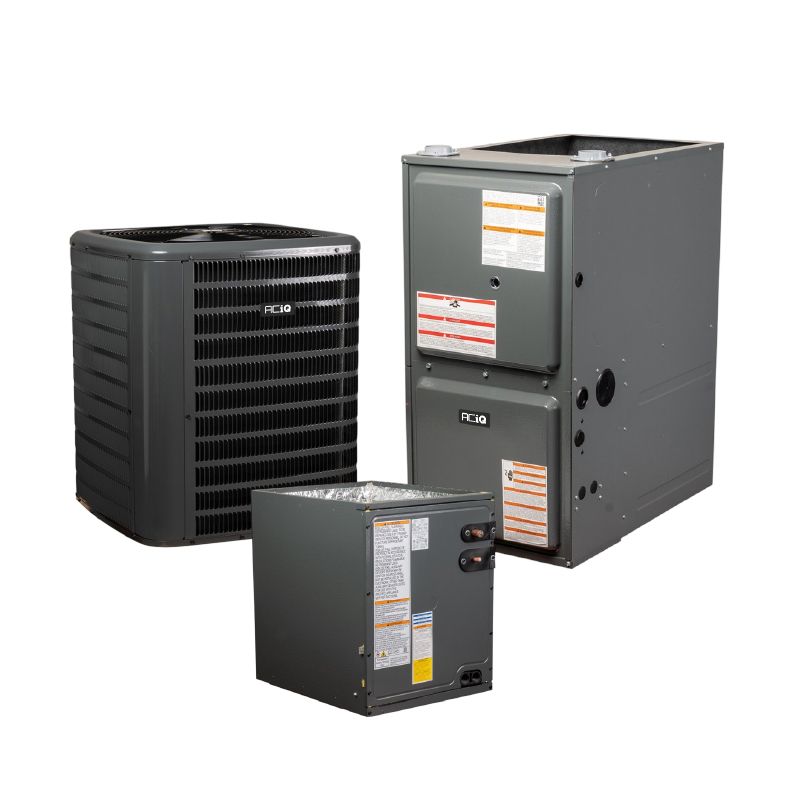

ACIQ 1.5 Ton 15.2 SEER2 96% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow
Product Overview
1.5 Ton 15.2 SEER2 High Efficiency Central Air Conditioner Condenser - R32 Single Stage
OVERVIEW
ACiQ has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GSXH501810 is no exception, with its durability, reliability, and one of the highest efficiencies available.
QUICK FACTS
- Ideal size to cover a smaller house in ideal climates
- 1.5 ton, 15.2 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
1.5 Ton
The AQ-GLXS5BA1810 AC-only condenser is 1.5 tons, normally enough to cover up to a smaller house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.
15.2 SEER2
The AQ-GLXS5BA1810 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.
Warranty
The AQ-GLXS5BA1810 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The cabinet of ACiQ's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the AQ-GLXS5BA1810 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.
Installation and Maintenance
For easier maintenance, ACiQ designed the AQ-GLXS5BA1810's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the AQ-GLXS5BA1810 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.
Comfort in Mind
Superior comfort has always been the primary goal for ACiQ. The AQ-GLXS5BA1810 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.
1.5 Ton 17.5" Width Upflow/Downflow Cased Evaporator Coil - TXV - R32
OVERVIEW
An AC or heat pump system is only as good as its evaporator coil. The ACiQ AQ-CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The AQ-CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. ACiQ pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose ACiQ's AQ-CAPTA units with confidence.
Features
- All-Aluminum Coil: ACiQ's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
- Internal Thermostatic Expansion Valve: ACiQ's AQ-CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
- Cabinet Durability: Providing superior longevity and efficiency, AQ-CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
- Condensate Management: Keeping your system sage and operational, the AQ-CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
- R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
- 10-Year Limited Warranty
Why ACiQ? ACiQ is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to ACiQ being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. ACiQ creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

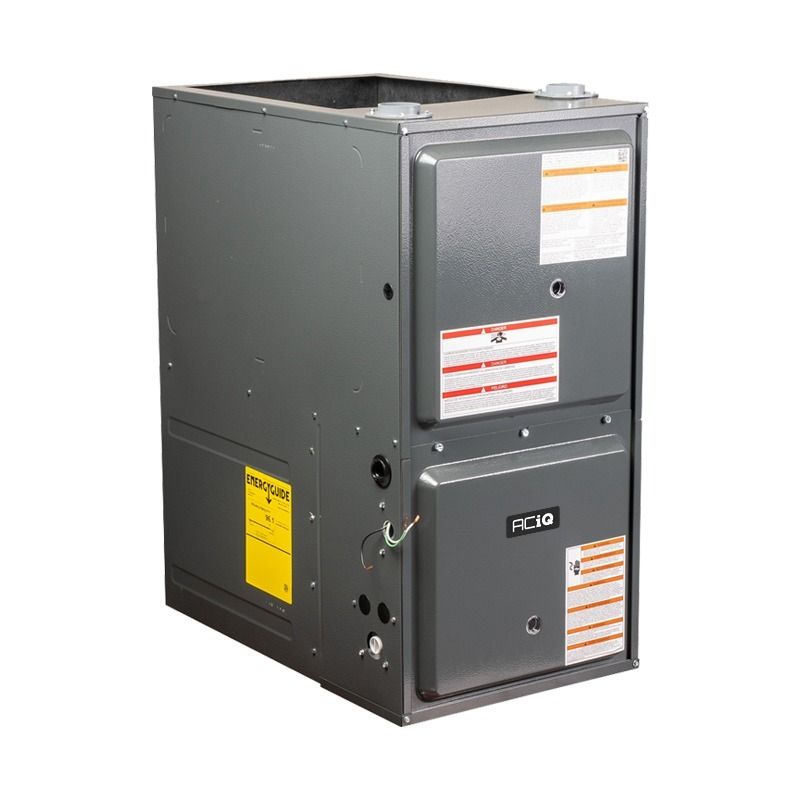

60,000 BTU 96% AFUE Two Stage Gas Furnace - Downflow / Horizontal
OVERVIEW
The ACiQ brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The AQ-GD9T960603BN gas furnace is no exception to ACiQ's ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.
QUICK FACTS
- This furnace is ideal to heat a small to medium house (depending on climate)
- 60,000 BTU 96% AFUE natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with an optional conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
60,000 BTU
Heating up to a small to medium house in average environmental conditions, the AQ-GD9T960603BN ACiQ furnace has an input of 60,000 BTU's and an output of 57,600 BTU's (input X efficiency rating = output).
96% AFUE
The AQ-GD9T960603BN gas furnace is 96% efficient. This efficiency means that 4% of the fuel going into the furnace is lost out of the flue venting, while 96% of the fuel is actually used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you are looking for a furnace that requires metal flue venting, you would need an 80% efficient furnace.
Two Stage 9-Speed Furnace
With a two stage burner, the AQ-GD9T960603BN provides two heating outputs: one at a 60% heating output for warmer days and one at a 100% output for when you need the furnace most. The furnace also has a 9 speed ECM motor instead of an inefficient PSC motor. Both of these upgrades provide a better efficiency with a more stable output to better heat your home through all seasons of use.
Warranty
With installation that follows your state and local codes, the AQ-GD9T960603BN gas furnace comes with a 10-year parts and lifetime heat exchanger warranty when registered online through ACiQ.
Durability and Reliability
The outer casing on the AQ-GD9T960603BN gas furnace is heavy-gauge steel with enhanced insulated for better protection and lower air leakage and sound output, providing more comfort to your home. The new hot surface ignitor replaces the standing pilot light for a more efficient startup.
Installation and Maintenance
The cost-saving benefits of the ACiQ brand doesn't stop at efficiency. The AQ-GD9T960603BN ACiQ furnace can be installed in either the downflow or horizontal orientation, making this furnace an ideal choice for multiple installation applications. Naturally, the AQ-GD9T960603BNcomes with natural gas valves built in. However, increasing its installation potential, the AQ-GD9T960603BN can be field converted with the LP conversion kit (found here, for an extra fee) if you need it to be propane. Not only does the ACiQ brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution to almost any problem.
Technical Specifications - AQ-GLXS5BA1810
| sku | AQ-GLXS5BA1810 |
|---|---|
| weight (in lbs) | 144.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| cooling btu | 18,000 |
| decibel level (dba) | 72 |
| horsepower | 0.125 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 15.2 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid line | 3/8" |
| suction line | 3/4" |
| electrical | 208/230v 1 Phase 60Hz |
| max breaker size | 20 Amps |
| min. breaker size | 11.9 Amps |
| tonnage | 1.5 Ton |
| connection | Sweat |
| height | 27" |
| width | 26" |
| depth | 26" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-CAPTA1818B3
| sku | AQ-CAPTA1818B3 |
|---|---|
| weight (in lbs) | 35.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| configuration | Upflow / Downflow |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 3/4" |
| tonnage | 1.5 Ton |
| style | A-Coil |
| certification | ETL Listed, AHRI Certified |
| height | 18" |
| width | 17.5" |
| depth | 21" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-GD9T960603BN
| sku | AQ-GD9T960603BN |
|---|---|
| weight (in lbs) | 115.000000 |
| ahri certificate number | 215225020 |
| airflow direction | Downflow/Horizontal |
| exhaust flue requirement | Plastic / PVC |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 96% |
| heating btu | 60,000 |
| blower motor | 9-Speed - ECM |
| maximum cfm | 1200 |
| configuration | Downflow/Horizontal |
| energy star | Yes |
| electrical | 115 V. 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 7.8 Amps |
| burner stages | Two |
| fuel type | Propane, Natural Gas |
| height | 34.5" |
| width | 17.5" |
| depth | 28.75" |
| warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| safety information | This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
