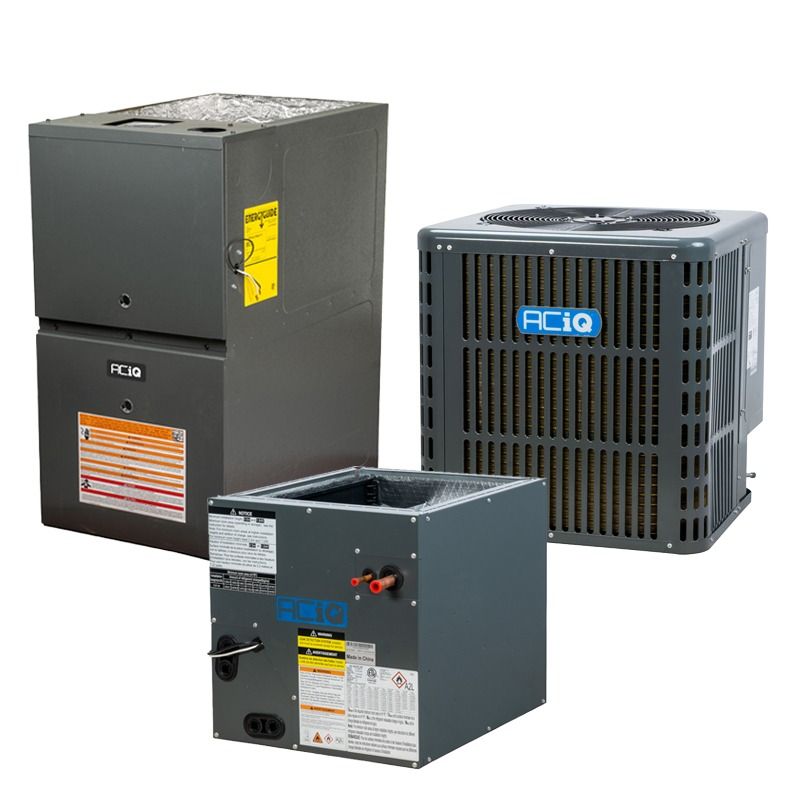

Product Overview
80,000 BTU 80% AFUE Single Stage Gas Furnace - 17.5" Width - Upflow/Horizontal
OVERVIEW
The AQ-GR9S800804BN ACiQ gas furnace features high-quality construction and efficient operation at a great value. The AQ-GR9S800804BN single-stage, 9-speed furnace utilizes ACiQ's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GR9S800804BN.
QUICK FACTS
- This furnace is ideal to heat a medium-sized house (depending on climate)
- 80,000 BTU 80% efficient natural gas furnace
- Requires metal flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
80,000 BTU
The AQ-GR9S800804BN ACiQ gas furnace is 80,000 BTU's. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 64,000 BTU's (80,000 X 80% AFUE) per hour. In ideal climate conditions, this 80,000 BTU furnace is usually used to heat a medium-size house.
80% Efficiency Rating
The AQ-GR9S800804BN ACiQ gas furnace is 80% efficient, which meets the market's minimum furnace efficiency standards. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while any furnace with an efficiency of 90% or higher must be vented using plastic/PVC venting.
Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. If you have any questions, please contact us.
Single Stage Furnace
The AQ-GR9S800804BN ACiQ gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.
Natural Gas or LP Furnace
From the factory, the AQ-GR9S800804BN runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.
9-Speed ECM Blower Motor
Instead of the last generation PSC blower motor, the AQ-GR9S800804BN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durable Hot Surface Ignitor
The hot surface ignitor on modern ACiQ furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.
Self-Diagnostic Control Board
The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.
Heavy Gauge Steel Cabinet
The heavy-gauge steel cabinet on new ACiQ furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.
Ease of Installation
The value of modern ACiQ furnaces doesn't end at efficiency. Today's ACiQ furnaces feature many different connection options to reduce installation. The AQ-GR9S800804BN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

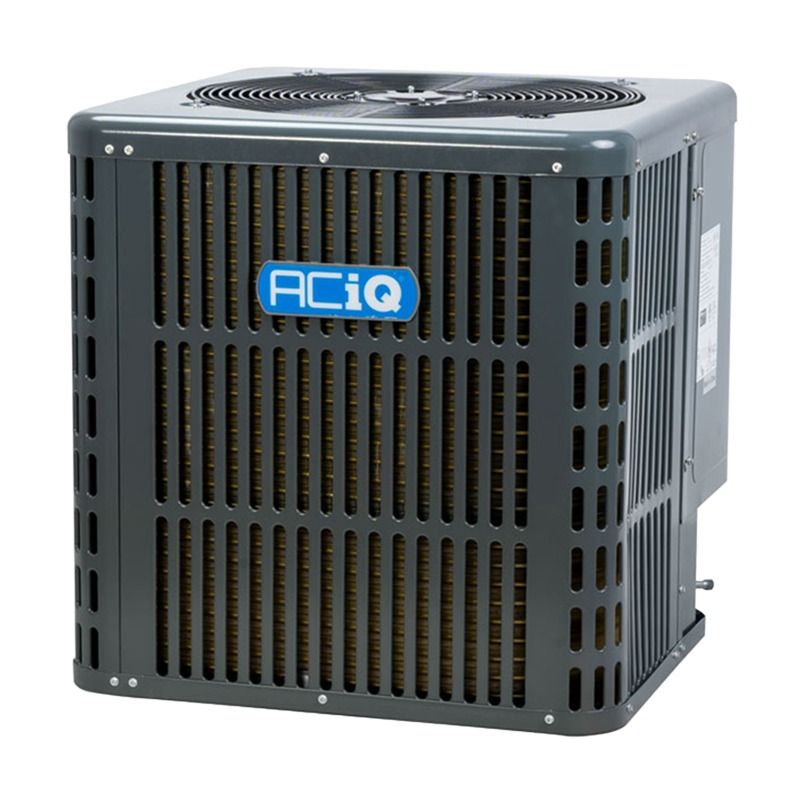

ACiQ 1.5 Ton 14.3 SEER2 Central Air Conditioner Condenser - R32
Reliable Home Cooling Comfort
The ACiQ AC-I-18AC14 is a 1.5-ton air conditioner condenser designed to deliver consistent comfort throughout the year. With its advanced technology and SEER2 rating, it provides powerful yet economical cooling, making it an excellent choice for homeowners seeking reliability and performance.
Features
- 1.5 ton, 18,000 BTU Cooling capacity
- Can cool small homes in various climates
- Pre-charged with R32 refrigerant
- Quiet outdoor sound rating
- Corrosion-resistant design help withstand outdoor exposure
- TXV-controlled A‑coil support better humidity control and smoother airflow, enhancing overall comfort
1.5 Tons
The ACiQ AC-I-18AC14 is a 1.5 ton (18,000 BTU) central air conditioner condenser that uses R32 technology to deliver 14.3 SEER2 cooling performance while reducing energy consumption. This top-discharge, cooling-only outdoor unit is designed for quiet, reliable residential comfort. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work.
Warranty
ACiQ offers a 12 year compressor and a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-551-2469 if you have any questions.

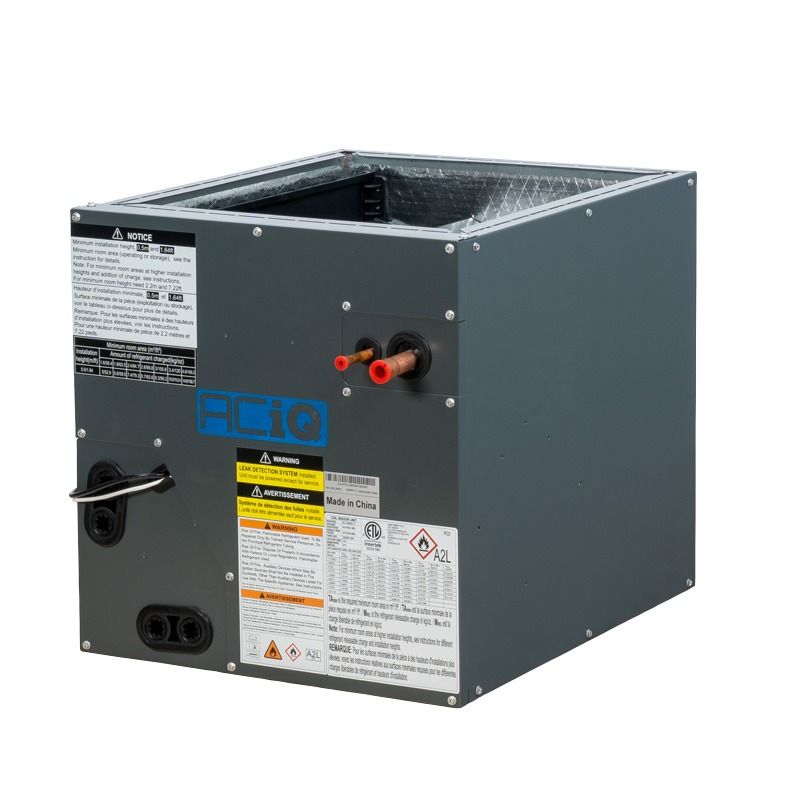

ACiQ 1.5 to 2 Ton 17.5" Width Multi-Positional Evaporator Coil - Cased - R32
The ACiQ AC-I-1824ACL-17 is a high-performance cased evaporator coil designed for maximum durability and installation flexibility. Optimized for systems ranging from 1.5 to 2 tons, this coil is the perfect indoor companion for both air conditioning and heat pump outdoor units.
Key Features
- Multi-Position Design: Engineered for upflow, downflow, and horizontal applications, ensuring it fits your specific ductwork layout.
- Corrosion Resistance: Features an all-aluminum construction that significantly reduces the risk of formicary corrosion compared to traditional copper.
- Pre-Installed TXV: Includes a factory-installed Thermal Expansion Valve (TXV) for precise refrigerant metering and improved system efficiency.
- 17.5" Cabinet Width: A standard width that aligns perfectly with common furnace sizes for a clean, professional-looking install.
- AHRI Certified: Tested to meet industry standards for performance and reliability when paired with compatible ACiQ equipment.
- Compatible with R32: Comes with a leak mitigation control kit for handling R32 refrigerant.
Warranty
ACiQ offers a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Technical Specifications — AC-I-18AC14
| sku | AC-I-18AC14 |
|---|---|
| refrigerant charge | 45.86 oz. |
| weight (in lbs) | 123.000000 |
| brand/manufacturer | ACiQ |
| product features | Basic Efficiency |
| cooling btu | 18,000 BTU |
| decibel level (dba) | 58 Decibels |
| refrigerant | R32 |
| seer2 (efficiency) | 14.3 |
| condenser stages | Single Stage |
| compressor type | Rotary |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230V 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 11 Amps |
| tonnage | 1.5 Ton |
| height | 25" |
| width | 23.62" |
| depth | 23.62" |
| warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — AC-I-1824ACL-17
| sku | AC-I-1824ACL-17 |
|---|---|
| weight (in lbs) | 43.000000 |
| brand/manufacturer | ACiQ |
| configuration | Multi-Positional |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 3/4" |
| tonnage | 1.5 Ton |
| style | A-Coil |
| height | 18" |
| width | 17.5" |
| depth | 21.02" |
| warranty | 10 Years with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — AQ-GR9S800804BN
| brand name | Private Brand |
|---|---|
| sku | AQ-GR9S800804BN |
| model | GR9S800804BN |
| unit type | Furnace |
| equipment type | Gas Furnace |
| short description | 80,000 BTU 80% AFUE 9-Speed Single Stage Gas Furnace - Upflow/Horizontal |
| airflow direction | Upflow/Horizontal |
| exhaust flue requirement | Metal |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 80% |
| heating btu | 80,000 |
| blower motor | 9-Speed - ECM |
| maximum cfm | 1600 |
| configuration | Upflow/Horizontal |
| electrical | 115v 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 11.3 Amps |
| burner stages | Single |
| fuel type | Propane, Natural Gas |
| height | 33 3/8" |
| width | 17 1/2" |
| depth | 28" |
| gross weight (lbs) | 120 |
| warranty | Lifetime Heat Exchanger and 10 Years Parts with Online Registration |
| ahri certificate number | 215358055 |
| registered warranty | Online Registration Required |
| has batteries | No |
| contains electronics | Yes |
| contains chemicals | Yes |
| contains aerosol | No |
| contains compressed gas | No |
| proposition 65 warning | Yes |
| restricted states | GU;PR;VI |
| freight class | 300 |
| safety information | This gas appliance requires a trained technician to install. Improper installation of gas lines or venting may result in death. Purchase implies agreement to use a trained technician. We assume no responsibility for injury or damage due to improper service. |
