ACiQ

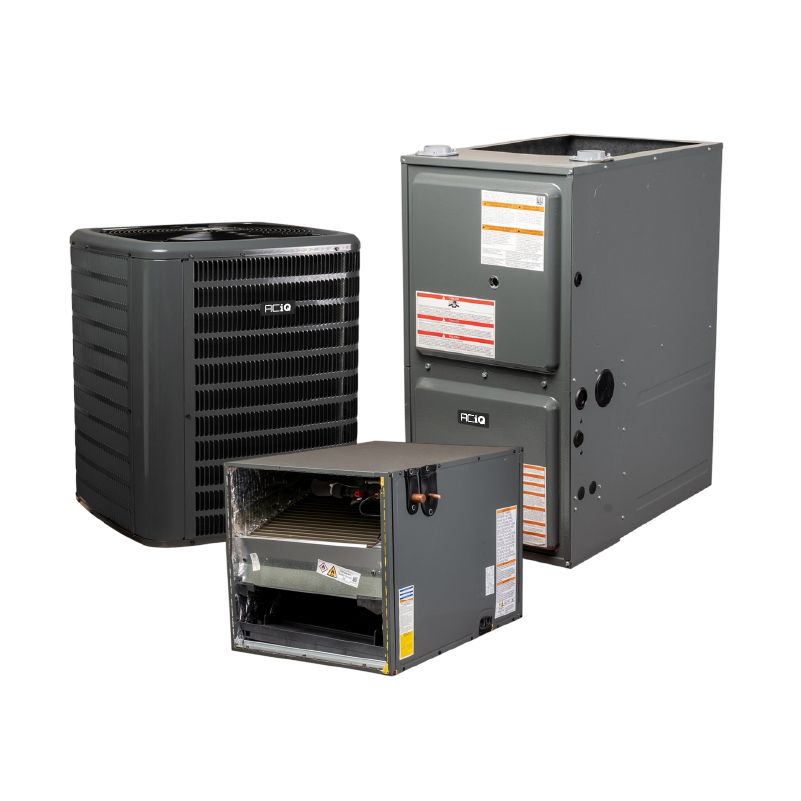

AQ-GLXS3BN1810 + AQ-CHPTA2426B3 + AQ-GD9S960403BN
Product Overview
1.5 Ton 13.4 SEER2 Single Stage Air Conditioner Condenser - R32
OVERVIEW
The ACiQ AQ-GLXS3BN1810 is a durable, high-quality condenser unit that is the perfect cooling solution for homes up to 1100 square feet in northern states. At a capacity of 1.5 tons and a SEER2 rating of 13.4, this cooling-only condenser won't break the bank while still reliably cooling your home for years to come. Easy to access service valves make installation by a licensed HVAC professional a breeze. Pay for high-end performance without the high-end price tag when you choose ACiQ.
QUICK FACTS
- 13.4 SEER2, 1.5 tons AC-only Condenser: With a 13.4 SEER2 efficiency rating and a tonnage of 1.5, this AC condenser is a great choice for smaller homes that experience shorter, milder summers.
- Single Stage: When properly sized and installed, a single stage condenser is a cost-effective and durable option to cool your home.
- R32 Refrigerant: With R32 refrigerant, this unit complies with Clean Air Act refrigerant requirements.
- Fully Charged for Up to 15' of Line Set: The condenser comes fully pre-charged with enough refrigerant for up to 15 feet of line set.
Durability and Reliability
The AQ-GLXS3BN1810 is designed to last with features like a baked-on powder-paint finish that is approved for up to 500 hours of salt-spray. The factory-installed filter dryer also lowers general wear-and-tear on the unit while the enhanced copper tube prevents coil degradation, ensuring lasting and reliable comfort in your home.
Warranty
If the AQ-GLXS3BN1810 condenser fails, the unit comes with the manufacturer's standard 10-year parts warranty as long as it is installed following state and local codes and registered online. Backed by the same trusted manufacturing partners behind major HVAC brands, the ACiQ warranty further guarantees the high-quality performance expected from any other major brand.
Disclaimer
- Due to Department of Energy efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.
- For this unit to function, an indoor air handler or coil is required.
- This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.
2 Ton 17.5" Height Horizontal Cased Evaporator Coil - TXV - R32
OVERVIEW
The ACiQ AQ-CHPTA2426B3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the AQ-CHPTA2426B3 lives up to ACiQ's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.
Quick Facts
- 2 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
2 Tons
At an output of 2 tons, the ACiQ AQ-CHPTA2426B3 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser's tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit's efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.
Warranty
The AQ-CHPTA2426B3 coil is covered under ACiQ's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R32 condenser, and the entire system is registered online through the manufacturer.
Installation and Durability
The ACiQ AQ-CHPTA2426B3 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil's durable cabinet has a split-seam.
Enhanced Comfort and Efficiency
The ACiQ AQ-CHPTA2426B3 horizontal evaporator coil's built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the AQ-CHPTA2426B3 to live up to the ACiQ quality name.
40,000 BTU 96% AFUE 9-Speed Single Stage Gas Furnace - Downflow/Horizontal
OVERVIEW
If you're looking to reduce your energy bill and improve the comfort of your home, look no further than ACiQ's AQ-GD9S960403BN. This gas furnace features efficient operation and high-quality construction to provide your home with reliable, affordable heating. The AQ-GD9S960403BN single-stage, 9-speed furnace is a great value designed for many applications.
QUICK FACTS
- This furnace is ideal to heat a small house (depending on climate)
- 40,000 BTU 96% efficient natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
40,000 BTU
The AQ-GD9S960403BN ACiQ gas furnace is suitable in output for a small house in ideal climate conditions. The 40,000 BTU count is the input per hour of the furnace, and the output is 38,400 BTU's (40,000 x 96% AFUE) per hour.
96% Efficiency Rating
The AQ-GD9S960403BN ACiQ gas furnace has a 96% efficiency rating. This means that only 4% of the fuel going into the furnace is used up in normal furnace operations and not used to heat your home. The remaining 96% of the inputted fuel is used to heat your home. 96% efficient furnaces is one of the highest efficiencies of natural gas furnaces available for purchase with today's technology. Please note that 96% efficient furnaces such as this one require plastic/PVC flue venting, and 80% efficient furnaces require metal flue venting.
Single Stage Furnace
A single stage furnace operates using the same amount of energy every time is turns on. The AQ-GD9S960403BN ACiQ gas furnace operates using only one heat output. This furnace will operate at 100% output whenever it is operating.
Natural Gas or LP Furnace
From the factory, the AQ-GD9S960403BN runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.
9-Speed ECM Blower Motor
The AQ-GD9S960403BN utilizes a 9-speed ECM motor, which is more efficient than older PSC blower motors, saving you money in electric bills.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durable Hot Surface Ignitor
Instead of a standing pilot light, the AQ-GD9S960403BN has a newer, more efficient hot surface ignitor. Hot surface ignitors are much more efficient and safer than standard standing pilot lights.
Self-Diagnostic Control Board
The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely runs into any operation-based problems. However, if the furnace does need maintenance or warranty work, the control board has a set of sensors that will identify any basic problems in the furnace's basic operation.
Heavy Gauge Steel Cabinet
The AQ-GD9S960403BN ACiQ gas furnace has a durable outer cabinet. The heavy-gauge steel used in the furnace's design allows for a more protected interior, and less air leakage from the furnace's operation, resulting in a more quiet operation while still decreasing operation costs.
Ease of Installation
From enhanced operation to efficiency, the ACiQ gas furnaces have a lot to offer. However, ACiQ's features don't stop at quality of unit. The AQ-GD9S960403BN allows for a significantly more streamlined installation process with its universal design, consisting of its ability to be installed in either downflow or horizontal configurations, lowering labor costs.
Technical Specifications - AQ-GLXS3BN1810
| sku | AQ-GLXS3BN1810 |
|---|---|
| weight (in lbs) | 130.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSX130181 and GSXN3N1810 |
| product features | New Refrigerant Compliant |
| cooling btu | 18,000 |
| decibel level (dba) | 73 |
| horsepower | 1/8 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 13.4 |
| condenser stages | Single Stage |
| compressor type | Rotary |
| liquid line | 3/8" |
| suction line | 3/4" |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208 / 230 V. 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 10.9 Amps |
| tonnage | 1.5 Ton |
| connection | Sweat |
| height | 32 1/2" |
| width | 26" |
| depth | 26" |
| warranty | 10 Years Parts Limited Warranty with Online Registration |
| resources | GLXS3B Installation ManualGLXS3B Specifications SheetGLXS3B Service ManualGoodman Condenser WarrantyYou will need Adobe� Acrobat� Reader to view PDF documents. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-CHPTA2426B3
| sku | AQ-CHPTA2426B3 |
|---|---|
| weight (in lbs) | 55.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| configuration | Horizontal |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 7/8" |
| tonnage | 2 Ton |
| style | A-Coil |
| certification | ETL Listed | AHRI Certified |
| height | 17.5" |
| width | 26" |
| depth | 21" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-GD9S960403BN
| brand name | Private Brand |
|---|---|
| sku | AQ-GD9S960403BN |
| model | GD9S960403BN |
| unit type | Furnace |
| equipment type | Gas Furnace |
| short description | 40,000 BTU 96% AFUE 9-Speed Single Stage Gas Furnace - Downflow/Horizontal |
| airflow direction | Downflow/Horizontal |
| exhaust flue requirement | Plastic / PVC |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 96% |
| heating btu | 40,000 |
| blower motor | 9-Speed - ECM |
| maximum cfm | 1200 |
| configuration | Downflow/Horizontal |
| energy star | Yes |
| electrical | 115v 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 10.1 Amps |
| burner stages | Single |
| fuel type | Propane, Natural Gas |
| height | 34 1/2" |
| width | 17.5" |
| depth | 28 3/4" |
| gross weight (lbs) | 113 |
| warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| ahri certificate number | 215224958 |
| registered warranty | Online Registration Required |
| has batteries | No |
| contains electronics | Yes |
| contains chemicals | Yes |
| contains aerosol | No |
| contains compressed gas | No |
| proposition 65 warning | Yes |
| restricted states | GU;PR;VI |
| freight class | 300 |
| safety information | This gas appliance requires a trained technician to install. Improper installation of gas lines or venting may result in death. Purchase implies agreement to use a trained technician. We assume no responsibility for injury or damage due to improper service. |
