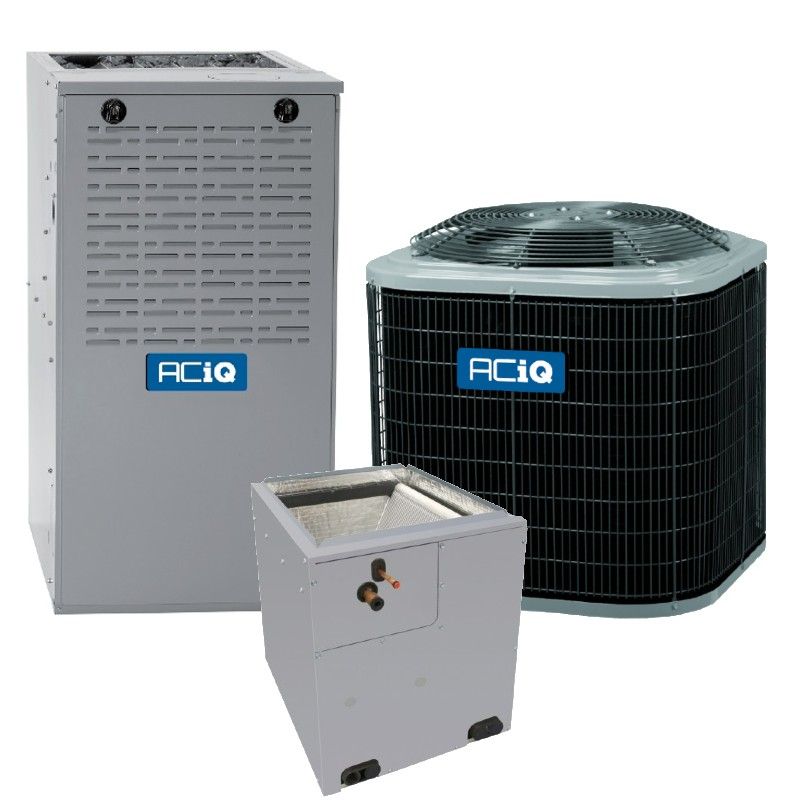

ACIQ 1.5 Ton 13.4 SEER2 80% 80,000 BTU Furnace & AC System - R454B Upflow / Downflow
Product Overview

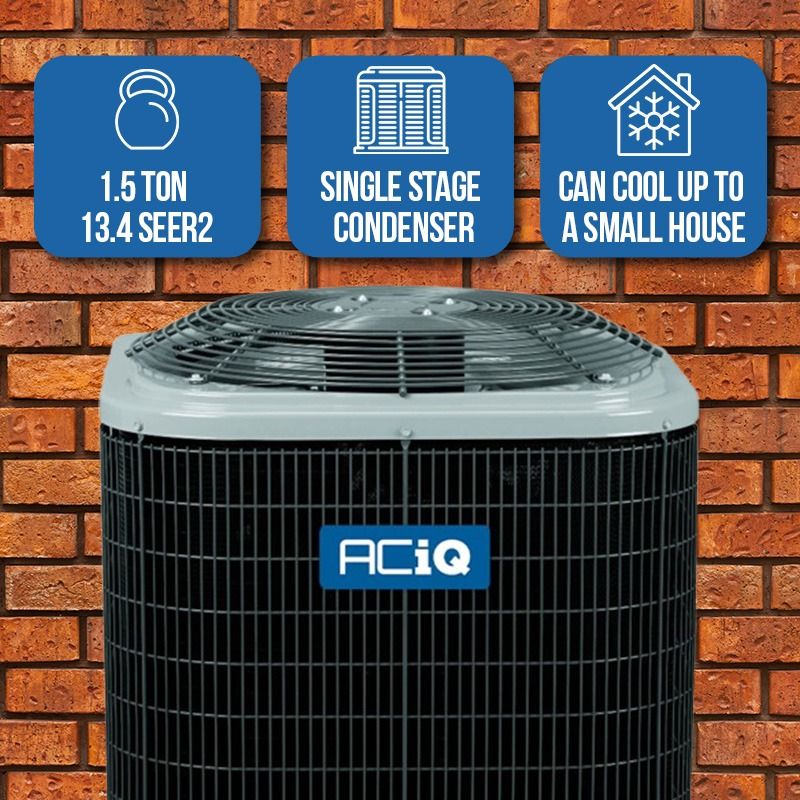

ACIQ 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser - R454B Single Stage
OVERVIEW
The ACIQ R5A4S18AKANA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
QUICK FACTS
- Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
- 1.5 ton, 13.4 SEER2 AC-only condenser
- Can cool a small house in average conditions
- Single stage compressor
- Filter drier included to be field-installed
- Pre-charged with R454B refrigerant
1.5 Tons
The ACIQ R5A4S18AKANA air conditioner condenser has an output of 1.5 tons, generally enough to cool a small house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
13.4 SEER2
The ACIQ R5A4S18AKANA air conditioner condenser is rated at 13.4 SEER2, making it between 5-7% more efficient than standard 13 SEER1 units, saving you money in electric bills over the entire lifetime of your unit.
This unit (and all 13.4 SEER2 units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia For more information about state efficiency requirements, please click here.
Warranty
ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACIQ units are extremely durable. On the R5A4S18AKANA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

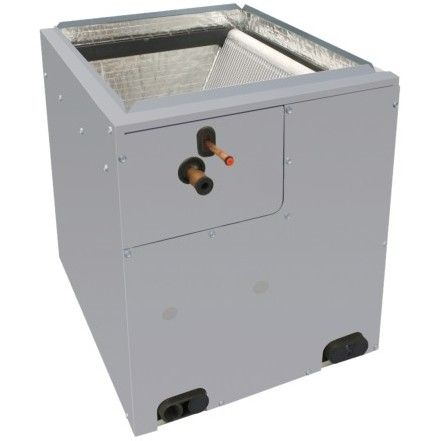

ACIQ 2 Ton 17.5" Width Vertical Evaporator Cased Coil - R454B
OVERVIEW
ACIQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EVD5X24M17A vertical coil is a superior option for any air conditioning application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization.
QUICK FACTS
- 2 ton vertical coil
- Works in both upflow and downflow applications
- Fully insulated, cased V-coil design for efficient heat transfer in a compact size
- Factory-installed TXV kit for enhanced energy optimization
- Corrosion-resistant drain pan designed with a Polybutylene Terephthalate (PBT) material for unsurpassed strength
2 Tons
The ACIQ EVD5X24M17A is rated for up to 2 tons of cooling. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
Warranty
ACIQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.

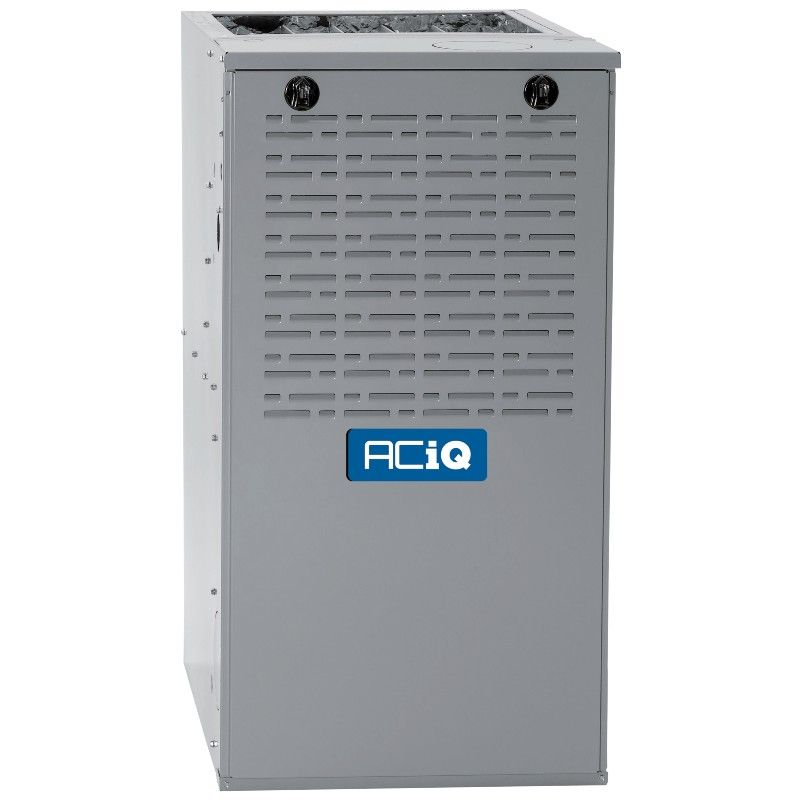

ACiQ 80% 80,000 BTU Two Stage Gas Furnace - 17.5" Width - Multi-Positional
OVERVIEW
With its variable speed blower motor and two stage burner, the ACiQ G80CTL0901716A can provide a consistently superior comfort to almost any application.
QUICK FACTS
- 88,000 BTU, 80% AFUE natural gas furnace
- Generally suitable for up to a medium-sized house in ideal applications
- Communicating variable speed blower with a two stage burner
- Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
- California Low NOx compliant
- Field-convertible to propane with an optional LP kit
- On board self-diagnostics
88,000 BTU, 80% AFUE
The ACiQ G80CTL0901716A has an input of 88,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 71,000 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.
Warranty
ACiQ offers a 10 year no hassle unit replacement, 10 year parts, and lifetime heat exchanger limited warranty. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.
Installation and Durability
With its ability to be installed in any configuration (upflow, downflow, or horizontal), the ACiQ G80CTL0901716A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not designed to be suitable for a mobile home on its own.
Superior Comfort
All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ G80CTL0901716A definitely lives up to the name thanks in part to its communicating variable speed blower motor and its two stage burner. Both of these prominent features provide the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.
Quiet Comfort
Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
High Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
Technical Specifications — R5A4S18AKANA
| sku | R5A4S18AKANA |
|---|---|
| refrigerant charge | 15' |
| weight | 129.000000 |
| manufacturer | ACiQ |
| replaces | R4A4S18AKANA |
| equivalent | |
| cooling btu | 18000 |
| maximum cfm | 1600 |
| decibel level (dba) | 72 Decibels |
| motor rpm | 1100 |
| horsepower | 1/12 HP |
| refrigerant | R454B |
| seer2 | 13.4 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid valve size | "3/8"" |
| suction valve size | "3/4"" |
| electrical | 208/230v 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 10.8 Amps |
| tonnage | 1.5 Ton |
| connection | Sweat |
| certification | UL Listed |
| height | "28 1/4"" |
| width | "23 1/8"" |
| depth | "23 1/8"" |
| warranty | 10 Years Parts Warranty with Online Registration |
| safety information | PROPOSITION 65 WARNING |
Technical Specifications — EVD5X24M17A
| sku | EVD5X24M17A |
|---|---|
| weight | 39.000000 |
| manufacturer | ACiQ |
| replaces | END4X18L14A, EVD4X24M17A |
| configuration | Upflow / Downflow |
| refrigerant | R454B |
| liquid line | "3/8\"" |
| suction line | "5/8\"" |
| tonnage | 2 Ton |
| style | V-Coil |
| connection | Sweat |
| certification | UL Listed |
| height | "14 11/16\"" |
| width | "17 1/2\"" |
| depth | "20 5/8\"" |
| warranty | 10 Year Parts Limited Warranty with Online Registration |
| safety information | PROPOSITION 65 WARNING |
Technical Specifications — G80CTL0901716
| sku | G80CTL0901716 |
|---|---|
| weight | 126.000000 |
| ahri certificate number | 213148663 |
| exhaust flue requirement | Metal |
| manufacturer | ACiQ |
| product features | Low NOx, New Refrigerant Compliant |
| furnace efficiency / afue | 80% |
| heating btu | 88,000 |
| blower motor | Variable Speed - ECM |
| drive type | Direct |
| maximum cfm | 1595 |
| motor rpm | 1200 |
| horsepower | .5 HP |
| configuration | Upflow/Downflow/Horizontal |
| electrical | 115v 1 Phase 60 Hz |
| connection | "1/2\" NPT" |
| maximum inlet pressure | "13.6\"wc" |
| burner stages | Two |
| ignition type | Direct Ignition with Silicon Nitride Hot Surface Ignitor |
| fuel type | Propane, Natural Gas |
| height | "33 1/3\"" |
| width | "17 1/2\"" |
| depth | "29\"" |
| warranty | 10 Year No Hassle Replacement / Lifetime Heat Exchanger and 10 Year Parts with Online Registration |
| safety information | PROPOSITION 65 WARNING |
