Perfect Aire 12,000 BTU 230V PTAC Heat Pump w/ 5.0 kW Electric Heat Assist
Overview
12,000 BTUPTAC12000 BTU (1.00 TON)R32
Details

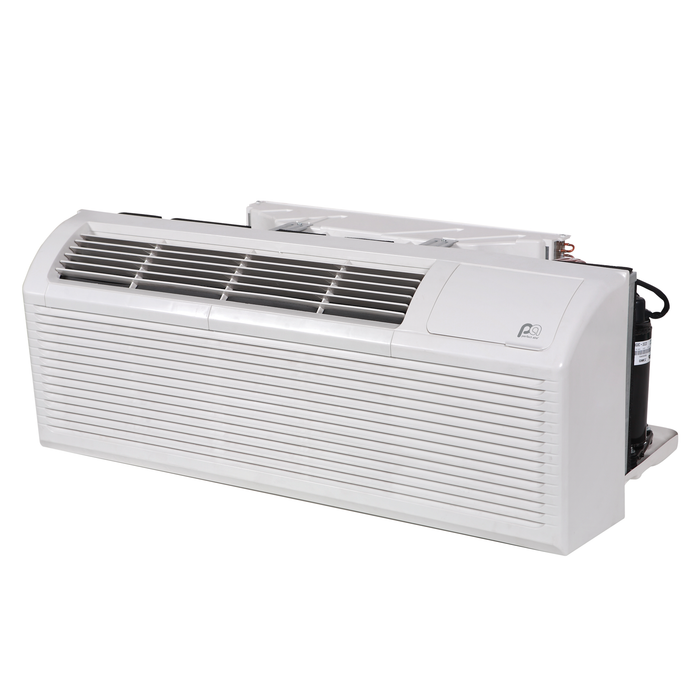

12,000 BTU 230V PTAC Heat Pump w/ 5.0 kW Electric Heat Assist
Model #4PTH12A-HE-5.0
Comfort doesn’t have to be complicated, even in commercial spaces. This packaged terminal air conditioner from Perfect Aire® heats and cools rooms up to 500 square feet with utmost energy efficiency. Tenants and customers in dorms, apartments, hotels and hospitals have total control over their comfort at the touch of a button, so you watch your energy bills go down and your customer satisfaction go up. Whether you’re outfitting a Active construction building, retrofitting an existing one or regulating the temperature of your own sunroom, the sleek profile and whisper-quiet operation won’t interfere with your style or space.
Features
- 12,000/11,800 BTU Packaged Terminal Air Conditioner with 5.0kW electric heater (10,800/10,500 BTU)
- Efficiently delivers comfort to rooms measuring approximately 450-500 sq. ft.
- Ideal for Active construction or retrofit requirements in commercial spaces
- Sleek design and low-profile footprint
- Quiet operation
- Energy efficient
- Memory Function
- EER (Energy Efficiency Rating) of 10.5
- Power input is 20A, 208V/230V-60Hz
- Compressor Restart Delay in Cool Mode
- High Temperature Protection in Heat Mode
| cooling capacity (btu) | 12000/11800 |
|---|---|
| heating capacity (btu) | 10800/10500 |
| coverage area (sq. ft.) | 400-500 |
| cooling operating temperature range (°f) | 64 - 109 |
| heating operating temperature range - heat pump (°f) | 25-75 |
| heating operating temperature range - heat strip (°f) | No Min.-75 |
| unit width (in.) | 42.0 |
| unit height (in.) | 16.0 |
| unit depth (in.) | 21.0 |
| unit weight (lb.) | 116.0 |
