Perfect Aire — PTAC

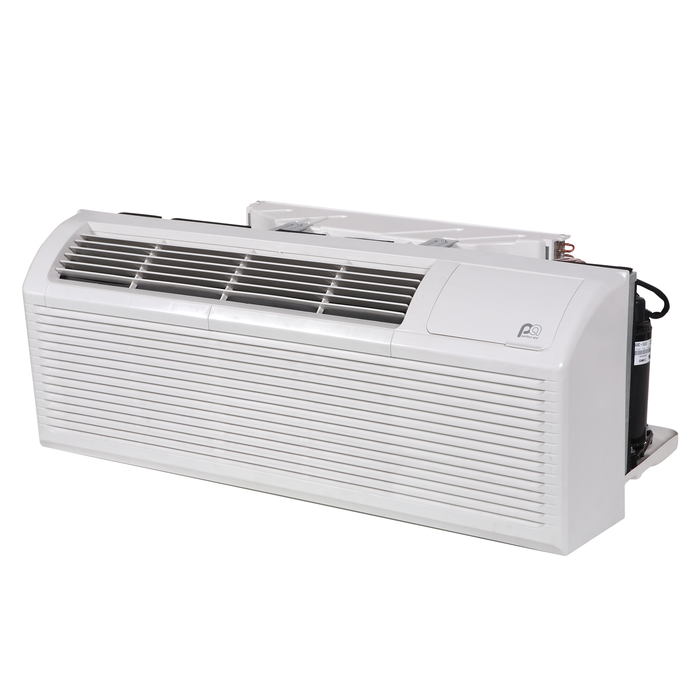

Perfect Aire 12,000 BTU 230V PTAC Heat Pump w/ 3.5 kW Electric Heat Assist
Overview
12,000 BTUPTAC12000 BTU (1.00 TON)R32
Details
12,000 BTU 230V PTAC Heat Pump w/ 3.5 kW Electric Heat Assist
Model #4PTH12A-HE-3.5
Everything you need for total indoor comfort is concealed within the sleek profile of this packaged terminal air conditioner from Perfect Aire®. Heating and cooling individual rooms within commercial and residential spaces is simple, thanks to this energy efficient design. A robust 12,000 BTU capacity brings comfort to rooms up to 500 square feet—hello, apartments, hotels, hospitals and even sunrooms. with whisper-quiet operation and an understated all-in-one design that won’t interfere with your style or space. Smart features like automatic quick warm-up and high-temperature protection put comfort within reach while protecting the life of the unit.
Features
- 12,000/11,800 BTU Packaged Terminal Air Conditioner with 3.5kW electric heater (10,900/8,900 BTU)
- Efficiently delivers comfort to rooms measuring approximately 450-500 sq. ft.
- Ideal for Active construction or retrofit requirements in commercial spaces
- Sleek design and low-profile footprint
- Quiet operation
- Energy efficient
- Memory Function
- EER (Energy Efficiency Rating) of 10.5
- Power input is 20A, 208V/230V-60Hz
- Compressor Restart Delay in Cool Mode
- High Temperature Protection in Heat Mode
| cooling capacity (btu) | 12000/11800 |
|---|---|
| heating capacity (btu) | 10800/10500 |
| coverage area (sq. ft.) | 400-500 |
| cooling operating temperature range (°f) | 64 - 109 |
| heating operating temperature range - heat pump (°f) | 25-75 |
| heating operating temperature range - heat strip (°f) | No Min.-75 |
| unit width (in.) | 42.0 |
| unit height (in.) | 16.0 |
| unit depth (in.) | 21.0 |
| unit weight (lb.) | 116.0 |
