OLMO Alpic Eco • Wall Mount • R410A • 115V
OLMO Alpic Eco Series 12,000 BTU 115V Single Zone Wall Mount Air Conditioner and Heat Pump Mini Split R410A | 115V
System: OS-EL12ALP115VI + OS-EL12ALP115VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS
CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview

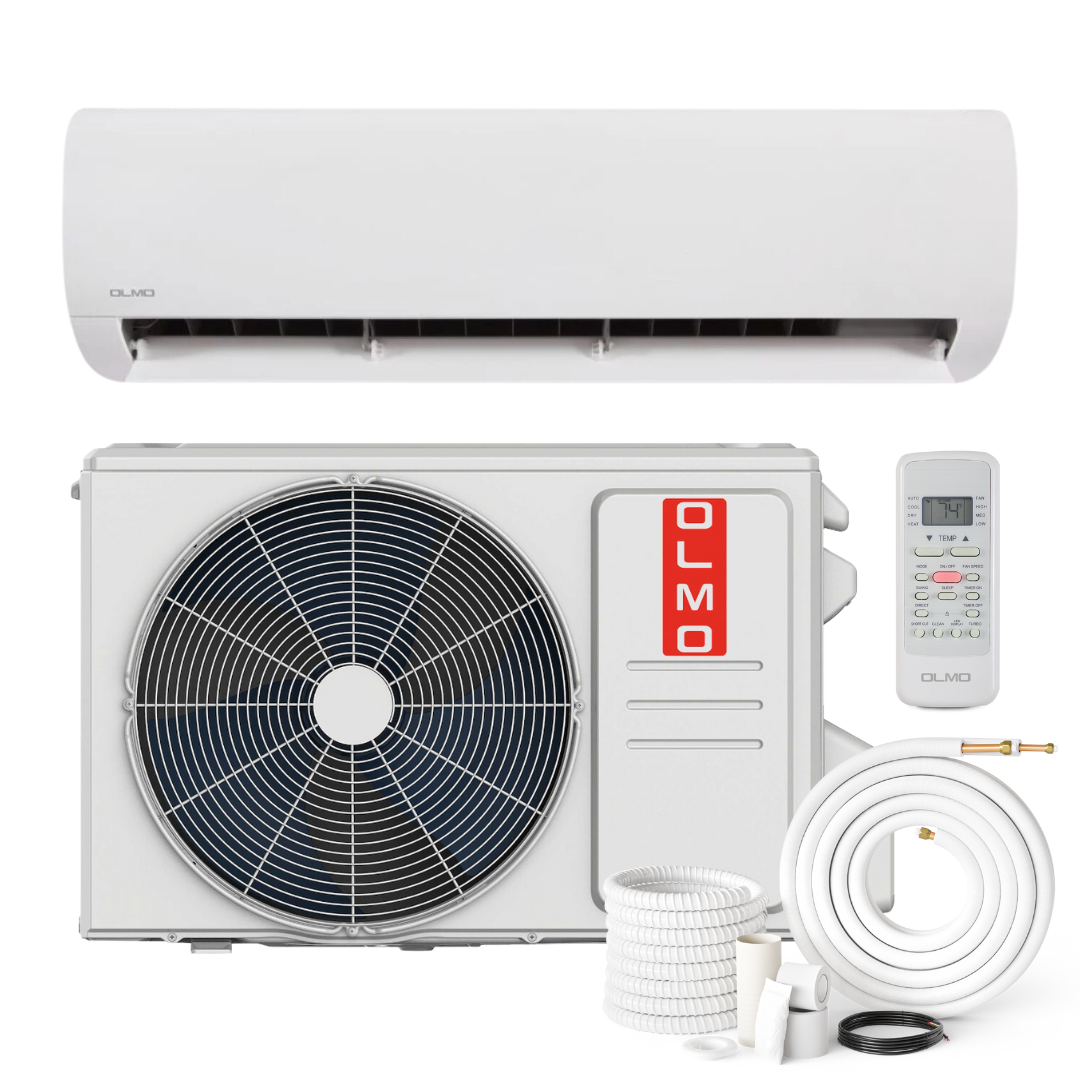

The OLMO Alpic Eco Series is a compact, inverter-driven single-zone wall mount system built for reliable cooling and heat pump heating. This bundle pairs the OS-EL12ALP115VI indoor unit with the OS-EL12ALP115VO outdoor condenser for 12,000 BTU performance on 115V power using R410A refrigerant.
Highlights
Single Zone bundle
12,000 BTU cooling (nominal)
Inverter technology
SEER: 16.5
Lines: 1/4" • 1/2"
Max line length: 82 ft
Max height diff: 33 ft
AHRI Ref: 205309408
- Auto Swing for improved air distribution.
- Comfortable Sleep Mode and Timer for everyday comfort scheduling.
- Auto Restart plus Self-diagnosis for easier troubleshooting and recovery after outages.
- Intelligent Pre-heating and Fan Delay functions to help stabilize comfort.
- LED Display and multiple fan speeds for simple control.
IndoorOS-EL12ALP115VI
OutdoorOS-EL12ALP115VO
Voltage115V
RefrigerantR410A

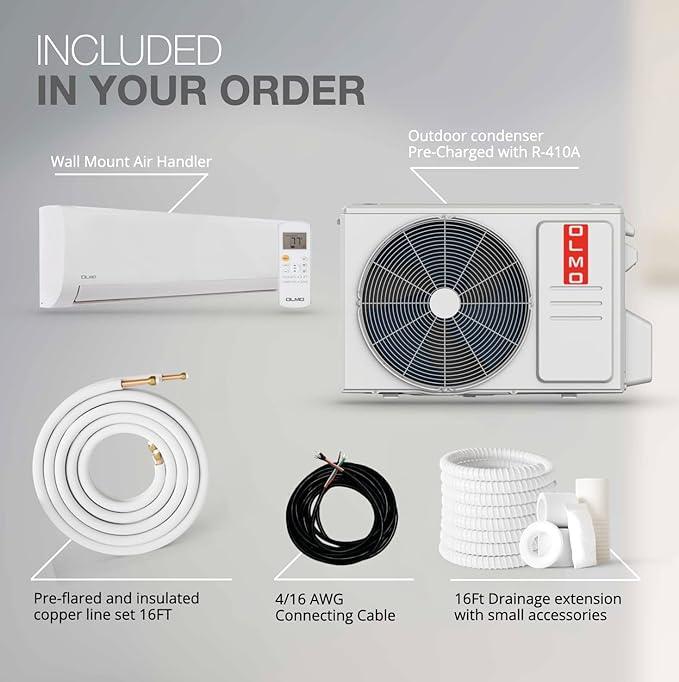

What’s Included
- Indoor wall mount unit: OS-EL12ALP115VI
- Outdoor condenser: OS-EL12ALP115VO
- Manufacturer documentation (see Documents & Downloads)

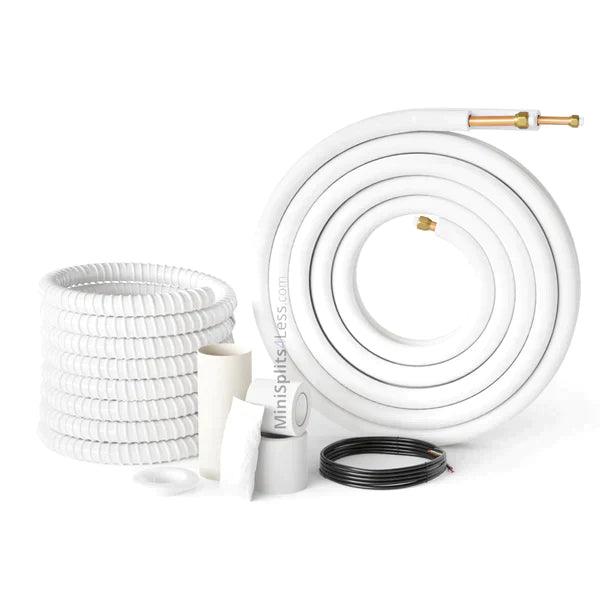

- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
Indoor Specs
| Spec | Details |
|---|---|
| Model | OS-EL12ALP115VI |
| Power source | 115V ~ 60Hz, 1Ph |
| SEER | 16.5 |
| Cooling capacity (nominal) | 12,000 BTU/h |
| Rated current (Cooling / Heating) | 11.89 A / 10.54 A |
| Port size (Liquid / Gas) | 1/4" / 1/2" |
| Indoor noise (H/M/L) | 41 / 34.5 / 27.5 dB(A) |
| Indoor air flow | 317.65 / 241.18 / 176.47 CFM |
| HSPF (47°F) | HSPF5: 7.7 • HSPF4: 9.4 |
| Heating capacity @ 47°F | 12,000 BTU/h |
| EER | 8.8 |
| COP @ 47°F | 2.90 |
| Minimum circuit ampacity | 3 |
| Max fuse | 15 |

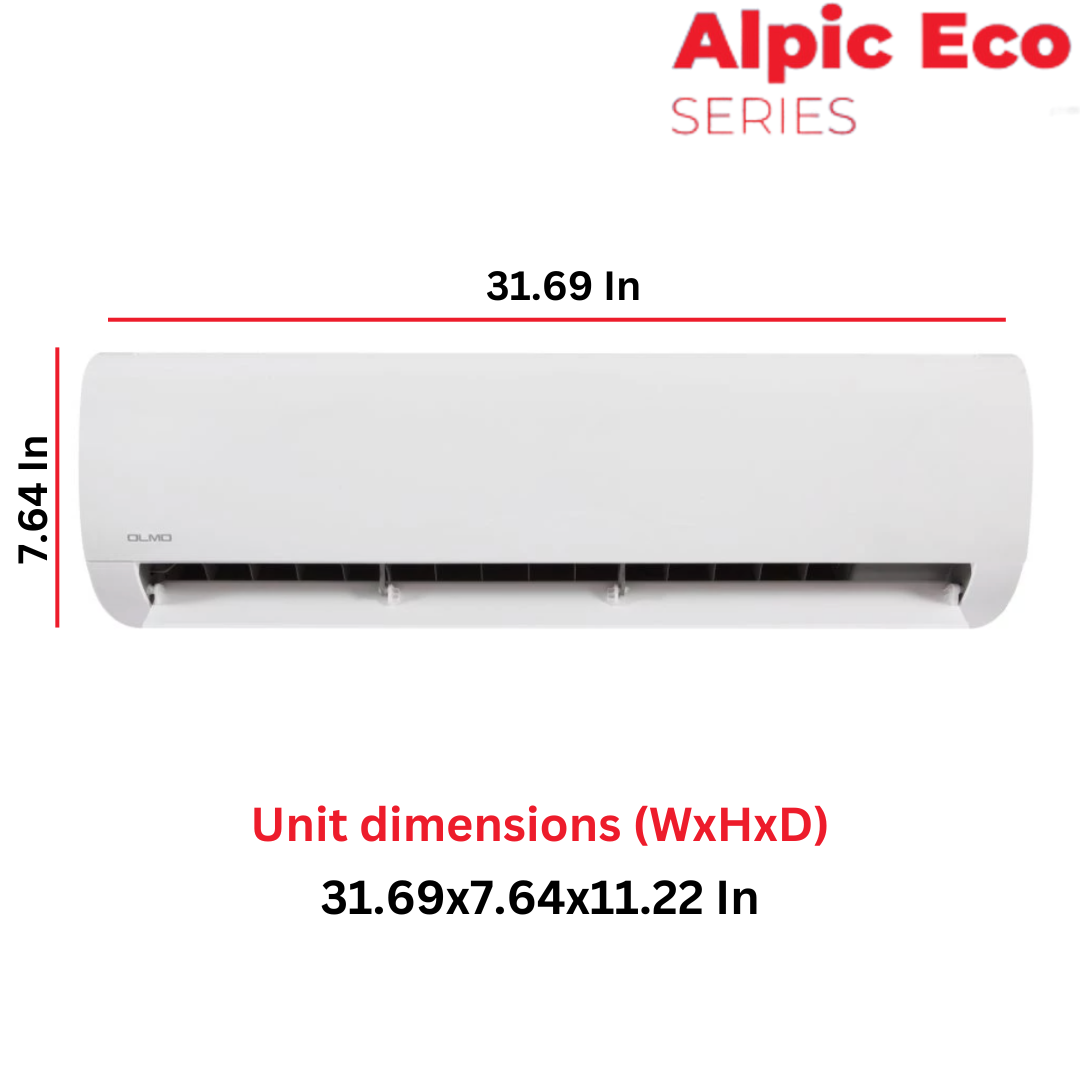

| Unit dimensions (W×H×D) | 31.69 × 7.64 × 11.22 in |
| Packing dimensions (W×H×D) | 34.25 × 10.63 × 14.37 in |
| Net / Gross weight | 17.20 / 22.27 lb |
| Design pressure | 550 / 340 |
| Additional refrigerant charge (1/4" liquid) | 0.161 |
| Connection wire | 16AWG × 4 (stranded, unshielded) |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | OS-EL12ALP115VO |
| Outdoor refrigerant/charge | R410A / 25.75 |
| SEER | 16.5 |
| Cooling capacity (nominal) | 12,000 BTU/h |
| Rated current (Cooling / Heating) | 11.89 A / 10.54 A |
| Port size (Liquid / Gas) | 1/4" / 1/2" |
| Outdoor compressor type | Rotary |
| Outdoor noise level | 55 dB(A) |
| Outdoor air flow | 1058.82 CFM |
| Pre-charge piping length | 25 ft |
| Max line length | 82 ft |
| Max height difference | 33 ft |
| Minimum circuit ampacity | 17 |
| Max fuse | 25 |
| Ambient temp (Heating) | 5–86°F |
| Ambient temp (Cooling) | 5–122°F |

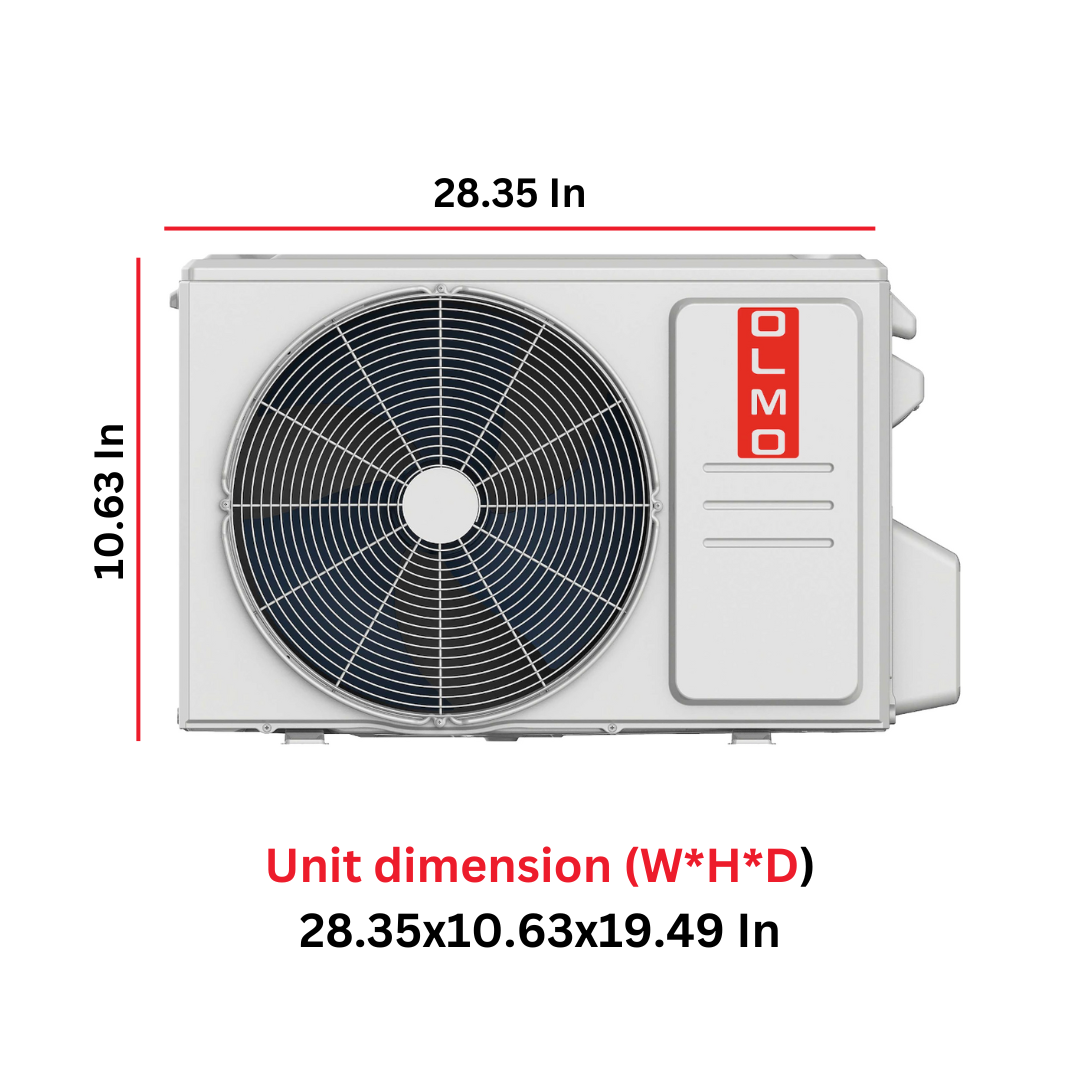

| Unit dimensions (W×H×D) | 28.35 × 10.63 × 19.49 in |
| Packing dimensions (W×H×D) | 32.87 × 11.81 × 21.26 in |
| Net / Gross weight | 55.11 / 58.86 lb |
| Additional refrigerant charge (1/4" liquid) | 0.161 |
| Connection wire | 16AWG × 4 (stranded, unshielded) |
Documents & Downloads
Important
- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
- Confirm electrical requirements (115V) and breaker/fuse sizing before installation.
- Verify line sizes (1/4" liquid, 1/2" suction) and max run/height limits prior to ordering materials.
FAQs
Is this a single-zone system?
Yes—this bundle is a single-zone pairing of OS-EL12ALP115VI and OS-EL12ALP115VO.
What line set size does it use?
The system uses 1/4" liquid and 1/2" suction refrigerant piping.
Are installation kits included?
No. Installation kits are only included if selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
How long can the refrigerant line run be?
Maximum total line length is 82 ft with a maximum indoor/outdoor height difference of 33 ft.
Where can I find efficiency documentation?
See Energy Guide — 12K 115V (PDF) in the Documents & Downloads section.
