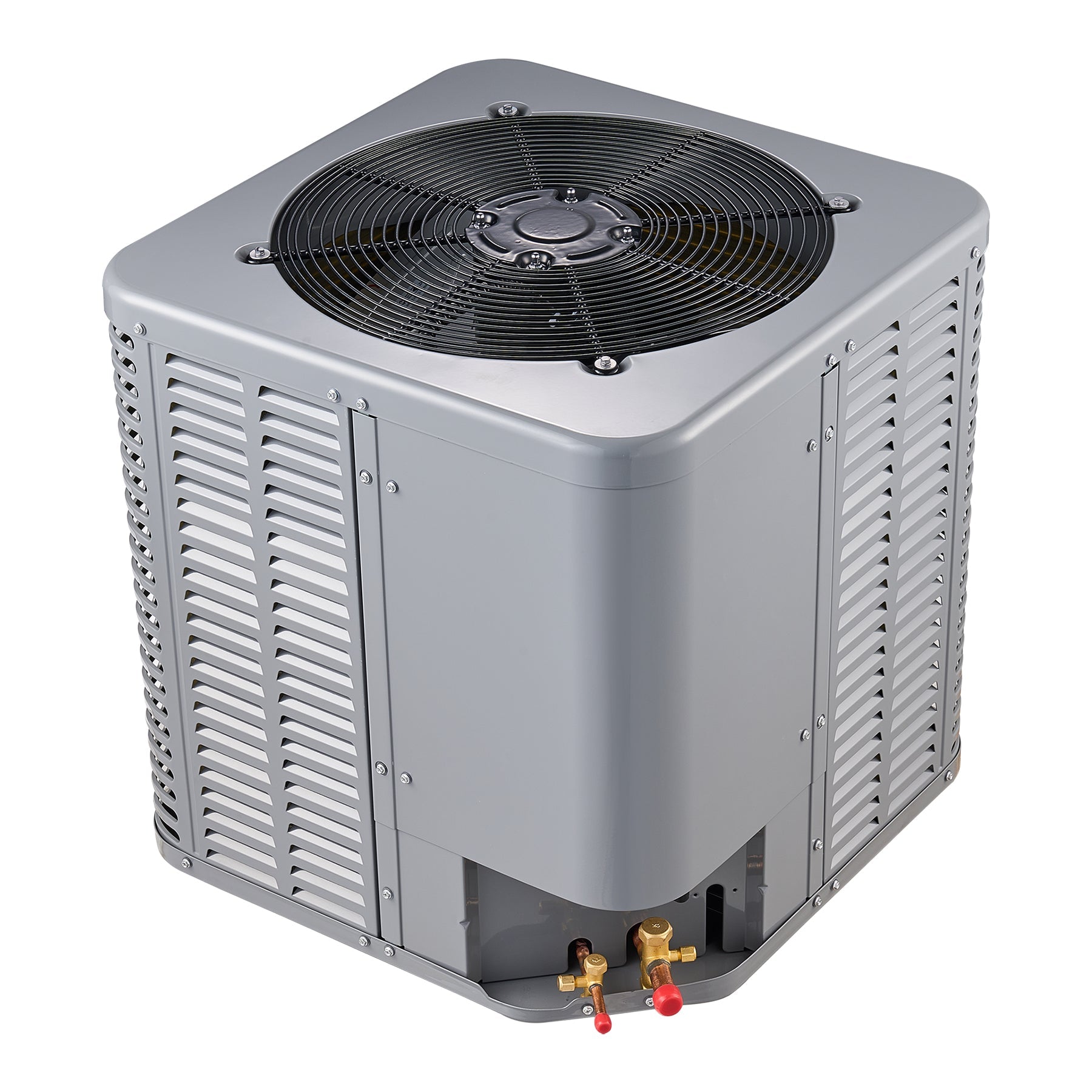

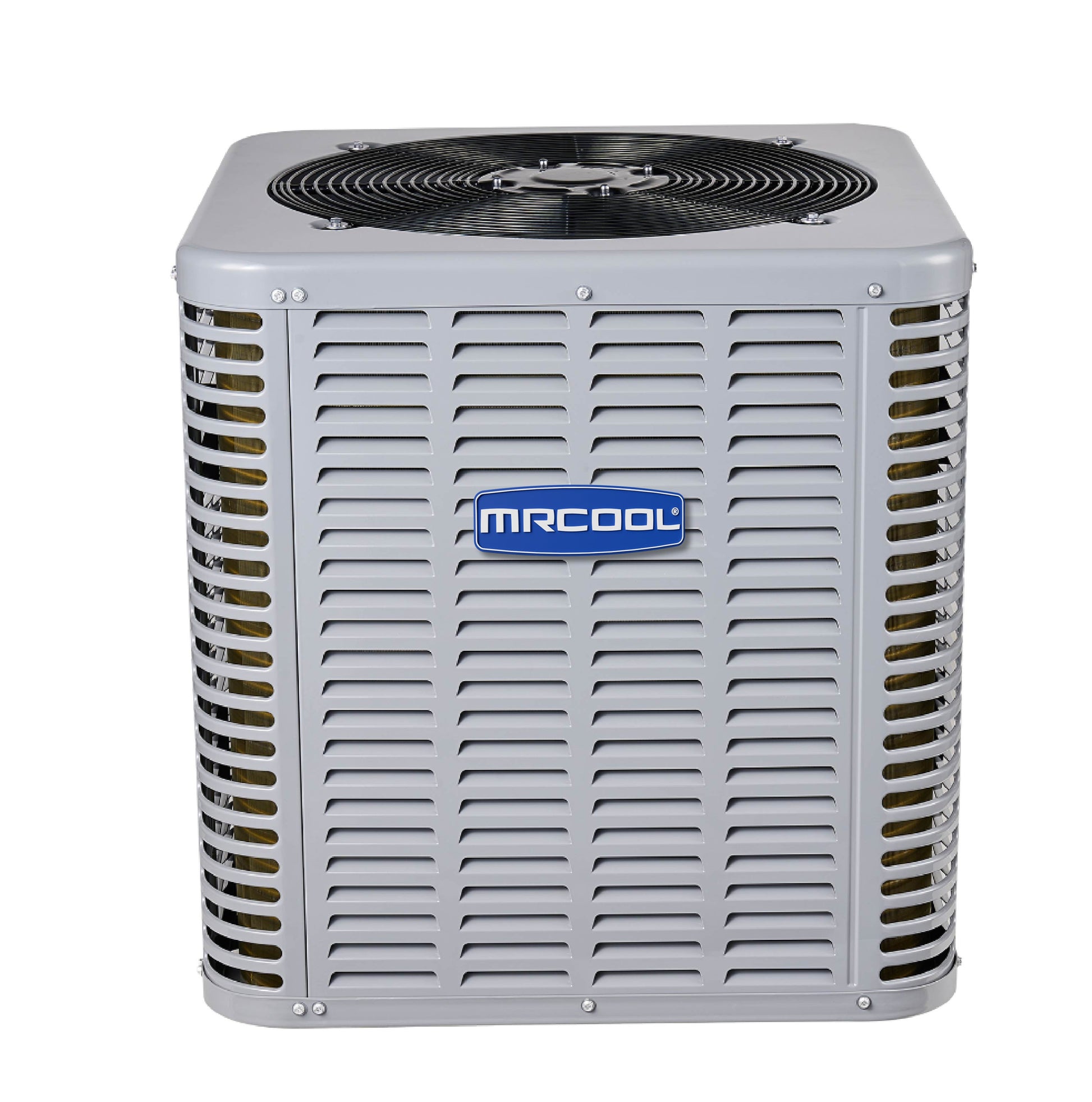

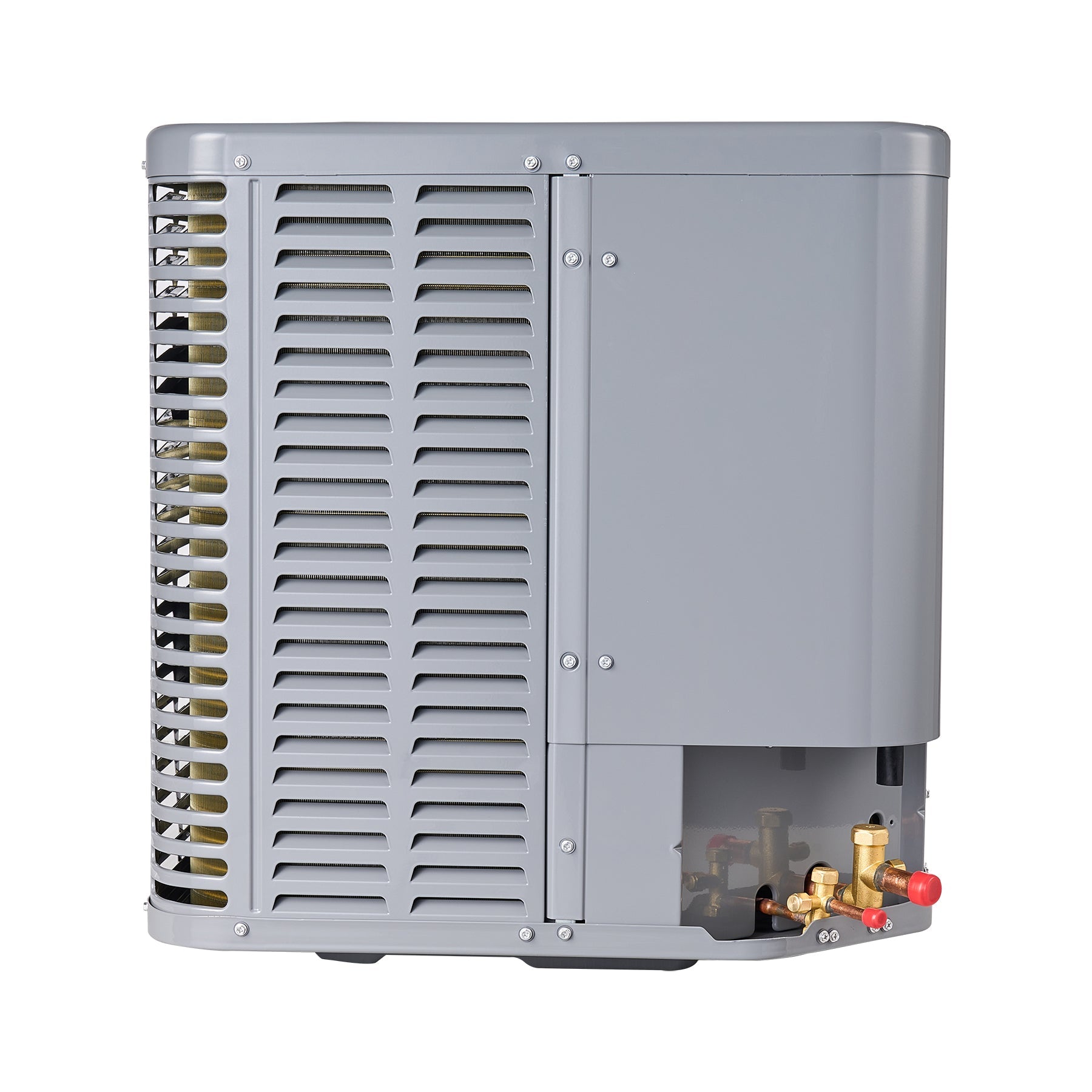

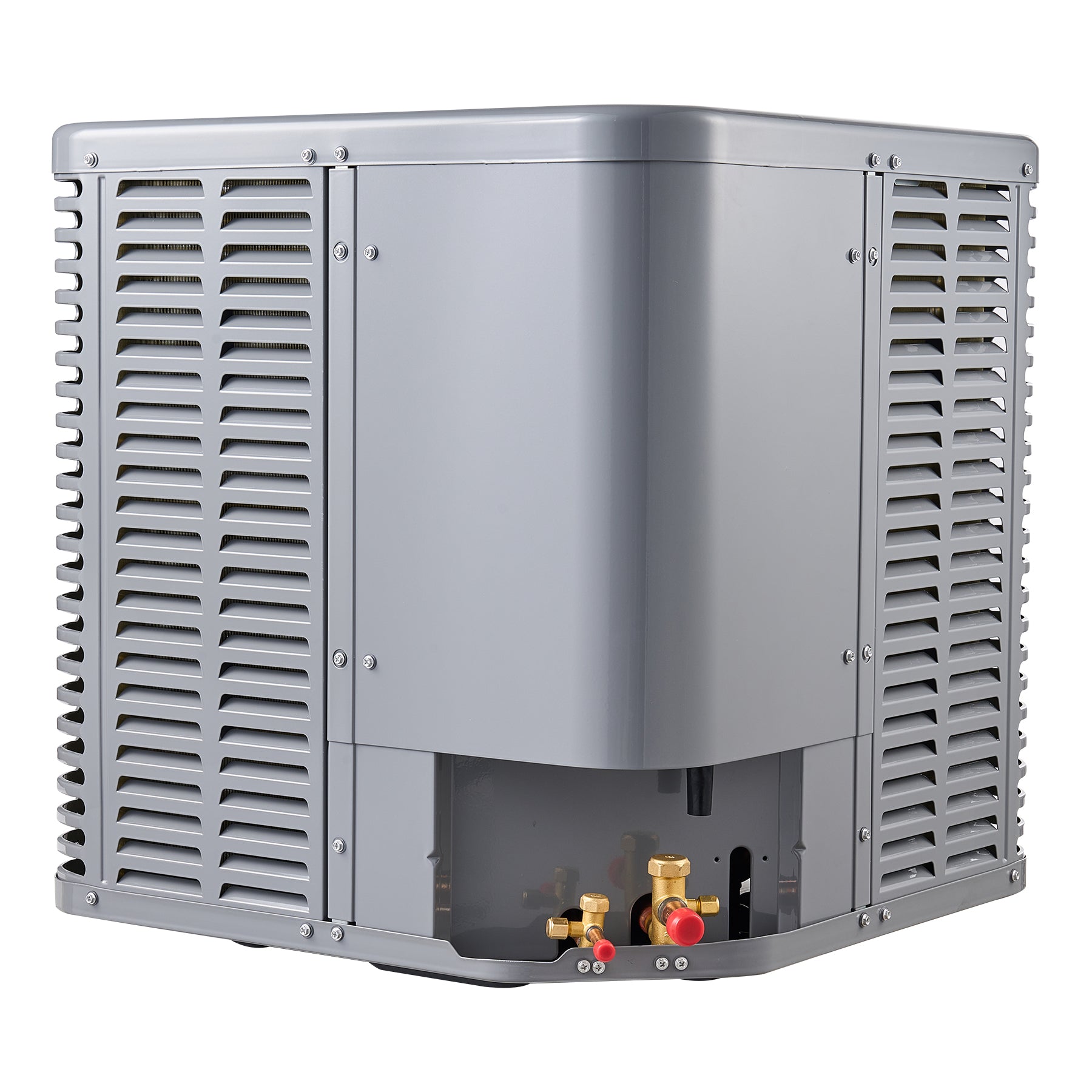

MRCOOL Signature Series 4 Ton 13.8 SEER2 Air Conditioner Condenser | MCAESAS4T4821AA
MRCOOL Signature Series 4 Ton 13.8 SEER2 Air Conditioner Condenser | MCAESAS4T4821AA
Summary
The MRCOOL® Signature Series 48k Cooling Only Condenser offers efficient, dependable cooling designed to meet the needs of modern homeowners. With a 13.8 SEER2 and 11.2 EER2 rating, this unit is built to deliver comfort while helping lower your energy bills. Whether you're replacing an older system or installing in a new build, this condenser delivers performance you can trust. Pre-charged with R-454B refrigerant, the unit meets current environmental standards while maintaining strong cooling capabilities. At the heart of the system is the reliable scroll compressor, supported by inner-groove copper tubing for efficient heat exchange and improved thermal conductivity. Though powerful, the system is surprisingly quiet. Operating at just 65 decibels, about as loud as a dishwasher or a normal conversation, it's ideal for residential use where noise can be a concern. A sound-dampening top reduces operating volume, while a steel louver coil guard and wire fan discharge grille further protect internal components from debris, impacts, and unruly weather conditions. With compact sizing and user-friendly service features like sweat connection valves and a convenient gauge port, installation and maintenance are simple. MRCOOL® also includes its industry-leading 10-year limited parts warranty and a limited lifetime compressor warranty. The MRCOOL® Signature Series 48k Cooling Only Condenser is a strong, smart choice for year-round cooling comfort.
Important
AHRI certified - meets industry standards. Register your product to activate warranty coverage. This condenser contains R-454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R-454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
Key Features
- 48,000 BTU cooling capacity (4 Ton)
- 13.8 SEER2 efficiency rating
- 11.2 EER2 efficiency rating
- Reliable scroll compressor for dependable operation
- Quiet operation (65 dBA)
- Pre-charged with R-454B refrigerant
- Factory pre-charged for 15-foot line set
- Compact design for easy installation
- Steel louver coil guard for component protection
- AHRI certified
- Extended 150 ft maximum line set length
- 4000 CFM airflow
Complete Technical Specifications
| Brand | MRCOOL |
| Series | Signature Series Air Conditioner Condenser |
| Model | MCAESAS4T4821AA |
| UPC | 840255595759 |
| GTIN | 00840255595759 |
| Unit Type | Split System AC Condenser |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Cooling Capacity | 48,000 BTU (4 Ton) |
| Efficiency Ratings | 13.8 SEER2, 11.2 EER2 |
| Refrigerant | R-454B (116.4 oz) |
| Electrical | 208/230V 1 Phase 60 Hz |
| Min Circuit Ampacity | 30A |
| Max Fuse Breaker | 50A |
| Compressor Type | Scroll |
| Condenser Fan Motor | PSC, 1/3 HP |
| CFM | 4000 |
| Sound Rating | 65 dBA |
| Min Ambient Cooling | 59°F |
| Max Lineset Length | 150 ft |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Net Dimensions (HxWxD) | 32.875" x 29.14" x 29.14" |
| Net Weight | 204 lbs |
| Shipping Dimensions | 34.8" x 30.3" x 30.3" |
| Shipping Weight | 214 lbs |
Performance Features
| Compatible Equipment | Signature Series Multi-Position or Stud Mount Air Handlers |
| Compressor Technology | Reliable scroll compressor for long-term dependability |
| Refrigerant | Eco-friendly R-454B with lower global warming potential |
| Noise Reduction | Sound-dampening top for quiet operation (65 dBA) |
| Protection Features | Steel louver coil guard and wire fan discharge grille |
| Installation Features | Sweat connection valves with convenient gauge port |
| Extended Installation | Supports up to 150 ft line set length for flexible placement |
| Airflow Capacity | 4000 CFM for high-capacity cooling performance |
Warranty Information
- Registered Warranty: 10 years parts, limited lifetime compressor
- Base Warranty: 10 years parts, limited lifetime compressor
- Registration may be required for full warranty coverage
Manuals & Certifications
Safety Information
PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Advanced Technology
The MRCOOL Signature Series 48k Cooling Only Condenser features a reliable scroll compressor designed for maximum durability and efficient operation. The high-efficiency inner-groove copper tubing enhances heat transfer while the sound-dampening top reduces operational noise to just 65 decibels. Built with quality components and protective features including a steel louver coil guard, this 4-ton air conditioner condenser delivers powerful performance for consistent comfort in larger residential spaces. With its 13.8 SEER2 cooling efficiency, this unit provides balanced energy savings and powerful cooling capacity.
Installation Advantages
This 4-ton air conditioner condenser simplifies installation with its pre-charged R-454B refrigerant system. The unit supports extended line set lengths up to 150 feet, providing maximum flexibility for various installation scenarios. The compact cabinet design allows for efficient placement while maintaining accessibility to service valves and gauge ports for straightforward maintenance. The unit is designed to work with Signature Series Multi-Position or Stud Mount Air Handlers for complete system compatibility. With its high-capacity 4000 CFM airflow and durable construction, this condenser is an ideal cooling solution for large residential applications requiring reliable and quiet operation.
