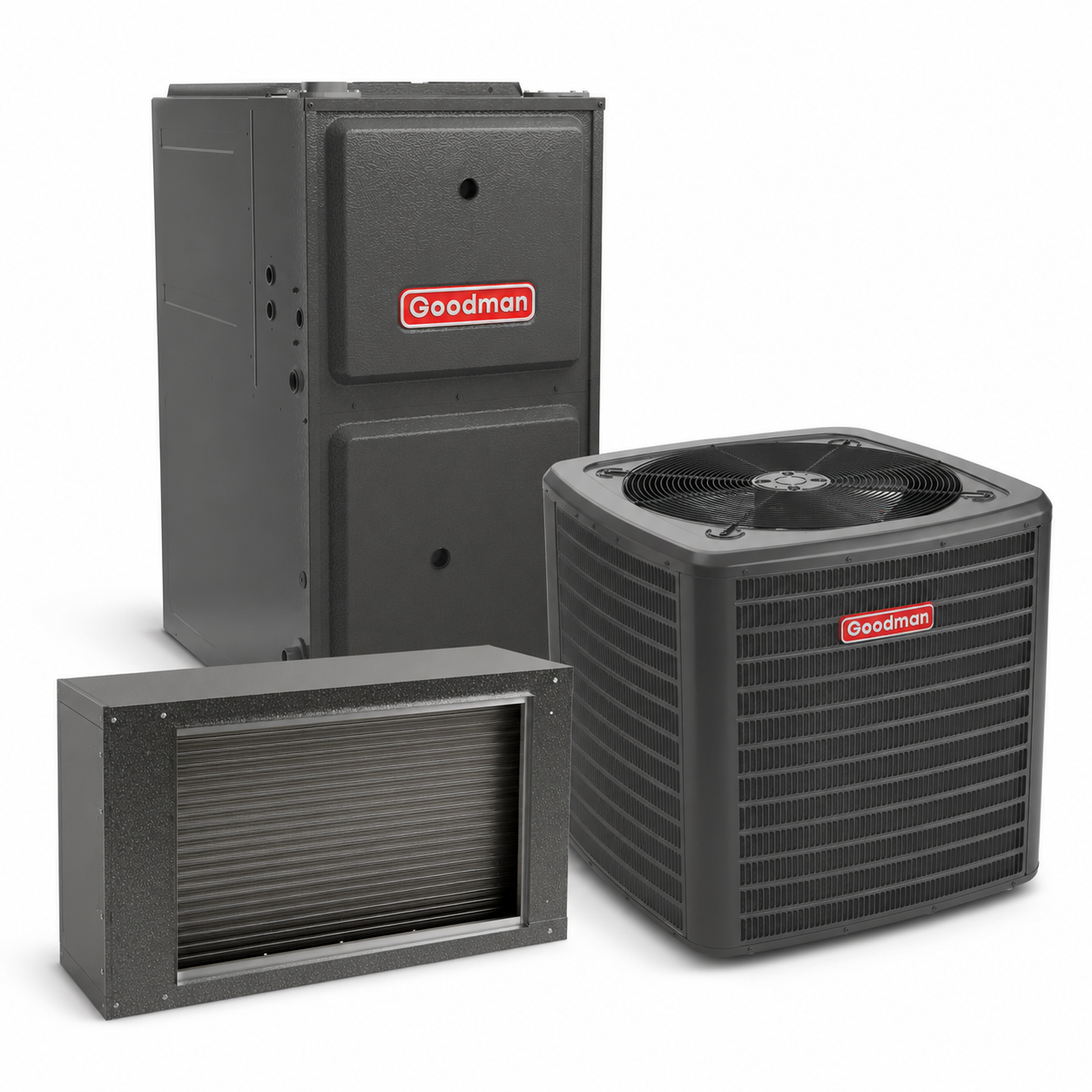

Goodman 3.5 Ton 15.2 SEER2 96% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal
Product Overview
Goodman 5 Ton Cased Evaporator Coil TVX 39.5" Cabinet Horizontal Slab R32 CSCT6012L3

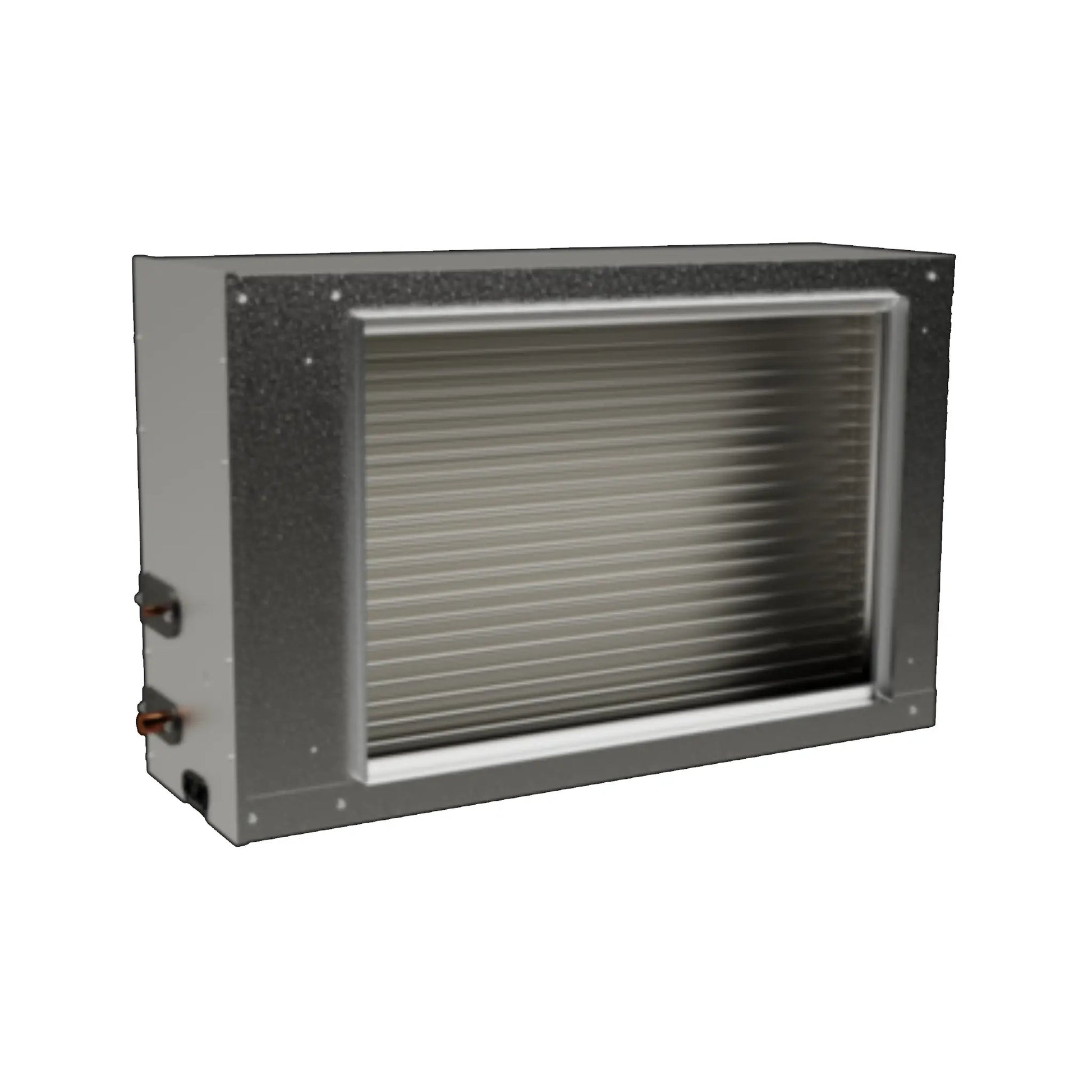

The Goodman CSCT6012L3 is the ultimate evaporator coil for large homes, offering powerful and energy-efficient cooling performance. Built with robust all-aluminum construction and optimized for R-32 refrigerant, this model is designed to meet the demands of high-capacity HVAC systems while maintaining environmental responsibility and long-term durability.
Key Features
- Nominal Capacity: 4–5 tons – Ideal for cooling large residential spaces with high efficiency.
- Dimensions: 39½" W x 12" D x 25" H – Standard size for easy system integration.
- Service Valve: ⅜" Liquid, ⅞" Suction – Compatible with common HVAC service setups.
- All-Aluminum Evaporator Coil: Offers enhanced corrosion resistance and effective heat transfer for long-lasting performance.
- Optimized for R-32 Refrigerant: Delivers efficient operation while meeting low-GWP refrigerant standards.
- Factory-Installed Thermal Expansion Valve (TXV): Provides precise refrigerant control and enhances system reliability.
- UV-Resistant Drain Pan: Protects against mold and mildew growth, supporting clean indoor air quality.
The CSCT6012L3 is the go-to evaporator coil for homeowners and HVAC professionals seeking high-performance cooling solutions for large-scale residential applications, with a focus on efficiency, sustainability, and durability.
Goodman 5 Ton Cased Evaporator Coil TVX 39.5" Cabinet Horizontal Slab R32 CSCT6012L3
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 5 years | 10 years | 10 years |
OVERVIEW
Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GLXS5BA4210 is no exception, with its durability, reliability, and one of the highest efficiencies available.
QUICK FACTS
- Ideal size to cover a medium house in ideal climates
- 3.5 ton, 15.2 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
3.5 Ton

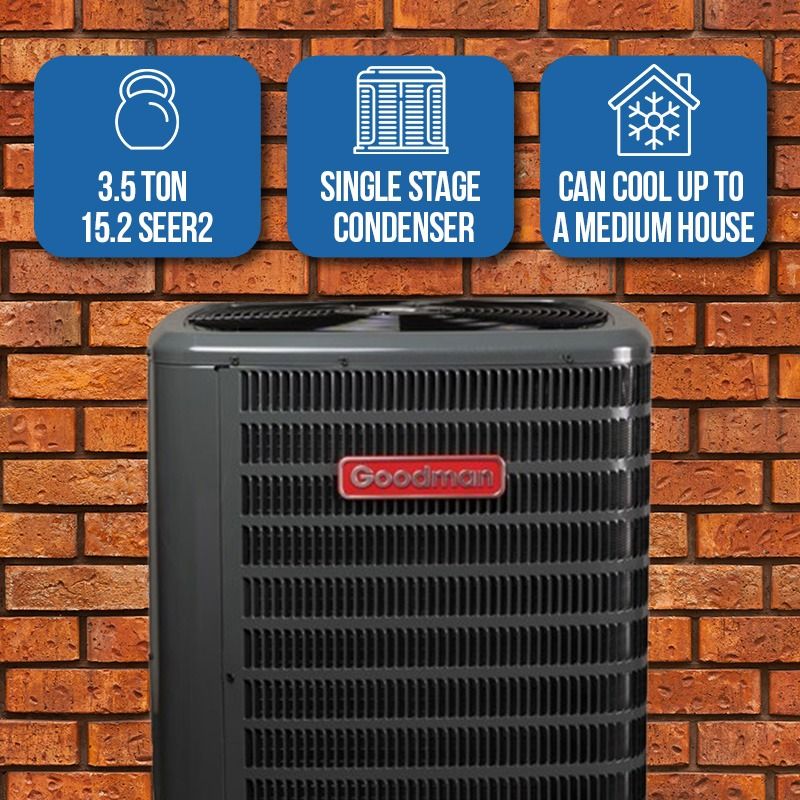

The GLXS5BA4210 AC-only condenser is 3.5 tons, normally enough to cover up to a medium house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.
15.2 SEER2
The GLXS5BA4210 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.
Warranty
The GLXS5BA4210 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The cabinet of Goodman's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the GLXS5BA4210 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.
Installation and Maintenance
For easier maintenance, Goodman designed the GLXS5BA4210's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the GLXS5BA4210 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.
Comfort in Mind
Superior comfort has always been the primary goal for Goodman. The GLXS5BA4210 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.
Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.
OVERVIEW
With a 96% efficiency rating, a variable-speed blower motor, and Single stage gas valves, the GRVS960805CU is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GRVS960805CU is an excellent choice, offering one of the best efficiency levels available on the market.
QUICK FACTS
- Ideal to heat a small to medium house (in an ideal climate)
- 80,000 BTU 96% AFUE modulating variable speed natural gas furnace
- Requires plastic/PVC flue venting
- Can be installed in the upflow or horizontal orientation
- Innovative design for electrical efficiency, safety, and lower sound output
Ultra-Low NOx Compliant
In California, many counties have a lower NOx emission requirement than the rest of the United States. The GRVS960805CU Goodman gas furnace is California Ultra-Low NOx compliant. With a built-in low emission filter and special venting system, this Goodman gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home.
Ultra-Low NOx furnaces are required for gas furnace installations in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. If you have any questions, please contact us.
80,000 BTU
With an input of 80,000 BTU’s and an efficiency of 96%, the GRVS960805CU has an output of 76,880 BTU’s. This is calculated by taking 80,000 BTU’s times the efficiency of 96%. As such, the GRVS960805CU Goodman gas furnace is designed to be able to cover up to a small to medium house in ideal climate conditions.
96% AFUE
With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GRVS960805CU gas furnace is 96% efficient, meaning that a whopping 96% of the gas going into the furnace is used to heat your home, and only 4% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GRVS960805CU is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.
Single Stage Furnace
The GRVS960805CU Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.
Warranty
The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.
Durability and Reliability
Not stopping at an enhanced functionality, Goodman designed the GRVS960805CU with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GRVS960805CU is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.
Installation and Maintenance
For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GRVS960805CU gas furnace can be installed in the upflow or horizontal orientations. Moreover, the GRVS960805CU is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.
Product Features (CSCT6012L3)
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling applications
- Compact and versatile - right or left horizontal position
- Copper sweat connections
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features (CSCT6012L3)
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Compact and versatile - right or left horizontal position
- Copper sweat connections
Technical Specifications - CSCT6012L3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CSCT |
| series name | CSCT |
| family description | CSCT Horizontal Slab |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051750708 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | Mexico |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| produced in us | No |
| cabinet finish | Painted |
| cased vs uncased | Cased |
| dimensions unit depth | 12 in |
| dimensions unit height | 25 in |
| dimensions unit width | 39-1/2 in |
| expansion device | TXV |
| tonnage | 5 |
| tonnage range | 5 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 14.00 in |
| dimensions case height | 25.50 in |
| dimensions case width | 41.50 in |
| dimensions distribution unit depth | 14 in |
| dimensions distribution unit height | 25.5 in |
| dimensions distribution unit width | 41.5 in |
| dimensions pallet depth | 56.00 in |
| dimensions pallet height | 56.00 in |
| dimensions pallet width | 43.00 in |
| dimensions shipping unit depth | 14.00 in |
| dimensions shipping unit height | 25.50 in |
| dimensions shipping unit width | 41.50 in |
| distribution shipping volume unit | 14815.5 in³ |
| shipping volume unit | 14815.500 in³ |
| truck factor | 0.0000 |
| volume case | 14815.500 in³ |
| volume distribution shipping unit | 14815.5 in³ |
| weight case | 60.090 lb |
| weight distribution shipping unit | 60.09 lb |
| weight shipping unit | 60.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Features (GLXS5BA4210)
- High-efficiency scroll compressor
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
- Service valves with sweat connectionsand easy-to-access gauge ports
- Enclosed contactor with lug connection
- Ground lug connection
- High-pressure switch
Cabinet Features (GLXS5BA4210)
- Removable grille-style top designcompliant with UL 60335-2-40
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
- Steel louver coil guard
- Single-panel access to controls with spaceprovided for field-installed accessories
- When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GLXS5BA4210
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLXS5 |
| series name | GLXS5B |
| model efficiency | 15.2 SEER2 |
| communication feature | No |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051735507 |
| item stocking unit of measure uom | EA |
| pallet qty | 1 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 55 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 72 °F |
| rated cooling condition room db | 80 °F |
| rated cooling condition room wb | 67 °F |
| compressor rla | 14.4 A |
| max overcurrent protection | 30 A |
| min circuit amps | 19.3 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Single Stage |
| compressor type | Scroll |
| dimensions unit depth | 35.5 in |
| dimensions unit height | 36.5 in |
| dimensions unit width | 35-1/2 in |
| sound pressure high cooling | 73.8 dBA |
| tonnage | 3.5 |
| factory std refrigerant charge | 141 oz |
| pipe size gas | 7/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 79 ft |
| standard line set length vertical | 50 ft |
| valve size liquid o d | 3/8 in |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 37.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 37.00 in |
| dimensions distribution unit depth | 37 in |
| dimensions distribution unit height | 38.5 in |
| dimensions distribution unit width | 37 in |
| dimensions pallet depth | 37.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 37.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 37.00 in |
| distribution shipping volume unit | 52706.5 in³ |
| shipping volume unit | 52706.500 in³ |
| truck factor | 0.0000 |
| volume case | 52706.500 in³ |
| volume distribution shipping unit | 52706.5 in³ |
| weight case | 274.000 lb |
| weight distribution shipping unit | 274 lb |
| weight shipping unit | 274.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Benefits (GRVS960805CU)
- Heavy-duty stainless-steel tubular heat exchanger 2. Efficientnd quiet variable-speed Blower3. Integrated communicating ComfortBridge™ technology4. Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication5. Stainless-steel sloped secondary heat exchanger6. Silicon Nitride igniter7. Dual 7-segment display8. Color-coded low-voltage terminals9. Single-Stage gas valve10.ll models comply with California 14 ng/J11.HRI Certified, ETL Listed12. Energy Star13. Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifier
Product Features (GRVS960805CU)
- Heavy-duty stainless-steel tubular heat exchangerSingle-stage gas valveDurable Silicon Nitride igniterSelf-diagnostic control board with constant memory fault code history output to LEDAll models comply with California 14 ng/Jultra Low NOx emissions standardFor installation in California’s South CoastirQuality Management District (SCAQMD) only.AHRI Certified
Cabinet Features (GRVS960805CU)
- Multi-position installation: upflow, horizontal left or right2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)3. Easy to install top venting with optional side vent4. Convenient left or right connection for gasnd electrical service5. Cabinetir leakage (Qleak) less than or equal to 2%6. Fully insulated heat exchangernd blower section7. Bottom or side returnirpplications8. Heavy-gage steel cabinet with durable finish
Technical Specifications - GRVS960805CU
| product category | Unitary |
|---|---|
| product class pim | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GRVS96_U |
| series name | GRVS96 |
| model efficiency | 0.96 |
| family description | ComfortBridge™-Compatible Single-Stage, Variable-Speed ECM Gas Furnace 96% AFUE |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051695979 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| afue | 96 % |
| cooling capacity nominal | 60000 Btu/H |
| energy star certified | Yes |
| installation configuration | Upflow/Horizontal |
| produced in us | No |
| temperature rise range high fire | 30-60 °F |
| current type | AC |
| max overcurrent protection | 25 A |
| min circuit amps | 15.4 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| air flow rate high heating | 2370 ft³/min |
| air flow rate low heating | 1185 ft³/min |
| ansi certifed | Yes |
| blower motor rpm | 1200 r/min |
| dimensions blower diameter | 10 in |
| dimensions blower width | 11 in |
| dimensions unit depth | 28-7/8 in |
| dimensions unit height | 34-1/2 in |
| dimensions unit width | 21 in |
| etl listed | Yes |
| external static pressure rated | 0.5 |
| filter quantity | 1 |
| filter size min | 20x25 |
| heat exchanger type | Gas |
| minimum clearances to combustible materials | 1 ft |
| motor speed type | Variable Speed ECM |
| nox burner type | Ultra-Low NOx |
| number of burners | 1 |
| weight unit | 147 lb |
| blower motor horsepower | 1 metric hp |
| high fire input capacity | 80000 Btu |
| high fire output capacity | 76880 |
| gas valve type | Single Stage |
| vent diameter | 2 in;3 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 22.00 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 38.5 in |
| dimensions distribution unit width | 22 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 44.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 22.00 in |
| distribution shipping volume unit | 25410 in³ |
| shipping volume unit | 25410.000 in³ |
| truck factor | 0.0000 |
| volume case | 25410.000 in³ |
| volume distribution shipping unit | 25410 in³ |
| weight case | 138.000 lb |
| weight distribution shipping unit | 130.09 lb |
| weight shipping unit | 138.000 lb |
| registered parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty residential | HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
Submittals
Leaflets & Manuals
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- Goodman Split Air Conditioner 15.2 SEER2, Single Stage
- Goodman Split Air Conditioner 15.2 SEER2, Single Stage
- Goodman 96% AFUE Gas Furnace Variable Speed ECM, Single Stage
- Goodman 96% AFUE Gas Furnace Variable Speed ECM, Single Stage
