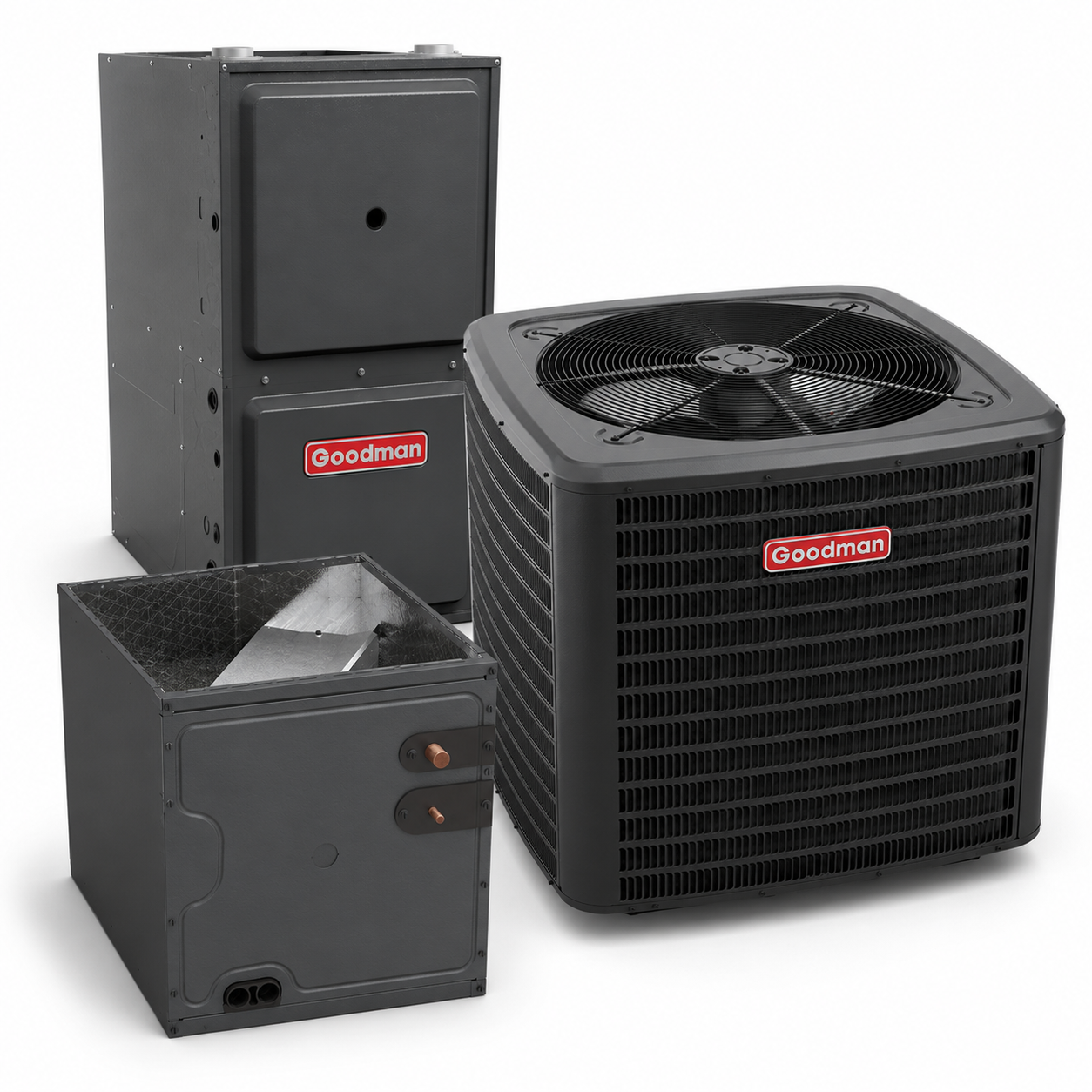

Goodman 3.5 Ton 15.0 SEER2 96% AFUE 80,000 BTU Furnace and High Efficiency Heat Pump System | Inverter - R32 - Downflow/Horizontal

SKU: CAPTA4230D3 + GLZS5BA4210 + GD9S960804CN

AC Type

Dual Fuel Systems

Refrigerant Type

R32

Brand

Goodman

Outdoor Unit

42000 BTU VO (3.5 TON)

Indoor Unit

42000 BTU (3.5 TON)

Looking For

Dual Fuel Systems

SEER2 Rating

14.5

Airflow Direction

Downflow, Horizontal

Blower Motor

9-Speed - ECM

Maximum CFM

1600

Fuel Type

Natural Gas, Propane

Burner Stages

Single Stage

Coil Style

A-Coil

Furnace Heating BTU

80,000 BTU (6.67 Ton)

Furnace Efficiency

96% AFUE

Cabinet Width (in)

24 1/2

! Cabinet might need adjustment for sizing.

Goodman 3.5 Ton 24.5" Width Upflow/Downflow Cased Evaporator Coil - TXV - R32 (Line Set Length) No installation 25FT 50FT

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$7,298.00

Shipping calculated at checkout.

View full details

Goodman

Goodman 3.5 Ton 15.0 SEER2 96% AFUE 80,000 BTU Furnace and High Efficiency Heat Pump System | Inverter - R32 - Downflow/Horizontal

Product Overview

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

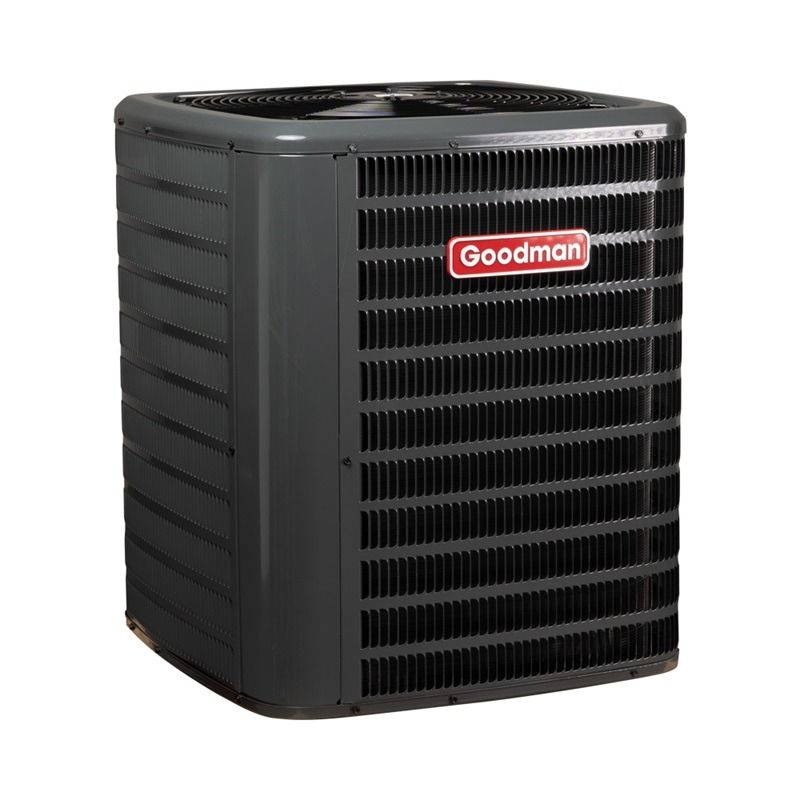

OVERVIEW

At one of the higher efficiencies on the market, the Goodman GLZS5BA4210 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GLZS5BA4210 is considered a good all-around choice for many applications.

Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.

QUICK FACTS

Designed to cover a medium house in average climates
3.5 Ton, 15.2 SEER2 heat pump condenser
R32: Complies with Clean Air Act New Refrigerant Requirements
Low sound output
Fully charged for up to 15' of line set
Factory-installed bi-flow filter drier

3.5 Ton

The Goodman GLZS5BA4210 heat pump is rated for 3.5 tons, which is normally enough to cover a medium house in average climates. A heat pump coil or air handler is required for this condenser to function, and some indoor units will be larger in tonnage than this condenser in some bundles to maintain the unit's overall efficiency.

15.2 SEER2

With its high-end 15.2 SEER2 efficiency rating, the GLZS5BA4210 is designed to save you money over the entire life of the unit. 15.2 SEER2 units will save you about 12% more in energy bills over a 14.3 SEER2 condenser, making this upgrade a smart upgrade to save you money over time with a small increase in your initial investment in the condenser.

Efficiency Choices for Every Climate

Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 39% efficiency, making it a good fit for warmer climates where moderate heating is sufficient.

Warranty

The GLZS5BA4210 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The cabinet on the GLZS5BA4210 heat pump is designed to be durable in harsh conditions. With its baked-on polyester coat of paint, the unit is approved for up to 500 hours of salt spray. The enhanced durability and paint coat makes the GLZS5BA4210 compliant with 2010 Florida building codes for unit integrity for hurricane-like winds when the unit is properly anchored. For reliability, there is also a built-in bi-flow filter drier that lowers general wear-and-tear on the internals of the unit.

Installation and Maintenance

In order to provide a faster and less expensive installation, the Goodman GLZS5BA4210 heat pump is factory-installed with pressure switches, a high-capacity muffler, easily accessible gauge ports, and service valves with sweat connections. The cabinet of the unit is also fitted with dual access panels - one on the side and one on the top - to allow for a much easier maintenance procedure should the need for maintenance arise.

Comfort in Mind

The Goodman company has always promoted enhanced comfort, higher efficiency, and lower cost to all of its units. With SmartShift technology and an enhanced sound insulation structure, the GLZS5BA4210 is whisper-quiet, allowing Goodman to continue to follow its goals in achieving the best comfort levels possible at a low cost.

Why Buy at

is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensures long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.

Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

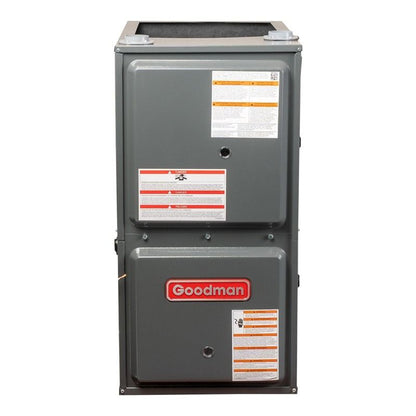

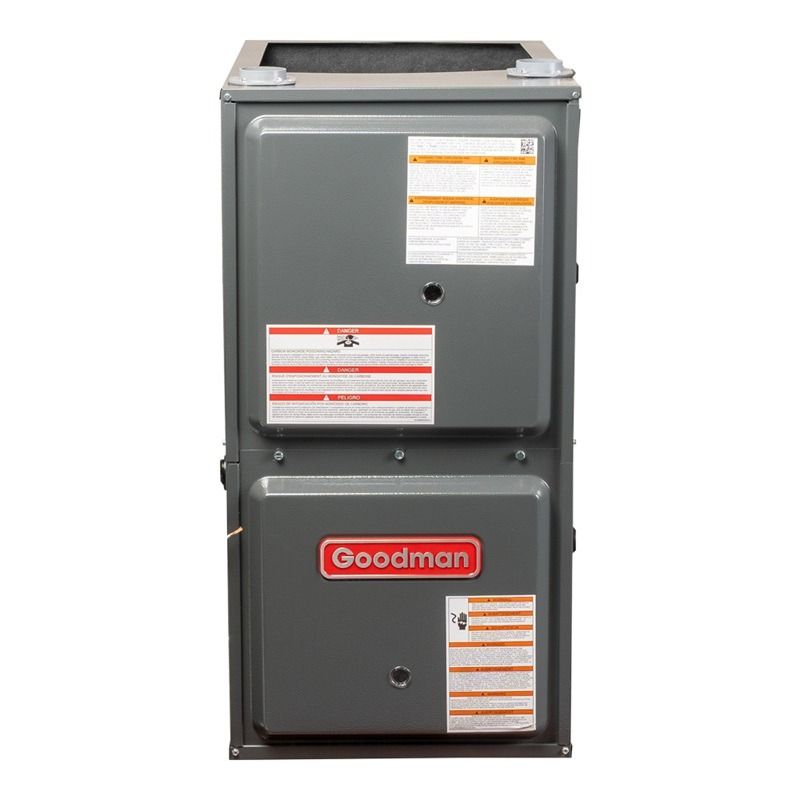

OVERVIEW

If you're looking to reduce your energy bill and improve the comfort of your home, look no further than Goodman's GD9S960804CN. This gas furnace features efficient operation and high-quality construction to provide your home with reliable, affordable heating. The GD9S960804CN single-stage, 9-speed furnace is a great value designed for many applications.

QUICK FACTS

This furnace is ideal to heat a medium house (depending on climate)
80,000 BTU 96% efficient natural gas furnace
Requires plastic/pvc flue venting
Complies with Clean Air Act New Refrigerant Requirements
Can be used in the downflow or horizontal orientation
Can be converted to an LP furnace with a conversion kit (sold separately)
Innovative design for electrical efficiency, safety, and lower sound output

80,000 BTU

The GD9S960804CN Goodman gas furnace is suitable in output for a medium house in ideal climate conditions. The 80,000 BTU count is the input per hour of the furnace, and the output is 76,800 BTU's (80,000 x 96% AFUE) per hour.

96% Efficiency Rating

The GD9S960804CN Goodman gas furnace has a 96% efficiency rating. This means that only 4% of the fuel going into the furnace is used up in normal furnace operations and not used to heat your home. The remaining 96% of the inputted fuel is used to heat your home. 96% efficient furnaces is one of the highest efficiencies of natural gas furnaces available for purchase with today's technology. Please note that 96% efficient furnaces such as this one require plasic/pvc flue venting, and 80% efficient furnaces require metal flue venting.

Single Stage Furnace

A single stage furnace operates using the same amount of energy every time is turns on. The GD9S960804CN Goodman gas furnace operates using only one heat output. This furnace will operate at 100% output whenever it is operating.

Natural Gas or LP Furnace

From the factory, the GD9S960804CN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

9-Speed ECM Blower Motor

The GD9S960804CN utilizes a 9-speed ECM motor, which is more efficient than older PSC blower motors, saving you money in electric bills.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

Instead of a standing pilot light, the GD9S960804CN has a newer, more efficient hot surface igniter. Hot surface igniters are much more efficient and safer than standard standing pilot lights.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely runs into any operation-based problems. However, if the furnace does need maintenance or warranty work, the control board has a set of sensors that will identify any basic problems in the furnace's basic operation.

Heavy Gauge Steel Cabinet

The GD9S960804CN Goodman gas furnace has a durable outer cabinet. The heavy-gauge steel used in the furnace's design allows for a more protected interior, and less air leakage from the furnace's operation, resulting in a more quiet operation while still decreasing operation costs.

Ease of Installation

From enhanced operation to efficiency, the Goodman gas furnaces have a lot to offer. However, Goodman's features don't stop at quality of unit. The GD9S960804CN allows for a significantly more streamlined installation process with its universal design, consisting of its ability to be installed in either downflow or horizontal configurations, lowering labor costs.

Product Features (CAPTA4230D3)

All-Aluminum evaporator coil
Optimized for use with R-32 refrigerant including circuits and manifolds
R-32 sensor designed for the life span of the coil
Factory-installed thermal expansion valves for cooling and heat pump applications
Standardized copper suction tube stub length
Check flowrator for cooling and heat pump applications
Vertical application
21" depth for easier attic access
Single front access panel
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Rust resistant, thermoplastic drain pan featuring a low water-retention design
DecaBDE-free thermoplastic drain pan with secondary drain connections
Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
UV-resistant drain pan
AHRI certified
ETL Listed

Technical Specifications - CAPTA4230D3

product category	Unitary
product class pim	Coil
system family	Unitary Split System
function category	Cooling Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	CAPTA_3
series name	CAPTA AlumaFin7™
family description	CAPTA AlumaFin7™ Evaporator Coil
installation type	Ducted
communication feature	No
export control classification number eccn	EAR99
universal product code upc	663051688438
item stocking unit of measure uom	EA
pallet qty	8
country of origin	USA
us hts code	8415.90.8025
canadian hts code	8415.90.90.00
produced in us	Yes
cabinet finish	Painted
cased vs uncased	Cased
dimensions unit depth	21 in
dimensions unit height	30 in
dimensions unit width	24-1/2 in
expansion device	TXV
tonnage	3.5
tonnage range	2.5;3.5
condensate drain outlet	3/4 in
pipe size gas	7/8 in
pipe size liquid	3/8 in
refrigerant type	R-32
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	26.75 in
dimensions case height	32.25 in
dimensions case width	26.00 in
dimensions distribution unit depth	26.75 in
dimensions distribution unit height	32.25 in
dimensions distribution unit width	26 in
dimensions pallet depth	55.00 in
dimensions pallet height	69.00 in
dimensions pallet width	54.00 in
dimensions shipping unit depth	26.75 in
dimensions shipping unit height	32.25 in
dimensions shipping unit width	26.00 in
distribution shipping volume unit	22429.875 in³
shipping volume unit	22429.875 in³
truck factor	0.0000
volume case	22429.875 in³
volume distribution shipping unit	22429.875 in³
weight case	70.000 lb
weight distribution shipping unit	70 lb
weight shipping unit	70.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family	10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial	5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential	10 YEARS UNIT REPLACEMENT
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial	5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family	5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential	5 YEARS UNIT REPLACEMENT

Product Benefits (GLZS5BA4210)

Meets the 2023 M1 Test Standards

Product Features (GLZS5BA4210)

High-efficiency scroll compressor
SmartShift® technology to ensure quiet reliable defrost
Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5T
Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton
Single-speed PSC condenser fan motor
Factory-installed suction-line accumulator
Factory-installed compressor crankcase heater
Factory-installed high-capacity muffler
High- and low-pressure switches
Service valves with sweat connections and easy access to gauge ports
Fully charged for 15’ of tubing length
Fully enclosed contactor
Ground lug connection
Capacitor with extended life

Cabinet Features (GLZS5BA4210)

Removable grille style top design compliant with UL 60335-2-40
Steel louver coil guard
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Top and side maintenance access
Single panel access to controls with space provided for field-installed accessories
When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLZS5BA4210

product category	Unitary
product class pim	Split Heat Pump
system family	Unitary Split System
function category	Heat Pump
product type	Equipment
unit type	Outdoor
market type	Residential-Single Family
product family	GLZS5B
series name	GLZS5B
model efficiency	15.2 SEER2
family description	High-Effciency, Communication, Split System Heat Pump Up to 16 SEER2 & 8.2 HSPF2
installation type	Ducted
communication feature	No
communication feature type	Non-Communicating
export control classification number eccn	EAR99
iso certified	Yes
product notes	R32 Outdoor
universal product code upc	663051737679
item stocking unit of measure uom	EA
pallet qty	1
country of origin	USA
us hts code	8415.90.8065
canadian hts code	8415.90.90.00
eer2 hsvtc	12.5
energy star certified	Yes
heating capacity nominal	42000 Btu/H
hspf 2 hsvtc	7.8
hspf ducted	7.8
seer 2 hsvtc	15.2
produced in us	Yes
cooling operation range std max	125 °F
cooling operation range std min	55 °F
heating operation range std max	70 °F
heating operation range std min	-20 °F
rated cooling condition ambient db	95 °F
rated cooling condition ambient wb	75 °F
rated heating condition ambient db	47 °F
rated heating condition ambient wb	43 °F
max overcurrent protection	35 A
min circuit amps	21.4 A
power frequency	60 Hz
power phase	1 Ph
power voltage	208/230 V
rated load amps	16.1 A
compressor stages	Single Stage
compressor type	Scroll
dimensions unit depth	35.5 in
dimensions unit height	35.75 in
dimensions unit width	35-1/2 in
expansion device	TXV
sound pressure high cooling	72 dBA
weight unit	257 lb
heating capacity rated	39500 Btu/H
tonnage	3.5
additional refrigerant charge oz ft	0.64 lb
factory std refrigerant charge	139 oz
pipe size gas	3/4 in
pipe size liquid	3/8 in
refrigerant pre charged line length	15 ft
refrigerant type	R-32
standard line set length max	200 ft
standard line set length vertical	79 ft
valve size suction o d	7/8 in
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	37.00 in
dimensions case height	38.50 in
dimensions case width	37.00 in
dimensions distribution unit depth	37 in
dimensions distribution unit height	38.5 in
dimensions distribution unit width	37 in
dimensions pallet depth	37.00 in
dimensions pallet height	38.50 in
dimensions pallet width	37.00 in
dimensions shipping unit depth	37.00 in
dimensions shipping unit height	38.50 in
dimensions shipping unit width	37.00 in
distribution shipping volume unit	52706.5 in³
shipping volume unit	52706.500 in³
truck factor	0.0000
volume case	52706.500 in³
volume distribution shipping unit	52706.5 in³
weight case	287.000 lb
weight distribution shipping unit	287 lb
weight shipping unit	287.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS

Product Benefits (GD9S960804CN)

High reliabilitynd quality
Faster condensate water drainagend no unit water leakage
Durablend long igniter life
Provisions for electronicir cleanernd humidifier
Energy Efficientnd quiet circulation
Lower NOx emission
Self-diagnostic control board with constant memory
Meets the performance requirements forHRI certificationnd complies with ETL Northmerican safety standards
Operates on two-stage or single-stage thermostats
Easy Connection for EACnd Humidifier

Product Features (GD9S960804CN)

Heavy-dutyluminized-steel tubular heat exchanger
Stainless-steel secondary heat exchanger
Single-stage gas valve
Durable Silicon Nitride igniter
Quiet single-speed induced draft blower
Self-diagnostic control board with constant memory fault code history output to LED
All models comply with California 40 ng/J Low NOx emissions standard
Can no longer be installed in California’s South Coastir Quality Management District (SCAQMD) on orfter October 1, 2019

Technical Specifications - GD9S960804CN

product category	Unitary
product class pim	Gas Furnace
system family	Unitary Split System
function category	Heating Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	GD9S96
model efficiency	0.96
family description	Single Stage Multi-Speed ECM Downflow Gas Furnace Up to 96% AFUE
installation type	Ducted
communication feature	No
export control classification number eccn	EAR99
universal product code upc	663051686113
item stocking unit of measure uom	EA
pallet qty	4
country of origin	USA
us hts code	7322.90.0015
canadian hts code	7322.90.10.21
afue	96 %
cooling capacity nominal	48000 Btu/H
installation configuration	Downflow/Horizontal
produced in us	Yes
temperature rise range high fire	40-70 °F
max overcurrent protection	20 A
min circuit amps	13.7 A
power frequency	60 Hz
power phase	1 Ph
power voltage	115 V
air flow rate high heating	1642.5 ft³/min
dimensions blower diameter	11 in
dimensions blower width	10 in
dimensions unit depth	28-7/8 in
dimensions unit height	34-1/2 in
dimensions unit width	21 in
heat exchanger type	Gas
motor speed type	Multi Speed ECM
nox burner type	Low NOx
weight unit	141 lb
blower motor horsepower	0.75 metric hp
high fire input capacity	80000 Btu
high fire output capacity	76880
gas valve type	Single Stage
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	30.00 in
dimensions case height	38.50 in
dimensions case width	22.00 in
dimensions distribution unit depth	30 in
dimensions distribution unit height	38.5 in
dimensions distribution unit width	22 in
dimensions pallet depth	60.00 in
dimensions pallet height	38.50 in
dimensions pallet width	44.00 in
dimensions shipping unit depth	30.00 in
dimensions shipping unit height	38.50 in
dimensions shipping unit width	22.00 in
distribution shipping volume unit	25410 in³
shipping volume unit	25410.000 in³
truck factor	0.0000
volume case	25410.000 in³
volume distribution shipping unit	25410 in³
weight case	170.000 lb
weight distribution shipping unit	170 lb
weight shipping unit	170.000 lb
registered parts warranty commercial	HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered unit replacement warranty residential	HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty residential	HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
