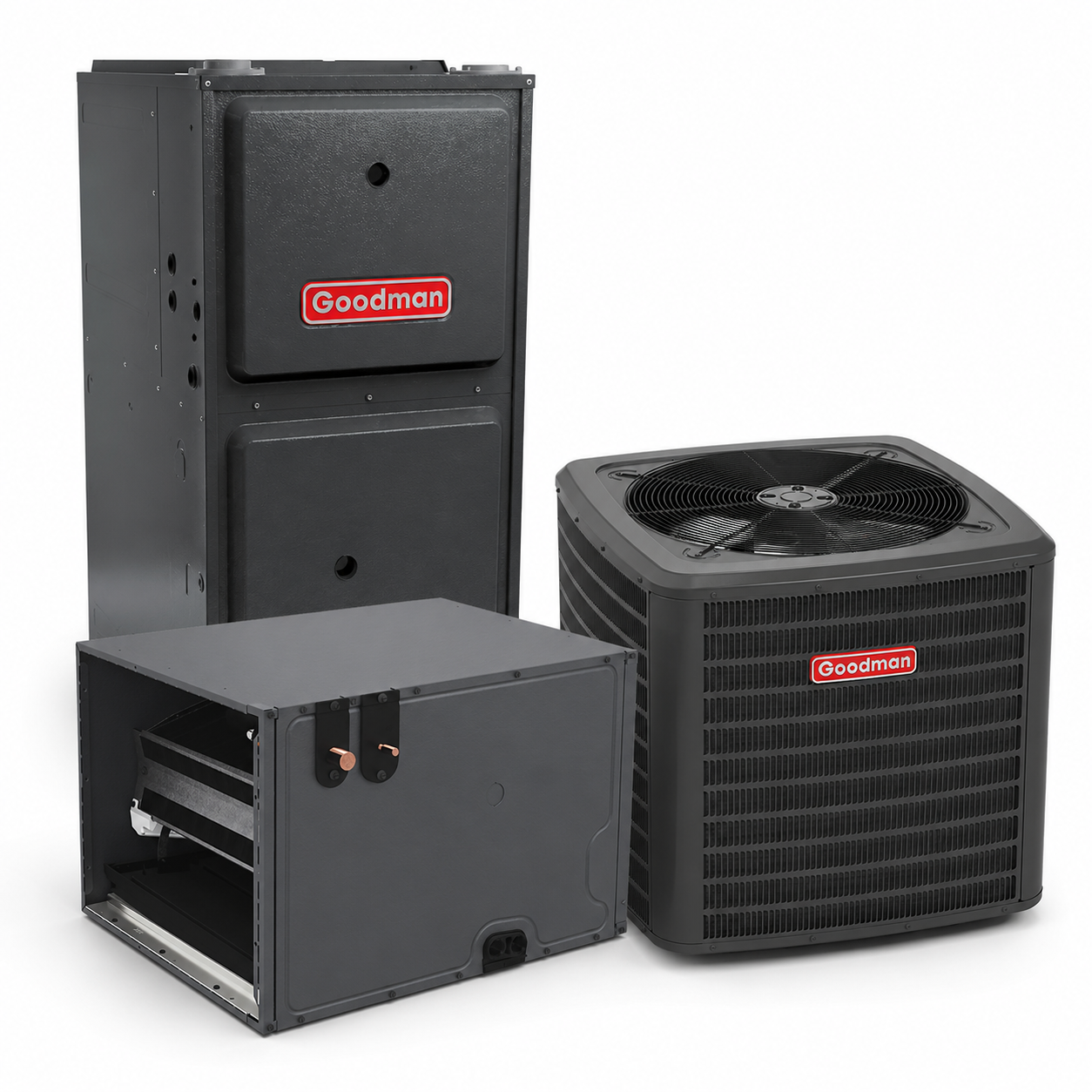

Goodman 2 Ton 14.3 SEER2 96% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

SKU: CHPTA2426C3 + GLXS5BA2410 + GR9T960804CN

AC Type

AC & Furnace System

Refrigerant Type

R32

Brand

Goodman

Outdoor Unit

24000 BTU VO (2.0 TON)

Indoor Unit

24000 BTU (2.0 TON)

Looking For

AC & Furnace System

SEER2 Rating

15.2

Airflow Direction

Upflow, Horizontal

Blower Motor

9-Speed - ECM

Maximum CFM

1600

Fuel Type

Natural Gas, Propane

Burner Stages

Two Stages

Coil Style

A-Coil

Furnace Heating BTU

80,000 BTU (6.67 Ton)

Furnace Efficiency

96% AFUE

Cabinet Width (in)

! Cabinet might need adjustment for sizing.

Goodman 2 Ton 21" Height Horizontal Cased Evaporator Coil - TXV - R32 (Line Set Length) No installation 25FT 50FT

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$5,863.00

Shipping calculated at checkout.

View full details

Goodman

Goodman 2 Ton 14.3 SEER2 96% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

Product Overview

OVERVIEW

The Goodman CHPTA2426C3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA2426C3 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Quick Facts

2 ton horizontal evaporator coil
Can be used with heat pump and AC-only condensers
R32: Complies with Clean Air Act New Refrigerant Requirements
Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
Factory-installed TXV kit

2 Tons

At an output of 2 tons, the Goodman CHPTA2426C3 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser's tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit's efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPTA2426C3 coil is covered under Goodman's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R32 condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPTA2426C3 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil's durable cabinet has a split-seam.

Enhanced Comfort and Efficiency

The Goodman CHPTA2426C3 horizontal evaporator coil's built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the CHPTA2426C3 to live up to the Goodman quality name.

OVERVIEW

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GLXS5BA2410 is no exception, with its durability, reliability, and one of the highest efficiencies available.

QUICK FACTS

Ideal size to cover a smaller house in ideal climates
2 ton, 15.2 SEER2 AC-only condenser
R32: Complies with Clean Air Act New Refrigerant Requirements
Fully charged for up to 15' of line set
Low sound output
Factory-installed filter drier

2 Ton

The GLXS5BA2410 AC-only condenser is 2 tons, normally enough to cover up to a smaller house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.

15.2 SEER2

The GLXS5BA2410 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.

Warranty

The GLXS5BA2410 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The cabinet of Goodman's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the GLXS5BA2410 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.

Installation and Maintenance

For easier maintenance, Goodman designed the GLXS5BA2410's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the GLXS5BA2410 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.

Comfort in Mind

Superior comfort has always been the primary goal for Goodman. The GLXS5BA2410 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.

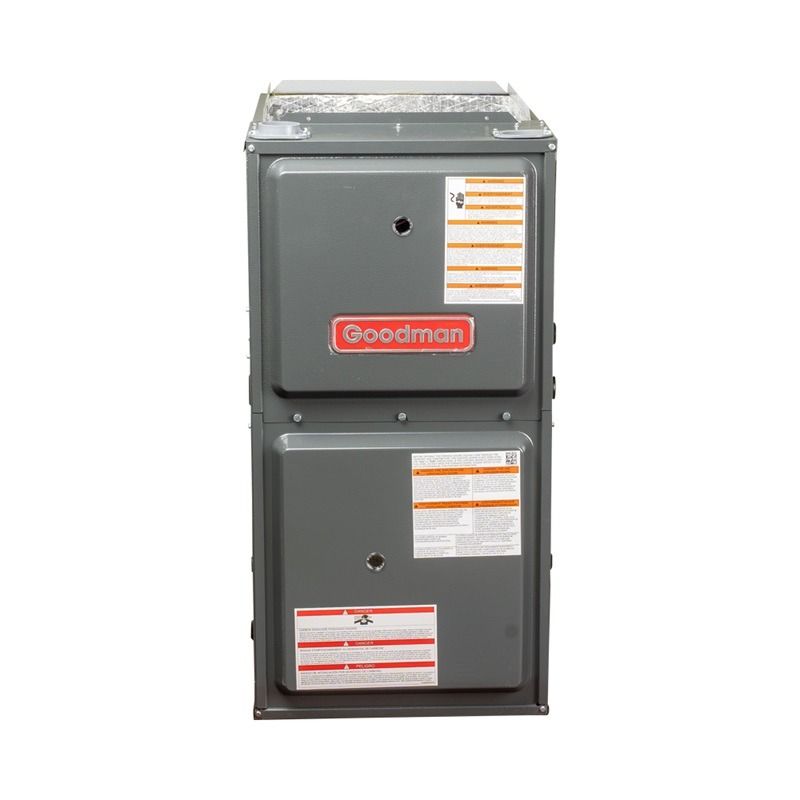

OVERVIEW

As a high-efficiency system, the GR9T960804CN Goodman gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the GR9T960804CN is a good way to go if you want to lower your gas bill.

QUICK FACTS

This furnace is ideal to heat a medium-sized house (depending on climate)
80,000 BTU 96% AFUE natural gas furnace
Requires plastic/PVC flue venting
Complies with Clean Air Act New Refrigerant Requirements
Can be used in the upflow or horizontal orientation
Can be converted to an LP furnace with an optional conversion kit (sold separately)
Innovative design for electrical efficiency, safety, and lower sound output

80,000 BTU

Heating up to a medium-sized house in normal conditions, the GR9T960804CN Goodman gas furnace has an input of 80,000 BTU's and an output of 76,800 BTU's. The output in this case is determined by taking the input times the efficiency rating.

96% AFUE

The GR9T960804CN Goodman gas furnace is a 96% efficient furnace, making it a condensing setup. This efficiency means that only 4% of the fuel going into the furnace is used up in furnace operations, while 96% of the fuel is used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you need to use metal flue venting, you would need an 80% efficient furnace.

Two Stage 9-Speed Furnace

With a two stage burner, the GR9T960804CN provides two heating outputs: one at a 60% heating output and one at a 100% output. The furnace also has a 9 speed ECM motor instead of the last-generation inefficient PSC motor. Both of these built-in upgrades allow for your furnace to adjust the heating output and airflow more precisely to better suit your home's comfort needs and provide a slightly higher efficiency.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durability and Reliability

The exterior casing on the GR9T960804CN is heavy-gauge steel that is insulated for enhanced protection and to lower air leakage and sound output from normal furnace operation. The hot surface ignitor is more efficient than earlier models and standing pilot lights thanks to its revolutionary new technology. Both of these end up saving you money on installation, maintenance, and bills.

Installation and Maintenance

The cost-saving benefits of the Goodman brand doesn't stop at efficiency. The GR9T960804CN Goodman furnace can be upflow or horizontal, increasing the number of ways that your installer can install the system. The low-voltage terminals that are color-coded, the installation is faster and easier over standard non-colored systems. Straight from the factory, the GR9T960804CN comes with natural gas valves. However, increasing its versatility in installation, Goodman offers an LP conversion kit (found here at an additional cost) if you need it to be propane instead of natural gas. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the on board self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution.

Please note that this furnace requires a drain kit if installed horizontally. Upflow configurations do not require the kit.

Product Benefits (CHPTA2426C3)

Factory-installed thermal expansion valves for cooling and heat pump applications

Product Features (CHPTA2426C3)

All-Aluminum evaporator coil
Optimized for use with R-32 refrigerant including circuits and manifold including circuits and manifolds
R-32 sensor designed for the life span of the coil
Factory-installed thermal expansion valves for cooling and heat pump applications
Standardized copper suction tube stub length
Check flowrator for cooling and heat pump applications
Horizontal application
21" depth for easier attic access
Single front access panel
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Rust resistant, thermoplastic drain pan featuring a low water-retention design
DecaBDE-free thermoplastic drain pan with secondary drain connections
Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
UV-resistant drain pan
AHRI certified
ETL Listed

Cabinet Features (CHPTA2426C3)

Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish

Technical Specifications - CHPTA2426C3

product category	Unitary
product class pim	Coil
system family	Unitary Split System
function category	Cooling Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	CHPTA_3
series name	CHPTA AlumaFin7™
model efficiency	13.4 SEER2
family description	CHPTA AlumaFin7™ Evaporator Coil
installation type	Ducted
communication feature	No
export control classification number eccn	EAR99
universal product code upc	663051688490
item stocking unit of measure uom	EA
pallet qty	12
country of origin	USA
us hts code	8415.90.8025
canadian hts code	8415.90.90.00
produced in us	Yes
cabinet finish	Painted
cased vs uncased	Cased
dimensions unit depth	21 in
dimensions unit height	21 in
dimensions unit width	26 in
expansion device	TXV
tonnage range	1.5;2
pipe size gas	7/8 in
pipe size liquid	3/8 in
refrigerant type	R-32
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	28.00 in
dimensions case height	23.50 in
dimensions case width	26.50 in
dimensions distribution unit depth	28 in
dimensions distribution unit height	23.5 in
dimensions distribution unit width	26.5 in
dimensions pallet depth	58.50 in
dimensions pallet height	75.50 in
dimensions pallet width	54.00 in
dimensions shipping unit depth	28.00 in
dimensions shipping unit height	23.50 in
dimensions shipping unit width	26.50 in
distribution shipping volume unit	17437 in³
shipping volume unit	17437.000 in³
truck factor	0.0000
volume case	17437.000 in³
volume distribution shipping unit	17437 in³
weight case	62.000 lb
weight distribution shipping unit	62 lb
weight shipping unit	62.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family	10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial	5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential	10 YEARS UNIT REPLACEMENT
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial	5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family	5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential	5 YEARS UNIT REPLACEMENT

Product Features (GLXS5BA2410)

High-efficiency scroll compressor
Factory-installed filter drier
Fully charged for 15’ of tubing length
Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
Service valves with sweat connectionsand easy-to-access gauge ports
Enclosed contactor with lug connection
Ground lug connection
High-pressure switch

Cabinet Features (GLXS5BA2410)

Removable grille-style top designcompliant with UL 60335-2-40
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
Steel louver coil guard
Single-panel access to controls with spaceprovided for field-installed accessories
When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLXS5BA2410

product category	Unitary
product class pim	Split Air Conditioner
system family	Unitary Split System
function category	Cooling Only
product type	Equipment
unit type	Outdoor
market type	Residential-Single Family
product family	GLXS5
series name	GLXS5B
model efficiency	15.2 SEER2
communication feature	No
communication feature type	Non-Communicating
export control classification number eccn	EAR99
universal product code upc	663051735477
item stocking unit of measure uom	EA
pallet qty	2
country of origin	USA
us hts code	8415.90.8065
canadian hts code	8415.90.90.00
produced in us	Yes
cooling operation range std max	115 °F
cooling operation range std min	55 °F
rated cooling condition ambient db	95 °F
rated cooling condition ambient wb	72 °F
rated cooling condition room db	80 °F
rated cooling condition room wb	67 °F
compressor rla	10.2 A
max overcurrent protection	20 A
min circuit amps	13.8 A
power frequency	60 Hz
power phase	1 Ph
power voltage	208/230 V
compressor stages	Single Stage
compressor type	Scroll
dimensions unit depth	29 in
dimensions unit height	32 in
dimensions unit width	29 in
sound pressure high cooling	68.8 dBA
tonnage	2
factory std refrigerant charge	65 oz
pipe size gas	3/4 in
refrigerant pre charged line length	15 ft
refrigerant type	R-32
standard line set length max	79 ft
standard line set length vertical	50 ft
valve size liquid o d	3/8 in
valve size suction o d	3/4 in
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	30.50 in
dimensions case height	34.50 in
dimensions case width	30.00 in
dimensions distribution unit depth	30.5 in
dimensions distribution unit height	34.5 in
dimensions distribution unit width	30 in
dimensions pallet depth	30.50 in
dimensions pallet height	34.50 in
dimensions pallet width	60.00 in
dimensions shipping unit depth	30.50 in
dimensions shipping unit height	34.50 in
dimensions shipping unit width	30.00 in
distribution shipping volume unit	31567.5 in³
shipping volume unit	31567.500 in³
truck factor	0.0000
volume case	31567.500 in³
volume distribution shipping unit	31567.5 in³
weight case	159.000 lb
weight distribution shipping unit	159 lb
weight shipping unit	159.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS

Product Benefits (GR9T960804CN)

"1. High reliability and quality2. Faster condensate water drainage and no unit water leakage3. Durable and long igniter life4. Provisions for electronic air cleaner and humidifier5. Quiet and Economical heating6. Energy Efficient and quiet circulation7. Lower NOx emission8. Self-diagnostic control board with constant memory9. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.10. Tax Credit11. Operates on two-stage or single-stage thermostats12. Easy Connection for EAC and Humidifier"

Product Features (GR9T960804CN)

"1. Heavy-duty aluminized-steel tubular heat exchanger2. Stainless-steel sloped secondary heat exchanger3. Silicon Nitride igniter4. Color-coded low-voltage terminals5. Two-Stage gas valve6. Multi-speed ECM blower motor with continuous fan speed7. All models comply with California 40 ng/J8. Fault code LED Output9. AHRI Certified - ETL Listed10. Energy Star11. Two-stage gas valve12. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers"

Cabinet Features (GR9T960804CN)

"1. Multi-position installation: upflow, horizontal left or right2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)3. Easy to install top venting with optional side vent4. Convenient left or right connection for gas and electrical service5. Cabinet air leakage (Qleak) less than or equal to 2%6. Fully insulated heat exchanger and blower section7. Bottom or side return air applications8. Heavy-gage steel cabinet with durable finish"

Technical Specifications - GR9T960804CN

product category	Unitary
product class pim	Gas Furnace
system family	Unitary Split System
function category	Heating Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	GR9T96
series name	GR9T96
model efficiency	0.96
family description	Two-Stage Multi-Speed ECM Gas Furnace up to 96% AFUE
installation type	Ducted
export control classification number eccn	EAR99
universal product code upc	663051686748
item stocking unit of measure uom	EA
pallet qty	4
country of origin	USA
us hts code	7322.90.0015
canadian hts code	7322.90.10.21
afue	96 %
cooling capacity nominal	48000 Btu/H
installation configuration	Upflow/Horizontal
produced in us	Yes
temperature rise range high fire	25-55 °F
temperature rise range low fire	25-55 °F
max overcurrent protection	20 A
min circuit amps	11.4 A
power frequency	60 Hz
power phase	1 Ph
power voltage	115 V
air flow rate high heating	1784 ft³/min
air flow rate low heating	1234 ft³/min
dimensions blower diameter	11 in
dimensions blower width	10 in
dimensions unit depth	28-7/8 in
dimensions unit height	34-1/2 in
dimensions unit width	21 in
heat exchanger type	Gas
motor speed type	Multi Speed ECM
nox burner type	Low NOx
weight unit	123 lb
blower motor horsepower	0.75 metric hp
high fire input capacity	80000 Btu
high fire output capacity	77600
low fire input capacity	56000
low fire output capacity	54320
gas valve type	Two Stage
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	30.00 in
dimensions case height	38.50 in
dimensions case width	22.00 in
dimensions distribution unit depth	30 in
dimensions distribution unit height	38.5 in
dimensions distribution unit width	22 in
dimensions pallet depth	60.00 in
dimensions pallet height	38.50 in
dimensions pallet width	44.00 in
dimensions shipping unit depth	30.00 in
dimensions shipping unit height	38.50 in
dimensions shipping unit width	22.00 in
distribution shipping volume unit	25410 in³
shipping volume unit	25410.000 in³
truck factor	0.0000
volume case	25410.000 in³
volume distribution shipping unit	25410 in³
weight case	170.000 lb
weight distribution shipping unit	170 lb
weight shipping unit	170.000 lb
registered parts warranty commercial	HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered unit replacement warranty residential	HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
