BRAVO ROMA — Single Zone Wall Mount
Bravo Roma 1 Ton Wall Mount Mini Split, 12,000 BTU AC & Heat Pump (R32) · BRV-R12W-115VI + BRV-R12LS-115VO
Product Overview
115V 12,000 BTU single-zone ductless mini split with inverter technology, R32 refrigerant, smart app control, and a 13 ft installation kit included — ideal for bedrooms, home offices, and smaller living spaces.
Badges
- 12,000 BTU • 1 Ton
- R32 Refrigerant
- SEER2 17 • HSPF2-4 9
- 115V • 1Ph • 60Hz
- Wi-Fi Smart App
- 13 ft Install Kit Included
Contact
Contact us for custom quotes & questions • Call 800-543-8933 for questions
Performance features
- Single-zone wall-mounted design — sized for bedrooms, offices, and small living spaces
- Inverter compressor for efficient, modulating cooling and heating
- Wi-Fi adapter and SMART APP included for control from compatible smart devices
- Wireless remote control for convenient in-room adjustments
- Comfort modes: Super, Eco, Sleep, and Silent
- Louver auto swing for more even air distribution
- Self-cleaning function with anti-mildew mode
- Multiple fan speeds and programmable timer
- Activated carbon filter for improved air quality
At-a-glance
| Cooling capacity | 12,000 Btu/h |
|---|---|
| Heating capacity | 12,000 Btu/h |
| Airflow | Up to 276 CFM |
| Indoor sound level | 29–42.9 dB(A) (multi-speed) |
| Power | 115V • 1Ph • 60Hz |
| Install kit | 13 ft kit included (pre-flared 99% copper + accessories) |
Refrigerant factory precharge is listed as 25 ft line length (kit length and precharge length can differ).
Watch: Product overview
What’s included
- Complete Bravo Roma 12,000 BTU single-zone system — mini split AC & heat pump inverter set
- Indoor unit: BRV-R12W-115VI (12,000 BTU wall mount, with wireless remote)
- Outdoor unit: BRV-R12LS-115VO (12,000 BTU heat pump condenser)
- Wi-Fi adapter for SMART APP connectivity
- 13 ft installation kit included — pre-flared 99% copper line set, communication wire, PVC drain attachment, wrapping bands, and accessories
- Installation manual and user’s manual
- Manufacturer limited warranty (see warranty section)
Warranty typically requires installation by a licensed HVAC professional and timely registration. Confirm current manufacturer terms.
Other Bravo Roma single-zone wall mount systems
| Capacity | System model (search) |
|---|---|
| 12,000 BTU 115V (this model) | BRV-R12W-115VI + BRV-R12LS-115VO |
| 12,000 BTU 230V | BRV-R12W-230VI + BRV-R12LS-230VO |
| 18,000 BTU 230V | BRV-R18W-230VI + BRV-R18LS-230VO |
| 24,000 BTU 230V | BRV-R24W-230VI + BRV-R24LS-230VO |
| 36,000 BTU 230V | BRV-R36W-230VI + BRV-R36LS-230VO |
Warranty
3-year compressor (limited) • 3-year parts (limited)
Warranty typically requires licensed installation and timely registration. Refer to current manufacturer terms for full details.
Technical specifications
System ratings
| Indoor model | BRV-R12W-115VI |
|---|---|
| Outdoor model | BRV-R12LS-115VO |
| Power supply | 115V • 1Ph • 60 Hz |
| Cooling capacity | 12,000 Btu/h |
| Heating capacity | 12,000 Btu/h |
| EER2 | 10.25 |
| SEER2 | 17 |
| HSPF2-4 | 9 |
| COP2 (heating) | 3.5 W/W |
| Minimum circuit ampacity | 17 A |
| Max fuse | 25 A |
| Refrigerant | R32 |
| Refrigerant precharge | 25 ft line length |
| Design pressure | 652.5 PSIG |
| Refrigerant piping | 1/4″ (liquid) / 3/8″ (gas) |
| Max refrigerant pipe length | 50 ft |
| Connection wiring | 4 × 16 AWG |
Indoor unit (BRV-R12W-115VI)
| Indoor air flow | 276 / 265 / 241 / 224 / 206 (multi-speed) |
|---|---|
| Noise level (hi–lo) | 42.9 / 40 / 36.1 / 33 / 29 dB(A) |

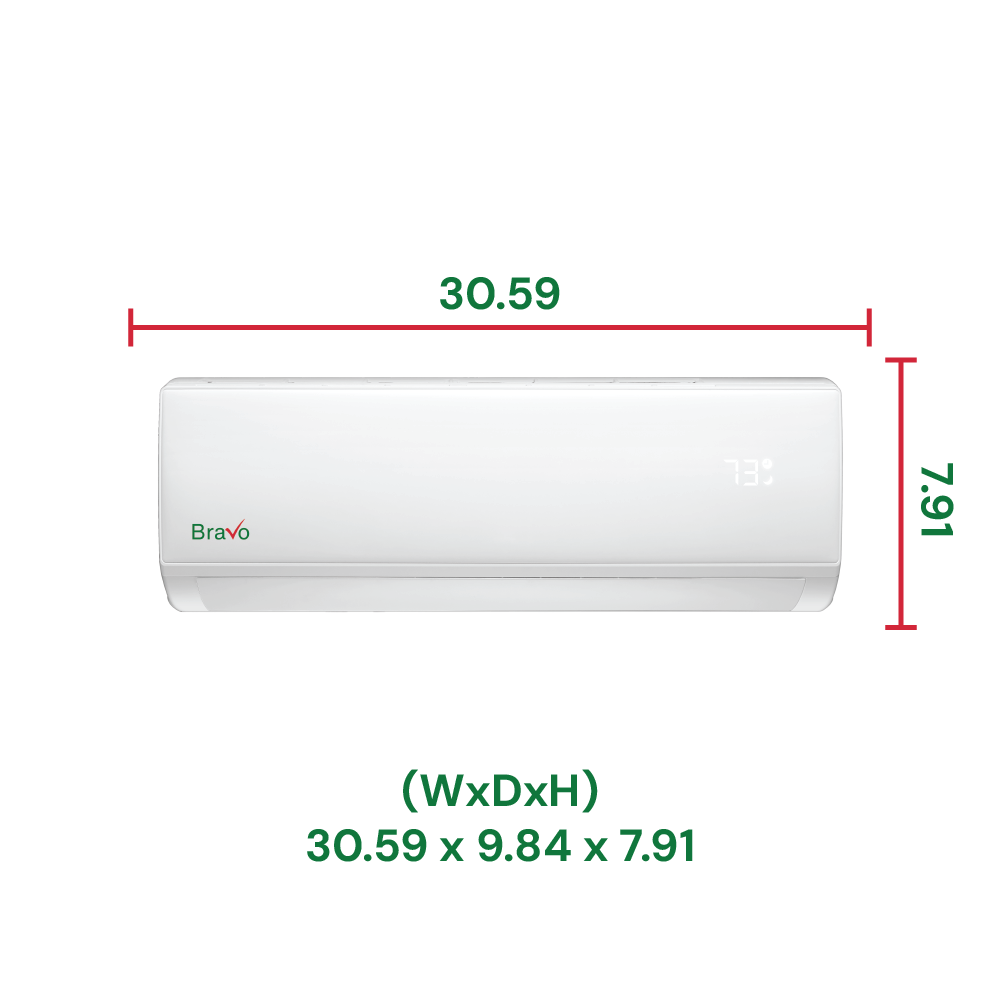

| Dimensions | 30.59 × 9.84 × 7.91 in (W×D×H) |
| Packing | 33.46 × 12.20 × 10.63 in (W×D×H) |
| Net weight | 22.05 lb |
Outdoor unit (BRV-R12LS-115VO)
| Outdoor air flow | 1,213 CFM |
|---|---|
| Outdoor sound level | 53 dB(A) |

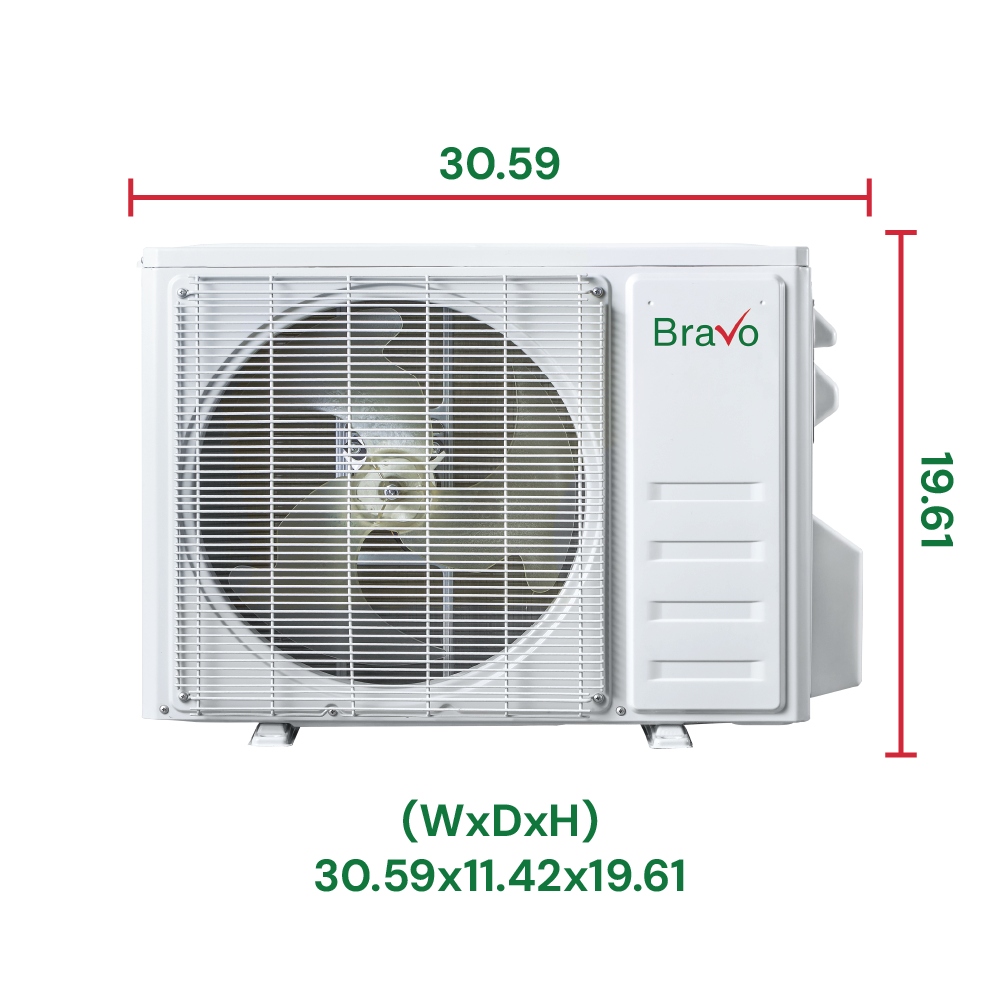

| Dimensions | 30.59 × 11.42 × 19.61 in (W×D×H) |
| Packing | 33.46 × 13.78 × 22.05 in (W×D×H) |
| Net weight | 52.9 lb |
Operating temperature ranges
| Indoor (cooling / heating) | ≥ 62°F / ≤ 86°F |
|---|---|
| Outdoor (cooling) | 5°F to 122°F |
| Outdoor (heating) | −4°F to 86°F |
Certifications
Comfort & performance features
- Sleek matte finish indoor unit
- Turbo function for rapid cooling or heating
- Silent function for reduced sound levels
- LED display for quick status and setpoint checks
- Horizontal auto swing for improved air distribution
- Programmable timer
- Comfortable Sleep Mode for nighttime operation
- Multiple fan speeds for fine-tuned airflow
- Self-cleaning function to help reduce coil buildup
- Follow Me function (temperature sensing at the remote)
- Activated carbon filter for enhanced air filtration
Manuals & documents
- Indoor Unit General Manufacturing Information (BRV-R12W-115VI)
- Outdoor Unit General Manufacturing Information (BRV-R12LS-115VO)
- Bravo Roma Leaflet (PDF)
- Owner’s Manual (PDF)
- Installation Manual (PDF)
Full description
Tap to expand
The Bravo Roma 12,000 BTU 115V single-zone wall mount mini split is designed for spaces that need efficient comfort on a standard household circuit. With inverter technology, R32 refrigerant, and SEER2 17 performance, it delivers year-round heating and cooling while helping manage energy use.
The included Wi-Fi adapter and SMART APP support control from compatible smart devices, while the handheld remote provides direct in-room control. Comfort modes such as Super, Eco, Sleep, and Silent help tailor operation—from faster pull-down on hot days to quieter nighttime performance.
Self-cleaning and anti-mildew functions help keep the indoor coil drier and cleaner, and the activated carbon filter assists with odor and particulate reduction. A 13 ft installation kit is included; for longer runs up to the listed maximum, additional materials may be required.
Electrical ratings (MCA / fuse) should be confirmed against the latest manufacturer documentation and local code requirements.
FAQs
Does this system include a line set?
Yes. A 13 ft pre-flared 99% copper installation kit is included, along with communication wire, drain attachment, and basic accessories. For longer runs up to the 50 ft maximum, additional materials may be required.
What refrigerant does this unit use?
This system uses R32 refrigerant.
What are the operating temperature limits?
Per the provided specs: outdoor cooling 5°F to 122°F and outdoor heating −4°F to 86°F. Confirm current manufacturer documentation for the latest ratings.
Do I need a licensed HVAC professional to install it?
Typically yes for warranty validity. Confirm current warranty terms and registration requirements prior to installation.
