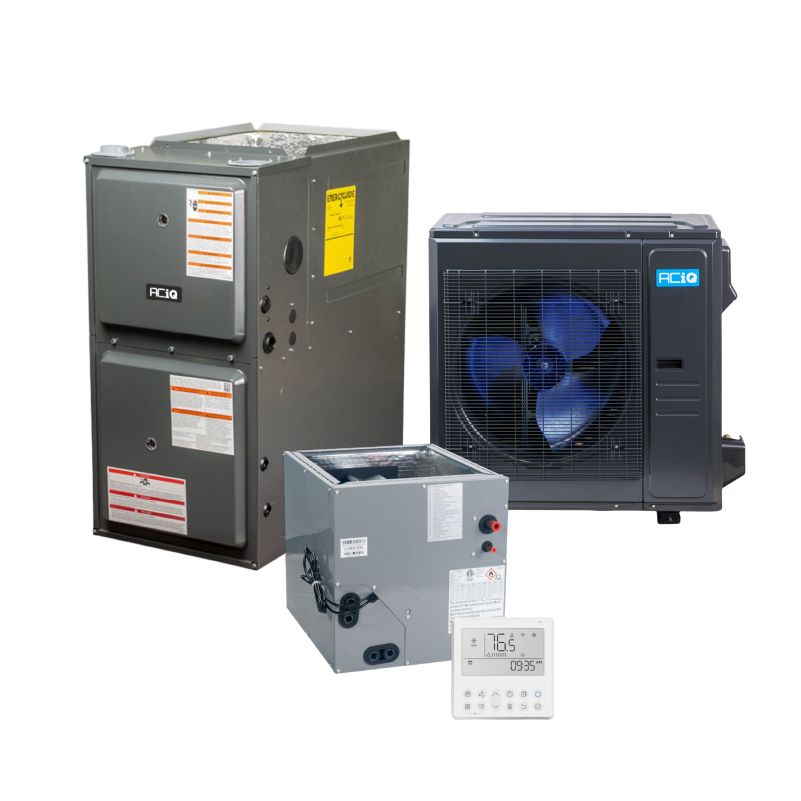

ACIQ Hybrid 5 Ton 14.9 SEER2 96% AFUE 120,000 BTU Furnace and High Efficiency Heat Pump System | Inverter - R454B - Upflow/Horizontal
Product Overview

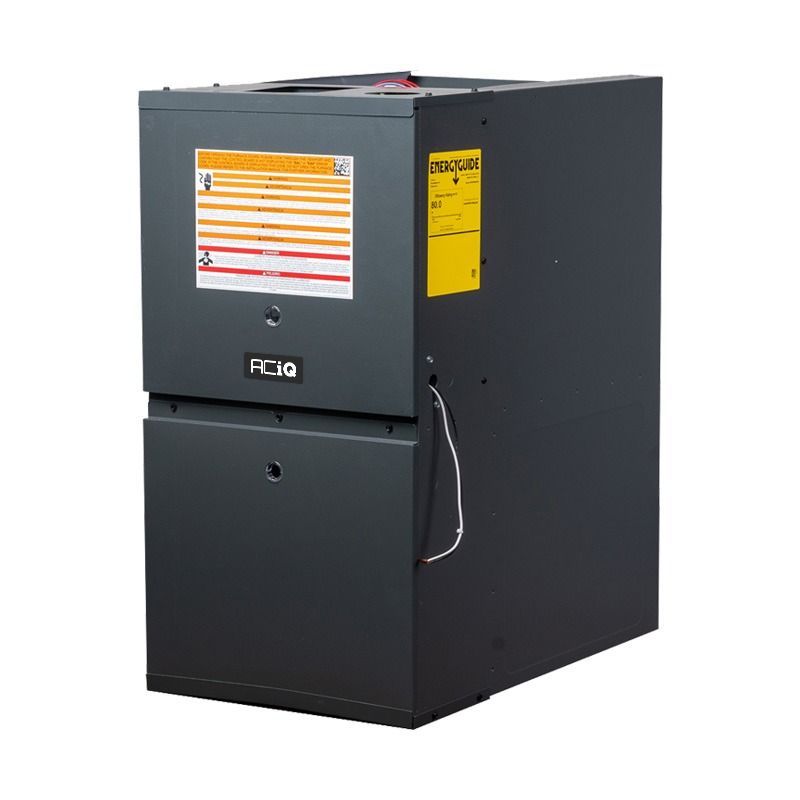

120,000 BTU 96% AFUE Two Stage Gas Furnace - Upflow/Horizontal
OVERVIEW
As a high-efficiency system, the AQ-GR9T961205DN ACiQ gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the AQ-GR9T961205DN is a good way to go if you want to lower your gas bill.
QUICK FACTS
- This furnace is ideal to heat a larger house (depending on climate)
- 120,000 BTU 96% AFUE natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with an optional conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
120,000 BTU
Heating up to a larger house in normal conditions, the AQ-GR9T961205DN ACiQ gas furnace has an input of 120,000 BTU's and an output of 115,200 BTU's. The output in this case is determined by taking the input times the efficiency rating.
96% AFUE
The AQ-GR9T961205DN ACiQ gas furnace is a 96% efficient furnace, making it a condensing setup. This efficiency means that only 4% of the fuel going into the furnace is used up in furnace operations, while 96% of the fuel is used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you need to use metal flue venting, you would need an 80% efficient furnace.
Two Stage 9-Speed Furnace
With a two stage burner, the AQ-GR9T961205DN provides two heating outputs: one at a 60% heating output and one at a 100% output. The furnace also has a 9 speed ECM motor instead of the last-generation inefficient PSC motor. Both of these built-in upgrades allow for your furnace to adjust the heating output and airflow more precisely to better suit your home's comfort needs and provide a slightly higher efficiency.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durability and Reliability
The exterior casing on the AQ-GR9T961205DN is heavy-gauge steel that is insulated for enhanced protection and to lower air leakage and sound output from normal furnace operation. The hot surface ignitor is more efficient than earlier models and standing pilot lights thanks to its revolutionary new technology. Both of these end up saving you money on installation, maintenance, and bills.
One to LPM-34
The cost-saving benefits of the ACiQ brand doesn't stop at efficiency. The AQ-GR9T961205DN ACiQ furnace can be upflow or horizontal, increasing the number of ways that your installer can install the system. The low-voltage terminals that are color-coded, the installation is faster and easier over standard non-colored systems. Straight from the factory, the AQ-GR9T961205DN comes with natural gas valves. However, increasing its versatility in installation, ACiQ offers an LP conversion kit (found here at an additional cost) if you need it to be propane instead of natural gas. Not only does the ACiQ brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the on board self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution.
Please note that this furnace requires a if installed horizontally. Upflow configurations do not require the kit.

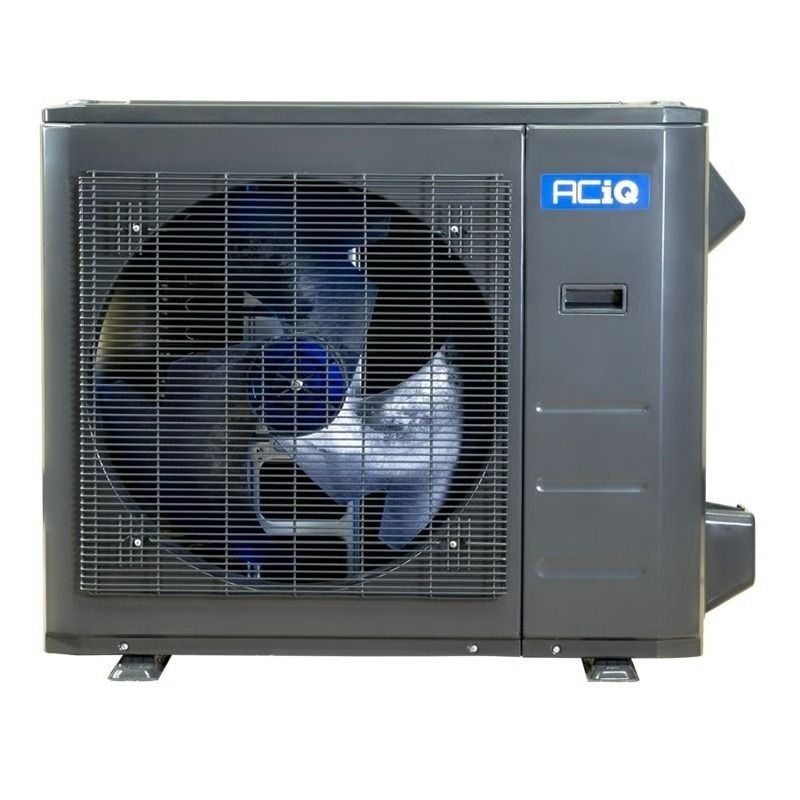

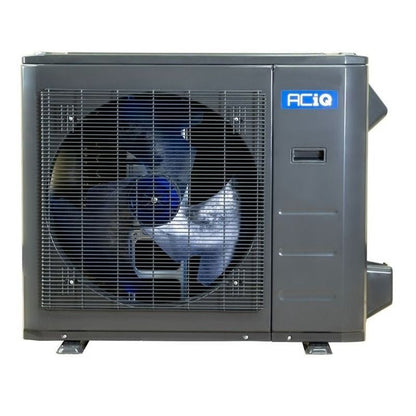

ACIQ 5 Ton 15.2 SEER2 High Efficiency Heat Pump Condenser - R454B Inverter
OVERVIEW
Inverter - The ACIQ-60-EHPD 5 ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the condenser to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.
Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.
Adaptive Sizing - With its self-adjusting inverter design, the ACIQ-60-EHPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.
QUICK FACTS
- Variable output based on demand: 12,000-54,000 BTU for cooling, 12,000-54,000 BTU for heating
- R454B refrigerant
- Inverter heat pump system for ducted applications
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Reliable heating from -13°F to 75°F outdoor temperatures
- Durable gold fin condenser coil coating for longevity
- Quiet operation, even under high workloads
5 Ton, 15.2 SEER2
Boasting an efficiency rating of 15.2 SEER2, the ACIQ-60-EHPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency. Use our sizing calculator (found ) to determine the demand for your home.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

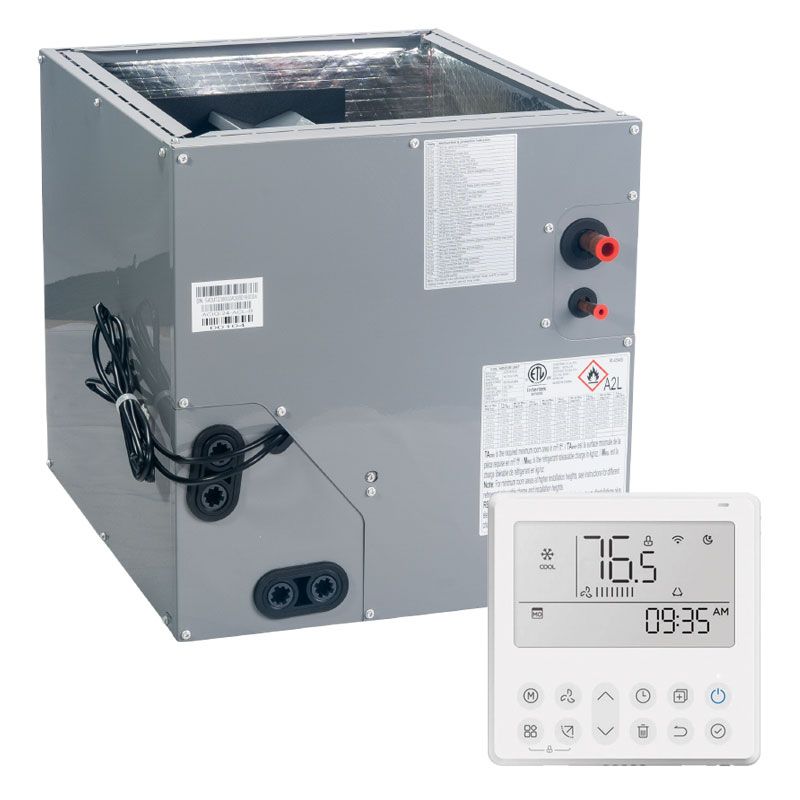

ACIQ 4 Ton 21" Width Multi-Positional Evaporator Cased Coil - R454B
OVERVIEW
ACIQ takes pride in its ability to provide a high-quality system, including all system components.The ACIQ-48-ACL-B multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.
QUICK FACTS
- 4 ton multi-positional evaporator coil
- Works in almost any upflow, downflow, or horizontal system setup
- Compatible with both AC-only and heat pump condensers
- Factory-installed TXV kit for enhanced energy optimization
- Sturdy and compact design
4 Tons
The ACIQ-48-ACL-B is rated for up to 4 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
Technical Specifications — ACIQ-60-EHPD
| sku | ACIQ-60-EHPD |
|---|---|
| refrigerant charge | 134.04 oz. |
| weight | 224.210000 |
| manufacturer | ACiQ |
| replaces | ACiQ-60-EHPB |
| product features | Inverter, Two Stage Condenser, Variable Speed Condenser |
| hspf2 | 8.4 |
| cooling btu | 54,000 BTU |
| heating btu | 54,000 BTU |
| maximum cfm | 3037.1 |
| decibel level (dba) | 65 |
| electric heat | Heat Pump |
| refrigerant | R454B |
| seer2 | 15.2 |
| condenser stages | Variable Speed |
| compressor type | Rotary |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| max breaker size | 40 Amps |
| min. breaker size | 39 Amps |
| tonnage | 5 Ton |
| min/max outdoor temp for heating | -13°F - 75°F |
| min/max outdoor temp for cooling | -13°F - 122°F |
| zone compatibility | Single Zone |
| ambient temperature range | -13°F - 122°F |
| height | 38.39" |
| width | 38.58" |
| depth | 16.34" |
| warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-48-ACL-B
| sku | ACIQ-48-ACL-B |
|---|---|
| weight (in lbs) | 115.000000 |
| brand/manufacturer | ACiQ |
| configuration | Multi-Positional |
| refrigerant | R454B |
| liquid line | 3/8" |
| suction line | 3/4" |
| tonnage | 4 Ton |
| style | A-Coil |
| certification | UL Listed |
| height | 27 3/4" |
| width | 21 5/8" |
| depth | 21 1/2" |
| warranty | 10 Years Parts Warranty with Online Registration |
| resources | ACiQ ACL-B Coil Installation ManualACiQ ACL-B Coil Service ManualSubmittal with ACiQ-48-EHPDSubmittal with ACiQ-48-HPDSubmittal with ACiQ-60-EHPDSubmittal with ACiQ-60-HPDExtended Performance Table with ACiQ-48-HPDExtended Performance Table with ACiQ-60-HPDAHRI Certificate with ACiQ-48-EHPDAHRI Certificate with ACiQ-48-HPDAHRI Certificate with ACiQ-60-EHPDAHRI Certificate with ACiQ-60-HPDWarrantyYou will need Adobe® Acrobat® Reader to view PDF documents. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — AQ-GR9T961205DN
| sku | AQ-GR9T961205DN |
|---|---|
| weight (in lbs) | 154.000000 |
| ahri certificate number | 215225031 |
| airflow direction | Upflow/Horizontal |
| exhaust flue requirement | Plastic / PVC |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 96% |
| heating btu | 120,000 |
| blower motor | 9 Speed - ECM |
| maximum cfm | 2000 |
| configuration | Upflow/Horizontal |
| energy star | Yes |
| electrical | 115 V. 1 Phase 60 Hz |
| max breaker size | 25 Amps |
| min. breaker size | 14.4 Amps |
| burner stages | Two |
| fuel type | Propane, Natural Gas |
| height | 34.5" |
| width | 24.5" |
| depth | 28.75" |
| warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| safety information | This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
