ACIQ 4 Ton 16 SEER2 High Efficiency Mobile Home Heat Pump Split System - R454B Inverter - Multi-Positional

OVERVIEW

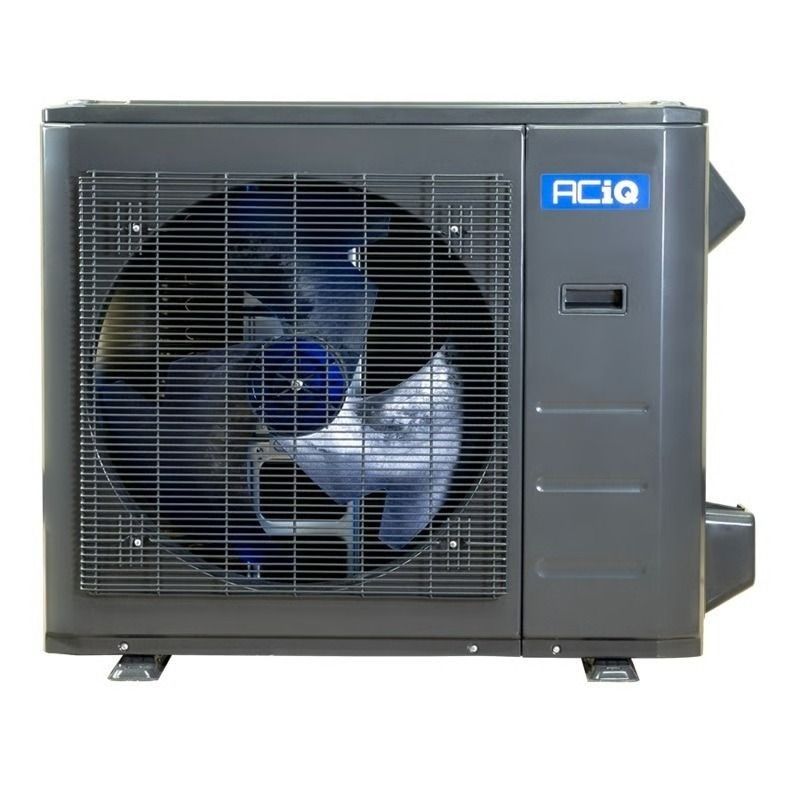

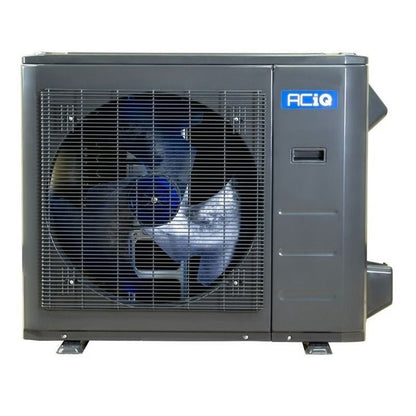

Inverter - The ACiQ-48-EHPD 4 ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the condenser to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.

Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.

Adaptive Sizing - With its self-adjusting inverter design, the ACiQ-48-EHPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.

QUICK FACTS

• Variable output based on demand: 12,000-48,000 BTU for cooling, 12,000-48,000 BTU for heating
• R454B refrigerant
• Inverter heat pump system for ducted applications
• Efficient cooling from -13°F to 122°F outdoor temperatures
• Reliable heating from -13°F to 75°F outdoor temperatures

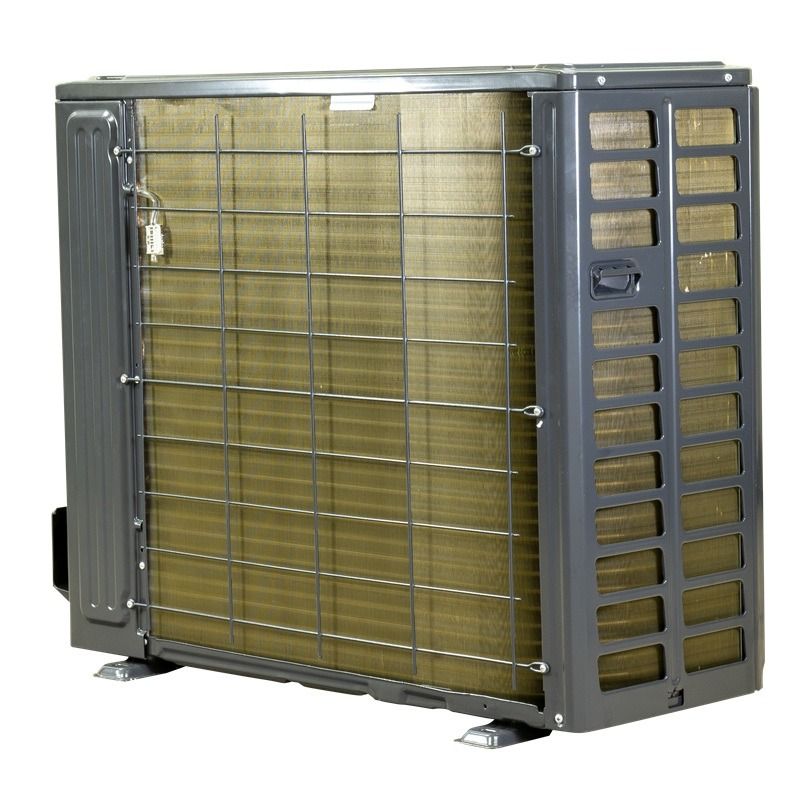

• Durable gold fin condenser coil coating for longevity
• Quiet operation, even under high workloads

4 Ton, 16 SEER2

Boasting an efficiency rating of 16 SEER2, the ACiQ-48-EHPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency. Use our sizing calculator (found ) to determine the demand for your home.

---

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

---

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

---

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

Enhanced Comfort at Maximum Efficiency

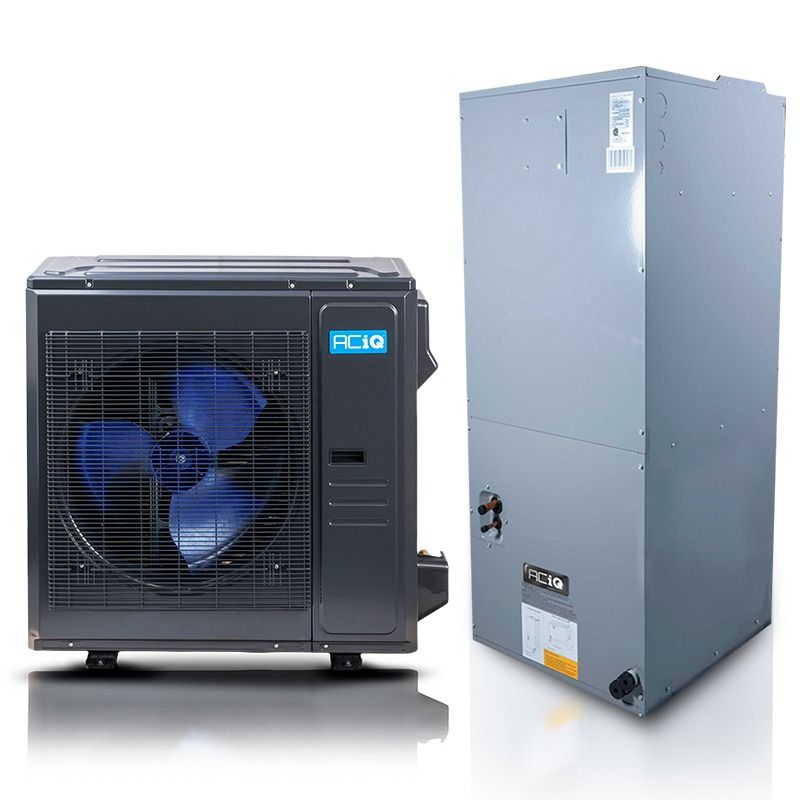

The ACIQ-48-AHD air handler features a variable speed DC blower and communicating technology to maximize comfort and efficiency at the same time. Your thermostat communicates with the inverter condenser outside and the variable speed air handler inside, allowing the system to self-adjust BTU output to maximize efficiency while providing ideal comfort. The air handler efficiently distributes heated and cooled air throughout your home by seamlessly attaching to your existing ductwork.

• 48,000 BTU, 4 ton central ducted air handler
• Compatible with any 24v thermostat
• Variable speed DC blower
• Multi-positional - Can be installed in upflow, downflow, or horizontal left/right orientations
• Compatible with R454B refrigerant

Installation and Maintenance

Installation is very similar to installing any replacement air handler. Your technician will make electrical, refrigerant, thermostat, and communication connections. Plus, they will connect the air handler to your return and supply ductwork. The ACiQ central ducted air handler is multi-positional (upflow, downflow or horizontal), making it a very versatile air handler. Any 24v thermostat with 2 stages of heating can control the system. Supplemental electric heat kits are available as a backup heat source for the coldest days of the year. If any maintenance is required, the intelligent control board in the air handler displays fault codes in case any part of the system experiences issues.

Please note - in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heat kit is necessary and is also available at an additional cost.
